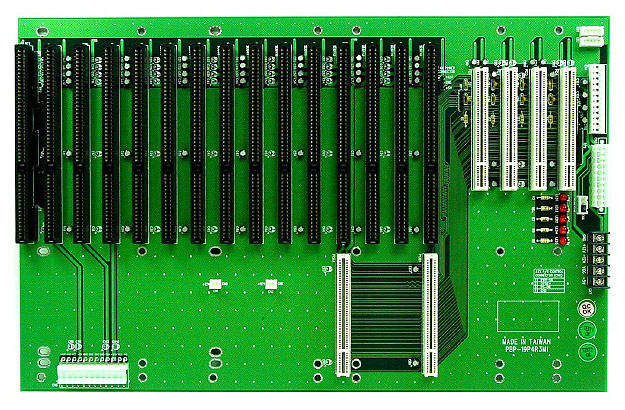

BP3011   ISA X 13, PICMG X 2 & PCI X 4  PICMG 1.0 for 4U Chassis





ISA X 13, PICMG X 2 & PCI X 4



 Features :
  • Dual slot PCI/ISA for the CPU board.
    PCI Conforms to PICMG 1.0 Specification
  • Fifteen ISA slots for full‐size ISA boards.
    ISA Conforms to IEEE P996 Specification.
  • PCI Compliant with the following Specification
    Three 5V 32bit PCI slots for full-size boards on the Primary bus.
    5V/3.3v 32-bit PCI slots for full-size boards on the secondary bus;
    Supports PCI Local Bus Specification Revision 2.2、Advanced Configuration
    Power Interface(ACPI)、PCI Power Management Revision 1.0

    Power Connector Supports
    ATX Standard Power connector: Max 5A for 20-pin
    Support AT Standard Power connector: Max 5A for 12-pin
    Support +12V、-12V、-5V、3.3V Power Connector
  • Supports Three Fan Power、Power signal status
  • 4-layer PCB to reduce noise and keep lower impedance.
  • Dimension: 417x 265(mm)



 Board drawing :
 Dimension & Mounting Screw Holes compatible with PICMG 1.0 Specification :




Availability: Usually ships the same business day

BP3011$145.00
