BP3012   ISA X 2, PICMG X 1 & PCI X 12  PICMG 1.0 for 4U Chassis








ISA X 2, PICMG X 1 & PCI X 12



 Features :
  • Dual slot PCI/ISA for the CPU board.
    PCI Conforms to PICMG 1.0 Revision 2.0 Specification
  • Three ISA slots for full‐size ISA boards.
    ISA Conforms to IEEE P996 Specification.
  • PCI Compliant with the following Specification
    Three 5V 32bit PCI slots for full-size boards on the Primary bus.
    5V/3.3v 32-bit PCI slots for full-size boards on the secondary bus;
    Supports PCI Local Bus Specification Revision 2.2、Advanced Configuration
    Power Interface(ACPI)、PCI Power Management Revision 1.0
  • Power Connector Supports
    ATX Standard Power connector: Max 5A for 20-pin
    Support AT Standard Power connector: Max 5A for 12-pin
    Support P10 Standard Power Connector: +5V max 5A for 6-pin
    Support +12V、-12V、-5V、3.3V Power Connector
  • One Keyboard DIN and Pairs of header for local connection of a keyboard.
  • Supports Three Fan Power、Power signal status
  • 4-layer PCB to reduce noise and keep lower impedance
  • Dimension: 317 x 257 (mm)

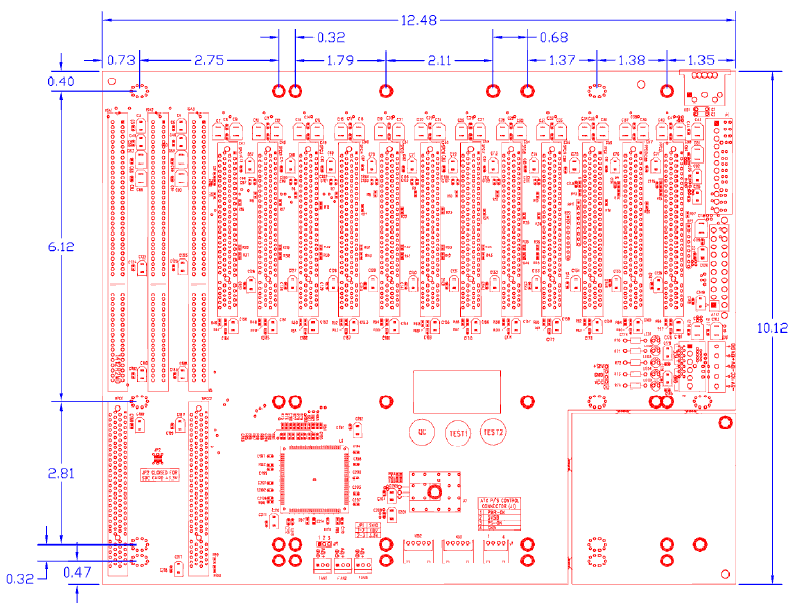

 Board drawing :
 Dimension & Mounting Screw Holes compatible with PICMG 1.0 Specification :




Availability: Usually ships the same business day

BP3012$173.00
