ID-H15P : 15" Open Frame Samsung Sunlight Viewable Display                                                                  .





15" Samsung Open Frame Sunlight Readable Display


LCD Panel

LCD Type

Samsung Grade A Industrial
TFT LCD Panel

Display Size

15 inch diagonal (304.13H x 228.1V)

Resolutions

1024 x 768

Display Color

16.2M color

Brightness

1400 cd/m2

Contrast ratio

400 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.297 x 0.297 mm

Viewing angle

65 / 65 / 50 / 60 (L / R / U / D) or
130 / 110

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

  • Input Video Signal : Analog RGB
  • Video Level : Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
OPTIONS

Optional Video Input

  • Video Input : DVI and S-Video and Composite and BNC
  • Input Connectors : RCA, S-video, DVI

Optional Touch Screen

Details

Optional DC Power

48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Mechanical

Material

1.2mm Steel

Product Weight 3.5 kg
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~90%, non condensing
Vibration 5~500Hz 1G RMS random vibration
Shock 10G peak acceleration (11ms duration)
Safety Approval CE, FCC
Package Content

Package Content

LCD Monitor x 1,VGA Cable (Male to Male) x 1,
DC 12V adapter x1 , Power cord x 1,
Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-H15P

Construction


Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view




FEATURES :
  • 15" industrial TFT LCD panel support 1024 x 768 pixels
  • 1400 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Low power consumption
  • Different models fit for various application
  • Modularized design
  • Optional video input (DVI & S-Video & RCA input)
  • Optional with touch screen and DC power input
  • Low power consumption
  • VESA-mount, Universal-mount, OEM mounting design

APPLICATIONS :

  • Industrial automation LCD panel
  • Embedded display Unit
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

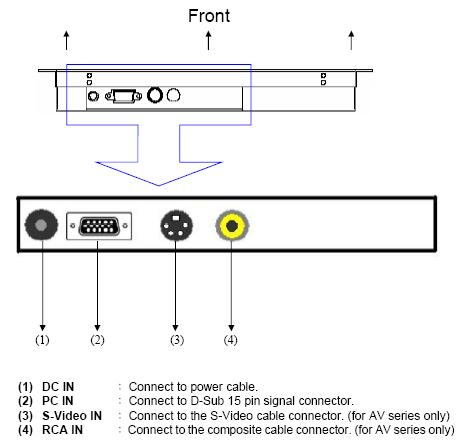

Diagram for I/O Outlet







ID-H15P
