ID-H19D : 1.2mm Aluminum Front Bezel 19" Samsung Sunlight Viewable Display -  Chassis Display





1.2mm Aluminum Front Bezel 19" Samsung Sunlight Readable Display - Chassis Display


LCD Panel

LCD Type

Samsung Grade A Industrial


TFT LCD Panel

Display Size

19 inch diagonal (376.32H x 301.056V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

800 cd/m2

Contrast ratio

800 : 1 (Typical)

Response Time

Tr=1.3 / Tf=3.7ms

Pixel pitch

0.294 x 0.294 mm

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D) or
160 / 160

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

  • Input Video Signal : Analog RGB
  • Video Level : Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA
    analog

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
OPTIONS

Optional Video Input

  • Video Input : DVI and S-Video and Composite and BNC
  • Input Connectors : RCA, S-video, DVI

Optional Touch Screen

Details

Optional DC Power

48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)


36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Mechanical

Material

1.2mm Aluminum (Front panel)


1.2mm Steel (Rear case)

Finish

Powder Coating

Color Front Panel : Silver


Back : Dark Grey (RAL7037)
Product Weight 6 kg
Environmental
Temperature 0 to 50 Degree Celsius (Operation)


-10 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~90%, non condensing
Vibration 5~500Hz 1G RMS random vibration
Safety Approval CE, FCC
Package Content

Package Content

LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-H19D

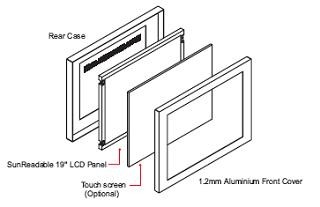

Construction


Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view






FEATURES :
  • 19" industrial TFT LCD panel support 1280 x 1024 pixels
  • 1.2mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • Low power consumption
  • 800 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional DC power input (12 / 24 / 48 VDC)
  • Optional video input (DVI & S-Video & RCA input)
  • VESA-mount , OEM mounting design

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet







ID-H19D
