 ID-22Aw  22 inches Samsung Industrial Grade A 16: 10 Wide Screen Panel Mount  / Vesa Mount LCD optinal S-Video & Composite Video , NEMA 4/IP65 ,Speaker, DC power input, TV turner & Remote controller, Touchscreen







 Part #  ID-22Aw

*** This model is discontinued . Learn more about replacement model ID-E21Aw  ***


                     6mm Aluminum Front Bezel 22 " Samsung Panel Mount Wide Screen Industrial  Monitor
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

Wide 22 inch (16:10)

Resolutions

1680 x 1050

Display Color

16.7M color

Brightness

300 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

Tr=3.6ms

Pixel pitch

0.282 x 0.282 mm

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color,
H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                               OPTIONS

Optional Video  Input

  • Video Input :DVI and S-Video and Composite
  • Input Connectors : BNC, S-video, DVI

Optional DC Power

 48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating

Color  Front Panel : Black
 Back          : Dark Grey (RAL7037)
Dimension  574 x 62 x 380 mm (WxDxH)
Product Weight  5 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Shock  10G acceleration (11ms duration)
Safety Approval   CE, FCC
                             Package Content

Package Content

LCD Monitor x 1,VGA Cable (Male to Male) x 1,  AC to DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, User Manual x 1

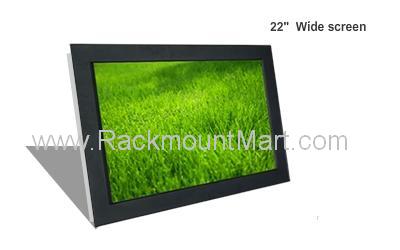

  Front View of  ID-22Aw



  Construction


   Front / Rear / Top / Side Views & Dimensions



      *click on above picture for enlarged view







                     ( VESA Mount /  Wall Mount )



Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7


More Photos, click on the following for enlarged view:



FEATURES :
  • Wide 22" (16 : 10) TFT LCD panel support 1680 x 1050 pixels
  • 6mm aluminum front bezel with 45 degree chamfer
  • 300 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional TV tuner
  • Optional audio input with speaker
  • Optional remote controller
  • Optional BNC, DVI input
  • A wide range of mounting kits   (VESA-mount, Mounting bracket, OEM mounting design...)

APPLICATIONS :

  • Industrial process control LCD panel
  • Point of sales / Kiosk
  • Security / surveillance
  • Flight information display panel

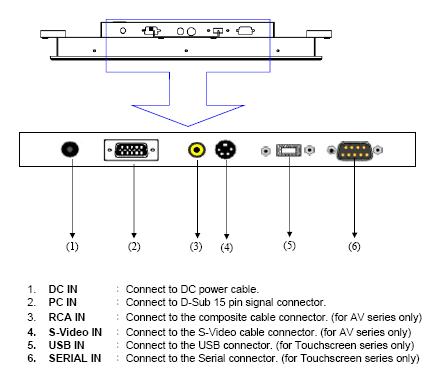

     Diagram for  I/O Outlet




Ordering information :

Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-22Aw Standard Version  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display
ID-22AwDVI Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display + DVI
ID-22AwAV Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           S-Video & Composite video(RCA)
ID-22AwBNC Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           S-Video & Composite video(BNC)
ID-22AwDC12 Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           12v DC Power
ID-22AwDC24 Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           24v DC Power
ID-22AwDC48 Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           48v DC Power
ID-22AwTRS Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Resistive Touch screen & serial controller
ID-22AwTRB Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Resistive Touch screen & USB controller
ID-22AwTCS Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Capacitive Touch screen & serial controller
ID-22AwTCB Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Capacitive Touch screen & USB controller
-DVI Add DVI
-AV Add Composite video(RCA) + S-video
-HDMI Add HDMI
-BNC Add Composite video(BNC) + S-video
-TV Add TV tuner with remote controller
-QD Add Quad display
-MC Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
-12VDC Add 12V DC Power
-24VDC Add 24V DC Power
-48VDC Add 48V DC Power
-SPK Add Audio input
-RM Add Remote controller
                                                  WITH NEMA 4 / IP65
ID-22AwN Standard Version  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           NEMA 4 / IP65
ID-22AwDVIN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                          DVI + NEMA 4 / IP65
ID-22AwAVN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-22AwBNCN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-22AwDC12N Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           12v DC Power +NEMA 4 / IP65
ID-22AwDC24N Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           24v DC Power +NEMA 4 / IP65
ID-22AwDC48N Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           48v DC Power +NEMA 4 / IP65
ID-22AwTRSN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Resistive Touch screen & serial controller + NEMA 4 / IP65
ID-22AwTRBN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Resistive Touch screen & USB controller + NEMA 4 / IP65
ID-22AwTCSN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-22AwTCBN Version w/option  - 6mm Aluminum Front Bezel 22" (16:10) Samsung Industrial display +
                           Capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI Add DVI
-AV Add Composite video (RCA) + S-video
-HDMI Add HDMI
-BNC Add Composite video (BNC) + S-video
-TV Add TV tuner with remote controller
-QD Add Quad display
-MC Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
-12VDC Add 12V DC Power Input
-24VDC Add 24V DC Power Input
-48VDC Add 48V DC Power Input
-SPK Add Audio input
-RM Add Remote controller




ID-22Aw
