ID-H22Pw  22"Wide Screen (16:10) Open Frame Samsung Sunlight Viewable Display







Part #  ID-H22Pw

*** This model is discontinued . Learn more about replacement model ID-HE21Pw  ***


                22"Wide Screen (16:10) Samsung High Brightness Industrial Display - Open Frame Style
                                                  LCD Panel

LCD Type

Samsung Grade A              IndustrialTFT LCD Panel

Display Size

Wide 22 inch diagonal (474H x 296V)

Resolutions

1680 x 1050

Display Color

16.7M color

Brightness

600 cd/m2

Contrast ratio

900 : 1 (Typical)

Response Time

Tr=3.6ms

Pixel pitch

0.282 x 0.282 mm

Viewing angle

80° / 80° / 80° / 80° (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V,
    Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply

Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                                  OPTIONS

Optional Video  Input

  • Video Input :DVI, S-Video and Composite
  • Input Connectors : DVI, BNC, RCA, S-video
  • Optional Touch Screen

                 Details

    Other Options

    - Video Input : DVI, S-Video & Composite Video (BNC/RCA)
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power    Details
    - Anti-Reflective Film, Optical Bonding
    - Multi-Display Controller         Details

                                      Mechanical

    Material

      1.2mm Steel

    Dimension  571 x 55 x 377 mm (WxDxH)
    Product Weight  5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~90%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock   10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   AC to DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, User Manual x 1

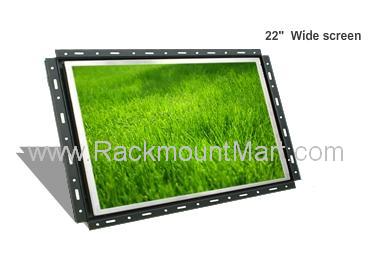

      Front View of  ID-H22Pw

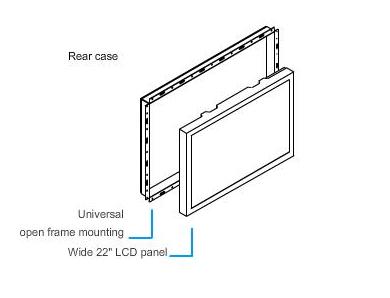

      Construction



       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view

     Download Product Sheet
     Download User Manual







    More Photos, click on the following for enlarged view:




    FEATURES :
    • 22"(16:10) industrial TFT LCD panel support 1680 x 1050 pixels
    • Rugged construction and modularized design
    • 600 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional video input : S-video & Composite Video (RCA /BNC ) ,DVI ,  TV tuner , Audio, Remote controller
    • Optional Quad Display, Audio, Anti-Reflective Film, Optical Bonding
    • Optional touch screen
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

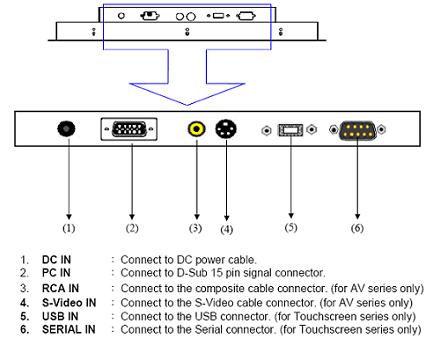

         Diagram for  I/O Outlet




    Ordering information :

    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H22Pw Standard Version  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display
    ID-H22PwDVI Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + DVI
    ID-H22PwAV Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + S-Video & Composite video(RCA)
    ID-H22PwBNC Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + S-Video & Composite video(BNC)
    ID-H22PwDC12 Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + 12v DC Power
    ID-H22PwDC24 Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + 24v DC Power
    ID-H22PwDC48 Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + 48v DC Power
    ID-H22PwTRS Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + Resistive Touch screen & serial controller
    ID-H22PwTRB Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + Resistive Touch screen & USB controller
    ID-H22PwTCS Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + Capacitive Touch screen & serial controller
    ID-H22PwTCB Version w/option  - 22" (16:10) Samsung High Brightness Open Frame TFT LCD Display + Capacitive Touch screen & USB controller
    -DVI Add DVI
    -AV Add Composite video(RCA) + S-video
    -BNC Add Composite video(BNC) + S-video
    -TV Add TV tuner with remote controller
    -QD Add Quad display
    -MC Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
    -12VDC Add 12V DC Power
    -24VDC Add 24V DC Power
    -48VDC Add 48V DC Power
    -SPK Add Audio input
    -RM Add Remote controller
    -AR Add Anti-reflective film
    -OB Add Optical bonding




    ID-H22Pw
