ID-H19A : 6mm Aluminum Front Bezel 19" Samsung Sunlight Viewable Display

6mm Aluminum Front Bezel 19" Samsung Sunlight LCD - Panel Mount Style

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	19 inch diagonal (376H x 301V)
Resolutions	1280 x 1024
Display Color	16.7M color
Brightness	800 cd/m2
Contrast ratio	800 : 1 (Typical)
Response Time	Tr=1.3 / Tf=3.7ms
Pixel pitch	0.294 x 0.294 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D)
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter
Mounting	Support VESA-mount, Panel-mount, Wall-mount& Bracket mount
OPTIONS
Optional Video Input	Video Input : DVI, S-Video and Composite Input Connectors : DVI, BNC, RCA, S-video
Optional Touch Screen	Details
Other Options	- Video Input :DVI, S-Video & Composite Video (BNC/RCA) - NEMA4 / IP65, TV tuner, Audio, Remote controller - 48V / 24V / 12V DC Power Details - Anti-Reflective Film, Optical Bonding
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	476.5 x 61.6 x 384.1 mm (WxDxH)
Product Weight	6 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Shock	10G acceleration (11ms duration)
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x1,VGA Cable (Male to Male)x1, AC to DC 12V adapter x1 ,Power cord x 1, Mounting Bracket x 1 pair, User Manual x 1

Front View of Sunlight LCD ID-H19A

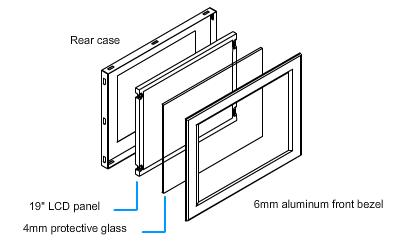

Construction

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

Touchscreen Drive Download
Mac	Linux	Dos
Win 2k-Xp	Win 98-Me	Win CE
Win 7

More Photos, click on the following for enlarged view:

FEATURES :

19" industrial Sunlight TFT LCD panel support 1280 x 1024 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

800 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional front IP protection

Optional video input (DVI & S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-H19A Price : $1283	Standard Version - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD
ID-H19AAV Price : $1364	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ S-Video & Composite video(RCA)
ID-H19ABNC Price : $1364	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ S-Video & Composite video(BNC)
ID-H19ADVI Price : $1344	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ DVI
ID-H19ADC12 Price : $1486	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 12v DC Power
ID-H19ADC24 Price : $1486	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 24v DC Power
ID-H19ADC48 Price : $1486	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 48v DC Power
ID-H19ATRS Price : $1540	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Resistive Touch screen & serial controller
ID-H19ATRB Price : $1540	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Resistive Touch screen & USB controller
ID-H19ATCS Price : $1715	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Capacitive Touch screen & serial controller
ID-H19ATCB Price : $1715	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Capacitive Touch screen & USB controller
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $594	Add Quad display
-12VDC Price : $203	Add 12V DC Power
-24VDC Price : $203	Add 24V DC Power
-48VDC Price : $203	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
-AR Price : $209	Add Anti-reflective film
-OB Price : $608	Add Optical bonding
WITH NEMA 4 / IP65
ID-H19AN Price : $1327	Standard Version - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ NEMA 4 / IP65
ID-H19AAVN Price : $1408	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-H19ABNCN Price : $1408	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-H19ADVIN Price : $1388	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ DVI + NEMA 4 / IP65
ID-H19ADC12N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 12v DC Power + NEMA 4 / IP65
ID-H19ADC24N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 24v DC Power + NEMA 4 / IP65
ID-H19ADC48N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ 48v DC Power + NEMA 4 / IP65
ID-H19ATRSN Price : $1584	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Resistive Touch screen & serial controller + NEMA 4 / IP65
ID-H19ATRBN Price : $1584	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Resistive Touch screen & USB controller + NEMA 4 / IP65
ID-H19ATRSN Price : $1759	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-H19ATRBN Price : $1759	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+ Capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $594	Add Quad display
-12VDC Price : $203	Add 12V DC Power
-24VDC Price : $203	Add 24V DC Power
-48VDC Price : $203	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
-AR Price : $209	Add Anti-reflective film
-OB Price : $608	Add Optical bonding

Back to top

Availability: Usually ships the same business day

ID-H19A

$1,283.00

Model:

Quad Display:

HDMI:

DVI:

NEMA4 / IP65:

TV Tuner:

AV:

BNC:

Touch Screen:

DC Power:

-SPK : Audio input:

-RM : Remote controller:

Anti-reflective film:

Optical bonding:
