ID-H19Aw 6mm Aluminum Front Bezel 19"Wide Screen (16:10) Open Frame Samsung Sunlight Viewable Display- Panel Mount Style

6mm Aluminum Front Bezel 19" Samsung Wide Screen (16:10)
High Brightness Industrial Display - Panel Mount Style

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	Wide 19 inch diagonal (16:10) (408H x 255V)
Resolutions	1440 x 900
Display Color	16.7M color
Brightness	800 cd/m2
Contrast ratio	900 : 1 (Typical)
Response Time	Tr=1.3 / Tf=3.7ms
Pixel pitch	0.284 x 0.284 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D)
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter
Mounting	Support VESA-mount, Panel-mount, Wall-mount& Bracket mount
OPTIONS
Optional Video Input	Video Input : DVI, S-Video and Composite Input Connectors :DVI, BNC, RCA, S-video
Optional Touch Screen	Details
Other Options	- Video Input : DVI, S-Video & Composite Video (BNC/RCA) - NEMA4 / IP65, TV tuner, Audio, Remote controller - 48V / 24V / 12V DC Power Details - Anti-Reflective Film, Optical Bonding
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	508.5 x 63.6 x 338.1 mm (WxDxH)
Product Weight	5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Shock	10G acceleration (11ms duration)
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1,VGA Cable (Male to Male) x 1, AC to DC 12V adapter x1 ,Power cord x 1, Mounting Bracket x 1 pair, User Manual x 1

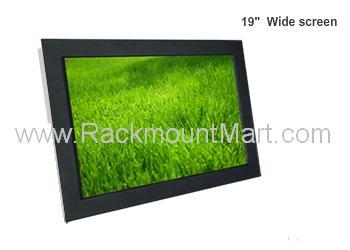

Front View of ID-H19Aw

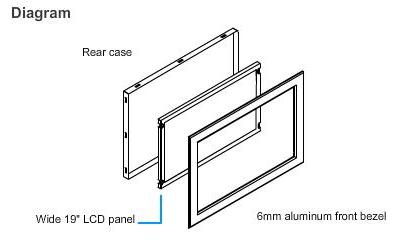

Construction

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

( VESA Mount / Wall Mount )

NOTE: Coming soon! Refer to similar model now

More Photos, click on the following for enlarged view:

FEATURES :

19"(16:10) industrial TFT LCD panel support 1440 x 900 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

800 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional video input (DVI & S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-H19Aw Price : $1283	Standard Version - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor
ID-H19AwAV Price : $1364	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + S-Video & Composite video(RCA)
ID-H19AwBNC Price : $1364	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + S-Video & Composite video(BNC)
ID-H19AwDVI Price : $1344	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + DVI
ID-H19AwDC12 Price : $11486	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + 12V DC to DC Power input
ID-H19AwDC24 Price : $1486	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + 24v DC to DC Power input
ID-H19AwDC48 Price : $1486	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + 48v DC to DC Power input
ID-H19AwTRS Price : $1540	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + Resistive Touch screen & serial controller
ID-H19AwTRB Price : $1540	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + Resistive Touch screen & USB controller
ID-H19AwTCS Price : $1715	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + Capacitive Touch screen & serial controller
ID-H19AwTCB Price : $1715	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor + Capacitive Touch screen & USB controller
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $567	Add Quad display
-12VDC Price : $203	Add 12V DC Power
-24VDC Price : $203	Add 24V DC Power
-48VDC Price : $203	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
-AR Price : $209	Add Anti-reflective film
-OB Price : $473	Add Optical bonding
WITH NEMA 4 / IP65
ID-H19AwN Price : $1327	Standard Version - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ NEMA 4 / IP65
ID-H19AwAVN Price : $1408	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-H19AwBNCN Price : $1408	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-H19AwDVIN Price : $1388	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ DVI + NEMA 4 / IP65
ID-H19AwDC12N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ 12v DC Power + NEMA 4 / IP65
ID-H19AwDC24N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ 24v DC Power + NEMA 4 / IP65
ID-H19AwDC48N Price : $1530	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ 48v DC Power + NEMA 4 / IP65
ID-H19AwTRSN Price : $1584	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ Resistive Touch screen & serial controller + NEMA 4 / IP65
ID-H19AwTRBN Price : $1584	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ Resistive Touch screen & USB controller + NEMA 4 / IP65
ID-H19AwTCSN Price : $1759	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ Capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-H19AwTCBN Price : $1759	Version w/option - 6mm Aluminum Front Bezel 19" Wide Screen 16:10 Samsung High brightness display monitor+ Capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $567	Add Quad display
-12VDC Price : $203	Add 12V DC Power
-24VDC Price : $203	Add 24V DC Power
-48VDC Price : $203	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
-AR Price : $209	Add Anti-reflective film
-OB Price : $473	Add Optical bonding

Back to top

Availability: Usually ships the same business day

ID-H19Aw

$1,283.00

Model:

NEMA4 / IP65:

HDMI:

DVI:

TV Tuner with Remote controller:

AV:

BNC:

Quad Display:

Touch Screen:

DC Power:

-SPK : Audio input:

-RM : Remote controller:

-AR : Anti-reflective film:

-OB : Optical bonding:
