ID-H22Aw 6mm Aluminum Front Bezel 22"Wide Screen (16:10) Open Frame Samsung Sunlight Viewable Display- Panel Mount Style





                                                 6mm Aluminum Front Bezel 22" Wide Screen
                                    Samsung High Brightness Industrial Display  - Panel Mount Style

                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

Wide 22 inch (16:10)

Resolutions

1680 x 1050

Display Color

16.7M color

Brightness

600 cd/m2

Contrast ratio

900 : 1 (Typical)

Response Time

Tr=3.6/ Tf=1.4ms

Pixel pitch

0.282 x 0.282 mm

Panel color

16.7 million display colors

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color,
H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply

 Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                            OPTIONS

Optional Video  Input
  • Video Input :DVI, S-Video and    Composite
  • Input Connectors :DVI, BNC, RCA,    and S-video

    • Optional Touch Screen

                     Details

    Other Options

    - Video Input : DVI, S-Video & Composite Video (BNC/RCA)
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power Input     Details
    - Anti-Reflective Film, Optical Bonding

                                      Mechanical

    Material

     6mm Aluminum (Front panel),  1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension 574 x 62 x 380 mm (WxDxH)
    Product Weight 5kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~90%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock  10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		LCD Monitor x 1,VGA Cable (Male to Male) x 1,   AC to DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, User Manual x 1

    Front View of  High Brightness Display Monitor :
    ID-H22Aw

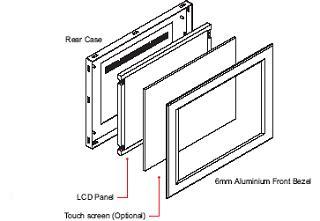

      Construction


       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view










                         ( VESA Mount /  Wall Mount )




    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE






      More photos (click to enlarge )

    FEATURES :

    • 22"(16:10) industrial TFT LCD panel support 1680 x 1050 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 600 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional video input : S-video & Composite Video (RCA /BNC ) ,DVI ,  TV tuner , Audio, Remote controller
    • Optional Quad Display, Audio, Anti-Reflective Film, Optical Bonding
    • Optional touch screen
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet

    Ordering information :

    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H22Aw
    Price : $1468    		 Standard Version  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor
    ID-H22AwAV
    Price : $1549    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + S-Video & Composite video(RCA)
    ID-H22AwBNC
    Price : $1549    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + S-Video & Composite video(BNC)
    ID-H22AwDVI
    Price :  $1529    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + DVI
    ID-H22AwDC12
    Price : $1671    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor +  12V DC to DC Power input
    ID-H22AwDC24
    Price : $1671    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + 24v DC to DC Power input
    ID-H22AwDC48
    Price : $1671    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor +  48v DC to DC Power input
    ID-H22AwTRS
    Price : $1806    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor +  Resistive Touch screen & serial controller
    ID-H22AwTRB
    Price :  $1806    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + Resistive Touch screen & USB controller
    ID-H22AwTCS
    Price : $1968    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + Capacitive Touch screen & serial controller
    ID-H22AwTCB
    Price : $1968    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10  Samsung High brightness display monitor + Capacitive Touch screen & USB controller
    -DVI
    Price : $61    		 Add DVI
    -AV
    Price : $81    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $81    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -QD
    Price : $567    		 Add Quad display
    -12VDC
    Price : $203    		 Add 12V DC Power
    -24VDC
    Price : $203    		 Add 24V DC Power
    -48VDC
    Price : $203    		 Add 48V DC Power
    -SPK
    Price : $81    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $243    		 Add Anti-reflective film
    -OB
    Price : $608    		 Add Optical bonding
                                                      WITH NEMA 4 / IP65
    ID-H22AwN
    Price : $1513    		 Standard Version  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ NEMA 4 / IP65
    ID-H22AwAVN
    Price : $1594    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ S-Video & Composite video(RCA) + NEMA 4 / IP65
    ID-H22AwBNCN
    Price : $1594    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ S-Video & Composite video(BNC) + NEMA 4 / IP65
    ID-H22AwDVIN
    Price : $1574    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ DVI + NEMA 4 / IP65
    ID-H22AwDC12N
    Price : $1716    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ 12v DC Power + NEMA 4 / IP65
    ID-H22AwDC24N
    Price : $1716    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ 24v DC Power + NEMA 4 / IP65
    ID-H22AwDC48N
    Price : $1716    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ 48v DC Power + NEMA 4 / IP65
    ID-H22AwTRSN
    Price : $1851    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+
                               Resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-H22AwTRBN
    Price : $1851    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ Resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-H22AwTCSN
    Price : $2013    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ Capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-H22AwTCBN
    Price : $2013    		 Version w/option  - 6mm Aluminum Front Bezel 22" Wide Screen 16:10 Samsung High brightness display monitor+ Capacitive Touch screen & USB controller + NEMA 4 / IP65
    -DVI
    Price : $61    		 Add DVI
    -AV
    Price : $81    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $81    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -QD
    Price : $567    		 Add Quad display
    -12VDC
    Price : $203    		 Add 12V DC Power
    -24VDC
    Price : $203    		 Add 24V DC Power
    -48VDC
    Price : $203    		 Add 48V DC Power
    -SPK
    Price : $81    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $243    		 Add Anti-reflective film
    -OB
    Price : $608    		 Add Optical bonding

    Back to top





    Availability: Usually ships the same business day

    ID-H22Aw$1,468.00
    Model:

    NEMA4 / IP65:

    HDMI:

    DVI:

    TV Tuner with Remote controller:

    AV:

    BNC:

    Quad Display:

    Touch Screen:

    DC Power:

    -SPK : Audio input:

    -RM : Remote controller:

    -AR : Anti-reflective film:

    -OB : Optical bonding:
