ID-15A 15" AUO Panel Mount Industrial Flat Panel Monitor Optional Composite Video / BNC / DC Power / Touch Screen / NEMA 4 / IP65

6mm Aluminum Front Bezel AUO 15" Panel Mount Industrial Monitor

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	15 inch diagonal (304.13H x 228.1V)
Resolutions	1024 x 768
Display Color	16.2M color
Brightness	Min. 250 cd/m2
Contrast ratio	700 : 1 (Typical)
Response Time	Tr=2 / Tf=6ms
Pixel pitch	0.297 x 0.297 mm
Panel color	16.2 million display colors
Viewing angle	75 / 75 / 70 / 65 (L / R / U / D) or 160 / 130
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : DVI and S-Video and Composite and BNC Input Connectors : RCA, S-video, DVI
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Details Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	407 x 57.1 x 313.6 mm (WxDxH)
Product Weight	3.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5 to 60 Degree Celsius (Storage)
Relative Humidity	5~90%, non condensing
Shock	10G peak acceleration (11ms duration)
Vibration	5~500Hz, 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-15A

Construction

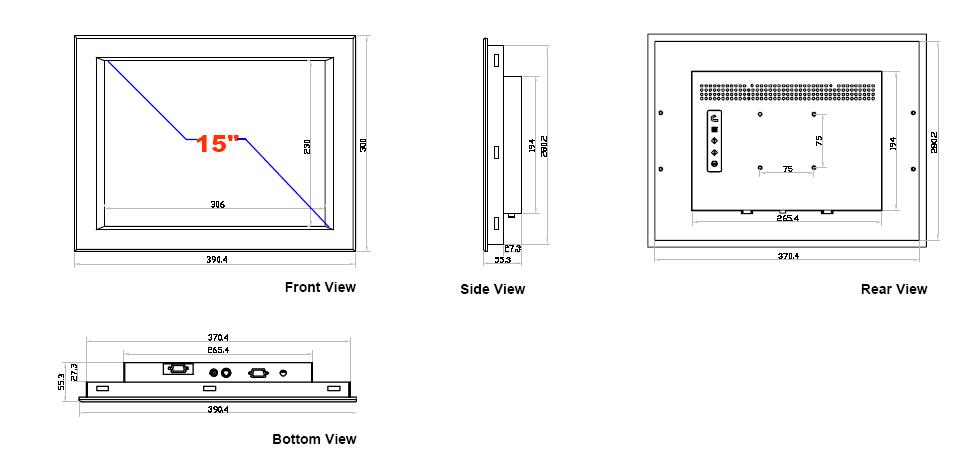

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

( VESA Mount / Wall Mount )

Touchscreen Drive Download
Mac	Linux	Dos
Win 2k-Xp	Win 98-Me	Win CE
Win 7

More photos (click to enlarge )

FEATURES :

15" industrial TFT LCD panel support 1024 x 768 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

250 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48 VDC)

Optional video input (DVI & S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-15A Price : $426	Standard Version - 6mm Aluminum Front Bezel AUO 15" Industrial display
ID-15AAV Price : $507	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + S-Video & Composite video(RCA)
ID-15ABNC Price : $507	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + S-Video & Composite video(BNC)
ID-15ADVI Price : $487	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + DVI
ID-15ADC12 Price : $588	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 12v DC Power
ID-15ADC24 Price : $588	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 24v DC Power
ID-15ADC48 Price : $588	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 48v DC Power
ID-15ATRS Price : $642	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + resistive Touch screen & serial controller
ID-15ATRB Price : $642	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + resistive Touch screen & USB controller
ID-15ATCS Price : $777	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + capacitive Touch screen & serial controller
ID-15ATCB Price : $777	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + capacitive Touch screen & USB controller
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-12VDC Price : $162	Add 12V DC Power
-24VDC Price : $162	Add 24V DC Power
-48VDC Price : $162	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
WITH NEMA 4 / IP65
ID-15AN Price : $467	Standard Version - 6mm Aluminum Front Bezel AUO 15" Industrial display + NEMA 4 / IP65
ID-15AAVN Price : $548	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-15ABNCN Price : $548	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-15ADVIN Price : $528	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + DVI + NEMA 4 / IP65
ID-15ADC12N Price : $629	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 12v DC Power +NEMA 4 / IP65
ID-15ADC24N Price : $629	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 24v DC Power+NEMA 4 / IP65
ID-15ADC48N Price : $629	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + 48v DC Power +NEMA 4 / IP65
ID-15ATRSN Price : $683	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + resistive Touch screen & serial controller + NEMA 4 / IP65
ID-15ATRBN Price : $683	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + resistive Touch screen & USB controller + NEMA 4 / IP65
ID-15ATCSN Price : $818	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-15ATCBN Price : $818	Version w/option - 6mm Aluminum Front Bezel AUO 15" Industrial display + capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-12VDC Price : $162	Add 12V DC Power
-24VDC Price : $162	Add 24V DC Power
-48VDC Price : $162	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller

Back to top

Availability: Usually ships in 5-7 business days

ID-15A

$426.00

Model:

NEMA4 / IP65:

DVI:

TV Tuner with remote controller:

AV:

BNC:

Touch Screen:

DC Power:

-SPK : Audio input:

-RM : Remote controller:
