6mm Aluminum Front Bezel 17" Samsung Panel Mount Industrial Monitor with Touch Screen
| LCD Panel |
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel
|
Display Size |
17 inch diagonal (337.92H x 270V) |
Resolutions |
1280 x 1024 |
Display Color |
16.2M color |
Brightness |
300 cd/m2 |
Contrast ratio |
700 : 1 (Typical) |
Response Time |
Tr=15 / Tf=25ms |
Pixel pitch |
0.264 x 0.264 mm |
Viewing angle |
75 / 75 / 75 / 60 (L / R / U / D) or
150 / 135 |
OSD Control |
Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall |
LCD MTBF |
50,000 hrs |
Touch Screen |
 Details
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog |
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm,UL & CE
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
| OPTIONS |
Optional Video Input |
-Video Input :DVI and S-Video and Composite
-Input Connectors : RCA, S-video, DVI |
Optional DC Power |
48V / 24V / 12V DC Power Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection
|
| Mechanical |
Material |
6mm Aluminum (Front panel)
1.2mm Steel (Rear case) |
Finish |
Powder Coating |
| Color |
Front Panel : Black
Back : Dark Grey (RAL7037) |
| Dimension |
415 x 57 x 328 mm (WxDxH) |
| Product Weight |
5.5 kg |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5 ~90%, non condensing |
| Vibration |
5~500Hz 1G RMS random vibration |
| Safety Approval |
CE, FCC |
| Package Content |
Package Content |
LCD Monitor x 1,VGA Cable (Male to Male) x 1, DC 12V adapter x1 ,Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1 |
|
Front View of ID-17A
* without Touch screen
Construction * without Touch screen

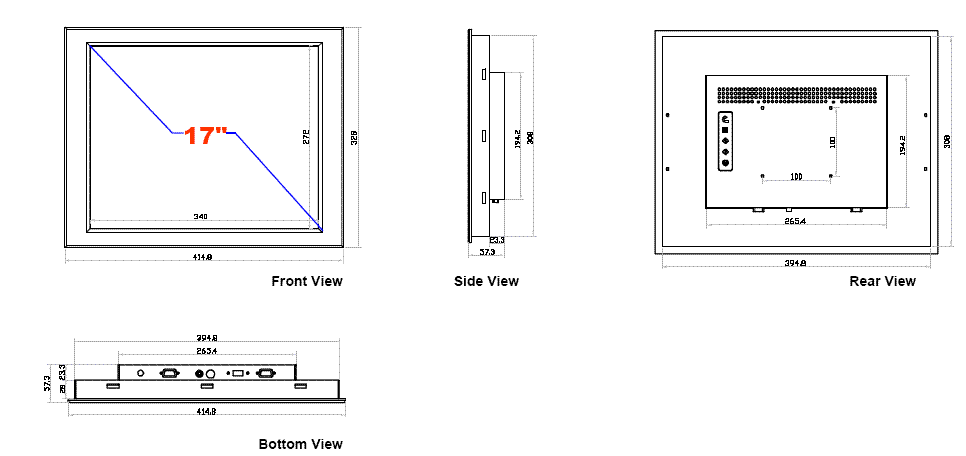

Front / Rear / Top / Side Views & Dimensions
* without Touch screen
*click on above picture for enlarged view
( VESA Mount / Wall Mount )
|
|
More Photos, click on the following for enlarged view:
FEATURES :
- 17" industrial TFT LCD panel support 12800 x 1024 pixels
- 6mm Aluminum front bezel with 45 degree chamfer
- Rugged construction and modularized design
- 300 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Optional DC power input (12 / 24 / 48 VDC)
- Optional video input (DVI & S-Video & RCA input)
- Optional touch screen, NEMA 4 / IP 65 front protection
- Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )
APPLICATIONS :
- Embedded display Unit
- Industrial automation LCD panel
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
| WITHOUT NEMA 4 / IP65 |
ID-17ATRS
Price : $656 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
resistive Touch screen & serial controller |
ID-17ATRB
Price : $656 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
resistive Touch screen & USB controller |
ID-17ATCS
Price : $824 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
capacitive Touch screen & serial controller |
ID-17ATCB
Price : $824 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
capacitive Touch screen & USB controller |
-DVI
Price : $108 |
Add DVI |
-AV
Price : $81 |
Add Composite video(RCA) + S-video |
-BNC
Price : $81 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-QD
Price : $594 |
Add Quad display |
-12VDC
Price : $162 |
Add 12V DC Power |
-24VDC
Price : $162 |
Add 24V DC Power |
-48VDC
Price : $162 |
Add 48V DC Power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
| WITH NEMA 4 / IP65 |
ID-17ATRSN
Price : $701 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
resistive Touch screen & serial controller + NEMA 4 / IP65 |
ID-17ATRBN
Price : $701 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
resistive Touch screen & USB controller + NEMA 4 / IP65 |
ID-17ATRSN
Price : $869 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
capacitive Touch screen & serial controller + NEMA 4 / IP65 |
ID-17ATRBN
Price : $869 |
Version w/option - 6mm Aluminum Front Bezel 17" Samsung Industrial display +
capacitive Touch screen & USB controller + NEMA 4 / IP65 |
-DVI
Price : $108 |
Add DVI |
-AV
Price : $81 |
Add Composite video(RCA) + S-video |
-BNC
Price : $81 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-QD
Price : $594 |
Add Quad display |
-12VDC
Price : $162 |
Add 12V DC Power |
-24VDC
Price : $162 |
Add 24V DC Power |
-48VDC
Price : $162 |
Add 48V DC Power |
-SPK
Price : $81 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
