ID-19A-TouchScreen 19" SAMSUNG Panel Mount Industrial Monitor with Touch Screen Optional Composite Video / BNC / DC Power / NEMA 4/ IP65

6mm Aluminum Front Bezel 19" Samsung Panel Mount Industrial Monitor with Touch Screen

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	19 inch diagonal (376.32H x 301.056V)
Resolutions	1280 x 1024
Display Color	16.7M color
Brightness	300 cd/m2
Contrast ratio	1000 : 1 (Typical)
Response Time	Tr=1.3 / Tf=3.7ms
Pixel pitch	0.294 x 0.294 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D) or 160 / 160
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Touch Screen	Details
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm,UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	-Video Input : DVI and S-Video and Composite -Input Connectors : RCA, S-video, DVI
Optional DC Power	48V / 24V / 12V DC Power Details Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	471 x 63 x 393 mm (WxDxH)
Product Weight	6.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1,VGA Cable (Male to Male) x 1, DC 12V adapter x1 ,Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-19A
* without Touch screen

Construction * without Touch screen

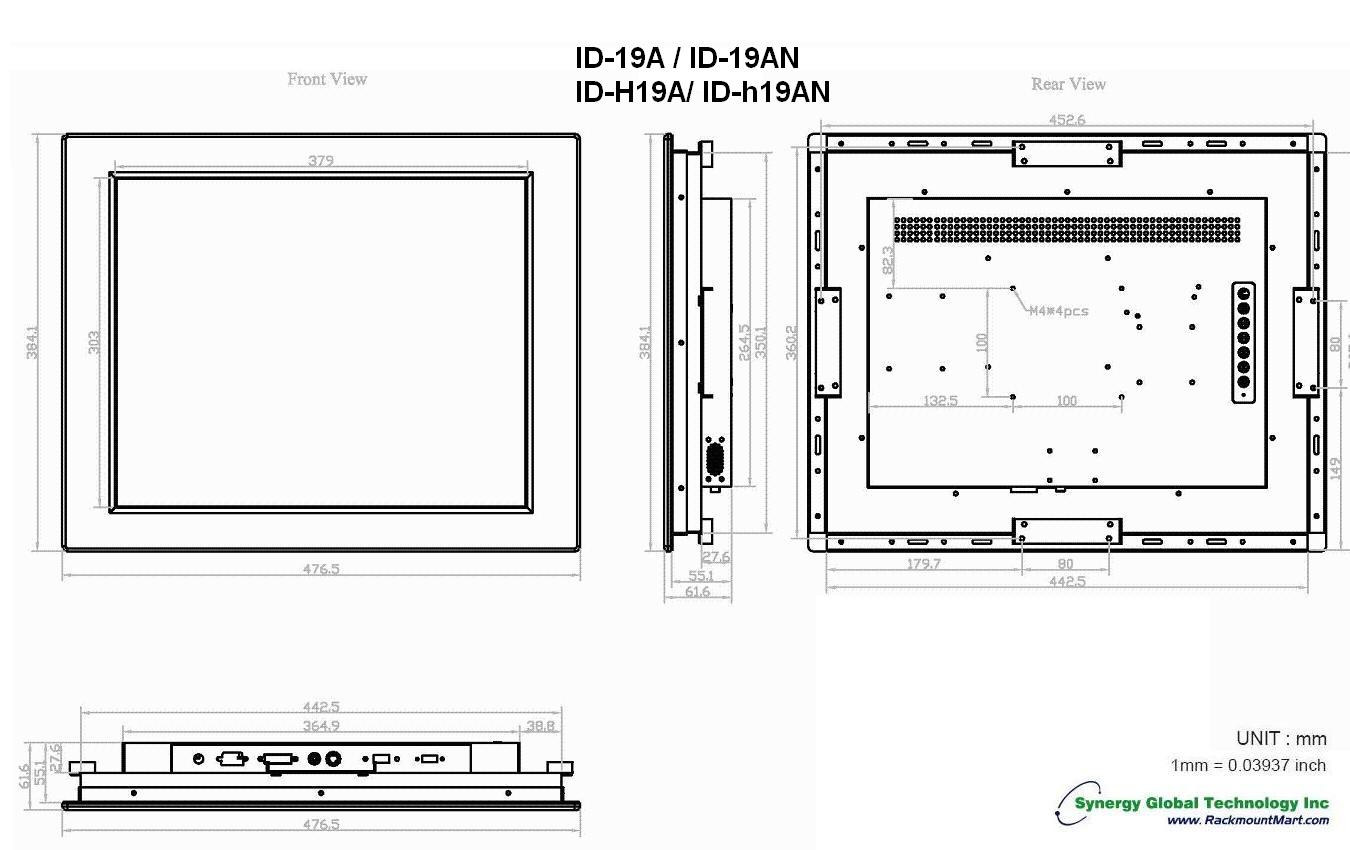

Front / Rear / Top / Side Views & Dimensions
* without Touch screen

*click on above picture for enlarged view

( VESA Mount / Wall Mount )

Touchscreen Drive Download
Mac	Linux	Dos
Win 2k-Xp	Win 98-Me	Win CE
Win 7

More photos (click to enlarge )

FEATURES :

19" industrial TFT LCD panel support 1280 x 1024 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

300 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48 VDC)

Optional video input (DVI & S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-19ATRS Price : $789	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + resistive Touch screen & serial controller
ID-19ATRB Price : $789	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + resistive Touch screen & USB controller
ID-19ATCS Price : $964	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + capacitive Touch screen & serial controller
ID-19ATCB Price : $964	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + capacitive Touch screen & USB controller
-DVI Price : $108	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $594	Add Quad display
-12VDC Price : $162	Add 12V DC Power
-24VDC Price : $162	Add 24V DC Power
-48VDC Price : $162	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller
WITH NEMA 4 / IP65
ID-19ATRSN Price : $834	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + resistive Touch screen & serial controller + NEMA 4 / IP65
ID-19ATRBN Price : $834	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + resistive Touch screen & USB controller + NEMA 4 / IP65
ID-19ATCSN Price : $1009	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-19ATCBN Price : $1009	Version w/option - 6mm Aluminum Front Bezel 19" Samsung Industrial display + capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI Price : $108	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video
-BNC Price : $81	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-QD Price : $594	Add Quad display
-12VDC Price : $162	Add 12V DC Power
-24VDC Price : $162	Add 24V DC Power
-48VDC Price : $162	Add 48V DC Power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller

Back to top

Availability: Usually ships in 2-3 weeks

ID-19A-TouchScreen

$946.00

Model ID-19A-TouchScreen:

DIV:

Composite Video:

BNC:

DC Power:

NEMA 4 / IP65:

SPK:

RM:

"TV":

QD:
