ID-06A-TouchScreen 6.5" Panel Mount Industrial Monitor with Touch Screen Optional Composite Video / BNC / DC Power / NEMA 4/ IP65

6mm Aluminum Front Bezel 6.5" Panel Mount Industrial Displays with Touch Screen

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	6.5 inch diagonal (129.6H x 97.4V)
Resolutions	640 x 480
Display Color	262,144 color
Brightness	400 cd/m2
Contrast ratio	600 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.203 x 0.203 mm
Viewing angle	60 / 60 / 40 / 55 (L / R / U / D) or 120 /95
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Touch Screen	Details
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video Input Connectors : BNC, S-Video adapter Details
Optional DC Power	48V / 24V / 12V DC Power Details Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Other options	- NEMA4 / IP65 on front of LCD display -TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D, N), SECAM (D, K, L, B, G) / Connector : RF ] with Remote controller - Remote controller only - Audio Input
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	230 x 51 x 167 mm (WxDxH)
Product Weight	1.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 65 Degree Celsius (Storage)
Relative Humidity	5 ~95%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-6A
* without Touch screen

Construction * without Touch screen

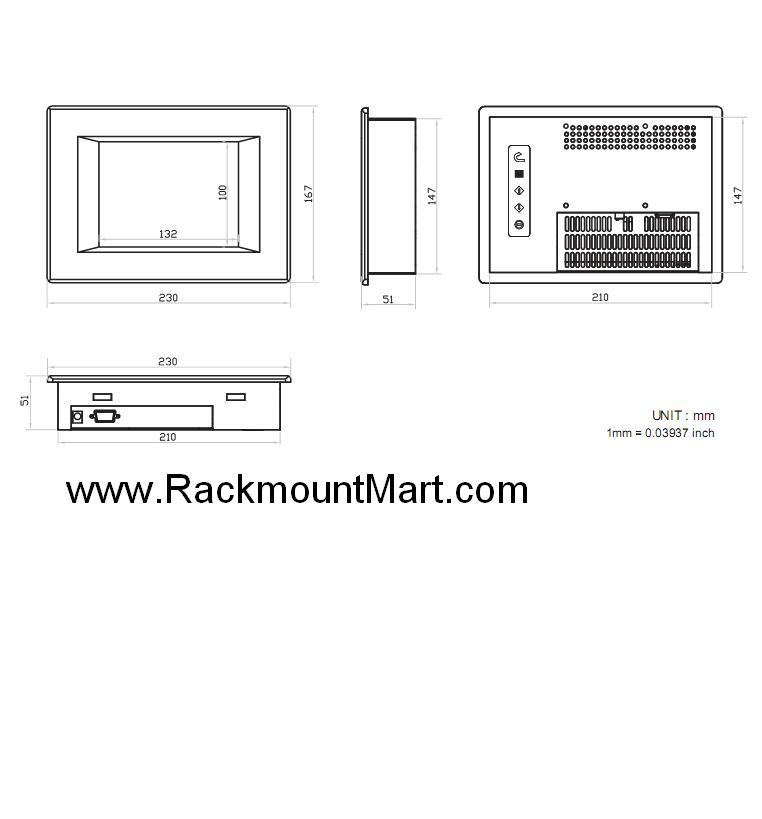

Front / Rear / Top / Side Views & Dimensions
* without Touch screen

*click on above picture for enlarged view

( VESA Mount / Wall Mount )

Touchscreen Drive Download
Mac	Linux	Dos
Win 2k-Xp	Win 98-Me	Win CE
Win 7

More Photos, click on the following for enlarged view:

FEATURES :

6.5" industrial TFT LCD panel support 640 x 480 pixels
6mm Aluminum front bezel with 45 degree chamfer
Rugged construction and modularized design
400 cd/m2 industrial brightness
OSD control keys to optimize the display
Optional DC to DC power input (12 / 24 / 48 VDC)
Optional video input ( S-Video & RCA input or S-video & BNC )
Touch screen with optional NEMA 4 / IP 65 front protection
New Options: TV turner with remote controller / remote controller only / Audio Input
Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
NO NEMA 4 / IP65
ID-06A-TRS Price : $545	6mm Aluminum Front Bezel 6.5" Industrial display + s-Resistive Touch screen & serial controller
ID-06A-TRB Price : $545	6mm Aluminum Front Bezel 6.5" Industrial display + s-Resistive Touch screen & USB controller
ID-06A-TCS Price : $640	6mm Aluminum Front Bezel 6.5" Industrial display + s-Capacitive Touch screen & serial controller
ID-06A-TCB Price : $640	6mm Aluminum Front Bezel 6.5" Industrial display + s-Capacitive Touch screen & USB controller
With other options
-AV Price : + $61	+ S-Video & RCA
-BNC Price : + $61	+ S-Video & BNC
-TV Price : + $101	+ TV turner & Remote Controller
-RM Price : + $54	+ Remote Controller
-SPK Price : + $68	+ Audio Input
-DC12 Price : + $101	add -12v DC to DC Power Input
-DC24 Price : + $101	add -24v DC to DC Power Input
-DC48 Price : + $101	add -48v DC to DC Power Input
WITH NEMA 4 / IP65 on Front of LCD screen panel
ID-06A-TRS-N Price : $584	6mm Aluminum Front Bezel 6.5" Industrial display + s-Resistive Touch screen & serial controller + NEMA 4 / IP65 on front of LCD screen panel
ID-06A-TRB-N Price : $584	6mm Aluminum Front Bezel 6.5" Industrial display + s-Resistive Touch screen & USB controller + NEMA 4 / IP65 on front of LCD screen panel
ID-06A-TCS-N Price : $679	6mm Aluminum Front Bezel 6.5" Industrial display + s-Capacitive Touch screen & serial controller + NEMA 4 / IP65 on front of LCD screen panel
ID-06A-TCB-N Price : $679	6mm Aluminum Front Bezel 6.5" Industrial display + s-Capacitive Touch screen & USB controller + NEMA 4 / IP65 on front of LCD screen panel
With other options
-AV Price : + $61	+ S-Video & RCA
-BNC Price : + $61	+ S-Video & BNC
-TV Price : + $101	+ TV turner & Remote Controller
-RM Price : + $54	+ Remote Controller
-SPK Price : + $68	+ Audio Input
-DC12 Price : + $101	add -12v DC to DC Power Input
-DC24 Price : + $101	add -24v DC to DC Power Input
-DC48 Price : + $101	add -48v DC to DC Power Input

Back to top

Availability: Usually ships in 2-3 weeks

ID-06A-TouchScreen

$641.00
