Industrial Flat Panel Display
: Part # ID-12P
12.1" Open Frame TFT Industrial Flat Panel Display
|
LCD Panel |
|
LCD Type |
Grade A Industrial
TFT LCD Panel |
|
Display Size |
12.1 inch diagonal (246.0H x
184.5V) |
|
Resolutions
|
800 x 600 |
|
Display Color |
262,144 color |
|
Brightness
|
300
cd/m2 |
|
Contrast ratio
|
200 : 1 (Typical) |
|
Response Time
|
Tr=15 / Tf=25ms |
|
Pixel pitch
|
0.307 x 0.307 mm |
|
Viewing angle
|
60 / 60 / 40 / 55 (L / R / U / D)
or
120 / 95 |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune & Recall |
|
LCD MTBF |
50,000 hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog |
|
Power Supply |
External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting
|
VESA-mount,
Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video
Input |
|
|
Optional Touch
Screen |
Details
 |
|
Optional DC Power
|
48V / 24V / 12V DC Power
Input
Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC
12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous
short circuit protection |
|
Mechanical |
|
Material
|
1.2mm
Steel |
|
Dimension |
315 x 52 x 257 mm
(WxDxH) |
|
Product Weight
|
3 kg |
|
Environmental |
|
Temperature
|
0 to 50 Degree
Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
|
Relative
Humidity |
5 ~90%, non
condensing |
|
Vibration |
5~500Hz 1G RMS
random vibration |
|
Shock |
10G peak
acceleration (11ms duration) |
|
Safety Approval |
CE, FCC |
|
Package Content
|
|
Package Content |
LCD Monitor x 1 , VGA Cable (Male
to Male) x
1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1
pair, CD disc,
User Manual x 1 |
|
|
Front View of ID-12P

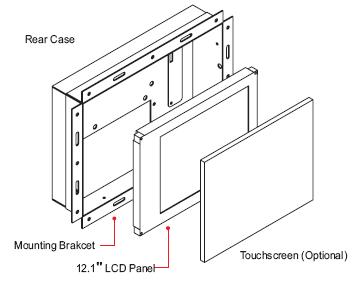

Construction

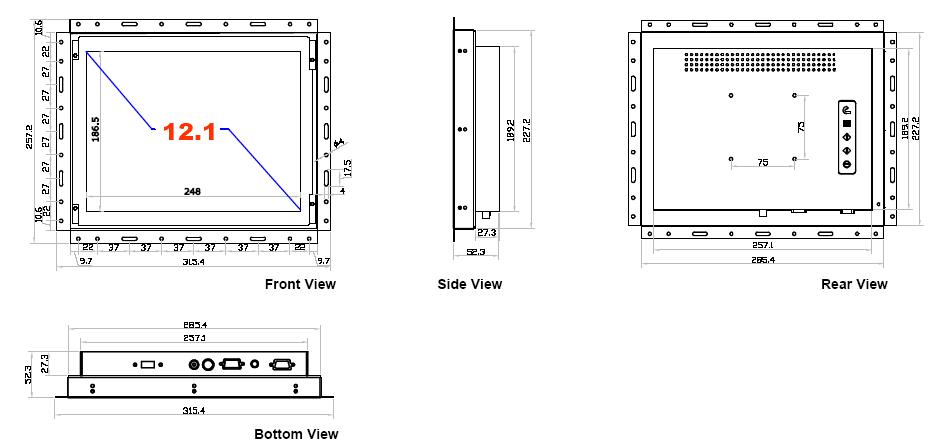

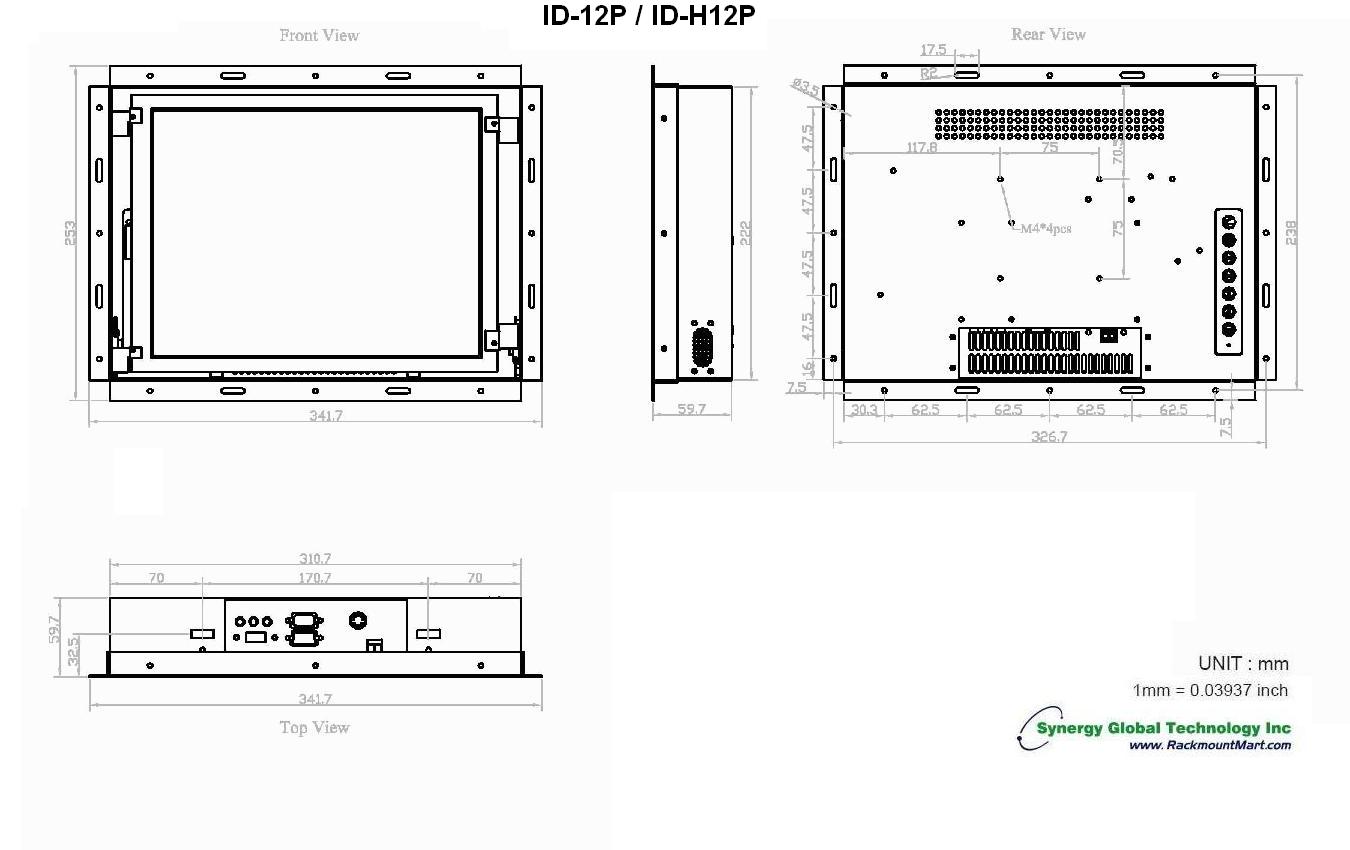

Front / Rear / Top / Side Views &
Dimensions
*click on above
picture for enlarged view
|
|
FEATURES :
- 12.1" industrial TFT LCD panel support 800 x 600 pixels
- 300 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Low power consumption
- Modularized design
- Optional video input (S-Video & RCA input)
- Optional with touch screen and DC power input
- Low power consumption
- Universal open frame kits
- Universal-mount, OEM mounting
APPLICATIONS :
- Industrial automation LCD panel
- Embedded display Unit
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-12P
Price : $581 |
Standard Version - 12.1"
Open Frame TFT LCD Display |
ID-12PAV
Price : $635 |
Version w/option - 12.1"
Open Frame TFT LCD Display + S-Video &
Composite Video |
ID-12PBNC
Price : $635 |
Version w/option - 12.1"
Open Frame TFT LCD Display + BNC |
ID-12PDC12
Price : $662 |
Version w/option - 12.1"
Open Frame TFT LCD Display + 12v DC Power |
ID-12PDC24
Price : $662 |
Version w/option - 12.1"
Open Frame TFT LCD Display + 24v DC Power |
ID-12PDC48
Price : $662 |
Version w/option - 12.1"
Open Frame TFT LCD Display + 48v DC Power |
ID-12PTRS
Price : $811 |
Version w/option - 12.1"
Open Frame TFT LCD Display +
e-Resistive Touch screen & serial controller |
ID-12PTRB
Price : $811 |
Version w/option - 12.1"
Open Frame TFT LCD Display +
e-Resistive Touch screen & USB controller |
ID-12PTCS
Price : $1128 |
Version w/option - 12.1"
Open Frame TFT LCD Display +
3M Capacitive Touch screen & serial controller |
ID-12PTRB
Price : $1128 |
Version w/option - 12.1"
Open Frame TFT LCD Display +
3M Capacitive Touch screen & USB controller |
|
|
