ID-17P  17" Samsung Open Frame Industrial Monitor  Optional Composite Video / BNC / DC Power / Touch Screen



Industrial Monitor  :   Part #   ID-17P

                                                           17" Open Frame TFT LCD Display




                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

17 inch diagonal (337.92H x 270V)

Resolutions

1280 x 1024

Display Color

16.2M color

Brightness

300 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

Tr=1.3 / Tf=3.7ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)  or
160 / 160

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type,10 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    DVI and S-Video and Composite and BNC
  • Input Connectors : RCA, S-video, DVI

Optional Touch Screen

                 Details

Optional DC Power

 48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

                                  Mechanical

Material

  1.2mm Steel

Product Weight  4.5 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

LCD Monitor x 1 , VGA Cable (Male to Male) x
1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc,
User Manual x 1

  Front View of  ID-17P



  Construction

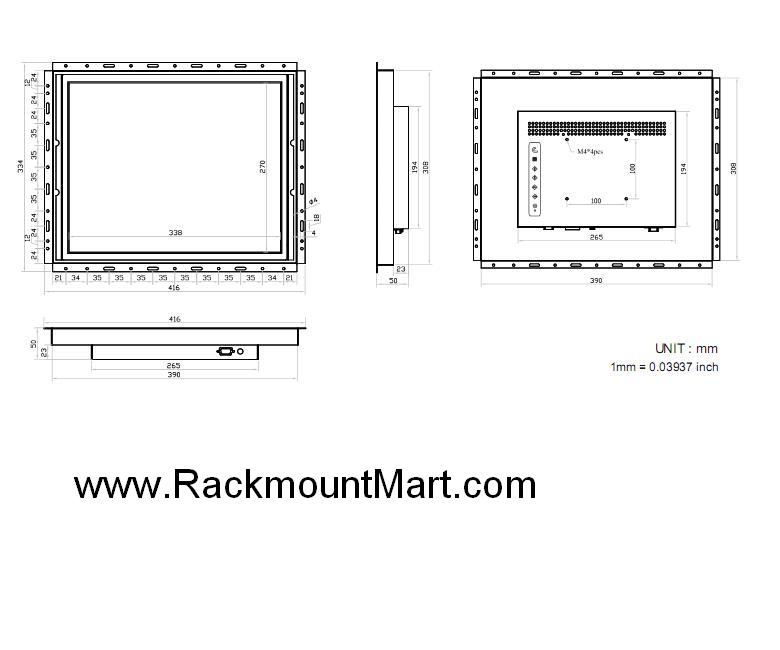

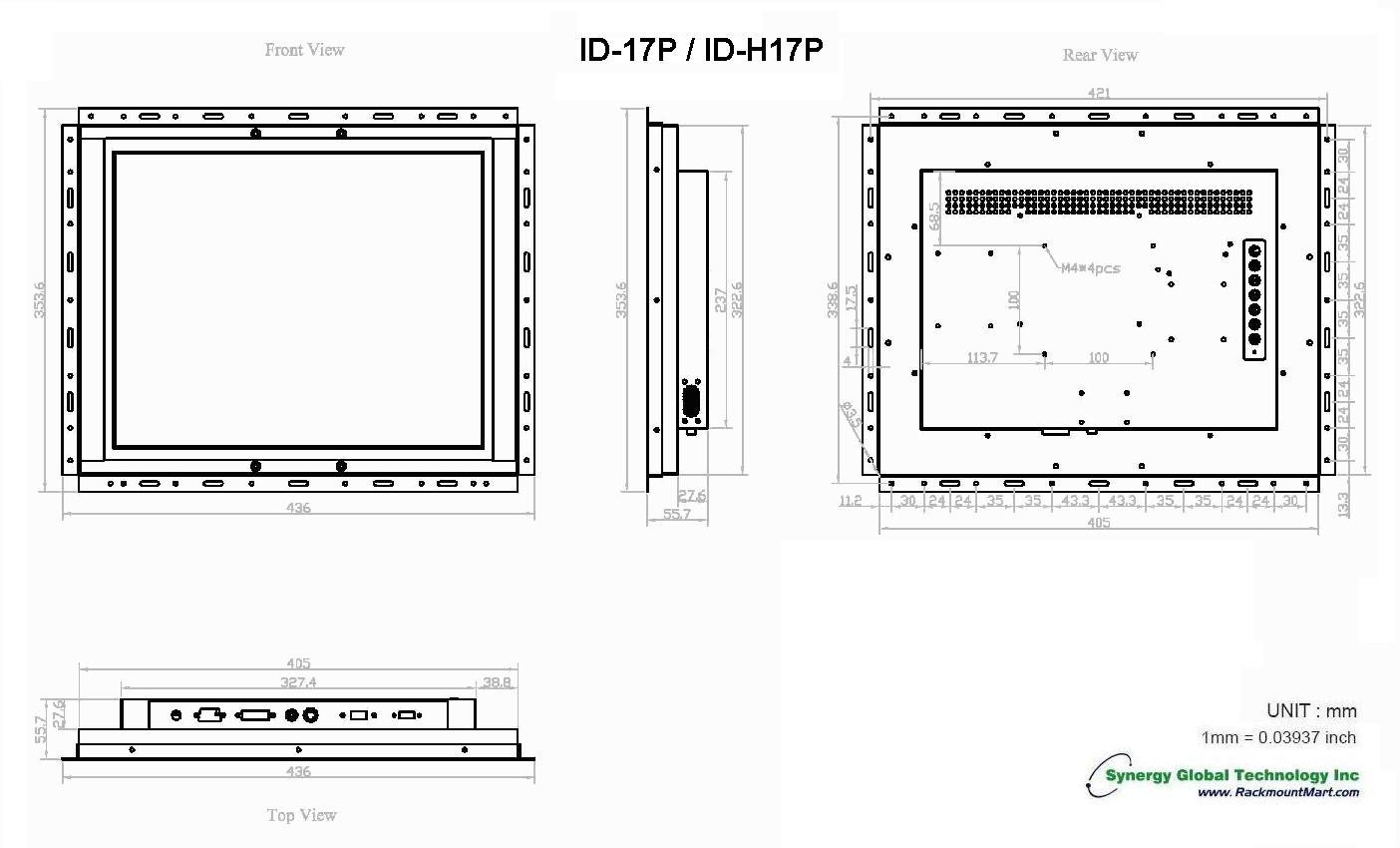

   Front / Rear / Top / Side Views & Dimensions



      *click on above picture for enlarged view



















FEATURES :

  • 17" industrial TFT LCD panel support 1280 x 1024 pixels
  • 300 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Low power consumption
  • Modularized design
  • Optional video input (DVI & S-Video & RCA input)
  • Optional with touch screen and DC power input
  • Low power consumption
  • Universal open frame kits
  • Universal-mount, OEM mounting

APPLICATIONS :

  • Industrial automation LCD panel
  • Embedded display Unit
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

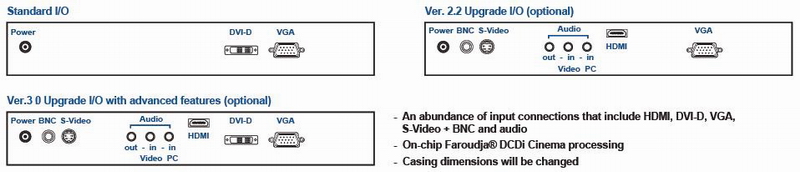

     Diagram for  I/O Outlet






Ordering information :

Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-17P
Price : $453
Standard Version  - 17" Samsung Open Frame TFT LCD Display
ID-17PDVI
Price : $108
Version w/option  - 17" Samsung Open Frame TFT LCD Display + DVI
ID-17PAV
Price : $514
Version w/option  - 17" Samsung Open Frame TFT LCD Display + S-Video &
                           BNC
ID-17PDC12
Price : $615
Version w/option  - 17" Samsung Open Frame TFT LCD Display + 12v DC Power
ID-17PDC24
Price : $615
Version w/option  - 17" Samsung Open Frame TFT LCD Display + 24v DC Power
ID-17PDC48
Price : $615
Version w/option  - 17" Samsung Open Frame TFT LCD Display + 48v DC Power
ID-17PTRS
Price : $737
Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                           e-Resistive Touch screen & serial controller
ID-17PTRB
Price : $737
Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                           e-Resistive Touch screen & USB controller
ID-17PTCS
Price : $912
Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                          e-Capacitive Touch screen & serial controller
ID-17PTRB
Price : $912
Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                           e-Capacitive Touch screen & USB controller
-DVI
Price : $108
Add DVI
-AV
Price : $61
Add BNC + S-video
-TV
Price : $101
Add TV tuner with remote controller
-QD
Price : $635
Add Quad display
-12VDC
Price : $162
Add 12V DC Power
-24VDC
Price : $162
Add 24V DC Power
-48VDC
Price : $162
Add 48V DC Power
-SPK
Price : $68
Add Audio input
-RM
Price : $54
Add Remote controller









Availability: Usually ships in 5-7 business days.

ID-17P $453.00
Model:

Quad Display:

DVI:

TV Tuner:

AV:

Touch Screen:

DC Power:

-SPK : Audio input:

-RM : Remote controller:
