Industrial Monitor :
Part # ID-17Pw
17" Wide Screen (16:9) Open Frame TFT LCD Display
|
LCD Panel |
|
LCD Type |
Grade A Industrial
TFT LCD Panel |
|
Display Size |
Wide 17 inch (16:9) |
|
Resolutions
|
1280 x 768 |
|
Display Color |
16.2M color |
|
Brightness
|
400
cd/m2 |
|
Contrast ratio
|
450 : 1 (Typical) |
|
Response Time
|
Tr=15 / Tf=25ms |
|
Pixel pitch
|
0.289 x 0.289 mm |
|
Viewing angle
|
70 / 70 / 50 / 60 (L / R / U / D)
or
140 / 110 |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune & Recall |
|
LCD MTBF |
50,000 hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog |
|
Built-in Video
Input |
|
|
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting
|
VESA-mount,
Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video
Input |
-
TV Input : TV tuner with audio
speaker-out
-
Input Connectors : TV tuner
with 3.5mm
audio jack
-
DVI Input : DVI-D digital
input
-
Input Connectors : DVI-D
(male)
|
|
Mechanical |
|
Material
|
1.2mm
Steel |
|
Dimension |
443 x 53 x 294 mm
(WxDxH) |
|
Product Weight
|
5 kg |
|
Environmental |
|
Temperature
|
0 to 50 Degree
Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
|
Relative
Humidity |
5 ~90%, non
condensing |
|
Vibration |
5~500Hz 1G RMS
random vibration |
|
Safety Approval |
CE, FCC |
|
Package Content
|
|
Package Content |
LCD Monitor x 1 , VGA Cable (Male
to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting
Bracket x 1 pair, CD disc, User Manual x 1 |
|
|

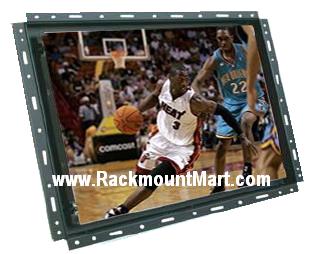

Front View of
ID-17Pw
Construction
Front / Rear / Top / Side Views &
Dimensions
*click on above
picture for enlarged view
|
|
FEATURES :
- Industrial open frame kit
- 17"(16:9) industrial TFT LCD panel support 1280 x 768 pixels
- 400 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Built-in VGA (15-pin D-sub) & video input (S-Video & RCA input)
- Optional with DVI-D, TV tuner input & audio speaker-out
- VESA-mount, universal-mount mounting
APPLICATIONS :
- Industrial automation LCD panel
- Point of ales / Kiosk
- Security / surveillance
- Flight information display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-17Pw
Price : $742 |
Standard Version -
17"(16:9) Open Frame TFT LCD Display |
ID-17PwTV
Price : $796 |
Version w/option -
17"(16:9) Open Frame TFT LCD Display + TV Tuner |
|
|
