ID-19Pw 19" Samsung Wide Screen 16 : 9 Open Frame TFT LCD Display Optional TV Tuner

19" Samsung Wide Screen (16:9) Open Frame TFT LCD Display

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	Wide 19 inch (16:9)
Resolutions	1440 x 900
Display Color	16.7M color
Brightness	300 cd/m2
Contrast ratio	1000 : 1 (Typical)
Response Time	Tr=1.3 / Tf=3.7ms
Pixel pitch	0.283 x 0.283 mm
Viewing angle	80 / 80 / 80 / 80 (L / R / U / D) or 160 / 160
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Built-in Video Input	Video Input :DVI and S-Video and Composite Input Connectors : RCA, S-video, DVI
Power Supply	External type,110 ~220 VAC at 50 or 60Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	TV Input : TV tuner with audio speaker-out Input Connectors : TV tuner with 3.5mm audio jack DVI Input : DVI-D digital input Input Connectors : DVI-D (male)
Optional DC Power	48V / 24V / 12V DC Power Details Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Steel
Dimension	505.5 x 57.1 x 335.1 mm (WxDxH)
Product Weight	5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5 to 60 Degree Celsius (Storage)
Relative Humidity	5~90%, non condensing
Shock	10G peak acceleration (11ms duration)
Vibration	5~500Hz, 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1,VGA Cable (Male to Male) x 1, DC 12V adapter x1, Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-19Pw

Construction

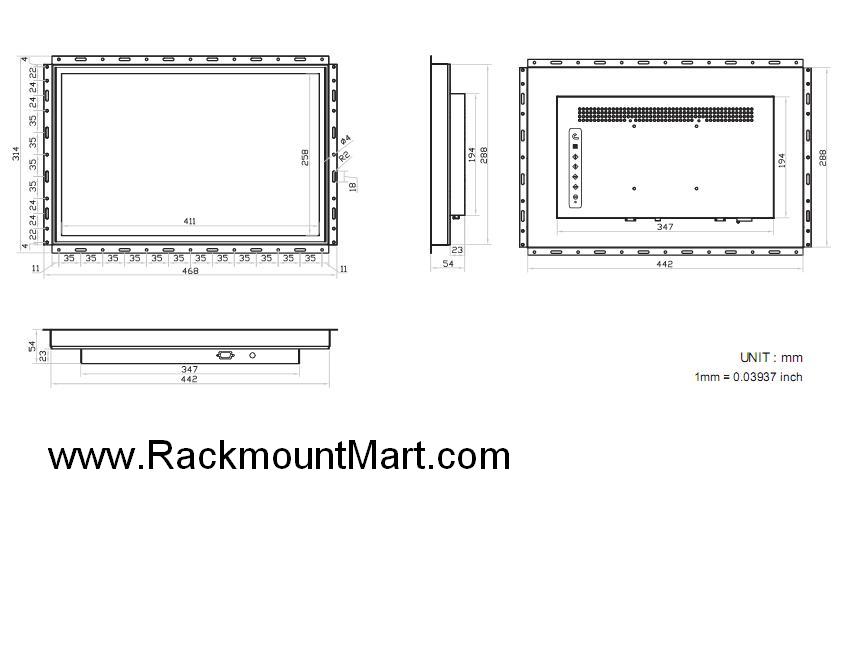

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

More photos (click to enlarge )

FEATURES :

19"(16:9) industrial TFT LCD panel support 1280 x 768 pixels

300 cd/m2 industrial brightness

OSD control keys to optimize the display

Built-in VGA (15-pin D-sub) & video input (DVI & S-Video & RCA input)

Optional with DVI-D, TV tuner input & audio speaker-out

Industrial open frame kit

VESA-mount, universal-mount mounting

APPLICATIONS :

Industrial automation LCD panel
Point of ales / Kiosk
Security / surveillance
Flight information display
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-19Pw Price : $359	Standard Version - 19"(16:9) Samsung Open Frame TFT LCD Display
ID-19Pw-TV Price : $460	Version w/option - 19"(16:9) Samsung Open Frame TFT LCD Display + TV Tuner
-DVI Price : $61	Add DVI
-AV Price : $81	Add Composite video(RCA) + S-video with remote controller
-HDMI Price : $108	Add HDMI
-BNC Price : $81	Add Composite video(BNC) + S-video with remote controller
-QD Price : $594	Add Quad Display
-TRB Price : $257	Add Resistive + USB controller Touch Screen
-TRS Price : $257	Add Resistive + serial controller Touch Screen
-TCB Price : $432	Add Capacitive + USB controller Touch Screen
-TCS Price : $432	Add Capacitive + serial controller Touch Screen
-12VDC Price : $162	Add 12V DC power
-24VDC Price : $162	Add 24V DC power
-48VDC Price : $162	Add 48V DC power
-SPK Price : $81	Add Audio input
-RM Price : $54	Add Remote controller

Back to top

Availability: Usually ships in 5-7 business days

ID-19Pw

$359.00

Model:

DVI:

HDMI:

TV Tuner with Remote controller:

AV:

BNC:

Touch Screen:

DC Power:

-SPK : Audio input:

-RM : Remote controller:
