20" Samsung Open Frame TFT LCD Monitors
| LCD Panel |
LCD Type |
LG Grade A Industrial TFT LCD Panel |
Display Size |
20 inch diagonal (208.0H x 306.0V) |
Resolutions |
1600 x 1200 |
Display Color |
16.7M color |
Brightness |
300 cd/m2 |
Contrast ratio |
800 : 1 (Typical) |
Response Time |
Tr=1 / Tf=4ms |
Pixel pitch |
0.255 x 0.255 mm |
Viewing angle |
80 / 80 / 80 / 80 (L / R / U / D) or
160 / 160 |
OSD Control |
Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall |
LCD MTBF |
50,000 hrs |
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog |
Power Supply |
External type,110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
| OPTIONS |
Optional Video Input |
-
Video Input : DVI and S-Video and Composite and BNC
-
Input Connectors : RCA, S-video, DVI
|
Optional Touch Screen |
 Details
|
Optional DC Power |
48V / 24V / 12V DC Power Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection
|
| Mechanical |
Material |
1.2mm Steel |
| Dimension |
509.5 x 63.6 x 388.6 mm (WxDxH) |
| Product Weight |
7.0 kg |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5~90%, non condensing |
| Shock |
10G peak acceleration
(11ms duration) |
| Vibration |
5~500Hz, 1G RMS random vibration |
| Safety Approval |
CE, FCC |
| Package Content |
Package Content |
LCD Monitor x 1 , VGA Cable (Male to Male) x
1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc,
User Manual x 1 |
|
|
Front View of ID-20P
Construction

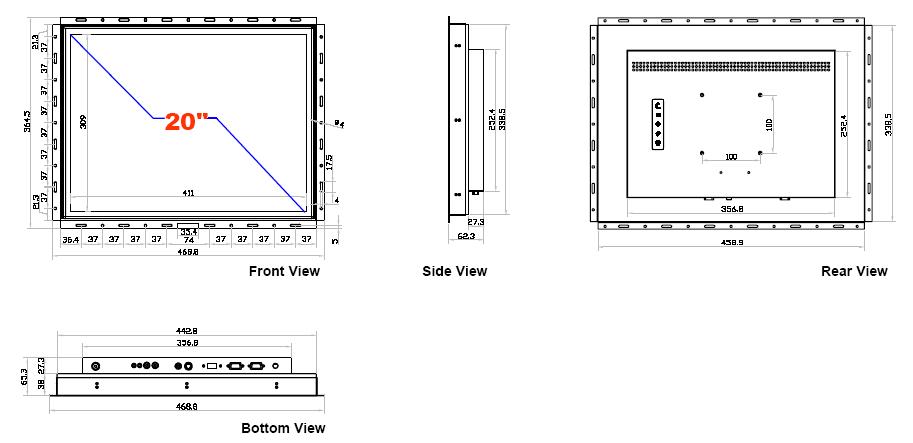

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
|
|
More Photos, click on the following for enlarged view:
FEATURES :
- 20" industrial TFT LCD panel support 1600 x 1200 pixels
- 300 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Low power consumption
- Modularized design
- Optional video input (DVI & S-Video & RCA input)
- Optional with touchscreen and DC power input
- Low power consumption
- Universal open frame kits
- Universal-mount, OEM mounting
APPLICATIONS :
- Industrial automation LCD panel
- Embedded display Unit
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
| WITHOUT NEMA 4 / IP65 |
ID-20P
Price : $667 |
Standard Version - 20" LG Open Frame TFT LCD Display |
ID-20PDVI
Price : $728 |
Version w/option - 20" LG Open Frame TFT LCD Display + DVI |
ID-20PAV
Price : $748 |
Version w/option - 20" LG Open Frame TFT LCD Display + S-Video &
Composite video(RCA) |
ID-20PBNC
Price : $748 |
Version w/option - 20" LG Open Frame TFT LCD Display + S-Video &
Composite video(BNC) |
ID-20PDC12
Price : $829 |
Version w/option - 20" LG Open Frame TFT LCD Display + 12v DC Power |
ID-20PDC24
Price : $829 |
Version w/option - 20" LG Open Frame TFT LCD Display + 24v DC Power |
ID-20PDC48
Price : $829 |
Version w/option - 20" LG Open Frame TFT LCD Display + 48v DC Power |
ID-20PTRS
Price : $1005 |
Version w/option - 20" LG Open Frame TFT LCD Display +
Resistive Touch screen & serial controller |
ID-20PTRB
Price : $1005 |
Version w/option - 20" LG Open Frame TFT LCD Display +
Resistive Touch screen & USB controller |
-DVI
Price : $61 |
Add DVI |
-AV
Price : $81 |
Add Composite video(RCA) + S-video |
-HDMI
Price : $108 |
Add HDMI |
-BNC
Price : $81 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-QD
Price : $594 |
Add Quad display |
-12VDC
Price : $162 |
Add 12V DC Power |
-24VDC
Price : $162 |
Add 24V DC Power |
-48VDC
Price : $162 |
Add 48V DC Power |
-SPK
Price : $81 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
