26"Wide Screen (16:9) Open Frame TFT LCD Display
| LCD Panel |
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel
|
Display Size |
Wide 26 inch diagonal (566.4H x 339.8V) |
Resolutions |
1366 x 768 |
Display Color |
16.7M color |
Brightness |
500 cd/m2 |
Contrast ratio |
1000 : 1 (Typical) |
Response Time |
Tr=15 / Tf=25ms |
Pixel pitch |
0.283 x 0.283 mm |
Viewing angle |
85 / 85 / 85 / 85 (L / R / U / D) or
170 / 170 |
OSD Control |
Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall |
LCD MTBF |
50,000 hrs |
Signal Input |
|
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60
Hz via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm,
UL & CE
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
| OPTIONS |
Optional Video Input |
-
Video Input :DVI and S-Video and Composite
-
Input Connectors : RCA, S-video, DVI
|
Optional DC Power |
48V / 24V / 12V DC Power Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection
|
| Mechanical |
Material |
1.2mm Steel |
| Dimension |
713 x 113 x 433 mm (WxDxH) |
| Product Weight |
15 kg |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5 ~90%, non condensing |
| Vibration |
5~500Hz 1G RMS random vibration |
| Safety Approval |
CE, FCC |
| Package Content |
Package Content |
LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CA disc, User Manual x 1 |
|
Front View of ID-26Pw

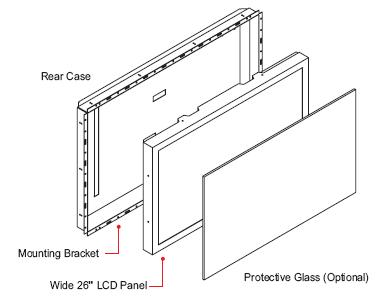

Construction

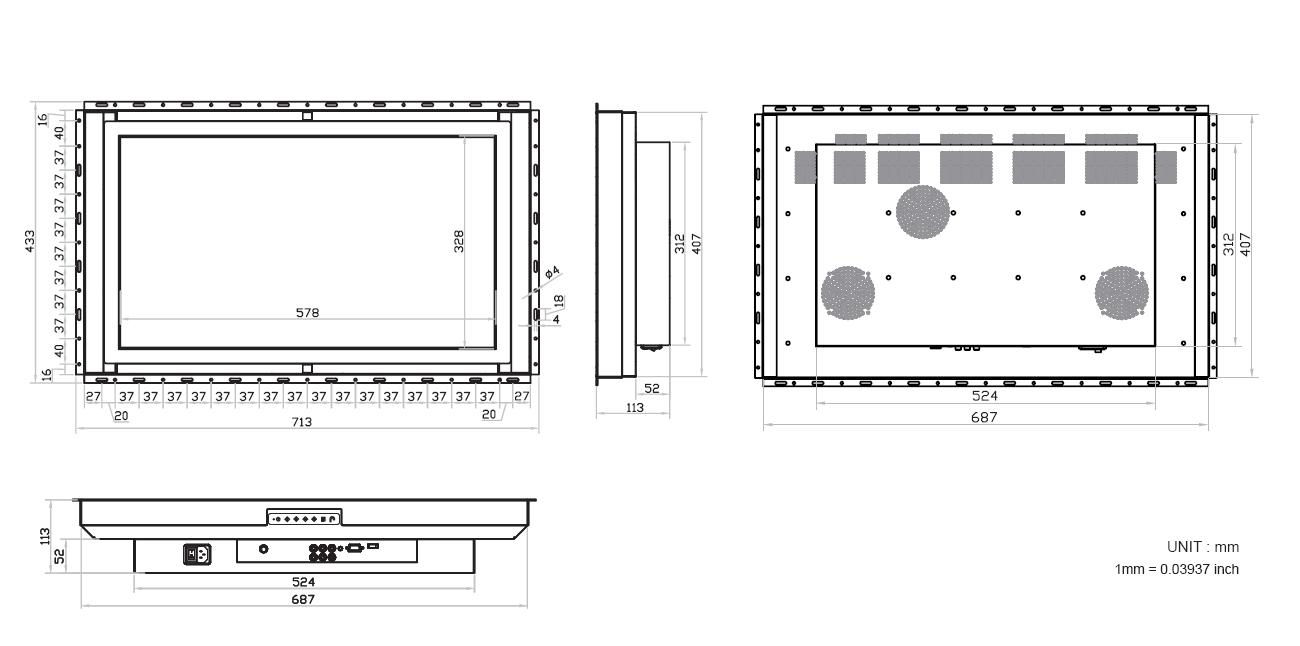

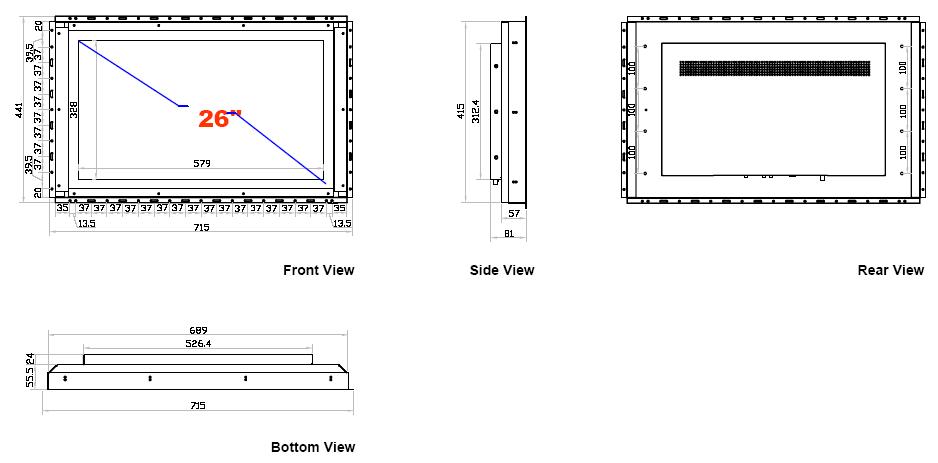

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
|
|
More Photos, click on the following for enlarged view:
FEATURES :
- 26"(16:9) industrial TFT LCD panel support 1280 x 768 pixels
- 450 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Different models fit for various application
- VGA and video input (DVI & S-video & composite)
- Rugged construction
- Modularized design
- Low power consumption
- Open frame front mounting design
APPLICATIONS :
- Portrait or landscape viewing for information displays
- Single or multi-display solution for digital signage
- Ideal solution for data center or conference rooms
- Gameing, lottery & amusement display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
ID-26Pw
Price : $757 |
Standard Version - 26"(16:9) Samsung Open Frame TFT LCD Display |
ID-26Pw-TV
Price : $892 |
Version w/option - 26"(16:9) Samsung Open Frame TFT LCD Display + TV Tuner |
-TCB
Price : $756 |
Add Capacitive Touch screen & USB controller |
-TCS
Price : $756 |
Add Capacitive Touch screen & serial controller |
-QD
Price : $594 |
Add Quad display |
