32" Samsung Wide Screen (16:9) Open Frame TFT LCD Display
| LCD Panel |
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel
|
Display Size |
Wide 32 inch (16:9) (700V x 396H) |
Resolutions |
1366 x 768 |
Display Color |
16.7M color |
Brightness |
500 cd/m2 |
Contrast ratio |
1200 : 1 (Typical) |
Response Time |
Tr=10 / Tf=6ms |
Pixel pitch |
0.511 x 0.511 mm |
Viewing angle |
89 / 89 / 89 / 89 (L / R / U / D) or
178 / 178 |
OSD Control |
Brightness, Contrast, Phase & Color,
H & V position, Auto-tune & Recall |
LCD MTBF |
50,000 hrs |
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog
-Support Picture in Picture (PIP) |
Built-in Video Input |
-Built-in VGA & HDMI input
-Video Input : HDMI, Componet (Y+Pb+Pr),
S-Video and Composite
-Input Connectors : HDMI, RCA x 3,
S-Video (Mini-DIN 4), RCA |
Built-in Audio Input |
-Audio Input : Analog audio 2-channel (L/R)
-Connectors: Audio RCA x 2
-With speaker as well |
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
| OPTIONS |
Optional Video Input |
-
TV Input : TV tuner -
Input Connectors : TV tuner with 3.5mm audio jack [ Signal Input : NTSC, PAL (I, B, G,
H, M, D, N), SECAM (D, K, L, B, G) /
Connector : RF ]
-
DVI Input : DVI-D digital input -
Input Connectors : DVI-D (male)
|
Optional DC Power |
48V / 24V / 12V DC Power Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection
|
| Mechanical |
Material |
1.2mm Steel |
| Dimension |
836 x 117 x 510 mm (WxDxH) |
| Product Weight |
23 kg |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5~90%, non condensing |
| Shock |
10G peak acceleration
(11ms duration) |
| Vibration |
5~500Hz, 1G RMS random vibration |
| Safety Approval |
CE, FCC |
| Package Content |
Package Content |
LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CA disc, User Manual x 1 |
|
|
Front View of ID-32Pw
Construction

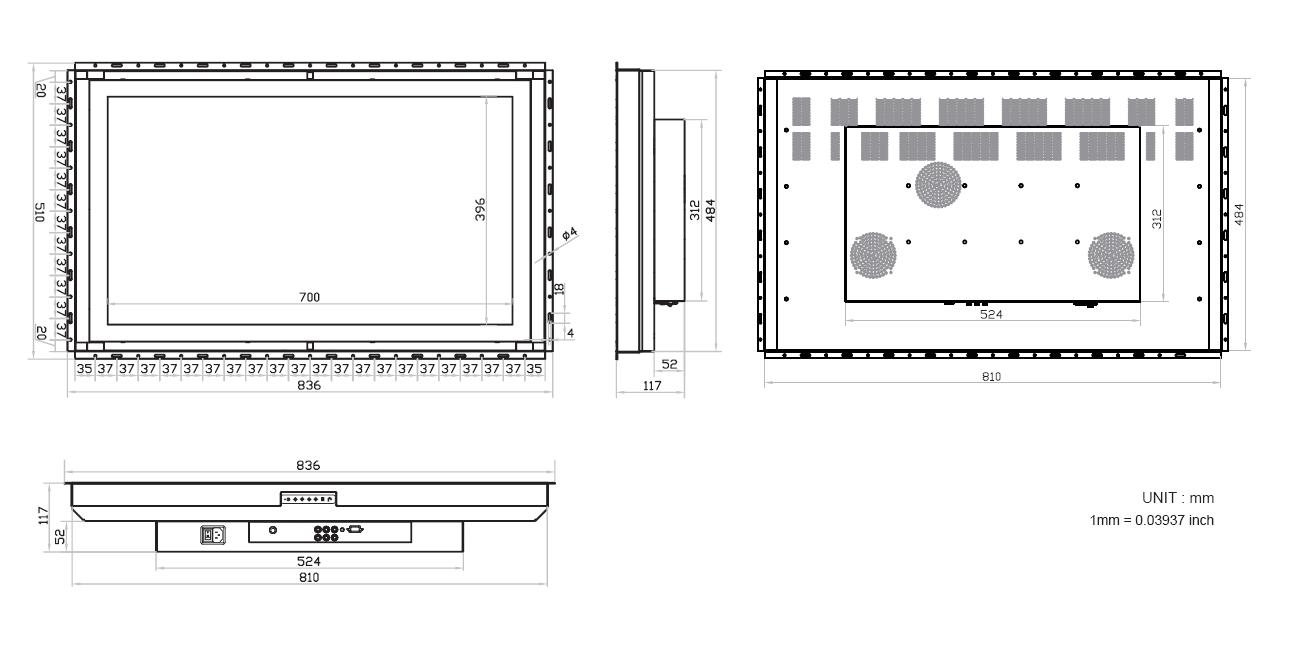

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
|
|
More Photos, click on the following for enlarged view:
FEATURES :
- 32"(16:9) industrial TFT LCD panel support 1366 x 768 pixels
- Industrial open frame front mounting kit
- 450 cd/m2 industrial brightness
- Different models fit for various application
- OSD control keys to optimize the display
- VGA and Video input (DVI & S-video & Composite)
- Modularized design
- Wall-mount, OEM mounting design
APPLICATIONS :
- Portrait or landscape viewing for information displays
- Single or multi-display solution for digital signage
- Ideal solution for data center or conference rooms
- Gamming, lottery & amusement display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation

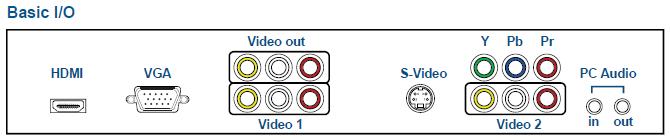

Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
| WITHOUT NEMA 4 / IP65 |
ID-32Pw
Price : $981 |
32"(16:9) Samsung Open Frame Industrial LCD with VGA, HDMI, Component, S-Video & RCA input, audio input with speaker and remote controller |
ID-32Pw-TV
Price : $1116 |
32"(16:9) Samsung Open Frame Industrial LCD with VGA, HDMI, Component, S-Video & RCA input, audio input with speaker and remote controller + **TV Tuner |
-TCB
Price : $905 |
Add Capacitive Touch screen & USB controller |
-TCS
Price : $905 |
Add Capacitive Touch screen & serial controller |
-QD
Price : $594 |
Add Quad Display |
