Industrial LCD Monitor Displays : Part # ID-06P
6.4" Open Frame Industrial Displays
| LCD Panel |
LCD Type |
Grade A Industrial TFT LCD Panel |
Display Size |
6.4 inch diagonal (129.6H x 97.4V) |
Resolutions |
640 x 480 |
Display Color |
262,144 color |
Brightness |
400 cd/m2 |
Contrast ratio |
600 : 1 (Typical) |
Response Time |
Tr=15 / Tf=25ms |
Pixel pitch |
0.203 x 0.203 mm |
Viewing angle |
60 / 60 / 40 / 55 (L / R / U / D) or
120 / 95 |
OSD Control |
Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall |
LCD MTBF |
50,000 hrs |
Signal Input |
-Input Video Signal : Analog RGB
-Video Level : Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog |
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE |
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
| OPTIONS |
Optional Video Input |
Video Input : S-Video and Composite
Input Connectors : RCA, S-video
Input Connectors : BNC, S-Video adapter Details  |
Optional Touch Screen |
 Details |
Optional DC Power |
48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit protection |
Other options |
-TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D,
N), SECAM (D, K, L, B, G) / Connector : RF ] with
Remote controller
- Remote controller only - Audio Input |
| Mechanical |
Material |
1.2mm Steel |
| Dimension |
240 x 45 x 177 mm (WxDxH) |
| Product Weight |
1.5 kg |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5 ~90%, non condensing |
| Vibration |
5~500Hz 1G RMS random vibration |
| Shock |
10G peak acceleration (11ms duration) |
| Safety Approval |
CE, FCC |

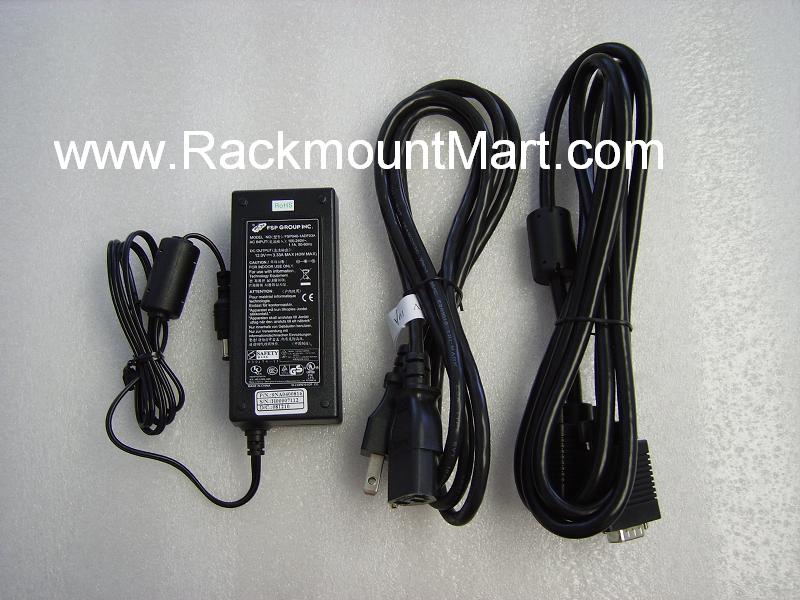

| Package Content |
Package Content |
LCD Monitor x 1 , VGA Cable (Male to Male) x
1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc,
User Manual x 1 |
|

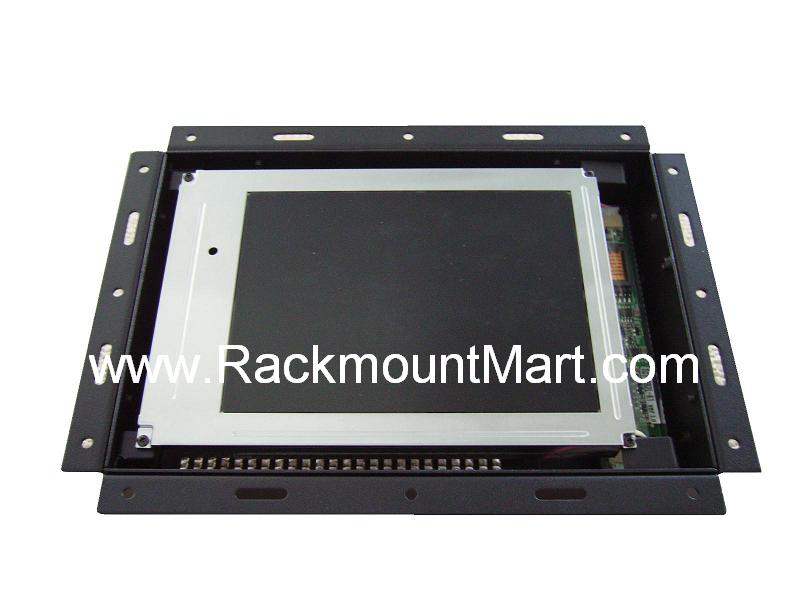

Front View of ID-6P
Construction

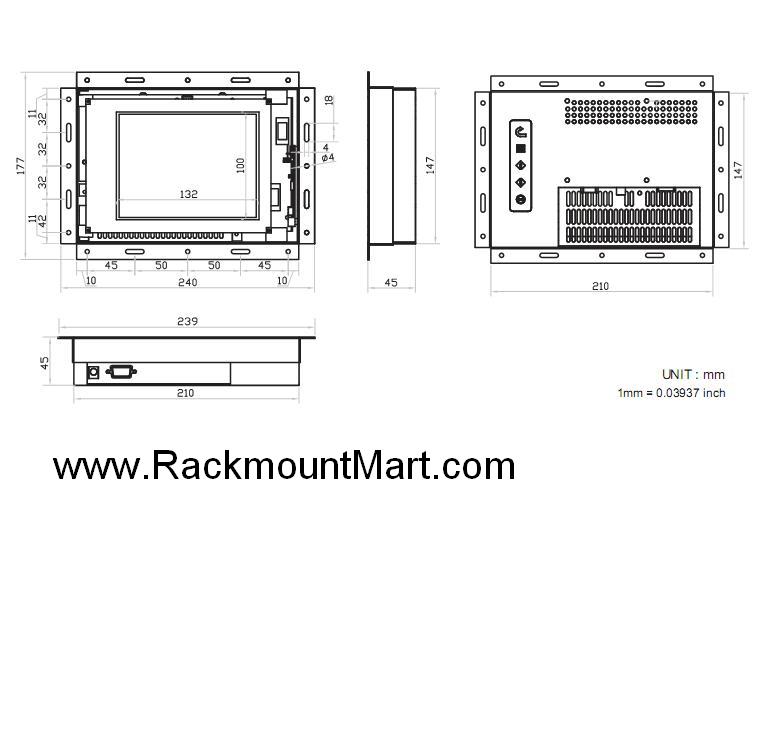

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
|
|

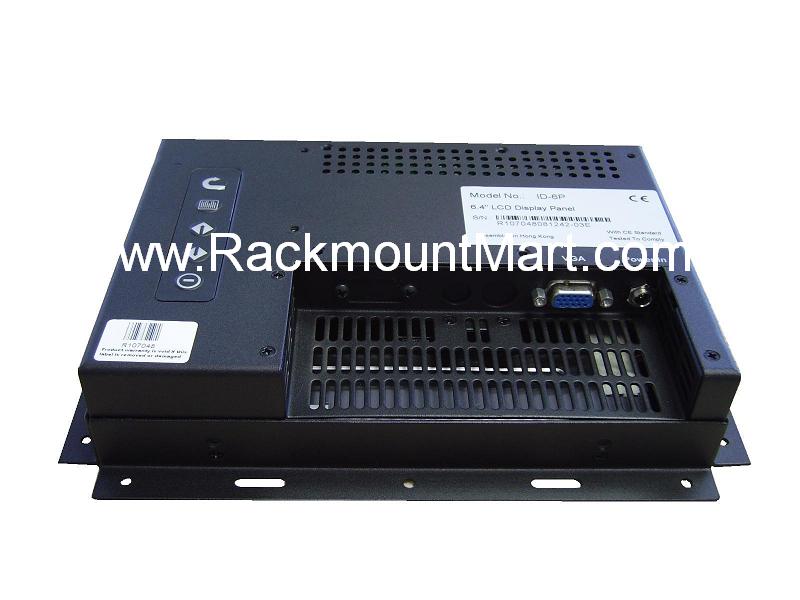

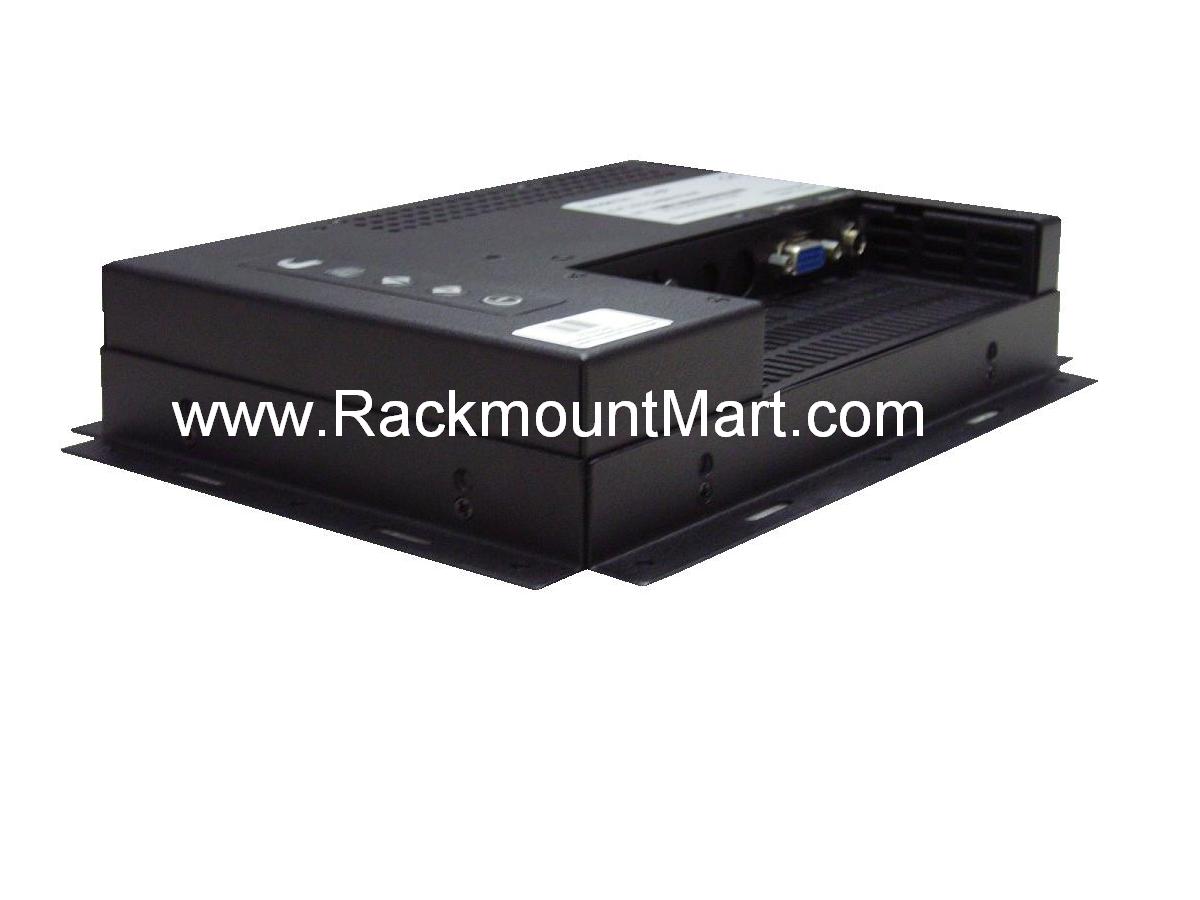

More photos (click to enlarge )
|
FEATURES :
- 6.4" industrial TFT LCD panel support 640 x 480 pixels
- 400 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Low power consumption
- Modularized design
- Optional DC to DC power input (12 / 24 / 48 VDC)
- Optional video input ( S-Video & RCA input or S-video & BNC )
- Optional touch screen
- New Options: TV turner with remote controller / remote controller only / Audio Input
- Low power consumption
- Universal open frame kits
- Universal-mount, OEM mounting
APPLICATIONS :
- Industrial automation LCD panel
- Embedded display Unit
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and Instrumentation
Diagram for I/O Outlet
Ordering information :
| Part # |
Description |
| |
ID-06P
Price : $446 |
Standard Version - 6.4" Open Frame Industrial display |
ID-06P-AV
Price : $507 |
Version w/option - 6.4" Open Frame Industrial display + S-Video &
RCA |
ID-06P-BNC
Price : $507 |
Version w/option - 6.4" Open Frame Industrial display + S-Video & BNC |
ID-06P-TV
Price : $547 |
Version w/option - 6.4" Open Frame Industrial display + TV turner &
Remote Controller |
ID-06P-RM
Price : $500 |
Version w/option - 6.4" Open Frame Industrial display + Remote Controller |
ID-06P-SPK
Price : $514 |
Version w/option - 6.4" Open Frame Industrial display + Audio Input |
ID-06P-DC12
Price : $547 |
Version w/option - 6.4" Open Frame Industrial display + 12v DC Power |
ID-06P-DC24
Price : $547 |
Version w/option - 6.4" Open Frame Industrial display + 24v DC Power |
ID-06P-DC48
Price : $547 |
Version w/option - 6.4" Open Frame Industrial display + 48v DC Power |
ID-06P-TRS
Price : $601 |
Version w/option - 6.4" Open Frame Industrial display +
e-Resistive Touch screen & serial controller |
ID-06P-TRB
Price : $601 |
Version w/option - 6.4" Open Frame Industrial display +
e-Resistive Touch screen & USB controller |
ID-06P-TCS
Price : $703 |
Version w/option - 6.4" Open Frame Industrial display +
e-Capacitive Touch screen & serial controller |
ID-06P-TCB
Price : $703 |
Version w/option - 6.4" Open Frame Industrial display +
e-Capacitive Touch screen & USB controller |
| With other options |
-AV
Price : + $61 |
+ S-Video & RCA |
-BNC
Price : + $61 |
+ S-Video & BNC |
TV
Price : + $101 |
+ TV turner & Remote Controller |
-RM
Price : + $54 |
+ Remote Controller |
-SPK
Price : + $68 |
+ Audio Input |
-DC12
Price : + $101 |
add -12v DC to DC Power Input |
-DC24
Price : + $101 |
add -24v DC to DC Power Input |
-DC48
Price : + $101 |
add -48v DC to DC Power Input |
|
|
