ID-08P 8.4" Open Frame Industrial Panels Optional Composite Video / BNC / DC Power / Touch Screen

8.4" Open Frame TFT Industrial LCD Display

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	8.4 inch diagonal (170.4H x 127.8V)
Resolutions	800 x 600
Display Color	262,144 color
Brightness	220 cd/m2
Contrast ratio	500 : 1 (Typical)
Response Time	Tr=10 / Tf=25ms
Pixel pitch	0.213 x 0.213 mm
Viewing angle	65 / 65 / 55 / 55 (L / R / U / D) or 130 / 110
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video Input Connectors : RCA-BNC adapter Details
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Details Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Steel
Dimension	261.7 x 54.3 x 189 mm (WxDxH)
Product Weight	2 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -5 to 60 Degree Celsius (Storage)
Relative Humidity	5~90%, non condensing
Shock	10G peak acceleration (11ms duration)
Vibration	5~500Hz, 1G RMS random vibration
Safety Approval	CE, FCC
Package Content

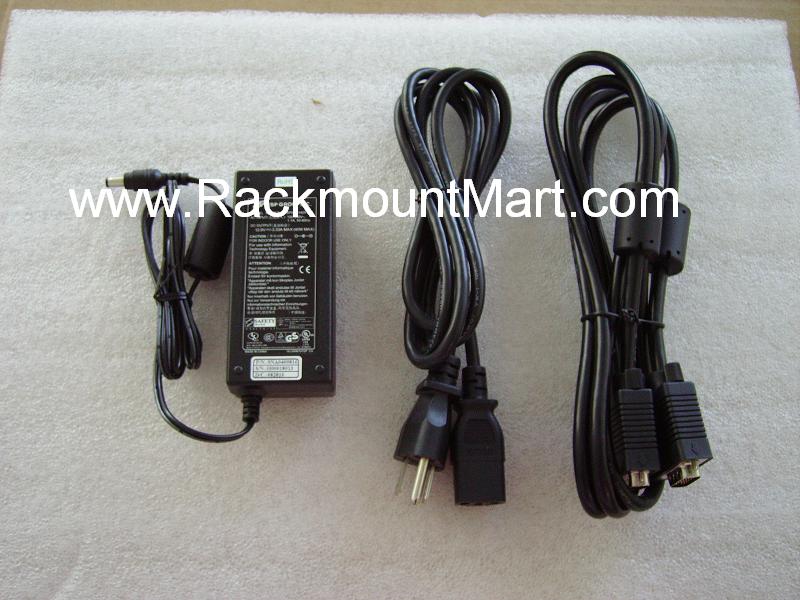

Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1,Power cord x 1,Mounting Bracket x 1 pair, CD disc, User Manual x 1

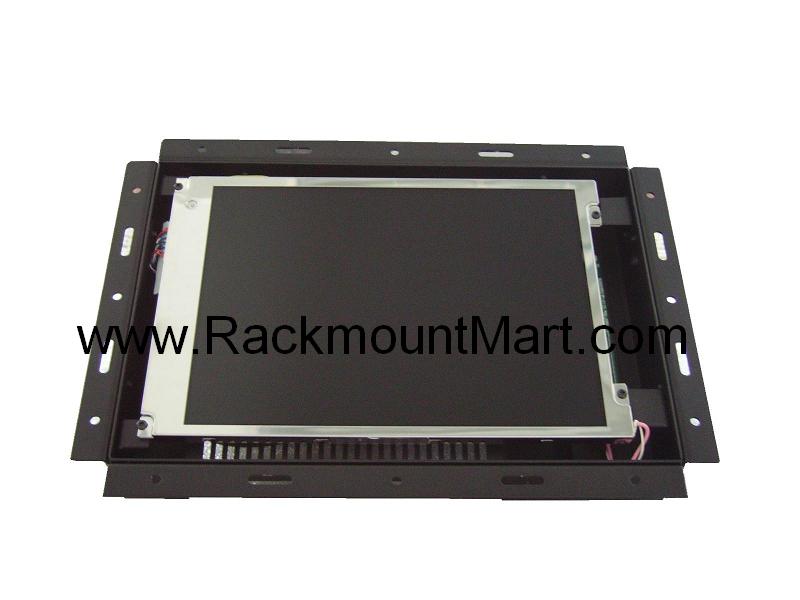

Front View of ID-8P

Construction

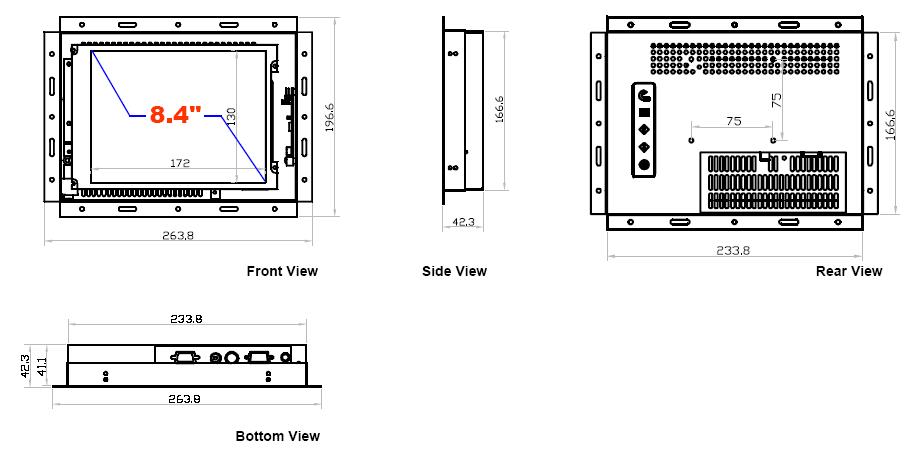

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

Touchscreen Drive Download
Mac	Linux	Dos
Win 2k-Xp	Win 98-Me	Win CE
Win 7

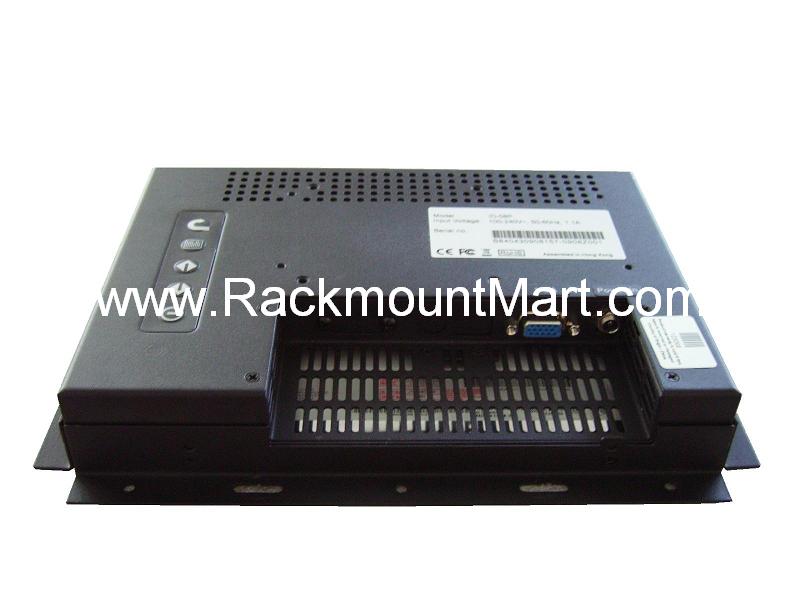

More photos (click to enlarge )

FEATURES :

8.4" industrial TFT LCD panel support 800 x 600 pixels

220 cd/m2 industrial brightness

OSD control keys to optimize the display

Low power consumption

Modularized design

Optional video input (S-Video & RCA input)

Optional with touch screen and DC power input

Low power consumption

Universal open frame kits

Universal-mount, OEM mounting

APPLICATIONS :

Industrial automation LCD panel
Embedded display Unit
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part #	Description
WITHOUT NEMA 4 / IP65
ID-08P Price : $410	Standard Version - 8.4" Open Frame TFT LCD Display
ID-08PAV Price : $471	Version w/option - 8.4" Open Frame TFT LCD Display + S-Video & Composite video(RCA)
ID-08PBNC Price : $471	Version w/option - 8.4" Open Frame TFT LCD Display + S-Video & Composite video(BNC)
ID-08PDC12 Price : $511	Version w/option - 8.4" Open Frame TFT LCD Display + 12v DC Power
ID-08PDC24 Price : $511	Version w/option - 8.4" Open Frame TFT LCD Display + 24v DC Power
ID-08PDC48 Price : $511	Version w/option - 8.4" Open Frame TFT LCD Display + 48v DC Power
ID-08PTRS Price : $559	Version w/option - 8.4" Open Frame TFT LCD Display + resistive Touch screen & serial controller
ID-08PTRB Price : $559	Version w/option - 8.4" Open Frame TFT LCD Display + resistive Touch screen & USB controller
ID-08PTCS Price : $667	Version w/option - 8.4" Open Frame TFT LCD Display + capacitive Touch screen & serial controller
ID-08PTCB Price : $667	Version w/option - 8.4" Open Frame TFT LCD Display + capacitive Touch screen & USB controller
-AV Price : $61	Add Composite video(RCA) + S-video
-BNC Price : $61	Add Composite video(BNC) + S-video
-TV Price : $101	Add TV tuner with remote controller
-12VDC Price : $101	Add 12V DC Power
-24VDC Price : $101	Add 24V DC Power
-48VDC Price : $101	Add 48V DC Power
-SPK Price : $68	Add Audio input
-RM Price : $54	Add Remote controller
