ID-40Dw 40" Samsung 1080P HDMI Wide Screen 16 : 9 Chassis Industrial Displays Optional Composite Video / DC Power



Industrial Flat Panel Display :   Part #   ID-40Dw
                       1.2mm Aluminum Front Bezel 40" Samsung Wide Screen Chassis Display
LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

Wide 40 inch (16:9)

Resolutions

1920 x 1080
1080P HDMI

Display Color

16.7M color

Brightness

500 cd/m2

Contrast ratio

1200 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.648 x 0.648 mm

Viewing angle

89 / 89 / 89 / 89 (L / R / U / D)  or
178 / 178

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog
  • 1080P HDMI

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
OPTIONS

Video  Input
  • Video Input   :    DVI and S-Video and Composite
  • Input Connectors : RCA, S-video, DVI
Mechanical

Material

 1.2mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Silver
 Back          : Dark Grey (RAL7037)
Dimension  1006 x 127 x 589 mm (WxDxH)
Product Weight  45.0 kg
      Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
Package Content

Package Content

 LCD Monitor x 1 , VGA Cable (Male to Male) x1,
DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CDdisc, User Manual x 1

  Front View of  ID-40Dw

  Construction

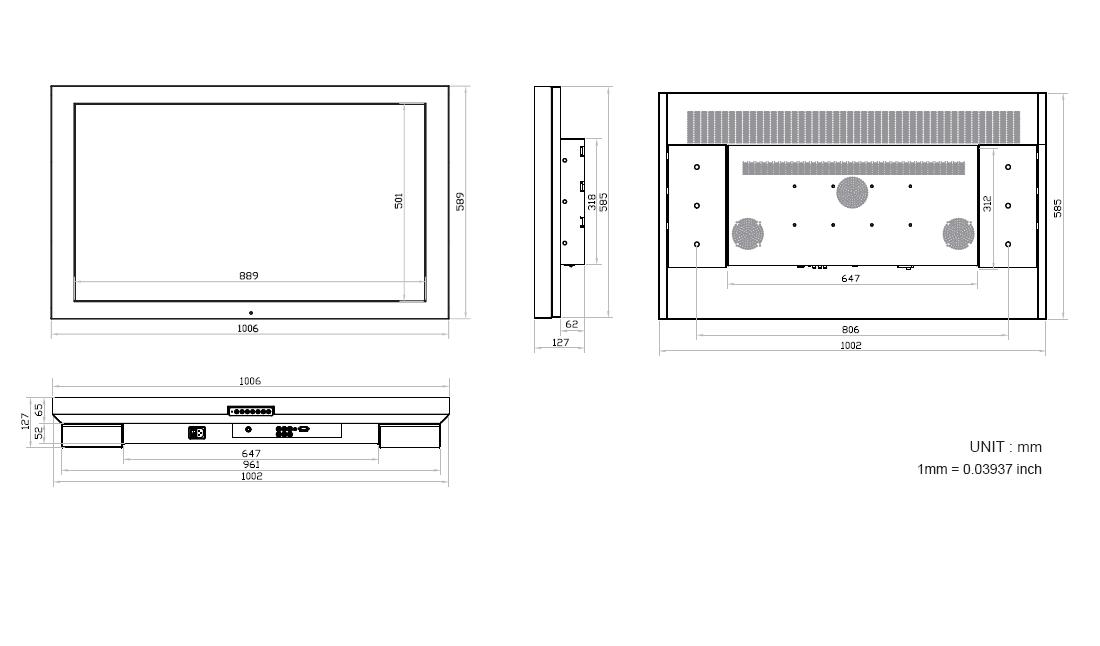

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

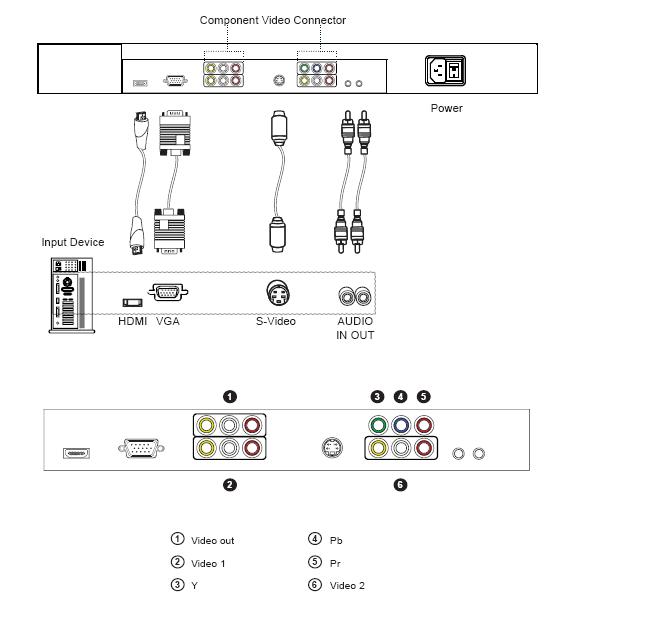

   ID-40W IO PLATE

            *click on above picture for enlarged view







FEATURES :
  • 40"(16:9) industrial TFT LCD panel support 1920 x 1080 pixels, 1080P HDMI
  • 1.2mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • Low power consumption
  • 500 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional video input (DVI & S-Video & RCA input)
  • VESA-mount, OEM mounting design

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation
