Sunlight Readable - LCD1U19-015 1U Rackmount 19"  Hightbright LCD Drawer with VGA , DVI & LED backlight Optional  HDMI, Composite Video, Audio, DC Power input, NEMA/IP65 & Touch Screen





Part #  LCD1U19-015


                     1U Rack mountable 19" Sunlight Readable LCD Display Drawer with LED Technology
                      Optional HDMI, S-Video & Composite Video , Audio , Touch Screen , DC Input Power &  NEMA 4 / IP65

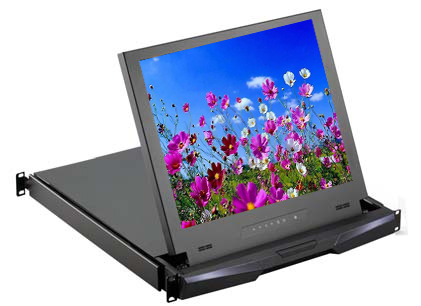

1U High Brightness LCD Drawer LCD1U19-015

*click on photo for enlarged view

    Drawer Features & Display Benefits
  • 1U 19" LCD drawer with high brightness 1000 cd/m²
  • Green LED-backlit panel technology
  • Short depth design of 500mm ( 19.7" )
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Installation slides for easy, quick installation
  • Enhanced aesthetics with molded front panel and two point lock
    Options
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC )
  • HDMI or Audio input
  • 48V or 24VDC power
                     General Information

Form Factor

1U Rack mounting on slide-out rails

                          LCD Screen

LCD Type

TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1280 x 1024

Contrast ratio

1000 : 1

Brightness

1000 cd/ m2

Active area (mm) 376 x 301

Panel color

16.7 M

Viewing angle

160° x 160°

Signal Input

VGA or DVI-D

LCD MTBF

50,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 84 Watt, Standby 5 Watt
                     Environmental

Storage temp.

-5ºC to 60ºC

Operating temp.

0ºC to 50ºC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

                          Mechanical
Dimension:
( Single console )
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Product Weight 12.5 kgs / 28 lbs

Package Content

LCD1U19-015 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                              Regulatory Approval
  FCC, CE, RoHS Compliant
    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

        Free Ground Shipping *Click for details


Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

 Ordering  information

Part Number  Description
LCD1U19-015
Price : $1652
1U Rack-mount 19" Sunlight Readable LCD  Monitor Drawer with VGA & DVI-D , LED backlight , one 6-ft long VGA cable included. ( Video signal Inputs only )
LCD1U19-015-Spk
Price : $1766
1U Rack-mount 19" Sunlight Readable LCD  Monitor Drawer with VGA , DVI-D  & Audio  , LED backlight , one 6-ft long VGA cable included. ( Video  & Audio signal Inputs included )
(Depth will be 570mm/22.4")
LCD1U19-015-HDMI
Price : $1766
1U Rack-mount 19" Sunlight Readable LCD  Monitor Drawer with VGA & HDMI with Speakers, LED backlight , one 6-ft long VGA cable included  ( Video  & Audio signal Inputs included , No DVI-D  ) (Depth will be 570mm/22.4")
Optional Video signal input
-AV
Price : $114
With VGA + DVI-D + S-Video & BNC Composite Video input with RCA adapter (Depth will be 570mm/22.4")
-BNC
Price : $114
With VGA + DVI-D + BNC + S-Video (Depth will be 570mm/22.4")
-AV3.0
Price : $171
With VGA + DVI-D + HDMI w/ speaker (Depth will be 570mm/22.4")
Optional Touch screen
-TRS
Price : $271
Add Resistive touch screen + Serial controller
-TRB
Price : $271
Add Resistive touch screen + USB controller
-TCS
Price : $457
Add Capacitive touch screen + Serial controller
-TCB
Price : $457
Add Capacitive touch screen + USB controller
Option DC Power
-DC12
Price : $215
Add 12V DC power supply (Depth will be 570mm/22.4")
-DC24
Price : $215
Add 24V DC power supply (Depth will be 570mm/22.4")
-DC48
Price : $215
Add 48V DC power supply (Depth will be 570mm/22.4")
-DC110
Price : $357
Add 110V DC power supply (Depth will be 570mm/22.4")
-DC125
Price : $357
Add 125V DC power supply (Depth will be 570mm/22.4")
Other Options
-NEMA
Price : Coming soon
Add front IP65 protection for LCD size - 19"






Availability: Usually ships the next business day

LCD1U19-015$1,652.00
Model:

Optional Composite Video & S-Video:

Optional DC Input Power Adapter:

Optional Touch Screen :
