Features:•
Support multiple keyboard languages.
• LED Display for easy status monitoring.
• Buzzer sound for switching port confirmation.
• Keyboard status restored when switching PCs.
• Provide Console PS/2 to PC serial mouse conversion
• Using Standard PS/2 Keyboard, VGA, PS/2 Mouse cable.
• No Dipswitch setting needed and auto detect cascade bank
• Built-in one extra daisy chain port and no waste any PC port.
• Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
• Support eight characters password protection and search PC server
name.
• Support Microsoft IntelliMouse , Microsoft IntelliMouse
Explorer, Logitech Net Mouse or the other
fully compatible MS mouse.
• Support DOS, Win3.X, Win95/98/98SE/2000/ME, WinNT, Netware, Unix,
Linux
• Hot Plug - Add PCs or Remove Connected PCs for Maintenance
without powering down the PS/2
KVM switch or PCs.
• No Software Required - easy PC selection via On Screen Display
Manual, Push Buttons, Hot Keys.
• Auto Scan Mode for monitoring PCs and flexible Scan time from
5~99 seconds.

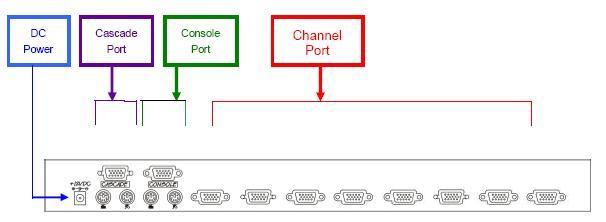

Rear View :
|
Item
|
Specification |
|
KVM Channel Port
|
8 port
|
|
KVM Channel
Interface |
HDDB 15 pin
|
|
PC Computer
Interface |
PS/2 Keyboard:
Mini Din 6 pin Female
PS/2 Mouse: Mini Din 6 pin Female
VGA : HDDB 15pin Female |
|
Cascade Port
Connector |
PS/2 Keyboard:
Mini Din 6 pin Female
PS/2 Mouse: Mini Din 6 pin Female
VGA: HDDB 15pin Female |
|

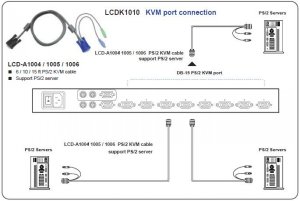

KVM Cable
Connection |
3-in-one HDDB
15-pin PS/2 KVM Cable ( standard 6-ft, optional 10-ft, 15-ft,
33-ft ) |
|
PC selection
|
On Screen Display,
Hot Key & Push Button |
|
LED |
1 Bank LED
4 / 8 / 16 Online LED (Green) & Selected LED (Red) |
|
On Screen Display
Control |
Yes |
|
Scan Mode
Intervals |
5~99 Sec.
|
|
VGA Resolution
|
Up to 1,920X1,440
|
|
Bandwidth
|
200MHz
|
|

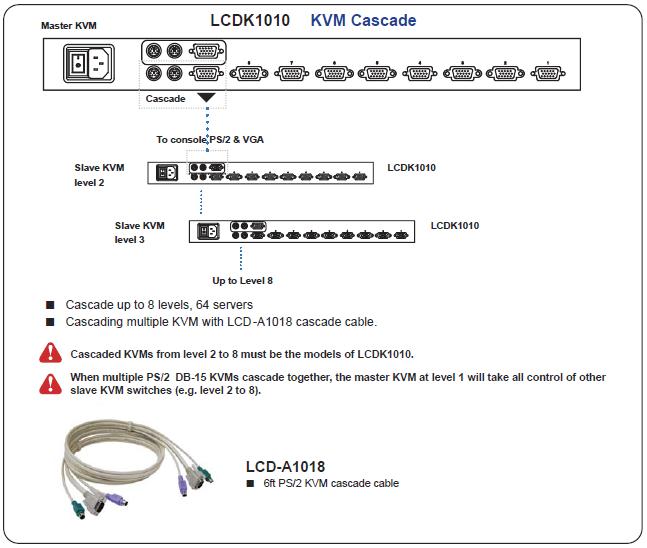

Cascade MAX. Level
|
8 levels with
addition 112 PCs connection |
|
Housing
|
Metal |
|
Power Adapter
|
DC 12V 1A
|
|
Operation
Temperature |
0~50 ℃
|
|
Storage
Temperature |
-10 ~ 60 ℃
|
|
Humidity
|
0~90%,
Non-Condensing |
|
Product Dimension
|
449 W x 44H x 180D
mm |
|
Net Weight
|
3.5 Kg
|
Special Notes
-
****LCDK1010 KVM Switch is using standard PS/2 type keyboard and
mouse and D-sub 15pin VGA for
connection. If you need to connect a Sun server to this KVM
switch, you will need a separate
SUN / iMAC USB to PS/2 converter kit LCD-A1001
(click here to see details of LCD-A1001).
****3-in-One
PS/2 KVM cables has optional length of 6-ft , 10-ft , 15-ft & 33-ft.
(click here to
see details of PS/2 KVM cables).
Ordering
information
|
Part Number |
Description |
|
LCDK1010 |
1U Rackmount Single
user 8-port PS/2 KVM Switch with 8 x 6-ft PS2 KVM
cables (LCD-A1004 )
included |
|
LCD-A1001 |
SUN / iMAC USB
to PS/2 adapter |
|
LCD-A1004 |
6 ft 3 in 1
PS/2 KVM cable |
|
LCD-A1005 |
10 ft 3 in 1 PS/2
KVM cable |
|
LCD-A1006 |
15 ft 3 in 1 PS/2
KVM cable |
|
LCD-A1007 |
33 ft 3 in 1 PS/2
KVM cable |
|
