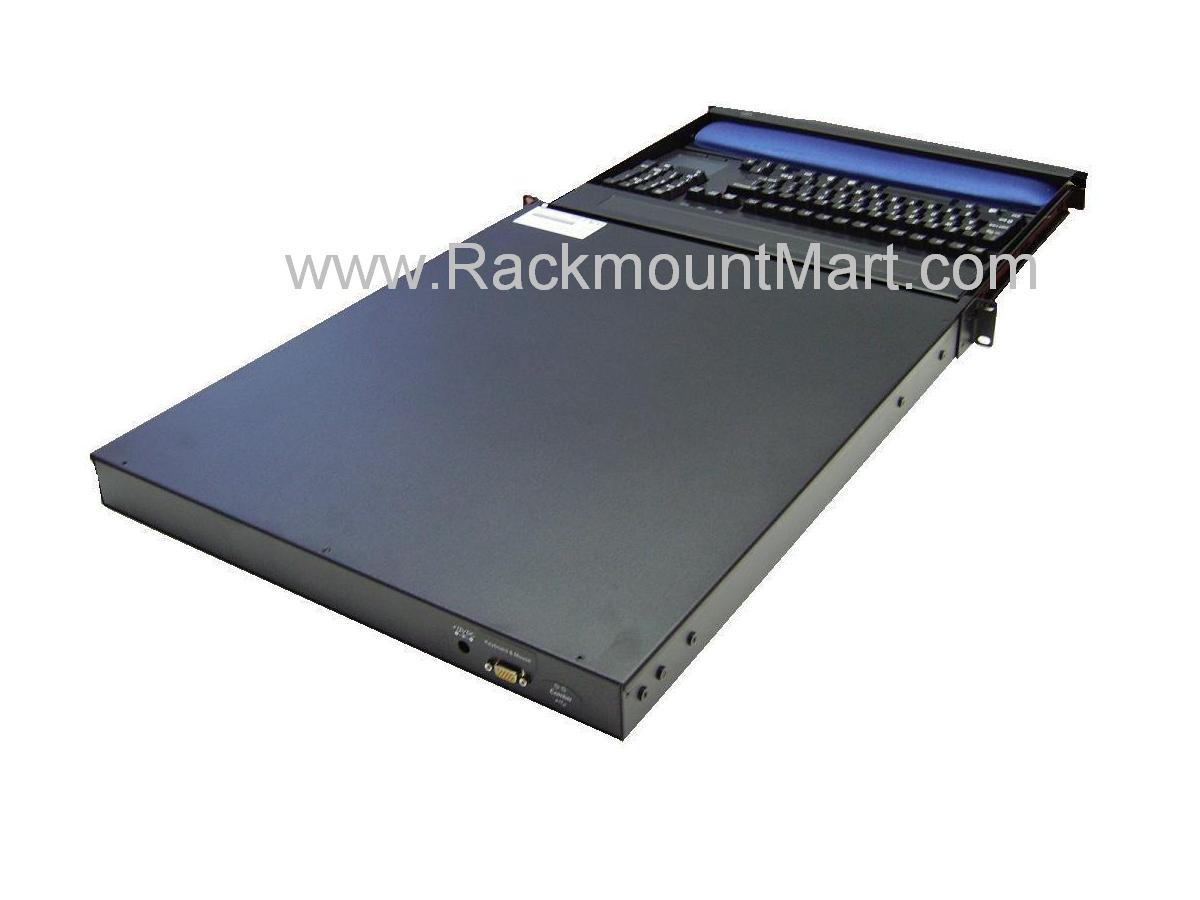

LCDK1002 1U Rackmount Keyboard with Travel drawer & Front Lock , optional Trackball or Touchpad, & optional Gel Wrist Pad Optional PS2 or USB Connector & Cable





1U Rackmount Keyboard with Lock Optional Trackball / Touchpad / Gel Wrist Pad
                                                 Optional PS2 or USB Connector & Cable
                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs &
DELLs

Server Side Interface

HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS

Rack Mounting

Adjustable ranges from 15.3" to 31.3"
(390 to 795mm)            Dimension Diagram
                                     Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

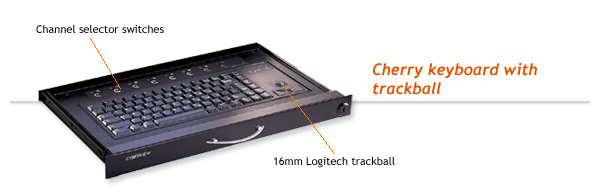

Cherry type KB w/ 2-button Trackball

Model d

Compact KB w/ 17-key numeric keypad and
3-button Trackball

Model t

Compact KB w/ 17-key numeric keypad and
2-button Touchpad



                                Keyboard Details

                                    Interface Option



 PS2 Type Interface

KB/MS Emulation

 PS/2, with microprocessor support
 hot-plugging

Server Side Interface

 VGA HD15, analog RGB and 2 x 6-pin mini
 DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris,
Novel, SCO Unix and MS DOS



 USB Type Interface

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

 VGA HD15, analog RGB, USB type A, support
 hot-plugging

Support Platform

 MS Windows 2000/XP, Solaris and SCO Unix

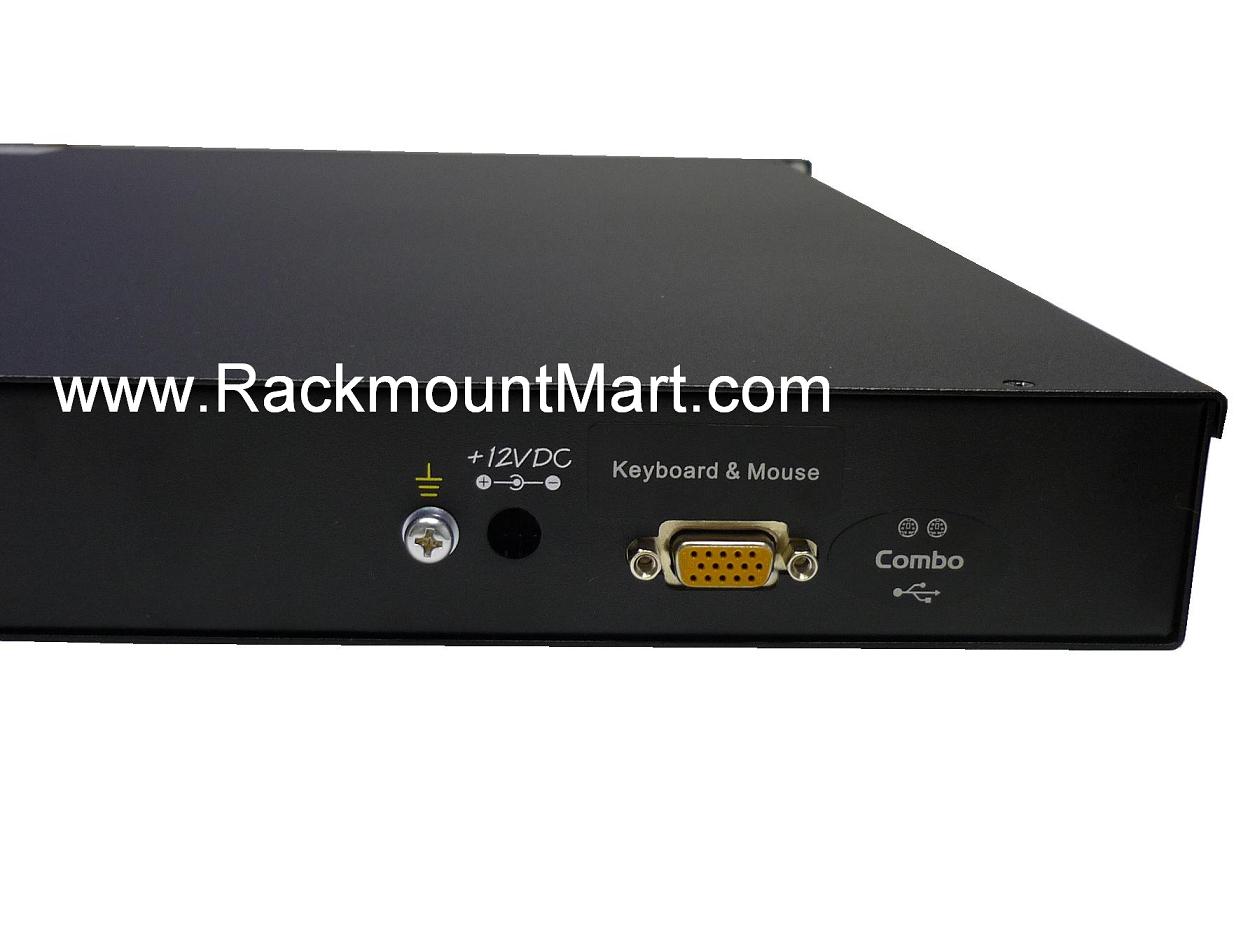

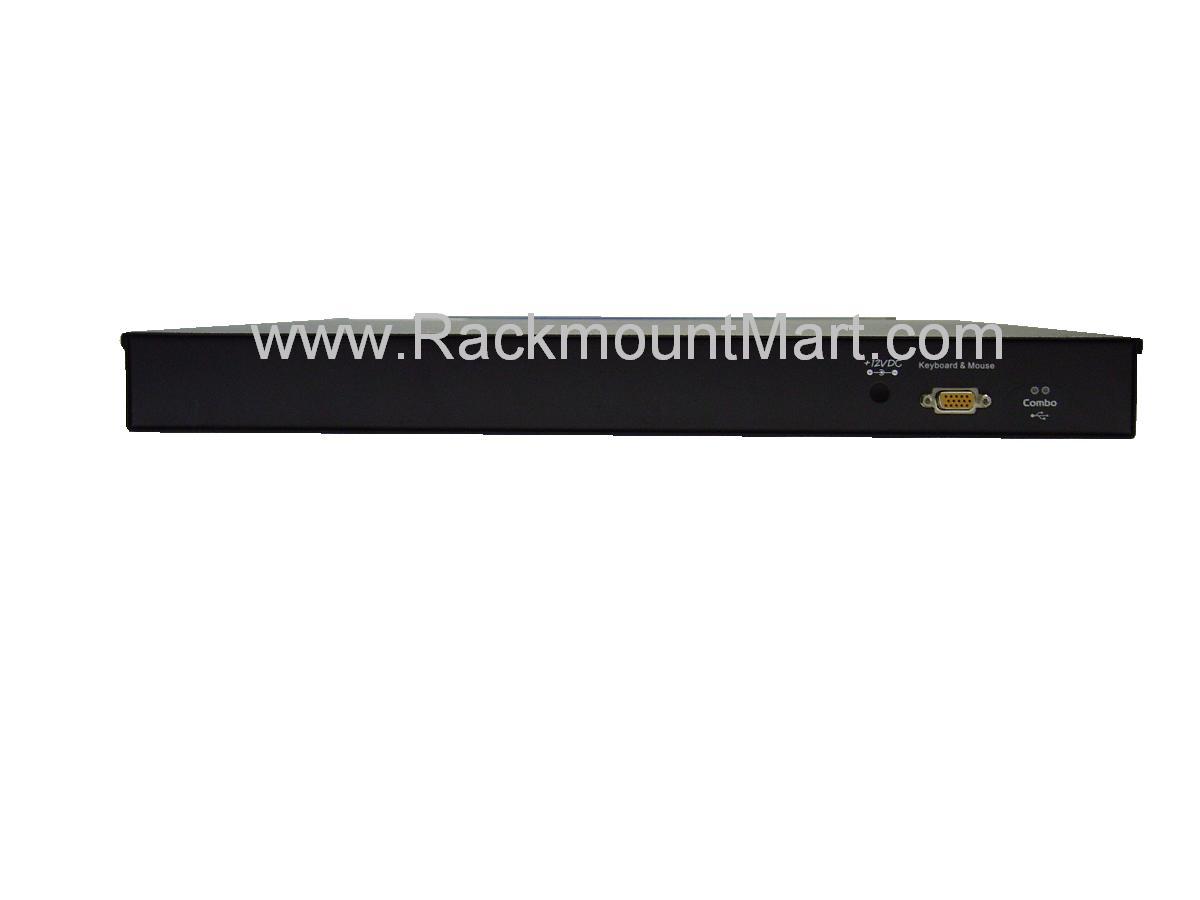

                                 Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type

                              Regulatory Approval
           FCC , CE , VCCI ,
                       Optional Accessories & Peripheral



 Details

                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -25 to 65 Degree Celsius (Storage)
Relative Humidity  90%, non condensing
   Shock  50G peak acceleration
 (11ms, half since wave)
   Vibration  58~500Hz/ 0.98G
 (11min/ cycle)
                                  Mechanical

Product Dimension

17.4"(W) x 1.75"(H) x 21.6" (D) /
 44.2(W) x 4.45(H) x 55(D)cm
Product Weight  Approximately 26.4 lbs / 12kg
Relative Humidity  90%, non condensing
                             Package Content

Package Content

Rackmount keyboard drawer x 1 ,  KVM cable x 1 , 110 / 220 V DC Power adapter x 1 , Adjustable Mounting Bracket x 1 pair, Keys for front lock x 2  , Fastener x 4 , User Manual x 1

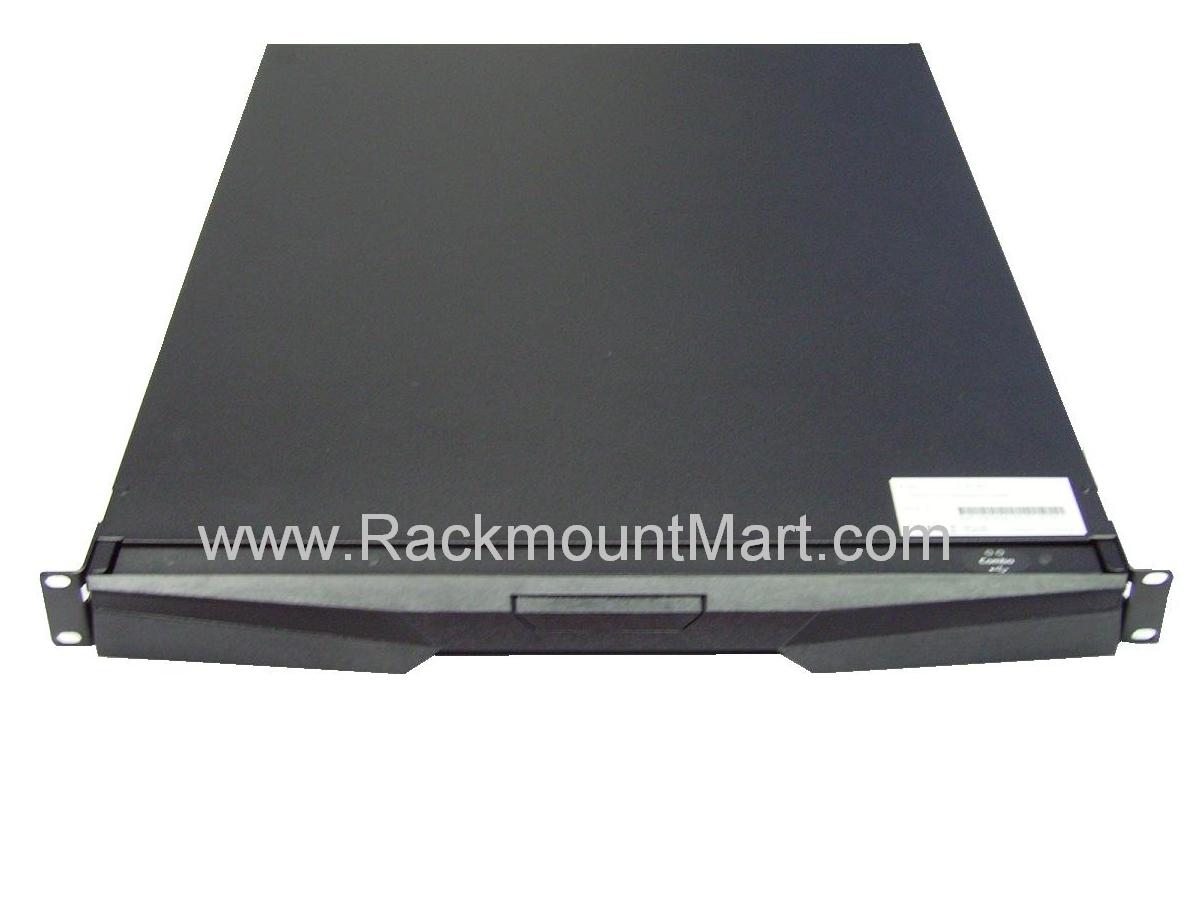

  Front View of LCDK1002





            5 KEYBOARD OPTIONS  :







           Details of Keyboard Options



    User Manual














Features:

  • Rugged metal construction
  • Standard 19". 1U height rackmount keyboard drawer
  • Adjustable mounting brackets from 15.35" to 31.3" (390to 795mm), fits multiple depth cabinets between 650mm and 1000mm
  • OPTIONAL PS2 OR USB CONNECTOR & CABLE
  • Lightweight aluminum construction - with a black anodize finish
  • Fully compatible to IBM/AT keyboard
  • Front access Lock for security
  • Large padded wrist-rest for Compact keyboard
  • Slide Rails have fixed position to prevent movement of the keyboard
  • Lockable drawer to secure the keyboard and mouse
  • Ball bearing telescopic slides
  • 15" drawer travel
  • Supplied with 12V 5A remote power adapter (single power source)
  • All mounting hardware included
  • One 6-ft long KVM cable included ( KVM cable length  of  10-ft or 15-ft options available. More details  )

    More Photos  (click on the photos below for enlarged views ):

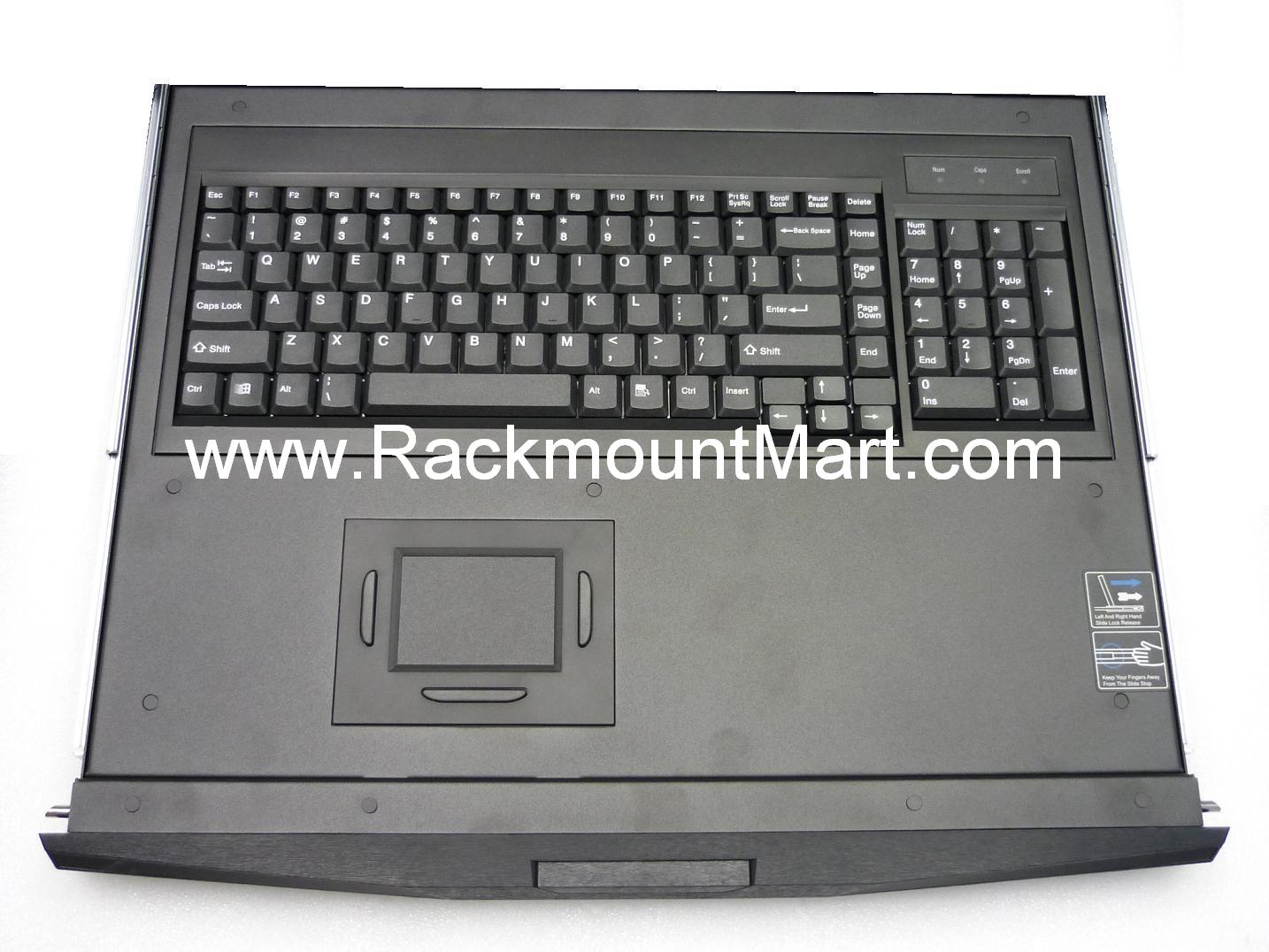

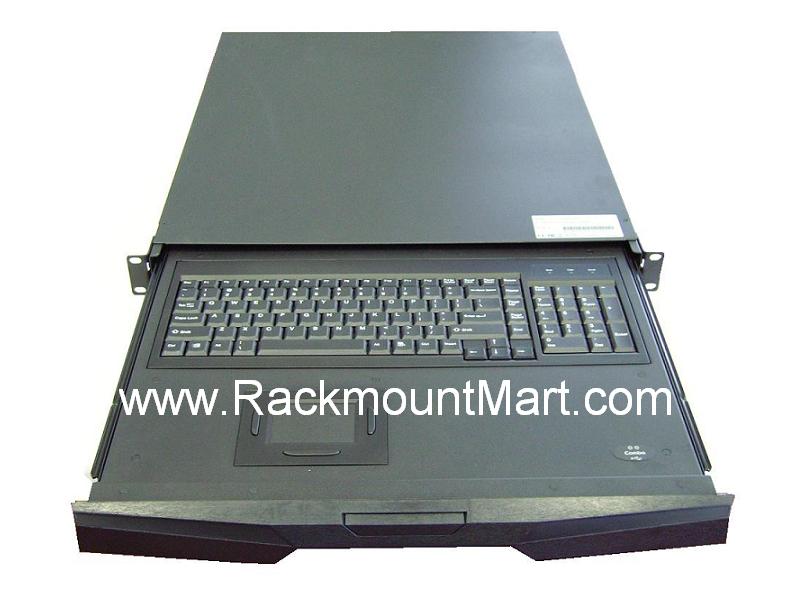

    n : Notebook KB w/ touchpad        d : Compact KB w/ trackball         c :  Cherry KB w/ trackball

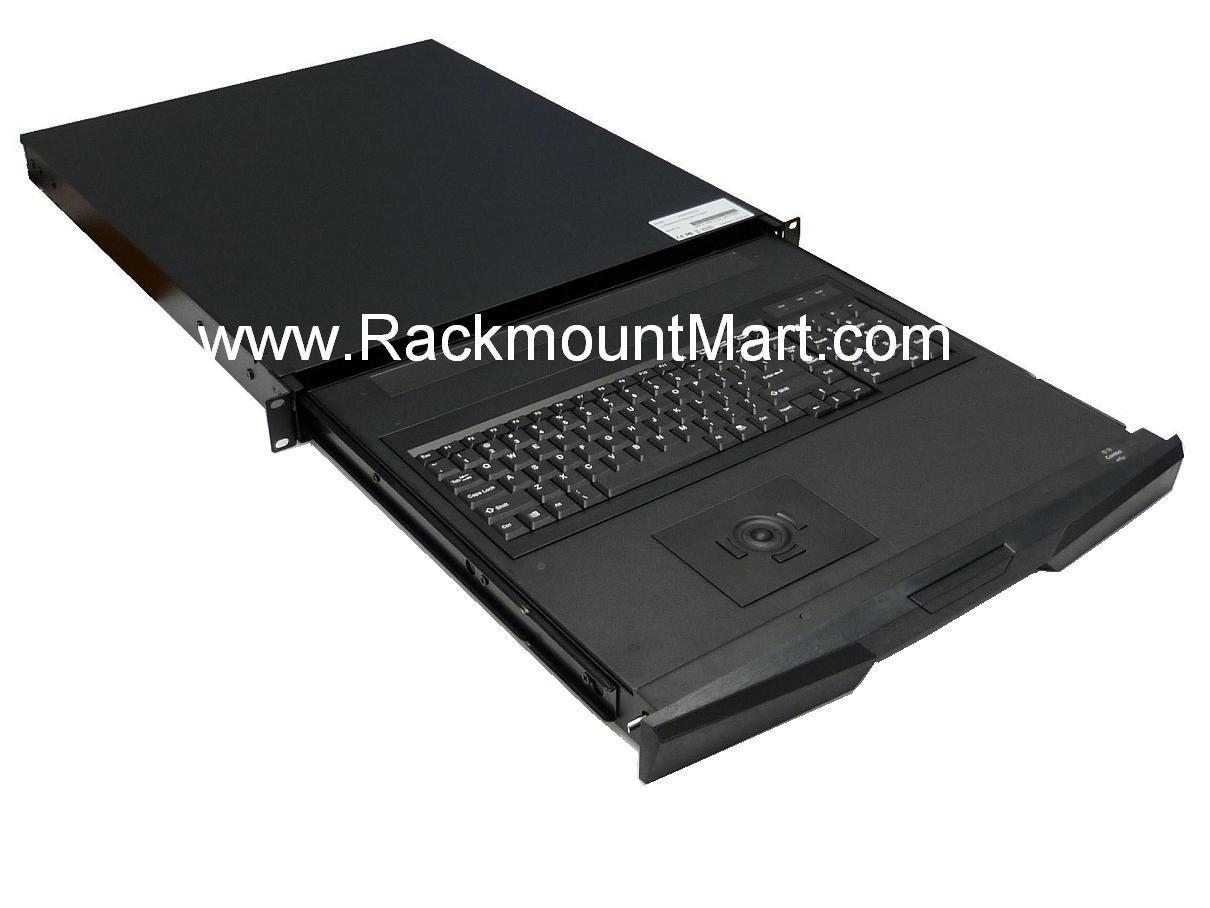

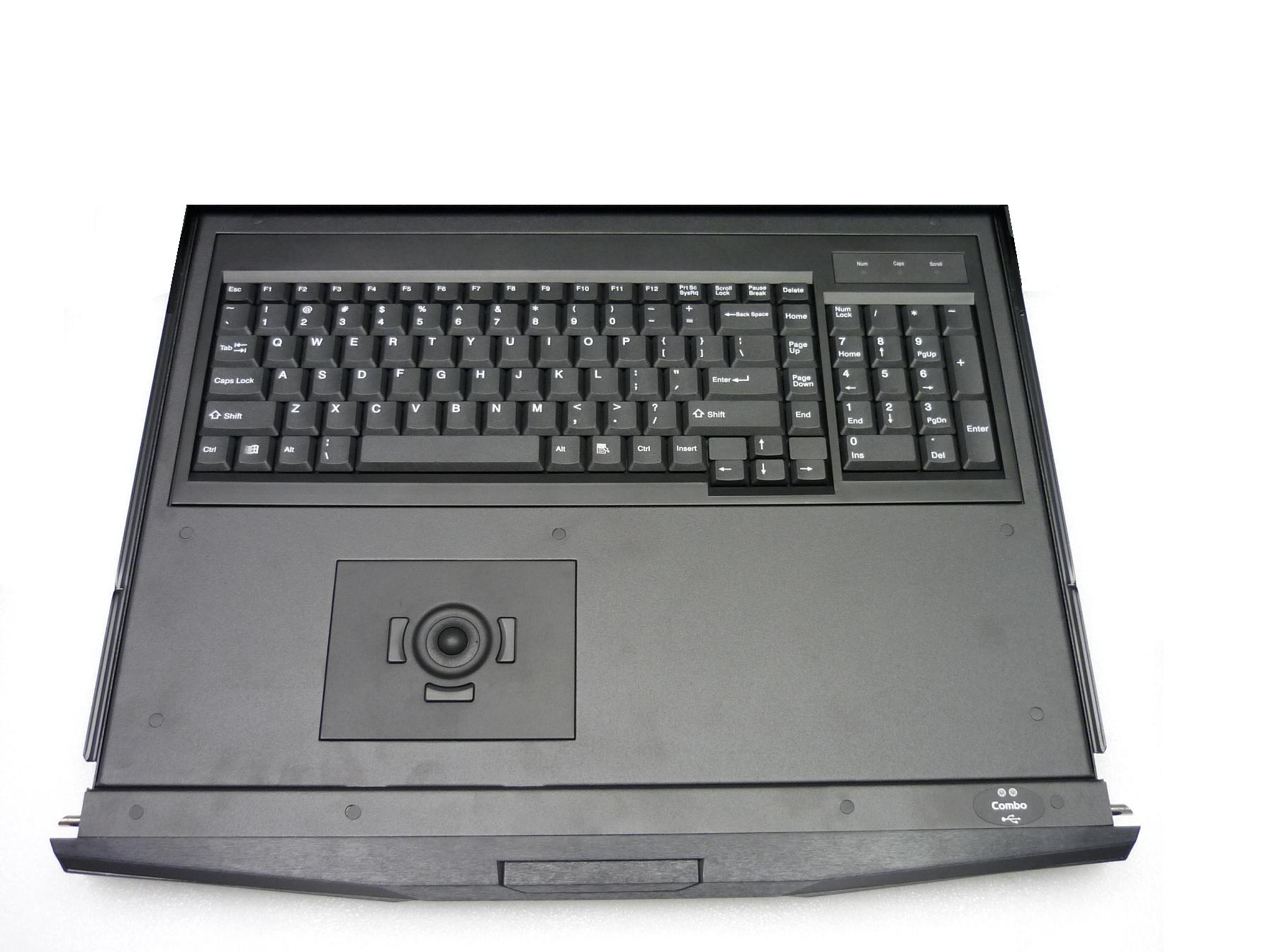

   b:  Notebook KB w/ trackball         t: Compact KB w/ touchpad                 Dimension Diagram



                                                              Optional Accessories


                LCD-A1001  PS/2 to SUN /iMac USB adapter

                  Details

                                                                Optional Peripheral
    LCD Monitor Drawer
                                                        Details
         		   LCD Monitor
                                                         Details

    Single User (Console) PS/2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details
         		   Single User (Console) USB  KVM switch
    -  8 Port / 16 Port                            Details

     2 User (2 Consoles ) PS/2 KVM switch
    - 8 Port / 16 Port                             Details
         		   2 User (2 Consoles )USB KVM switch
     -  8 Port / 16 Port                          Details

     PS/2 KVM Extender
                                                        Details


Ordering information :

Part Number  Description
LCDK1002-d    Price : $220 1U Rackmount  Keyboard Drawer with compact keyboard and trackball mouse , Lock & Gel Wrist Pad, black, PS2 Connector & PS2Cable
LCDK1002-n    Price : $246
***Clink the link for new style		 1U Rackmount Keyboard Drawer w/ notebook KB & touchpad & 1 x PS2/USB Combo cable. Black
LCDK1002-c   Price : $260 1U Rackmount  Keyboard Drawer with cherry keyboard and trackball mouse, Lock, black, PS2 Connector & PS2 Cable
LCDK1002-t    Price : $220 1U Rackmount  Keyboard Drawer with compact keyboard and touchpad mouse, Lock & Gel Wrist Pad, black, PS2 Connector & PS2 Cable
LCDK1002-b   Price : $220 1U Rackmount  Keyboard Drawer with notebook keyboard and trackball mouse, Lock, black, PS2 Connector & Cable
LCDK1002-du  Price : $260 1U Rackmount  Keyboard Drawer with compact keyboard and trackball mouse , Lock & Gel Wrist Pad, black, USB Connector & USB Cable
LCDK1002-nu  Price : $246
***Clink the link for new style		 1U Rackmount Keyboard Drawer w/ notebook KB & touchpad & 1 x PS2/USB Combo cable. Black
LCDK1002-tu   Price : $260 1U Rackmount  Keyboard Drawer with compact keyboard and touchpad mouse, Lock & Gel Wrist Pad, black, USB Connector & USB Cable
LCDK1002-bu   Price : $260 1U Rackmount  Keyboard Drawer with notebook keyboard and trackball mouse, Lock, black, USB Connector & USB Cable










Availability: Usually ships the same business day.

LCDK1002 $220.00
PS2 Version(Usually ships the same business day):
USB Version (Lead time may be longer):
