LCDK1003  1U Rackmount Keyboard with  Front Lock, 4 Port KVM Switch & 4 sets of KVM cables optional trackball or  touchpad



*** This model is discontinued. Learn more about replacement model LCDK1004  ***

1U Rack mounted Keyboard with 19 inch lockable Travel Drawer  4 Port PS/2 KVM Switch
and 4 x  6-ft PS/2 KVM cables Optional Trackball or Touchpad
Features
  • Rugged metal construction
  • Standard 19" 1U height rackmount keyboard drawer
  • Adjustable mounting brackets from 15.35" to 31.3" (390to 795mm), fits multiple depth cabinets between 650mm and 1000mm
  • Lightweight aluminum construction - with a black anodize finish
  • Fully compatible to IBM/AT keyboard
  • Front access Lock for security
  • Slide Rails have fixed position to prevent movement of the keyboard
  • Lockable drawer to secure the keyboard and mouse
  • Ball bearing telescopic slides
  • 15" drawer travel
  • Supplied with 12V 5A remote power adapter (single power source)
  • All mounting hardware included
  • Dimension :  17.5"(W) x 1.75"(H) x 21.6" (D) /
     44.4(W) x 4.45(H) x 55(D)cm
  • Optional Accessories & Peripheral : Details

KVM Switch

•  Cascade for use up to 128 servers.
•  Name servers up to 16 characters long.
•  Scan mode – Monitor servers at intervals 5 to 99 seconds.
•  High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
•  Built-in microprocessor emulation for each port boots up process.
•  Support eight characters password protection and search PC
    server name.
•  VGA, keyboard & mouse all-in-one by 15pin HDDB connector at
   switch side.
•  Multi-platform – mix PCs, SUN Microsystems, IBM compatibles,
   HPs, Compaq and Dell.
•  Hot Pluggable - Add PCs or Remove Connected PCs for
   Maintenance without powering down the PS/2 KVM switch or
   PCs.
•  No Software Required - easy PC selection via On Screen Display
   Manual, Push Buttons, Hot Keys.



    Front View of LCDK1003d

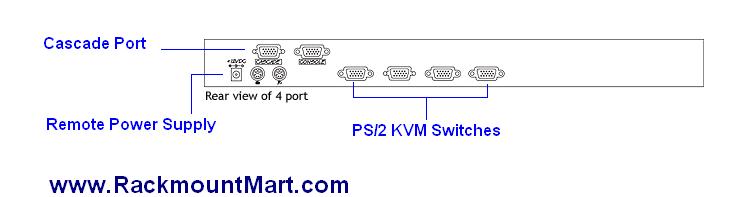

   Rear View with KVM switches


    * click on picture for enlarged view



       Product Sheet


      Keyboard User Manual


      KVM User Manual







Click on the following photos for enlarged view :


5 KEYBOARD OPTIONS  :

 Details of Keyboard Options

Dimension Diagram


Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval : FC, CE
  • Mains plug options available
  • Optional - power adaptor 48V / 24V / 12V DC input available
KVM switch -
Channel Port 4
PC Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type)
HDDB 15 pin
Channel Port Connection
(Male to Male)
HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection  128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -5 ~ 60 ℃
Humidity 5~90%, Non-Condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration



                                                              Optional Accessories
     LCD-A1001  PS/2 to SUN /iMac USB adapter


                         Details


KVM  & Cascade Cables with various length
                                                                 Details


                                                                Optional Peripheral
    LCD Monitor Drawer
                                                        Details

   LCD Monitor
                                                         Details

    Single User (Console) PS/2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details

   Single User (Console) USB  KVM switch
    -  8 Port / 16 Port                            Details

     2 User (2 Consoles ) PS/2 KVM switch
    - 8 Port / 16 Port                             Details

   2 User (2 Consoles )USB KVM switch
     -  8 Port / 16 Port                          Details

     PS/2 KVM Extender
                                                        Details





Ordering  information

Part Number  Description
 LCDK1003-d 1U Rackmount  Keyboard Drawer with Lock, Compact keyboard and trackball 4 port PS/2 KVM switch & 4 x  6-ft 3-in-one PS/2 KVM cables , Black
 LCDK1003-t 1U Rackmount  Keyboard Drawer with Lock, Compact keyboard and touchpad mouse 4 port PS/2 KVM switch & 4 x  6-ft 3-in-one PS/2 KVM cables , Black
 LCDK1003-n 1U Rackmount  Keyboard Drawer with Lock, Notebook keyboard and touchpad mouse,  4 port PS/2 KVM switch & 4 x  6-ft 3-in-one PS/2  KVM cables , Black
 LCDK1003-b 1U Rackmount  Keyboard Drawer with Lock, Notebook keyboard and trackball mouse,  4 port PS/2  KVM switch & 4 x  6-ft 3-in-one PS/2 KVM cables , Black




LCDK1003 ( discontinued )
