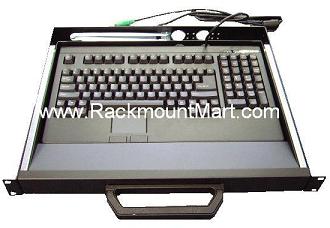

Hot ***  LCDK1005 1U  Rackmount Keyboard with TouchPad Optional PS/2 or USB connector , Lock







Part #  LCDK1005


                                         1U  Rack mount Keyboard with Touch Pad Optional PS2 / USB
    Features:
  • 1U 19" Rack-Mount Keyboard/Mouse Drawer
  • Keyboard drawer meets EIA-310C industrial standard
  • Front side ear and rear for rack mount
    AT, PS/2 or USB keyboard interface support
  • Equipped with 104/105/106/109-key Keyboard & touchpad
  • Multi-language keyboard available
  • Supports touch pad function
  • Dimension : 17.3" x 14.3" x 1.75"
  • 439.4 (W) x 363.2 (D) x 44.5 (H) mm

    Keyboard Feature
  • IBM AT,PS/2 compatible or USB option interface
  • Built-in touch pad for windows mouse cursor. use finger to move position.
  • Tracking speed up to 40 inches per second
  • Elegant Wrist-Rest for a comfortable support &Reset.

    Specification
  • Chassis body material : Adopts heavy duty steel and with Hand hold
  • Keyboard Bay : 400 x 238 x 34 (W x D x H) mm
  • Dimension : This product can matched industrial standard 19 inch cabinet and rack. The real dimension is showing 439.4(W)x363.2(D)x44.5(H)mm
  • Color : There are standard color for Black and Beige or any color by customer demands.
  • Keyboard : Compatibility : IBM AT, PS/2 DOSV
    Key layout : 104/105/106/109 keys
    Travel distance : 4.0 +/- 0.5 mm
    Travel to peak : Peak force 50 +/- 10 gm
    Operation temperature : 0 to 55 degree C
    Storage temperature : -5 to 60 degree C
    Operating humidity : 5% to 90% non condensing
    Shock : 10G acceleration (11ms duration)
    Vibration : 5~500Hz, 1G RMS random vibration
    Switch life : 10 million life cycles
    Electronic data : +5V/DC +/_ 5%
  • Optional : PS2 or USB





*click on the photos for enlarged views

*click on the drawing  for enlarged view


Download Dimensional Drawing

Click on the followings to enlarge :





 Customer who ordered this product may also order these :
- Rack Mounted LCD Monitors
- Rack Mounted KVM Switch - Rack Shelves
- PDU ( Power Distribution Unit ) - Rack Storage Drawer
- Equipment Rack - Power Strips
- 4 Post Open Rack - Rack Cooling Fan
- Wall Rack Mount

Ordering  information

Part Number  Description
LCDK1005-nl
Promotion: $119
 1U Rackmount  Keyboard Drawer with  touchpad mouse, PS/2 , black
LCDK1005-nl-U
Promotion: $129
 1U Rackmount  Keyboard Drawer with  touchpad mouse, USB ,  black





Availability: Usually ships the same business day

LCDK1005Regular price: $168.00Sale price: $119.00
