Xymphony LCDK1016  Short Depth 1U Rackmount Keyboard optional Trackball/Touchpad





Part #   LCDK1016


Xymphony 1U SHORT DEPTH Rackmount Keyboard with Lock Trackball / Touchpad
with Combo PS2 / USB interface & Combo PS2 / USB Cable

              Space saving : only 15.7"(400mm) / 14.6" (370mm) deep 1U Keyboard Rackmount
              Also known as: rackmount keyboard, rack mount keyboard, rackmount keyboard drawer,
              rackmount keyboard mouse drawers, rack mount PS/2 keyboard, rack keyboard, rack keyboard drawer

    Drawer Features & Benefits
  • Short depth design of 400mm ( 15.7" ) for model LCDK1016-n/-b
  • Short depth design of 370mm ( 14.6" ) for model LCDK1016-t/-d
  • 104-key keyboard with either trackball (b) or touchpad (n)
  • US compact keyboard layout with either trackball (d) or touchpad (t)
  • Light weight & low shipping cost
  • Lockable drawer to secure keyboard & mouse access
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB for keyboard drawer
                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs

Keyboard & Pointing Device

Model n / b

Standard Keyboard  w/ Numeric Keypad & Touchpad / Trackball

Model Mn / Mb
(MAC)

MAC Keyboard and Hot-Keys w/ Numeric Keypad & Touchpad / Trackball

Model Sn / Sb
(SUN)

Sun Keyboard and Hot-Keys w/ Numeric Keypad & Touchpad / Trackball

Model c

Cherry type KB w/ 2-button Trackball

Model d / t

Compact KB w/ 17-key numeric keypad and 3-button Trackball / Touchpad

Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type


Regulatory Approval
   FCC, CE
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 65 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Dimension
LCDK1016-n
LCDK1016-b

441.6 x 400 x 44 mm /
17.4 x 15.7 x 1.73 inch
   (W x D x H)

LCDK1016-t
LCDK1016-d

439 x 370 x 44 mm /
17.3 x 14.6 x 1.73 inch
   (W x D x H)

Weight
LCDK1016-n
LCDK1016-b
 Approximately 18.9 lbs / 8.6kg
LCDK1016-t
LCDK1016-d
 Approximately 16.5 lbs / 7.5kg
    Dimension


LCDK1016-n / LCDK1016-b

LCDK1016-t / LCDK1016-d
*click on above pictures for enlarged view


    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual

LCDK1016-n   /   LCDK1016-Mn
Dimension : 441.6 x 400 x 44 mm
LCDK1016-b
Dimension : 441.6 x 400 x 44 mm
LCDK1016-d
Dimension : 439 x 370 x 44 mm
LCDK1016-t
Dimension : 439 x 370 x 44 mm

More Photos
(click on the photos below for enlarged views )






 Customer who ordered this product may also order these :
- Rack  LCD Monitors - Equipment Rack / Server Rack
- Rack  KVM Switch - Rack Shelves
- PDU ( Power Distribution Unit ) - Rack Storage Drawer
- Equipment Rack - Power Strips
- 4 Post Open Rack - Rack Cooling Fan
- Wall Rack Mount



Ordering information
Part Number  Description
LCDK1016-b
Price : $254
1U Short Depth Rackmount  Keyboard Drawer with notebook keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1016-bu
Price : $254
1U Short Depth Rackmount  Keyboard Drawer with notebook keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1016-bu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1016-bu :  if you place order by part # LCDK1016-bu, we will ship you the version of  Combo interface , in which either USB or PS2 input can be used .
LCDK1016-Sb
Price : $446
1U Short Depth Rackmount  Keyboard Drawer with SUN keyboard and trackball mouse with USB interface & 1 x USB cable. Black
LCDK1016-Mb
Price : $446
1U Short Depth Rackmount  Keyboard Drawer with MAC keyboard and trackball mouse with USB interface & 1 x USB cable. Black
LCDK1016-n
Price : $254
1U Short DepthRackmount Keyboard Drawer w/ notebook KB & touchpad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1016-nu
Price : $254
1U Short Depth Rackmount Keyboard Drawer w/ notebook KB & touchpad with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1016-nu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1016-nu :  if you place order by part # LCDK1016-nu, we will ship you the version of  Combo interface , in which either USB or PS2 input can be used .
LCDK1016-Sn
Price : $446
1U Short DepthRackmount Keyboard Drawer w/ SUN KB & touchpad with USB interface & 1 x USB cable. Black
LCDK1016-Mn
Price : $446
1U Short DepthRackmount Keyboard Drawer w/ MAC KB & touchpad with USB interface & 1 x USB cable. Black

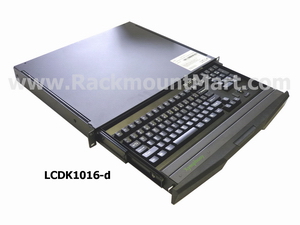

LCDK1016-d
Price : $215
1U Short Depth Rackmount Keyboard Drawer w/ compact keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black.
LCDK1016-du
Price : $215
1U Short Depth Rackmount Keyboard Drawer w/ compact keyboard and trackball mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1016-t
Price : $215
1U Short Depth Rackmount  Keyboard Drawer with compact keyboard and touchpad mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
LCDK1016-tu
Price : $215
1U Short Depth Rackmount  Keyboard Drawer with compact keyboard and touchpad mouse with Combo PS2 / USB interface & 1 x Combo PS2 / USB cable. Black
** Notes: LCDK1016-tu is originally the old Part # for the obsolete version of USB interface ONLY . Repeat customers of LCDK1016-tu :  if you place order by part # LCDK1016-tu, we will ship you the version of  Combo interface , in which either USB or PS2 input can be used .
LCDK1016-c
Price : $260
1U Short Depth Rackmount  Keyboard Drawer with cherry keyboard and trackball mouse, Lock, black, PS2 interface  & PS2 Cable









Availability: Usually ships the same business day

LCDK1016 $215.00

PS2/USB Version:
