1U Stylish Rugged SUN Solaris Compatible Rackmount 19" TFT LCD Monitor Keyboard Drawer  with
                             16 port / 32 port  High Density CAT5 KVM  Switch   for Local / Remote Access
                                                           ****  Built-in Combo PS/2 &  USB interface  ****

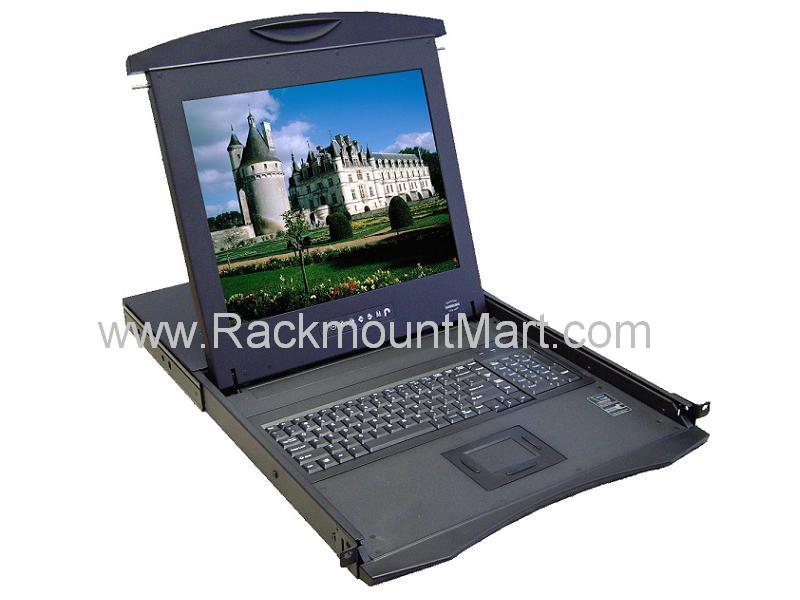

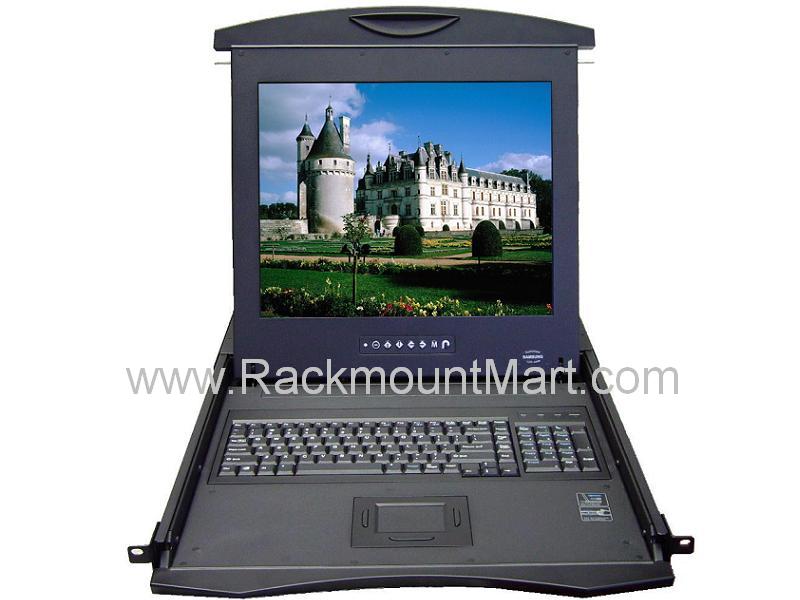

Front View of LCD1U19-08           *click on photo for enlarged view	LCD Drawer & KVM Benefits Direct Support for SUN Micro 1152 x 900 Native Resolution Video auto-adjust for optimum image 104 key notepad or trackball keyboard with full numerical pad and SUN Hot Keys High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space Cost efficient DB-15KVM integration Stylish Outlook and Rugged design Single or "One Man" installation slides for easy, quick installation Mix PS/2 , USB & SUN with Multi-Platform switch capability Secure remote user access across the web wide web via optional IP console Slide rails with fixed positions to prevent drawer movement when typing Multi lingual on screen display menu
Special Features :
1. LCD interchangeable module Kit :      -17" & 19" LCD Panel interchangeable in the same chassis      -Samsung Grade A panel       -Optional Video , DVI and BNC inputs	2. KVM  interchangeable module Kit :      -All KVM models are  interchangeable in the same chassis      -High density CAT5 KVM are either 16 or 32 ports in 1U of Rack space       -Mix PS/2  &  USB with multi-Platform switch capability
3. Keyboard  interchangeable module Kit :      -Either PS/2 or USB input to the LCD drawer /       keyboard by cable selection      -Multiple keyboard language selections with either       touchpad or trackball     -104 key notepad keyboard with full numerical pad	4.  Mouse interchangeable module kit      -3 button GlidepointTM touchpad or trackball       interchangeable in same chassis      -Either PS/2 or USB input to the LCD drawer / keyboard by cable selection
5. 2-point lock	6. Micro switch for screen auto power off
7. Single person (One Man ) installation rackmount kit	8. Carry handle to release the 2-pt lock
9. 7-button LCD OSD membrane with a power LED	10. KVM membrane

              Compatibility with  the following SUN Servers  & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server  - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

General Information Form Factor 1U Rack mounting on slide-out rails Compatibility Compatible with SUNs, IBMs, HPs, DELLs and Mix PCs with USB-enable Server Side Interface HD15 VGA, USB Type A for KB/MS   Support Platform Solaris, MS Windows 2000/XP, Linux and  SCO Unix Rack Mounting Adjustable ranges from 15.3" to 33.2"  (390 to 845mm)                                                            LCD Screen LCD Type Samsung Grade A  19" Industrial               TFT LCD Panel Display Size  19 inch diagonal Resolutions -1280 x 1024 native graphic resolution -Screen will sync with mist SUN resolution including 1152 x 900 @66 or 76Hz  Response time Tr =1.3ms / Tf =3.7ms Contrast ratio 1000 : 1 Brightness 300 cd/ m2 Pixel pitch 0.294mm (H) x 0.294mm (W)  Panel color 16.7 million display colors Viewing angle 160 / 160 (Horiz. / Vert.) OSD Control Brightness, Contrast, Phase & Color, H & V position, Auto-tune, Recall & Language Signal Input VGA, Analog RGB Optional Video  Input Video [S-video + Composite (RCA)] , DVI-D, BNC [S-video + BNC]      More Details LCD MTBF 50,000 hrs                                      Keyboard & Pointing Device   -Either touchpad or trackball -With Numeric keypad -Incorporate SUN keys including Stop, Cut, Paste, Compose, Copy and Help -US layout version only                                      Keyboard Details     Integrated High Density CAT.5  KVM Switch Option KVM port  16 port or 32 port Cat. 5 Remote 1000 feet remote access by CAT. 5 cable (with 2-console KVM) via  RJ-45 connection Cascade Expansion Up to 256 ports/servers by 8 level cascade                                                More Details                                 Power Supply   Internal Power Supply : 110V - 220 V AC Input ,  12V 5A Output                                   Rear I/O Connector Integrated KVM DB-15  KVM ports :  HD15 female IP console port  :  RJ45 type (IP KVM model )   Remote console port:  RJ45 type (2-console model)      Serial port   :  DB9 (IP KVM model) Virtual Device port :  USB type B (IP  KVM model) USB cascade port :  HD15 female   DC power input  Plug-round type                                     Mechanical Product Dimension 17.4"(W) x 1.73"(H) x 25.6"(D) /  44.2(W) x 4.4(H) x 65(D)cm Product Weight  Approximately 37 lbs / 17kg  Relative Humidity  90%, non condensing                               Regulatory Approval            FCC , CE , VCCI                        Optional Accessories & Peripheral    Details                              Package Content Package Content See user manual of the respective version listed above      ree Ground Shipping *Click for details

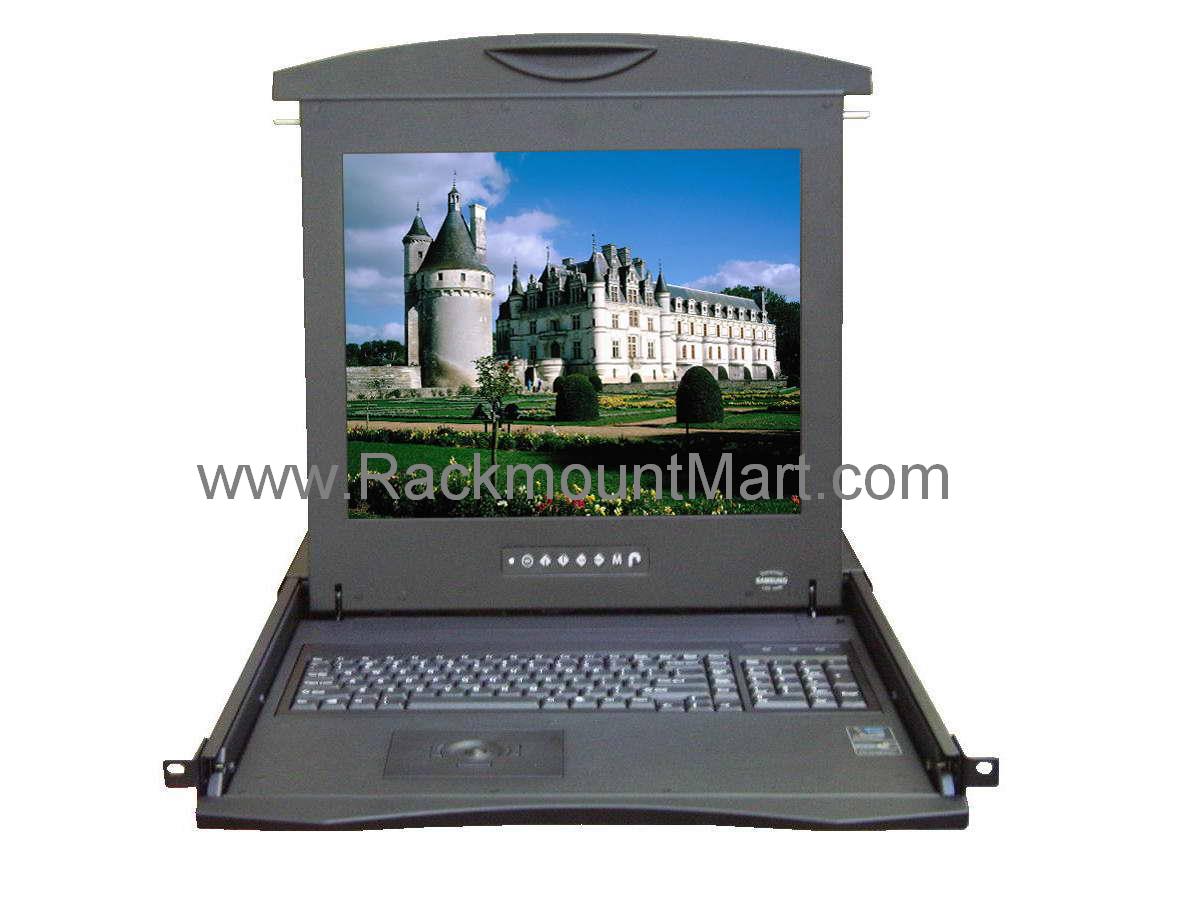

Front View of LCD1U19-08-UIP                                    *click on photo for enlarged view                         Dimension                                                                      *click on above pictures for enlarged view       REAR VIEW & CONNECTION DIAGRAM -       High Density RJ-45 CAT5.KVM :                            Single Console (Local ) Local + Remote Consoles      *  click on above pictures for enlarged view        User Manual     KVM SUPPORT Local + Remote Console, High Density CAT.5  KVM Local + IP Console, High Density CAT5  IP KVM  More Photoes LCD1U19-08

Features :

• Single or "One Man" installation slides for easy, quick installation
• Stylish and Rugged design
• 1U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
• Slide rails with  fixed positions to prevent keyboard movement while typing
• Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
• Directly compatible with  SUN & USB server
• Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
• SAMSUNG 17" Grade A LCD Panel
• Compatible with SUN, Apple, IBM, Dell, HP and USB Server

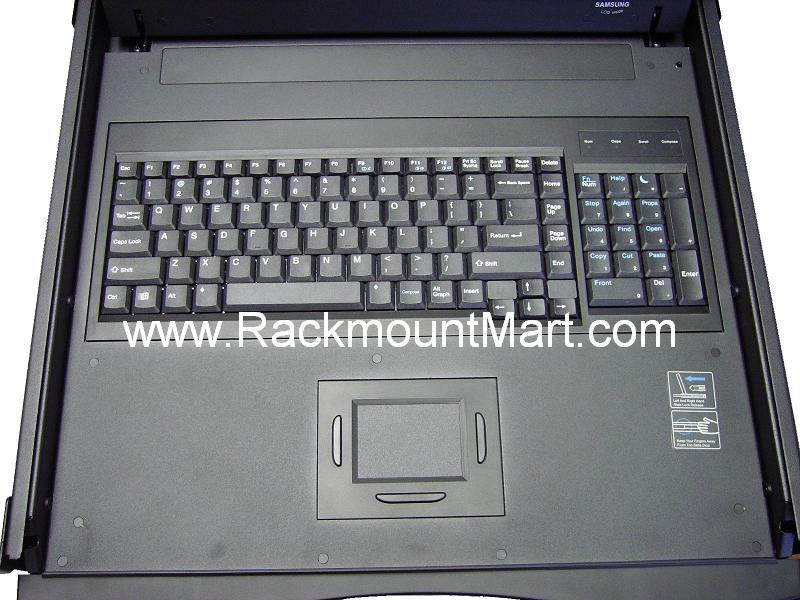

• Sun Compatible keyboard with either touchpad or trackball, and numeric keypad and  SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY  Keyboard Details->
• Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of  24" to 36"
• Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
• Unique mechanical design to maximize rack mountable space
• Anodized aluminum front panel
• Sliding rails will self-lock when pulled all the way out
• Built in on screen display controlled by integral membrane switches
• Built-in thumb screws securing the machine when it is folded or pushed all the way in
• Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
• Power saving feature for prolonging the lift of LCD panel
• Standard D-sub 15-pin VGA input connector
• 12V 5A remote power adapter (Single power source)
• EMC shielding around the monitor housing to minimize interference
• All mounting hardware included
• Optional : 12V/24V/  48V DC input adapter

Integrated with High Density CAT.5 KVM Switch Only                                                High Density RJ-45 CAT5 KVM OPTIONS -  with either 16 or 32 ports , cascade up to 256 servers Local Console High Density CAT.5 KVM Switch :         16 Port KVM - LCDK1043 Details         32 Port KVM - LCDK1044 Details  Local + Remote Console High Density CAT.5 KVM Switch :               16 Port KVM - LCDK1045 Details               32 Port KVM - LCDK1046 Details

Back to top

Optional Accessories
USB KVM  Cables & Cascade Cables in various  length                                                                                                        Details	48V / 24V / 12V DC Power     Input Range          : 10~36V (DC-12V, DC-24V model)                               36~75V (DC-48V model)    DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)    Safety                    : Continuous short circuit protection                            Details
Options    - Speaker                                    - Front Panel  - Internal Power Supply           - Micro Switch  - LCD Membrane                                                       *** Please contact us for details	USB Dongles & CAT5 Cables in various  length                                                                               Details
