LCDR8U21-03  8U Rackmount 21.5" widescreen Full HD with 1080p Resolution Rackmount LCD with LED-backlit Display





Part#  LCDR8U21-03


   SiriusView 8U Rackmount 21.5" widescreen Full HD with 1080p Resolution LCD with LED-backlit Display
LCD with LED backlight Panel

Display type

 TFT color display

Max Resolutions

1920 x 1080

Contrast ratio

1000 : 1 typical

Brightness

250 cd/ m2 typical

Size (diagonal)

21.5" widescreen TFT

Panel color

16.7 M

Viewing angle

170° x 160° ( H / V )

Back light

LED

MTBF (hrs)

30,000

Signal input

Without TV: VGA, DVI-D and HDMI
With TV: ATSC DTV / HDMI / VGA / Composite

Digital TV Tuner (Option)

Aerial input: 75 ohm coaxial, IEC type
TV system: ATSC / NTSC

Active area (mm)

477 x 268

Sound

2 x 2W Power

Power

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Max. 48 Watt, Standby 5 Watt

                                  Mechanical

Casing Color

Black front panel / Dark grey rear case

Product Dimension

501.9 x 64.4 x 353 mm /
19.8 x 2.5 x 13.9 inch

Net Weight

10 kgs / ( 22 lbs )

Mounting

Rackmount, 8U
VESA mount, 100*100mm

Package Content

LCDR8U21-03 unit X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration ( 11ms duration )
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS Compliant

 Download User Manual
 Download Product Sheet
  Front View

  Construction

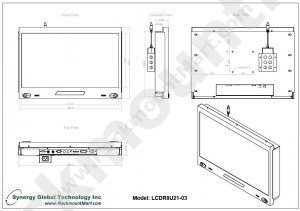

   Front / Bottom / Side Views & Dimensions


*click on above picture for enlarged view

       Free Ground Shipping *Click for details
   DISPLAY BENEFITS :
  • 8U rackmount 21.5" widescreen LCD
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • PIP & Picture by Picture viewing efficiency
  • VESA and Rackmount multiple hole mounting
  • Ideal for CCTV security & industrial control
  • Modern touch controls
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 21" Touchscreen : Capacitive, Resistive, Multi-touch
  • S-Video + Composite ( BNC / RCA ), TV or Audio input
  • 48V, 24V or 12VDC power
  • MIL-type or lockable connector
  • Digital TV tuner decodes ATSC signal (w/ TV option)


More Photos, click on the following for enlarged view:




     Diagram for  I/O Outlet

 Optional Peripheral & Accessory :
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D - DC Power Input ( 12V / 24V / 48V )
- KVM Cables / Cascade Cables / Dongles - PS2 to SUN /iMac USB adapter
- KVM Extender - IP KVM Extender
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

Back to top

Ordering  information

Part Number  Description
LCDR8U21-03
Price : $773
8U Rackmount 21.5" Widescreen Full HD LCD Display,  with VGA + DVI-D + HDMI w/ speaker.
LCDR8U21-03-AV
Price : $924
8U Rackmount 21.5" Widescreen Full HD LCD Display,  with VGA + DVI-D + HDMI w/ speaker + BNC + S-Video + Audio.
LCDR8U21-03-TV
Price : $773
8U Rackmount 21.5" Widescreen Full HD LCD Display,  with VGA + TV(ATSC) + HDMI + PC audio in + composite (RCA), w/ remote controller. (**Not available with other video / audio options)
Optional NEMA4 / IP65
-IP65
Price : $165
Add NEMA4 / IP65 Protective Glass
Optional Video/Audio inputs
-SDI
(Upgrade from LCDR8U21-03)

Price : $314
VGA + DVI-D + HDMI w/ speaker + 3G / HD / SD-SDI Download Spec Sheet
-SDI
(Upgrade from LCDR8U21-03-AV)

Price : $314
VGA + DVI-D + HDMI + BNC + S-Video + Audio + 3G / HD / SD-SDI + speaker Download Spec Sheet
-MC
Price : $93
Add Multi-display control Download Spec Sheet
Optional Touch screen
-TRS
Price : $357
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $357
Add Resistive Touch Screen with USB Controller
-TCS
Price : $529
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $529
Add Capacitive Touch Screen with USB Controller
Optional  DC Input Power
-DC12
Price : $215
Add 12V DC power supply
-DC24
Price : $215
Add 24V DC power supply
-DC48
Price : $215
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
Optional Connectors – For DC power only
-MD
Price : $93
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet







Availability: Usually ships the next business day

LCDR8U21-03$773.00
Model:

Optional NEMA4 / IP65:


OPTIONS
Optional Signal Inputs:

Touch Screen :

DC Input Power Adapter:

Connector:
