LCDR5U10-04-dual  5U Rackmount Dual 10.4" TFT LCD Monitor W/Anaglog & DVI Input  Optional Lexan Shield / S-Video & Composite video inputs







Part # LCDR5U10-04-dual

*** This model is discontinued . Learn more about replacement model LCDR5U10-05-dual  ***


                                                       5U Rack mount  Dual 10.4"  TFT  LCD Monitors
                                                   Optional Composite Video + ARGB
 ( Made in USA )


Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor
                        * Click to enlarge
      Free Ground Shipping *Click for details

Features :
- Dual 10.4” TFT LCD display (1024 x 768 resolution) in 5U (8.75”) of rack space.
- Both monitors feature ARGB (Analog RGB) and DVI-D signal inputs.
- Housed in rugged steel construction with a black powder coat finish.

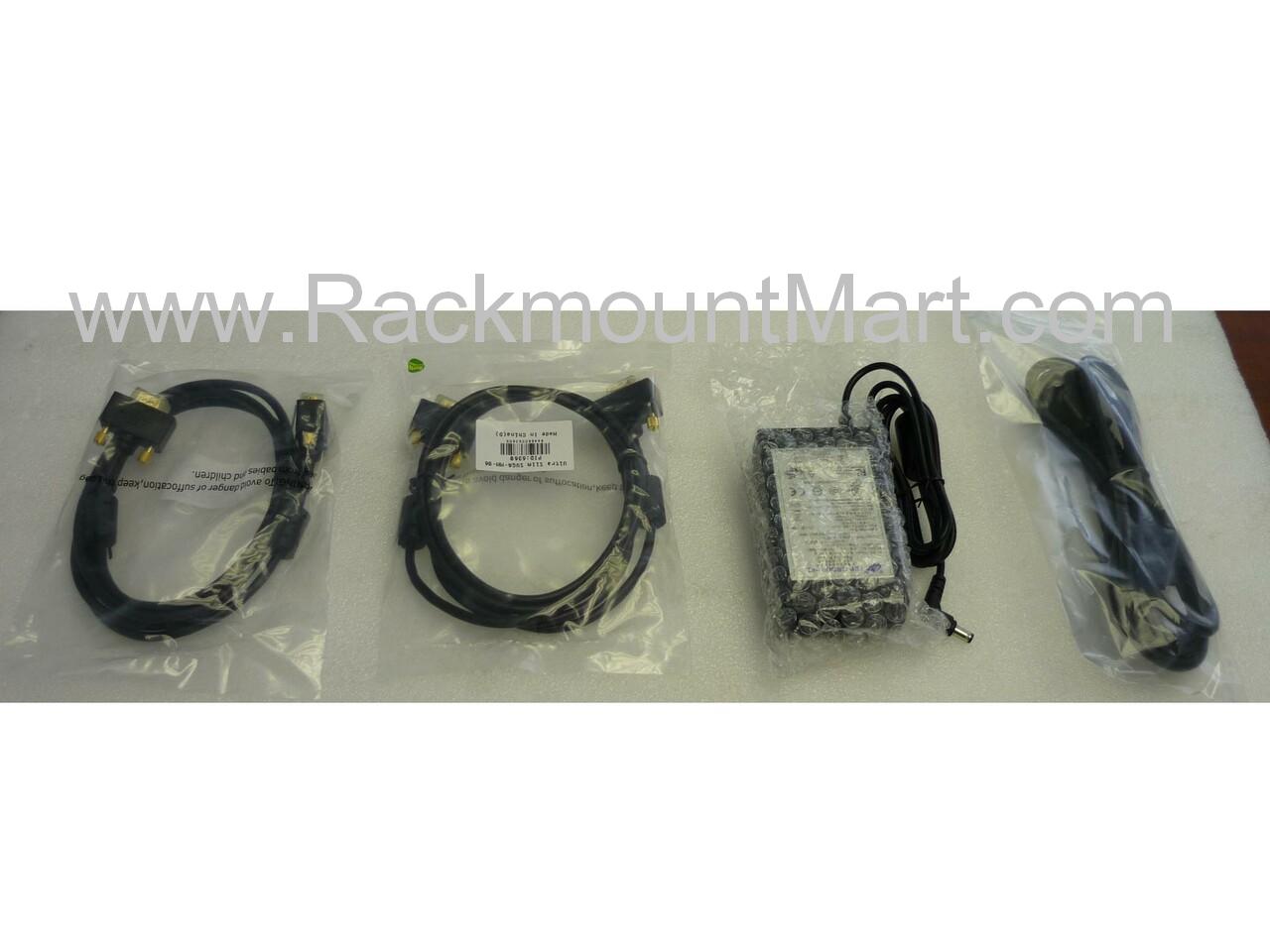

- Supplied with VGA cables, AC/DC adapter and power cord.
- Available composite video inputs via RCA and S-Video connectors (V).
- Available Lexan™ screen protection (L).
- Energy saving LED back lights.

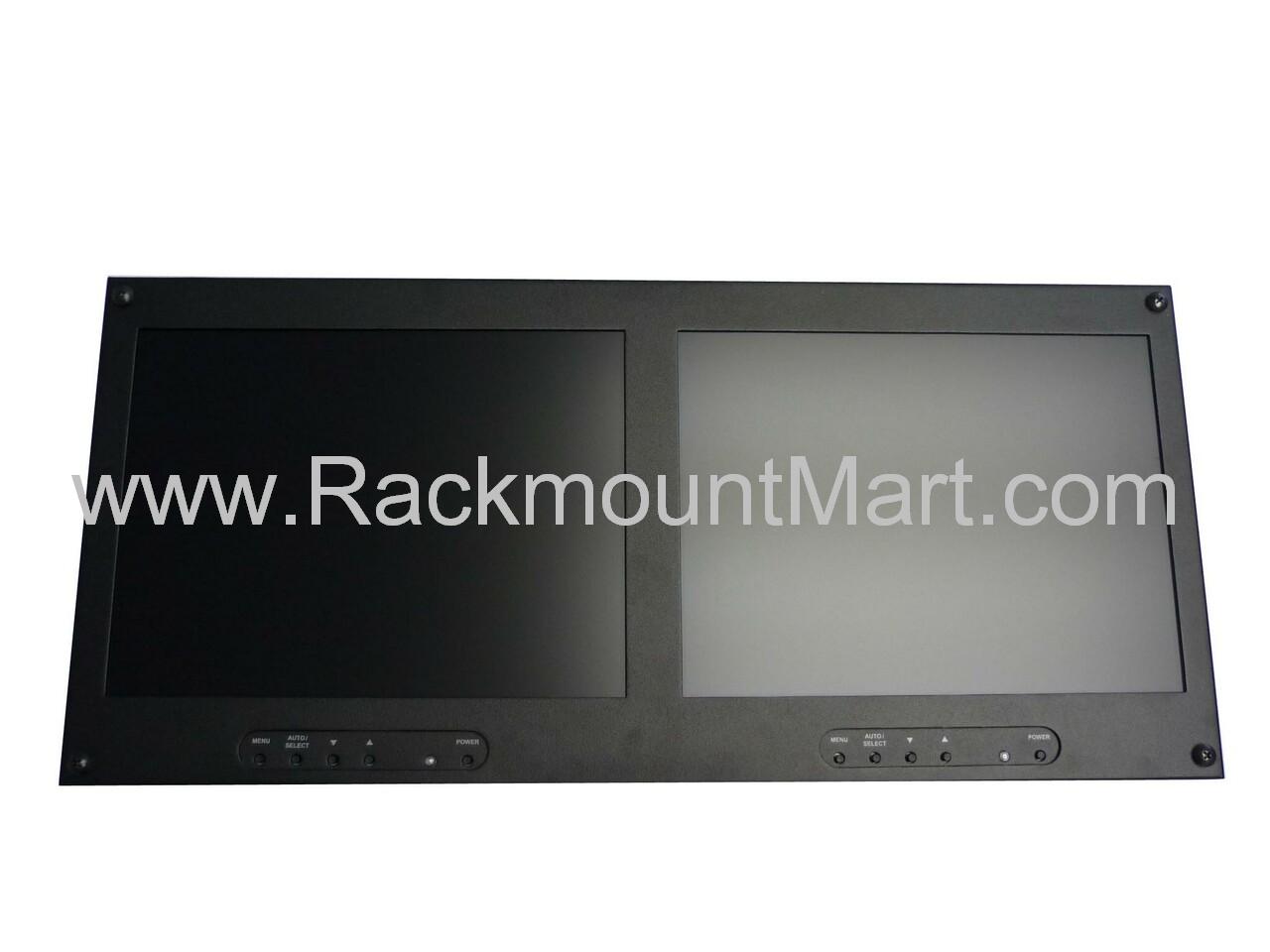

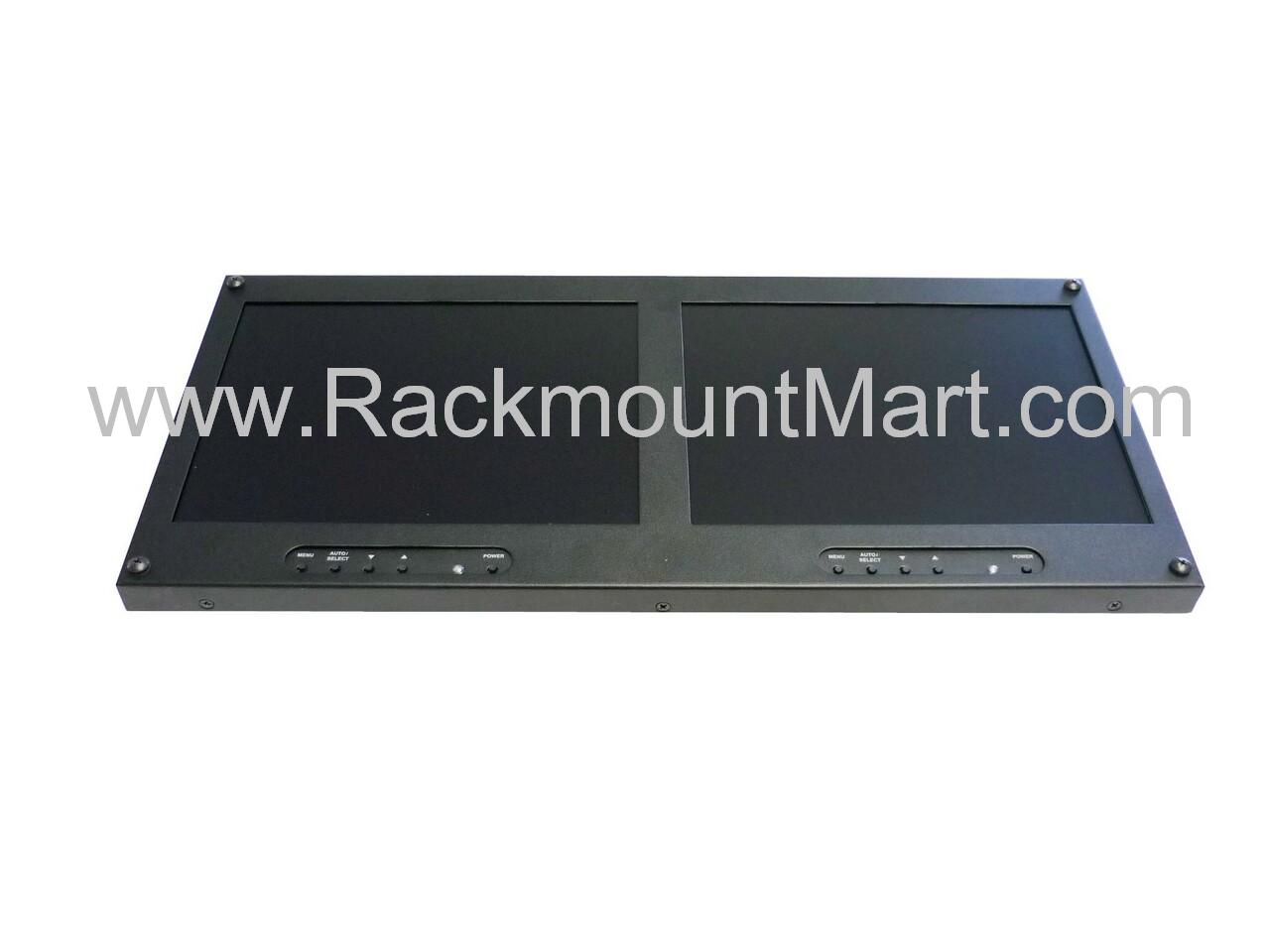

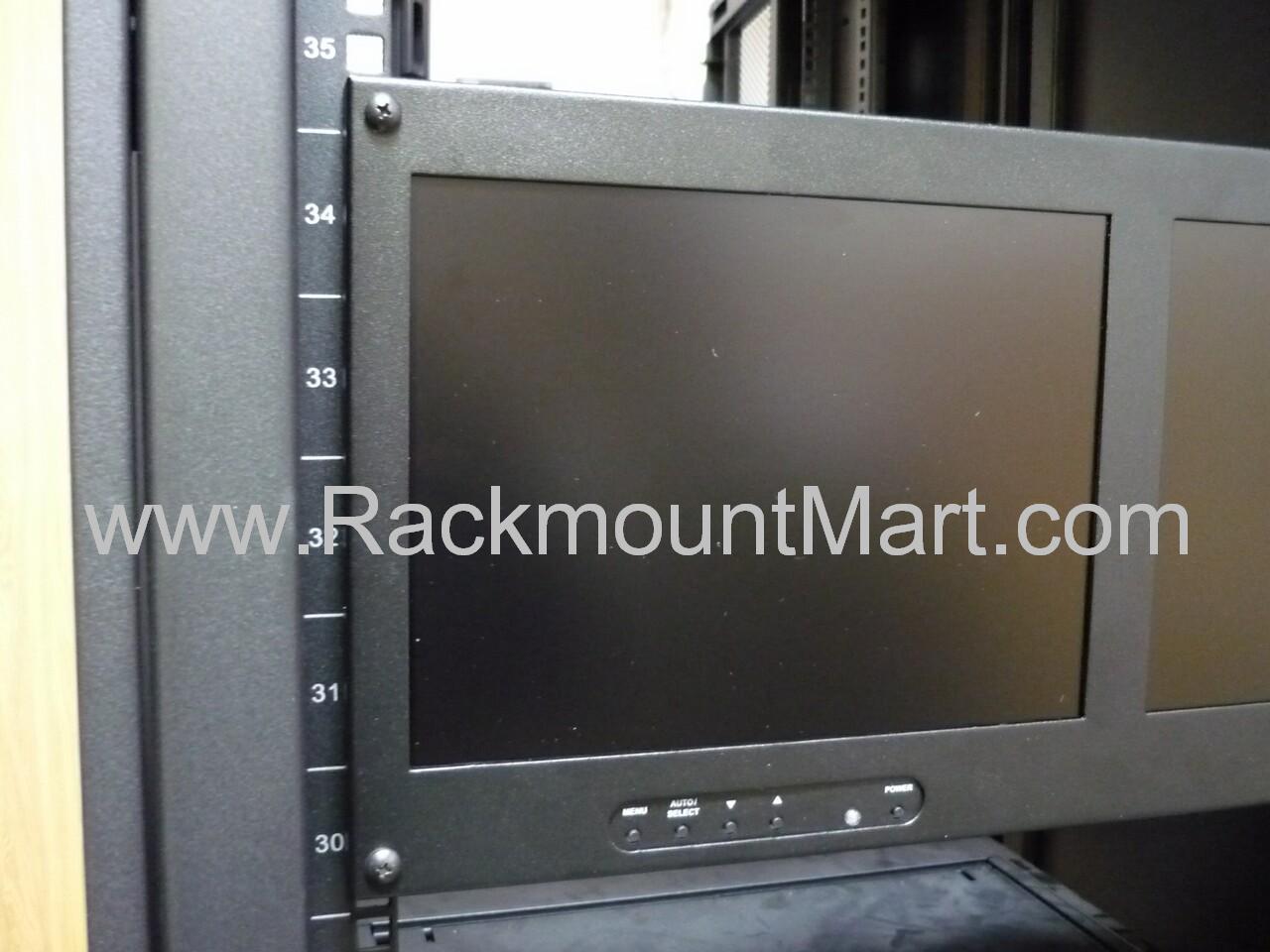

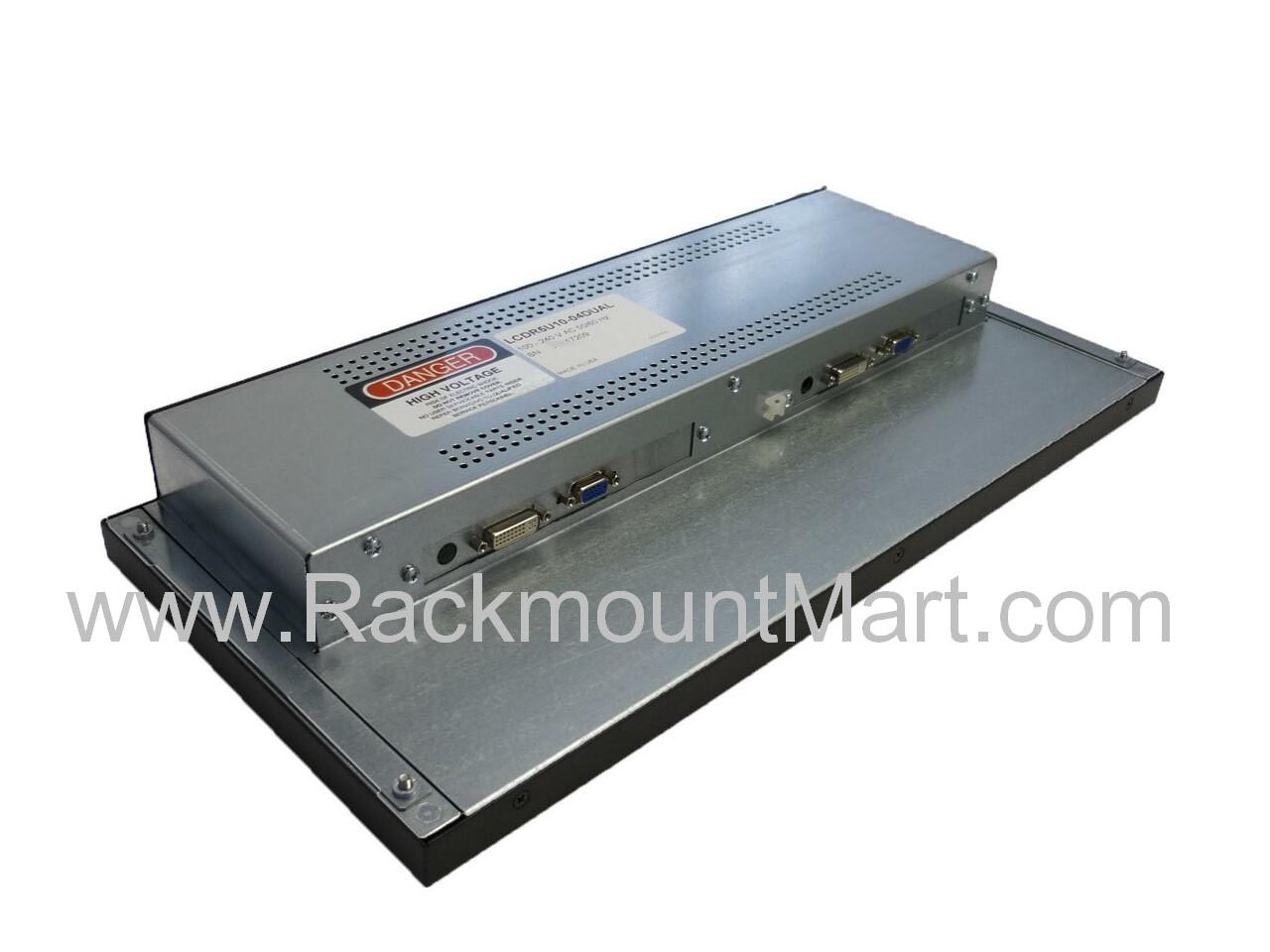

More Photos, click on the following for enlarged view:






Dimensions 19.0" (W) x 8.75" (H) x 2.35" (D) (1.65" (D) behind rack mounting rails)
Color Black
Display Type 10.4"  TFT active matrix LCD.
Resolution VGA up to 1024 x 768  maximum, 16.2M colors.
Frequency Horizontal:  31.5-80KHz
Vertical: 56-75Hz
Response Time 25 ms (typ).
Brightness 500 cd/m2 typ
Contrast Ratio 1200:1 typical
Viewing Angle Horizontal: 176 degrees
Vertical: 176 degrees
Input Signal VGA: RGB. Analog Video, TTL H & V sync  Digital: DVI-D (TDMS).
Composite: RCA and S-Video inputs available
Input Connector Analog : 15-pin mini D-sub   Digital: 24 pin DVI-D.

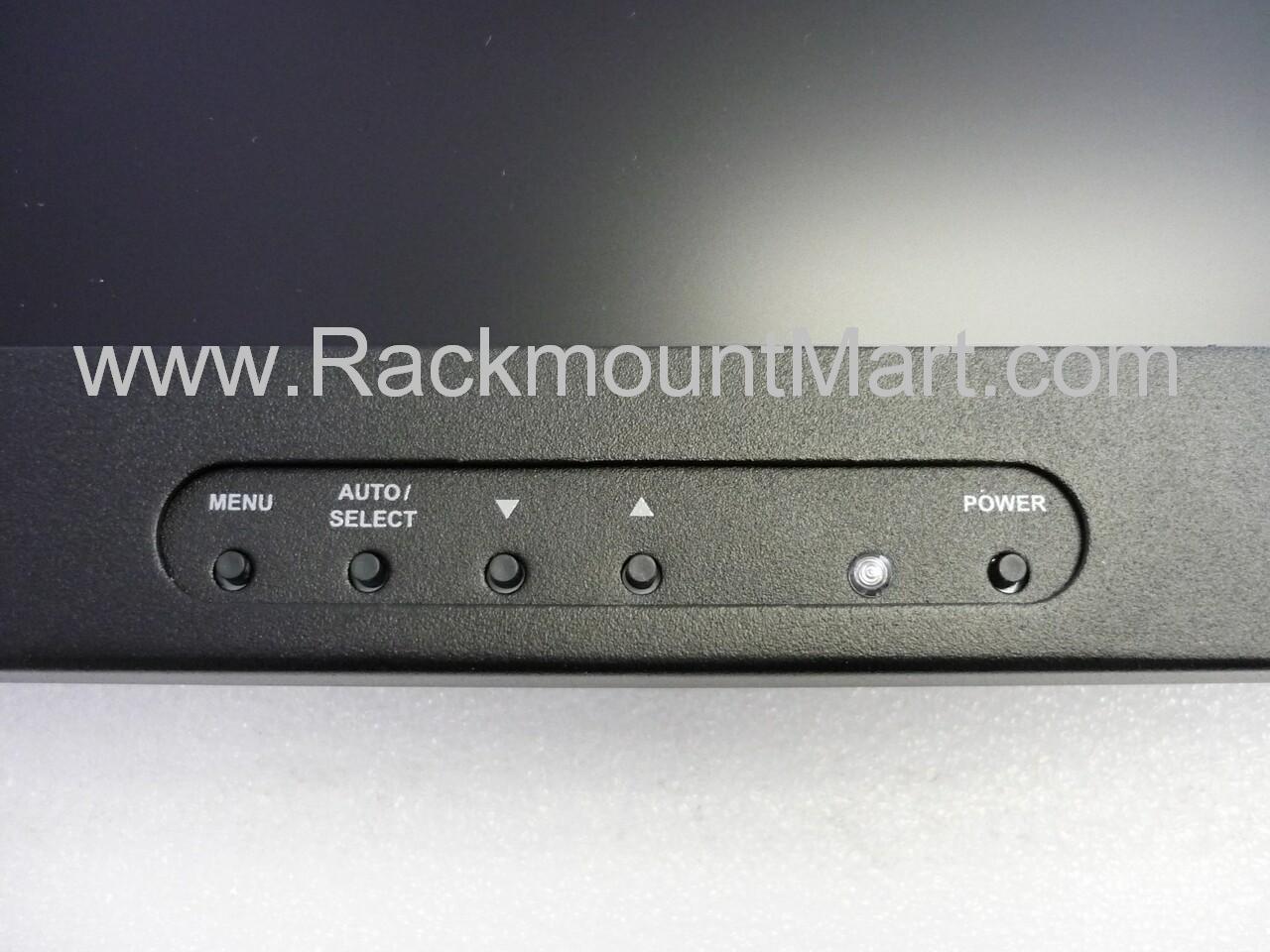

On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play DDC1 and DDC2B
Backlight LED BLU 50,000 POH MTBF
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Environment Temperature Operating:0 to 50 degrees C
Storage: -20 to 60 degrees C
Humidity Operating: 10% to 90% RH (max)

Ordering  information

Part Number  Description
LCDR5U10-04-dual  5U Rackmount 10.4"  Active Matrix TFT LCD Monitor , black
LCDR5U10-04-dual-Lex
 5U Rackmount  10.4"  Active Matrix TFT LCD Monitor , black, with Lexan Shield
-AV  S-Video &Composite Video inputs + ARGB & DVI inputs (per screen)




LCDR5U10-04-dual
Option:
Optional S-Video & Composite video input + ARGB & DVI inputs :
