LCDR7U19-05 7U Rackmount 19"  Wide Format TFT LCD Monitor with Optional Lexan ( Made In U.S.A.)

Untitled Document





                        Rack Mountable Monitor :  Part #  LCDR7U19-05

**This model is discontinued . Learn more about replacement model LCDR7U19-06**

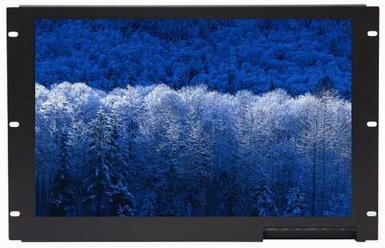

        7U Rack mountable  19"  Wide Format  TFT  LCD Monitor Optional Lexan Shield

Made in U.S.A.  )
Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor
                                                              * Click on the photos to enlarge
           Free Ground Shipping*Click for details

Features :
- Mounts in 7U of 19” rack space.
- Wide format 16:10 aspect ratio.
- Fast 5 ms response time.
- 19” TFT LCD display with 1440 x 900 resolution.
- Analog (ARGB) and Digital (DVI-D) input connectors.
- Steel front panel construction with a durable powder coat finish.



Dimensions 19.0" (W) x 12.25" (H) x 2.75" (D)
Color Black
Display Type Active matrix TFT LCD
Resolution Up to 1440 x 900.
Response Time 5 ms.
Brightness 300 cd/m2 typ
Colors Displayed:  16.7 million colors.
Contrast Ratio 1,000:1 (70,000:1 Dynamic)
Viewing Angle Horizontal: 170
Vertical: 160 degrees
Input Signal R.G.B. analog video, TTL H & V sync.
DVI with HDCP.
Input Connector Analog : 15-pin mini D-Sub.    Digital : 24 pin DVI-D.
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play DDC2B
Power AC Input 100-240VAC
Frequency 50/60 Hz
Power Consumption 35 Watts
Environment Temperature Operating:10 to 40 degrees C
Storage: -20 to 45 degrees C
Humidity Operating: 10% to 80% RH (max)

Ordering  information

Part Number  Description
LCDR7U19-05
 7U Rackmount 19" Wide Format  TFT LCD Monitor , black
LCDR7U19-05-Lex
 7U Rackmount 19" Wide Format  TFT LCD Monitor , black, with Lexan Shield Protection






LCDR7U19-05
Option:
