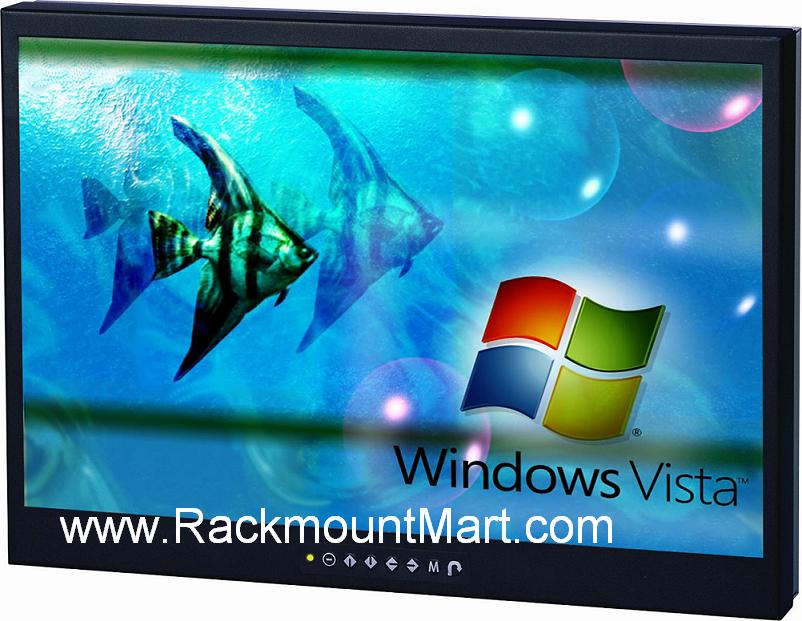

Click to enlargeLCDR8U22-02 8U Rackmount 22" Samsung Wide Format TFT LCD Monitor










Part#  LCDR8U22-02

*** This model is discontinued . Learn more about replacement model LCDR8U21-03  ***


            8U Rack Mounted LCD :  22"  SAMSUNG Industrial Grade A Widescreen LCD Monitor Panel
               Optional S-Video & Composite Video ( RCA or BNC ) / DVI / Quad Monitor / Touch Screen
                                                      Optional DC Input power / Audio /  / NEMA 4 / IP65

22" SAMSUNG  Industrial Grade A Widescreen  LCD

Display type

Active Matrix TFT

Resolutions

1680 x 1050 UXGA

Response time

Tr =1.4 ms / Tf =3.6ms (Typ.)

Contrast ratio

1000 : 1 typical

Brightness

300 cd/ m2 typical

Pixel pitch

0.282mm (H) x 0.282mm (W)

Panel color

16.7 million display colors

Viewing angle

170 (Horiz.) / 160 (Vert.)

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

Product Dimension

50.04(W) x 35.34(H) x 5.91(D)cm /
19.7" x 13.9" x 2.3"

   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE

Customer who ordered this product may also order
these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU
 (Power Distribution Unit )
- Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

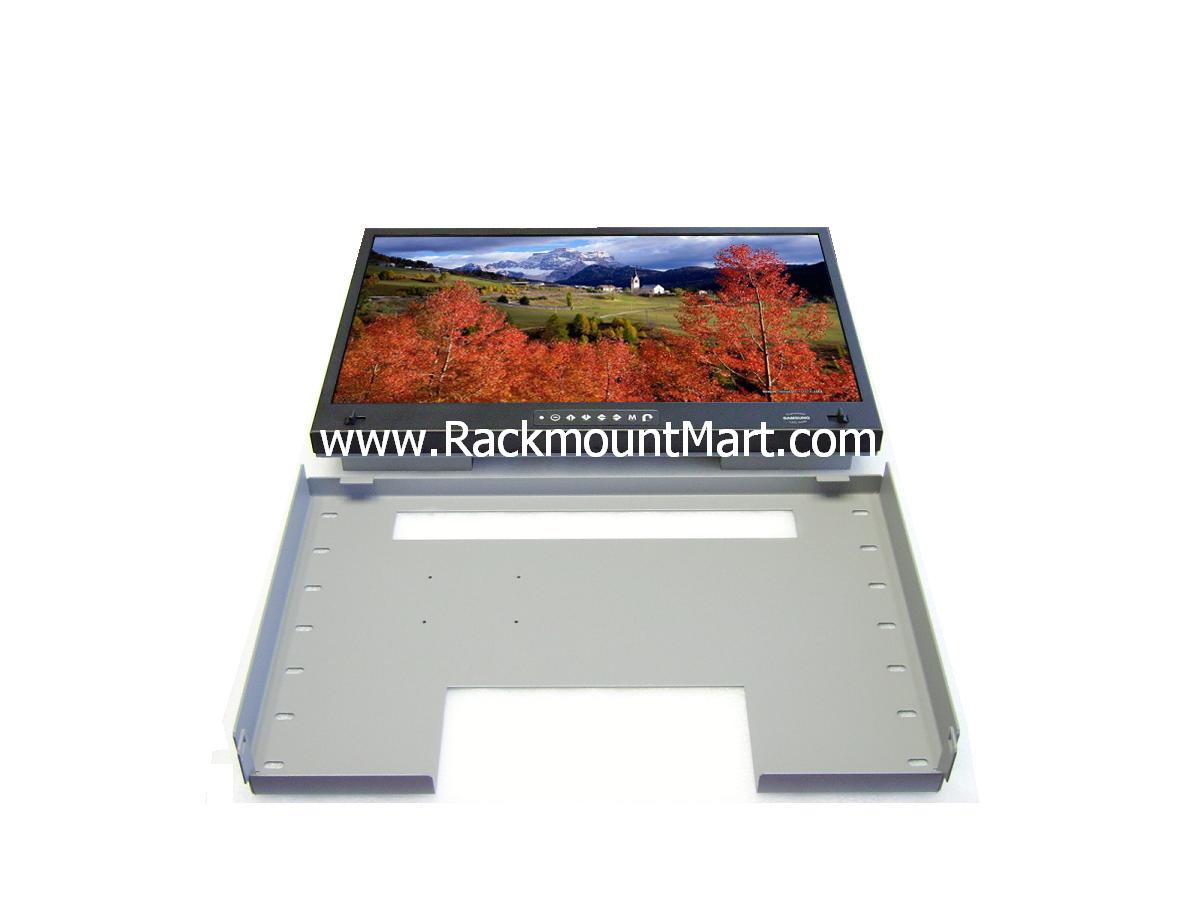

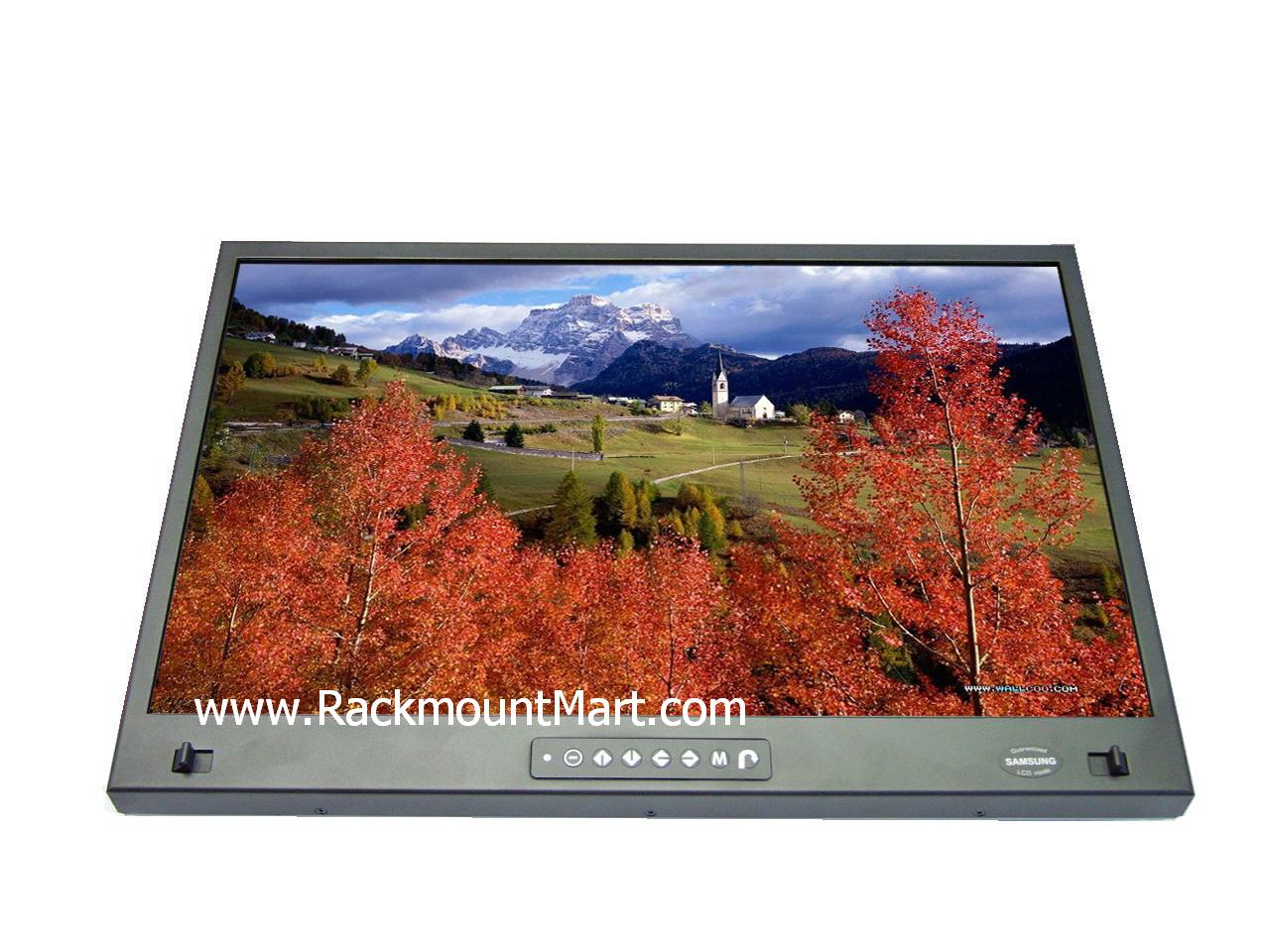

        Front View of Rack Mounted LCD



               *click on photo for enlarged view

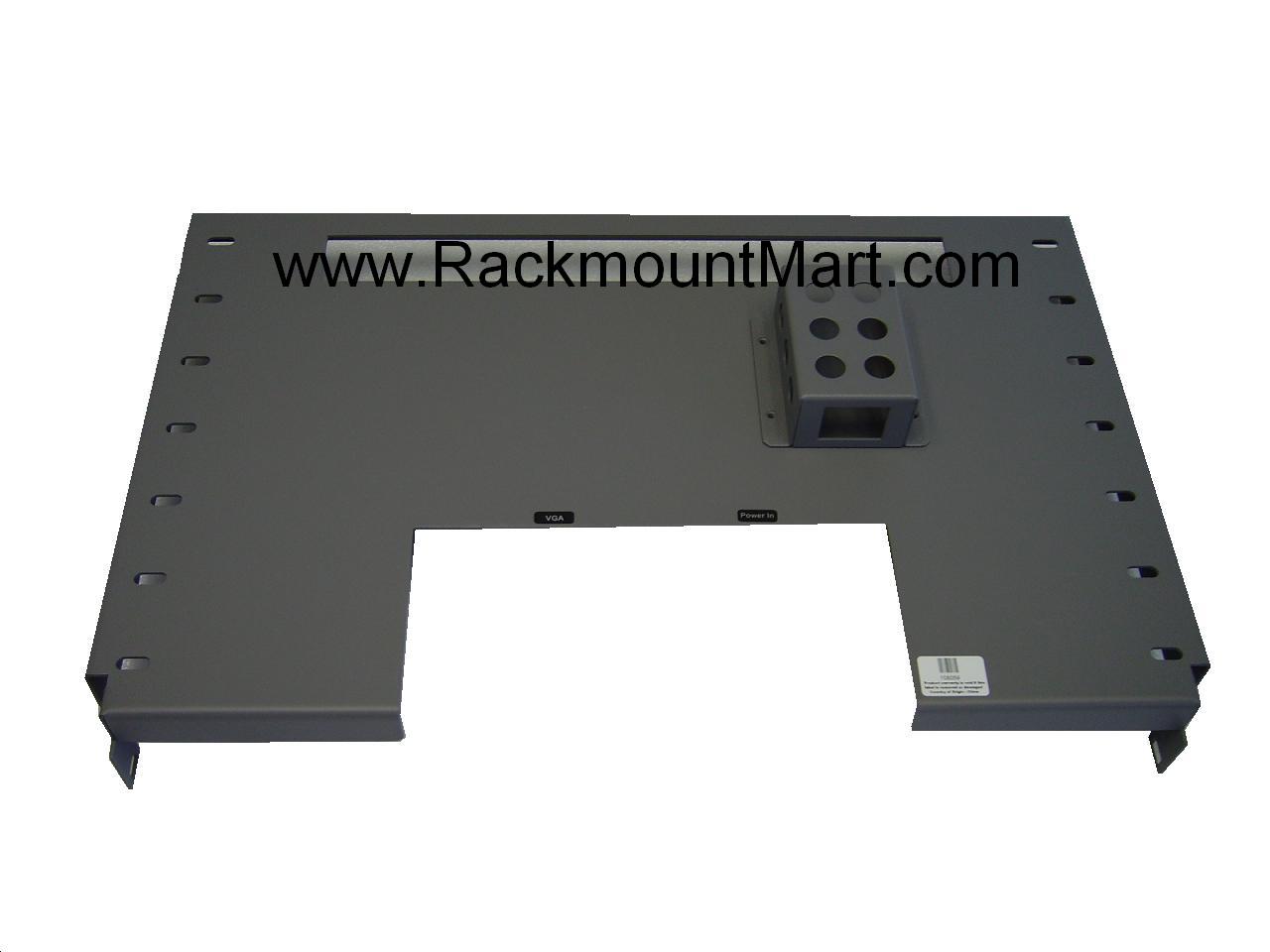

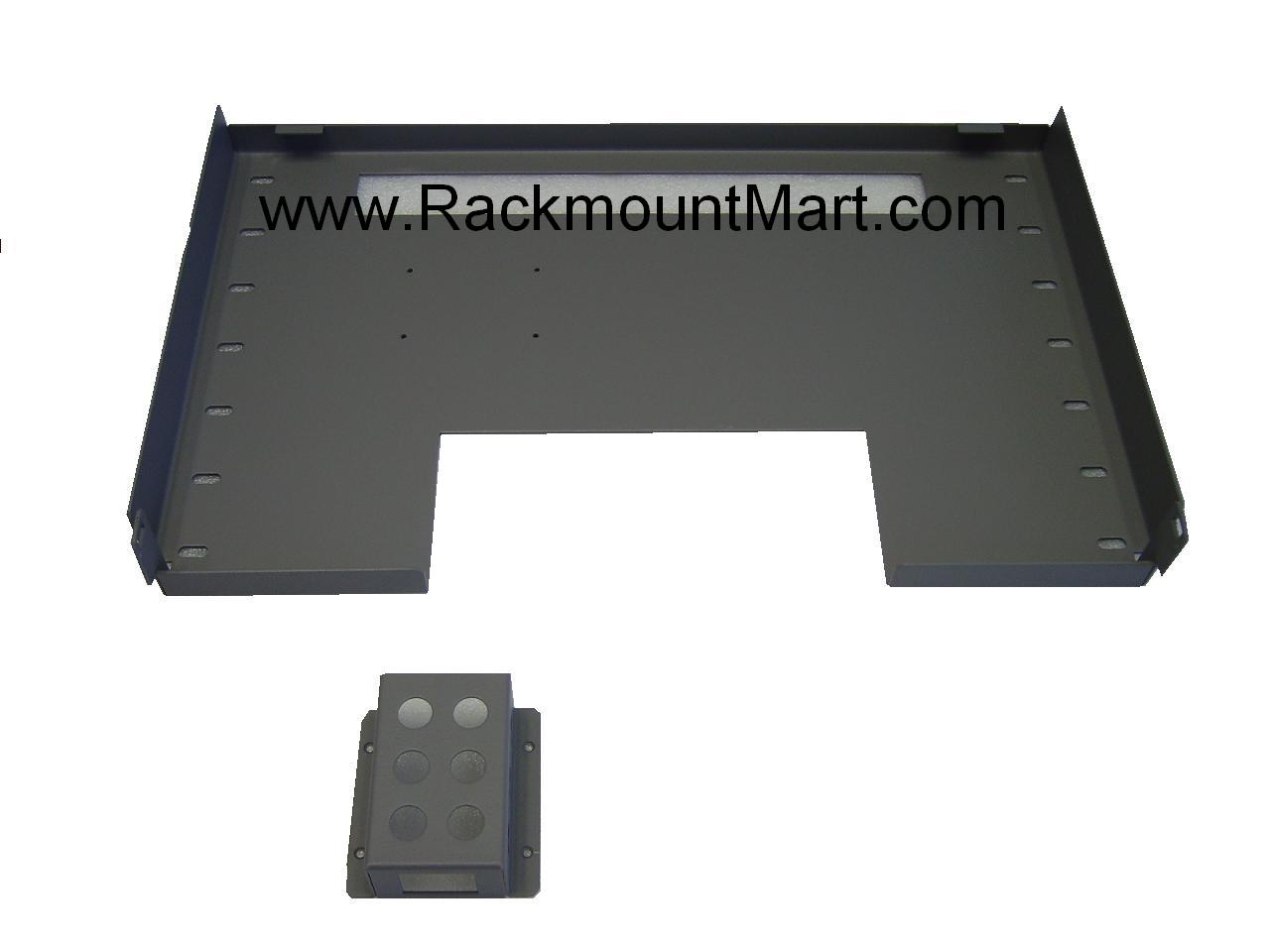

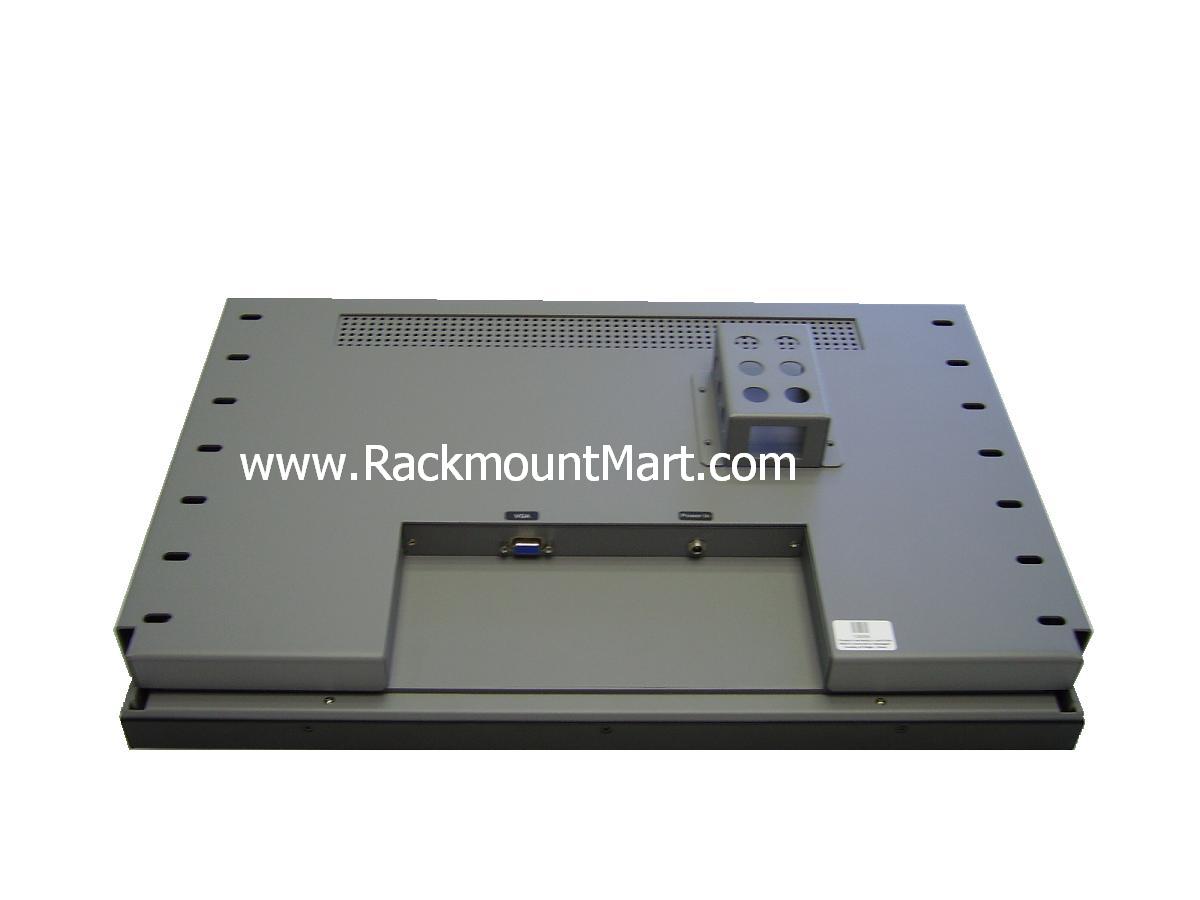

           Rear View of Rack Mounted LCD








Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7
Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D
- Touch screen
- DC Power Input ( 12V / 24V / 48V )

Features :

  Lower power consumption.
  Styled 6mm aluminum front panel.
  Standard D-sub 15-pin VGA input connector
  Optional IP65/ NEMA 4 sealed front 2mm protective glass for LCD
  Optional DVI digital Input / BNC / S-Video & Composite Video
  Side to side wide-angle viewing .
  Supplied with 12V 5A remote power adapter (single power source)
  Built in On Screen Display controlled by integral membrane switches
  Space-saving Extra rack-mounting space from the back of LCD Panel.
  Rugged metal construction, all black cladding is pre-treated and finished in powder coated paint.


Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval :  FCC, CE
  • Mains plug options available
  • Optional  48V / 24V / 12V DC input power adapter available

Click on photo for enlarged view

Back to top

Ordering  information

Part Number  Description
LCDR8U22-02 8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor
LCDR8U22-02-AV 8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor with Composite Video(RCA) & S-Video  Input
LCDR8U22-02-BNC 8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor with Composite Video(BNC) & S-Video Input
LCDR8U22-02-HDMI 8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor  with HDMI Input
LCDR8U22-02-DVI 8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor  with DVI digital Input
LCDR8U22-02-AV-DVI   8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor with Composite Video(RCA) & S-Video Input and DVI digital Input
LCDR8U22-02-BNC-DVI   8U Rack mounted 22" Widescreen SAMSUNG TFT LCD Monitor with Composite Video(BNC) & S-Video and DVI digital Input
22WTCS  Add 22"Wide, capacitive Technology, Serial controller
22WTCB  Add 22"Wide, capacitive Technology, USB controller
22WTRS  Add 22"Wide, resistive Technology, Serial controller
22WTRB  Add 22"Wide, resistive Technology, USB controller
IP65      Add 22"Wide, front IP65 protection for LCD
-12VDC  Add 12V DC power adapter
-24VDC  Add 24V DC power adapter
-48VDC  Add 48V DC power adapter
-SPK      Add Speaker
-QUAD screen  Become 9U product , same as LCDR9U22-01 , please on part # click for details
