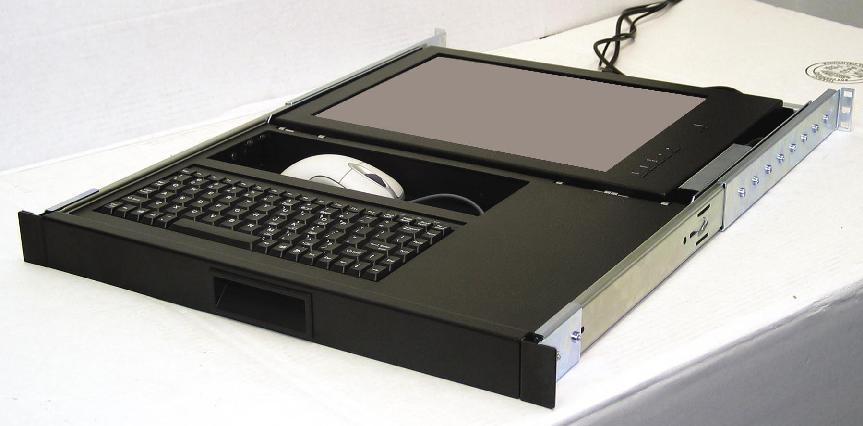

LCD1U15-08 1U Rackmount 15"  LCD Monitor Keyboard Drawer with  Mouse Area  optional Composite Video / DVI / ARGB/  PS2 /USB connector ( Made in USA )


                                        Click on photos for enlarged views

                                                     Made in U.S.A.




15" TFT LCD Panel
Dimensions 19.0" (W) x 1.75" (H) x 23" (D)
Environment Temperature Operating: 0 to 50 degrees C
Storage: -20 to 60 degrees C
Humidity Operating: 10% to 85% non-condensing


Display Type Active matrix TFT LCD, 16.7 million colors.
Resolution  1024 x 768 maximum
Frequency Horizontal:  31.47 to 68KHz
Vertical:     60 to 85Hz
Response Time 25 ms typical.
Brightness 250 cd/m2 typical.
Contrast Ratio 400:1 typical.
Viewing Angle Horizontal: -80 / +80 degrees
Vertical: -80 / +80 degrees
Input Signal Video: Analog RGB
Sync: H/V Separate (TTL)
Video Connector Signal: 15-pin mini D-sub, detachable
On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD Horiz. & Vert. position, Load and Save values.
Power AC Input 90-260VAC
Frequency 50/60 Hz
Power Consumption 60 Watts Maximum
Plug & Play DDC1 and DDC2B


Compatibility IBM AT, PS/2, DOSV
  Key Layout 88/89 keys
Travel distance 3.0  0.3mm
Travel to peak 1.0  0.2mm
Peak force 50  10 gm
Operating temperature -20 to 65oC
Storage temperature 200mA
Operating humidity: 10% to 95% RH
Switch life: 5 million life cycles
Electronic data +5VDC  5% 250mA
Optional  Optical mouse

Features :

 -One rack unit high (1.75")
 -KVM drawer that allows users to store and use a mouse
 -Wide 160 degree horizontal and vertical viewing angles
 -Wide viewing angle, high brightness and contrast ratio
 -Ball bearing rack mount slides
 -available in both PS/2 and USB models
 -PS/2 model is compatible with all PS/2 and UNIX computers (PS/2 model
  keyboard has 4-foot attached cable with female 6 pin miniDIN keyboard
  connector for connecting to host.).
 -USB model is compatible with all USB-enabled PS/2, SUN or MAC computers.
  (USB model keyboard has 4-foot attached cable female USB Type B connector
  for connecting to host.)

Ordering information :
  Part # Description
1U Rackmount 15"  LCD Monitor Keyboard Drawer with  mouse area in PS/2
1U Rackmount 15"  LCD Monitor Keyboard Drawer with  mouse area in USB
Add "-M" to end of part number
Optical Mouse for LCD1U15-08
Add "-V" to end of part number
Composite Video & S-Video Input
Add "-L" to end of part number
Add "-R" to end of part number

LCD1U15-08Regular price: $848.00Sale price: $783.00
Optical Mouse:
Optional S-Video & Composite video input + ARGB & DVI inputs :
Optional Lock / Retainer:
