LCD1U15-04 1U Rackmount 15" SAMSUNG LCD LCD KB optional 8/16/32 port KVM (DB-15/ CAT5 CAT6 / IP KVM / Matrix KVM) / DVI / BNC / S-Video (RCA)/Touchscreen/Speakers/DC input power

1U Rackmount LCD Monitor Keyboard Drawer and Rackmount KVM Switch :
Part # LCD1U15-04

           1U Rackmount 15" SAMSUNG LCD Monitor Keyboard Drawer with Optional PS2 / USB interface
                             Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
     Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access

General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform - Mix PCs, IBMs, HPs & DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Options

KVM with IP remote or CAT. 5 Remote ,
DVI-D , S-Video + RCA , S-Video + BNC ,
Touch screen & DC power

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

LCD Screen

LCD Type

Samsung Grade A 15" Industrial
Active Matrix TFT LCD Panel

Display Size

15 inch diagonal

Resolutions

1,024 x 768 with 60 / 70 / 75Hz

Response time

Tr=2 / Tf=6 ms

Contrast ratio

700 : 1

Brightness

250 cd/ m2

Pixel pitch

0.297 (H) x 0.297 (V) mm

Panel color

16.2 million display colors

Viewing angle

150 / 135 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Graphic Interface

S-video & Composite (RCA) / S-Video & BNC/
DVI-D More Details

LCD MTBF

50,000 hrs

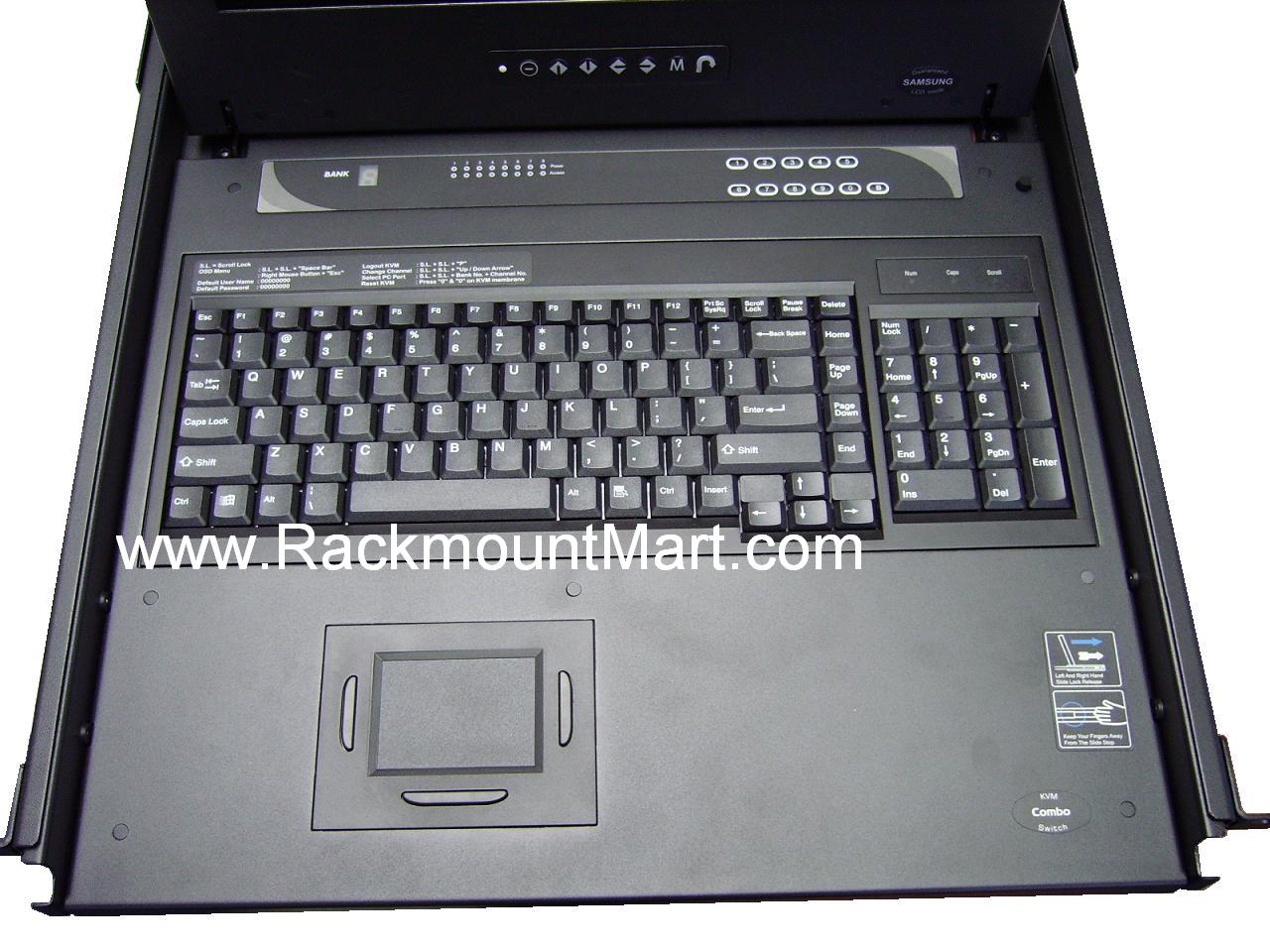

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball

Keyboard Details

Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

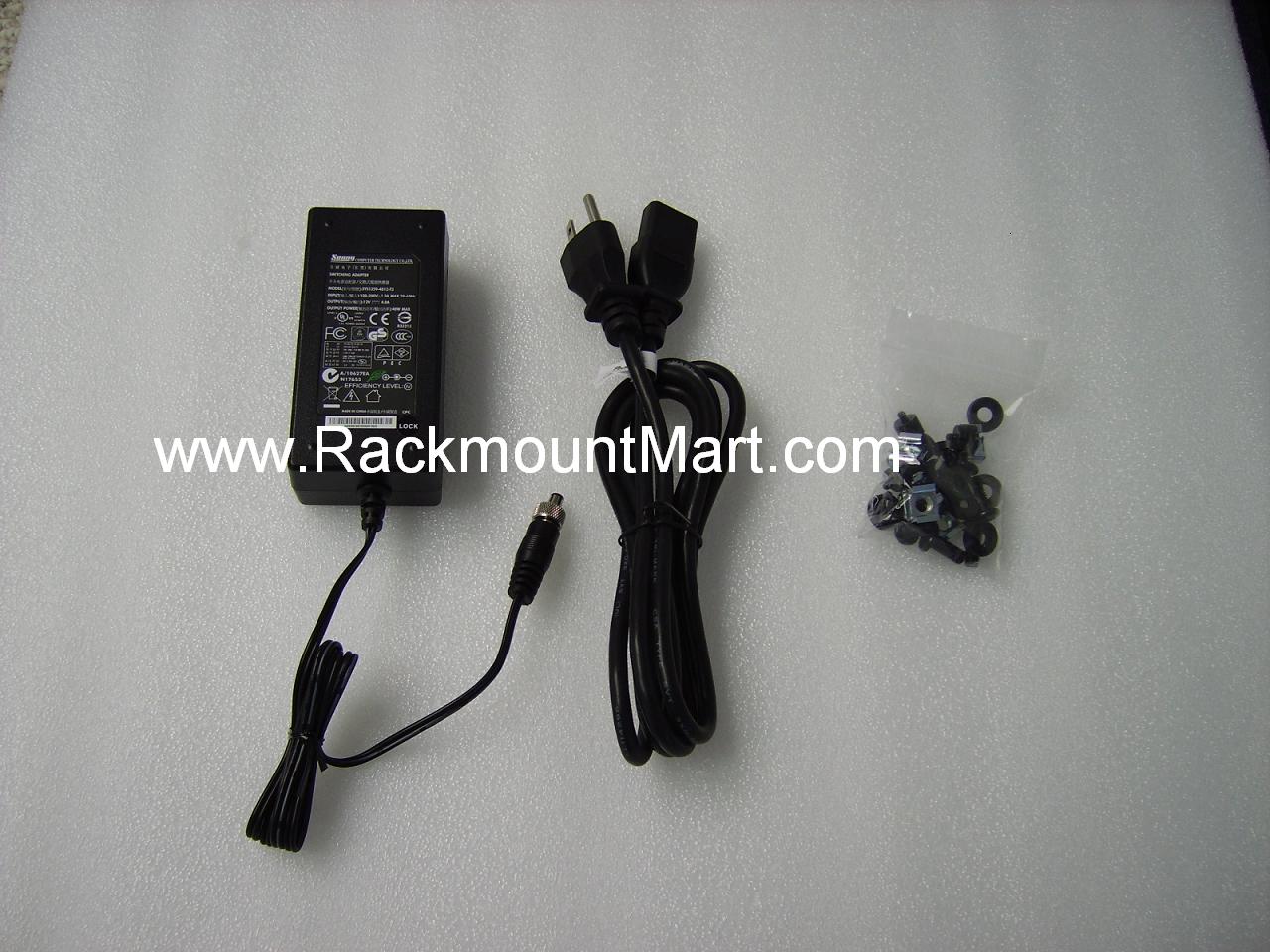

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

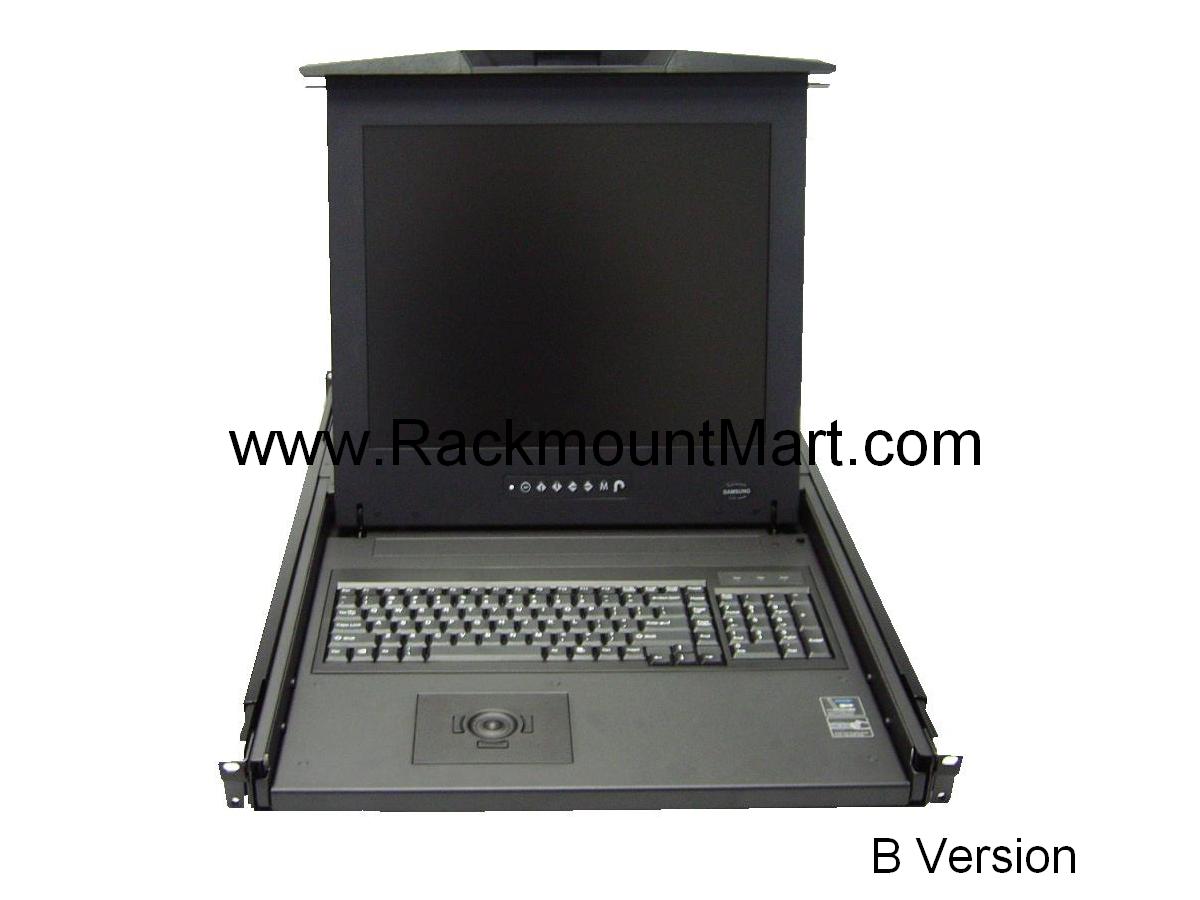

Front View of LCD1U15-04

*click on photo for enlarged view Dimension Construction

*click on above pictures for enlarged views

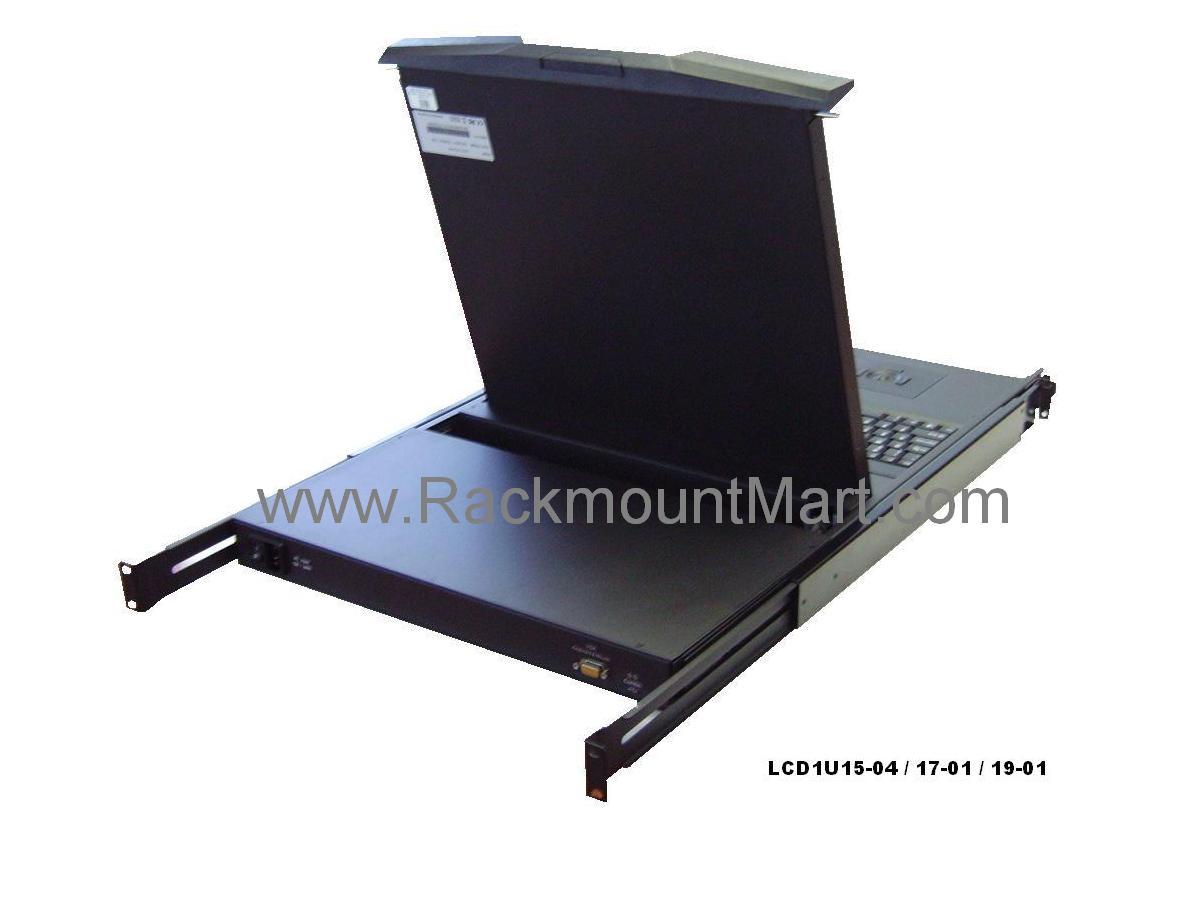

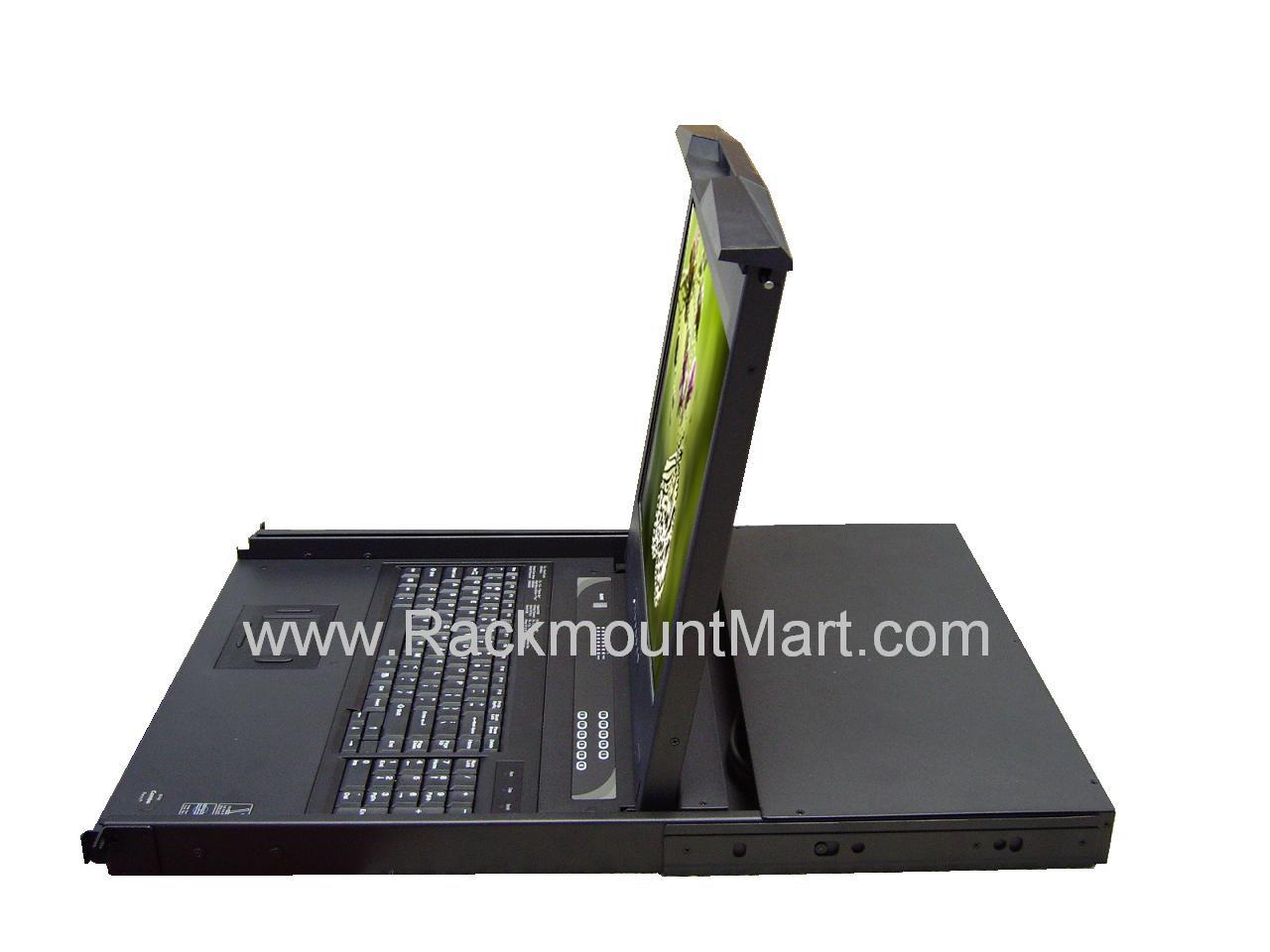

More Photos

*click on above picture for enlarged view

User Manual

KVM SUPPORT
Single Product Sheet
PS/2 , NO KVM
PS/2, Local Console KVM
PS/2, Local + Remote Console, DB-15 CAT5 Extender KVM
PS/2, Local + IP Console, DB-15 IP Over KVM
USB, Local Console KVM
Local Console, High Density CAT.5 KVM
Local + Remote Console, High Density CAT.5 KVM
Local + IP Console, High Density CAT5 IP KVM

Free Ground Shipping *Click for details

Without KVM

Console port :	for VGA PS/2 KB/MS, , HD 15 female
DC power input :	Plug-round type

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

17.4"(W) x 1.73"(H) x 25.6"(L) /
44.2 (W) x 4.4( H) x 65 (D)cm

Product Weight

Approximately 33 lbs / 15kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI , 3C*
*Only for the model with PS/2 or USB KVM
switch

Optional Accessories & Peripheral

Details

Package Content

Remarks

Package Content

See user manual of the
respective version listed above

For SUN Solaris Compatible version ,
click this Link

LCD Drawer & KVM Benefits :

High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 15" LCD Panel
Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Adjustable mounting bracket from 15.4"(390mm) to 33.2"(845mm) and suitable for 29.6"(750mm) or 39.4"(1000mm) deep 19" Cabinet
Front access lock for security
Large wrist rest area
Lightweight aluminum construction -with a black anodize finish
Power saving feature for prolonging the life of LCD panel
VGA, keyboards & mouse all in one by 15 pin HDB connector
Supplied with 12V 5A remote power adapter (single power source)
Build in slide rail and mounts easily in any 19" cabinet
EMC shielding around the monitor housing to minimize interference
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 / CV-801 Details 16 Port KVM - LCDK1011 / CV-1601 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 / CV-802 Details 16 Port KVM - LCDK1025 / CV-1602 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 / CV-S801 Details 16 Port KVM - LCDK1021/ CV-S1601 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023/ CV-S1602 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 / IP-802 Details 16 Port KVM - LCDK1039 / IP-1602 Details

Integrated with High Density CAT.5 KVM Switch Only

High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details

Back to top

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

Details

Local Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

Touch Screen

Details

Local + Remote Console DB-15 PS2 KVM switch
- 8 Port / 16 Port Details

PS/2 or USB KVM Cables & Cascade Cables in various
length

Details

Local + Remote Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

PS/2 or USB Dongles & CAT5 Cables in various
length

Details

Local + IP Console DB-15 IP Over KVM switch
- 8 Port / 16 Port Details

   Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane

Local Console High Density CAT.5 KVM switch
- 16 Port / 32 Port

16 Port KVM - LCDK1043 Details
32 Port KVM - LCDK1044 Details

    LCD-A1001 PS2 to SUN /iMac USB adapter
Converting PS/2 to USB with SUN translating special keys stroke

Details

Local + Remote Console High Density CAT.5 KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1045 Details
32 Port KVM - LCDK1046 Details

CAT5 USB KVM Extender

Details

PS2 KVM Over IP Extender

Details

Local + IP Console High Density CAT.5 IP KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1047 Details
32 Port KVM - LCDK1048 Details

Back to top

Ordering information :

KVM Support	Keyboard Type	Part #	Description
NO KVM ( Single Port ) with Built-in Combo PS2 & USB interface**
Single Port for DB-15 PS2 connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD1U15-04-n Price : $644	1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 4-in-1 Combo cable. Black
	Notebook KB w/ Trackball	LCD1U15-04-b Price : $644	1U 15" Samsung Panel w/ Notebook KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
	Cherry KB w/ Trackball	LCD1U15-04-c Price : $780	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
Single Port for DB-15 USB connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD1U15-04-n-u Price: $644	1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 4-in-1 Combo cable. Black
	Notebook KB w/ Trackball	LCD1U15-04-b-u Price: $644	1.5U 15" Samsung Panel w/ Notebook KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
	Cherry KB w/ Trackball	LCD1U15-04-c-u Price: $780	1U 15" Samsung Panel w/ Cherry KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
Single Console KVM ( Local console, 8 / 16 / 32 port KVM )
DB-15 KVM ( Local console DB-15 KVM)
Local console DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM-n Price: $939	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM-b Price: $939	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM-c Price: $1076	1.5U 15"Samsung Panel w/ Cherry KB & trackball & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 16 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM-n Price: $1144	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM-b Price: $1144	1U 15"Samsung Panel w/ Notebook KB & trackball & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM-c Price: $1280	1.5U 15"Samsung Panel w/ Cherry KB & trackball & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 8 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM-n-u Price: $1053	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM-b-u Price: $1053	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM-c-u Price: $1189	1.5U 15" Samsung Panel w/ Cherry KB & trackball & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
Local console DB-15 16 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM-n-u Price: $1273	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM-b-u Price: $1273	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM-c-u Price: $1409	1.5U 15" Samsung Panel w/ Cherry KB & trackball & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
High Density CAT5 KVM ( Local console CAT5 KVM) with Built-in Combo PS2 & USB interface**
Local console High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U8KVM-n Price: $1371	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U8KVM-b Price: $1371	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
Local console High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U16KVM-n Price: $1462	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U16KVM-b Price: $1462	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U16KVM-c Price: $1265	1.5U 15" Samsung Panel w/ Cherry KB & trackball & Local console 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
Local console High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U32KVM-n Price: $1977	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U32KVM-b Price: $1977	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U32KVM-c Price: $1523	1.5U 15"Samsung Panel w/ Cherry KB & trackball & Local console 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )
2 Consoles ( Local + Remote console ) DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM2-n Price: $1242	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM2-b Price:$1242	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM2-c Price:$1379	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + Remote console ) DB-15 16 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM2-n Price:$1424	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM2-b Price:$1424	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM2-c Price:$1561	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + IP console ) DB-15 8 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM2IP-n Price:$1545	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM2IP-b Price:$1545	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM2IP-c Price:$1682	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + IP console ) DB-15 16 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM2IP-n Price:$1735	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM2IP-b Price:$1735	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM2IP-c Price:$1871	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black
High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM ) with Built-in Combo PS2 & USB interface**
2 Consoles ( Local + Remote console ) High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U8KVM2-n Price: $1598	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U8KVM2-b Price:$1598	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Consoles ( Local + Remote console ) High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U16KVM2-n Price: $1689	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U16KVM2-b Price:$1689	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U16KVM2-c Price:$1479	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Consoles ( Local + Remote console ) High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U32KVM2-n Price:$2205	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U32KVM2-b Price:$2205	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U32KVM2-c Price:$1729	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Consoles ( Local + IP console ) High Density 16 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U8KVM2IP-n Price:$1841	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) with 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U8KVM2IP-b Price:$1841	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) with 8 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Consoles ( Local + IP console ) High Density 16 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U16KVM2IP-n Price:$1917	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U16KVM2IP-b Price:$1917	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U16KVM2IP-c Price:$1765	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) with 16 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 8 pcs of customer's choice of PS2/USB dongles). Black Details->
2 Consoles ( Local + IP console ) High Density 32 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD1U15-04-U32KVM2IP-n Price:$2447	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Notebook KB w/ Trackball	LCD1U15-04-U32KVM2IP-b Price:$2447	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
	Cherry KB w/ Trackball	LCD1U15-04-U32KVM2IP-c Price:$1977	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) with 32 port High Density CAT6 KVM switch with Combo PS2 & USB Interface (And 16 pcs of customer's choice of PS2/USB dongles). Black Details->
Option
-12VDC Price : $171		Add 12V DC power supply
-24VDC Price : $171		Add 24V DC power supply
-48VDC Price : $171		Add 48V DC power supply
-BNC Price : $114		Add Composite Video(RCA) + S-video
-AV Price : $114		Add Composite Video(BNC) + S-video
-DVI Price : $114		Add DVI-D Input
-TRS Price : $279		Add e-Resistive touchscreen + Serial controller (the Height changed frome 1U to 1.5U)
-TRB Price : $279		Add e-Resistive touchscreen + USB controller (the Height changed frome 1U to 1.5U)
-TCS Price : $429		Add e-Capacitive touchscreen + Serial controller (the Height changed frome 1U to 1.5U)
-TCB Price : $429		Add e-Capacitive touchscreen + USB controller (the Height changed frome 1U to 1.5U)
-SPK Price : $114		Add speaker

Availability: Usually ships the same business day.

LCD1U15-04

$644.00

MODEL:
Single Console( local ): Single Port ( No KVM ), w/ Combo PS2 & USB :

Single Console( local ): DB-15 8/16 port PS/2 OR USB KVM :

Single Console( local ): High Density 16/32 port RJ-45 Cat5 KVM w/ Combo PS2 / USB :

2 Consoles (Local + Remote): DB-15 8/16 port PS/2 Cat.5 KVM :

2 Consoles (Local + Remote): DB-15 8/16 port Cat.5 PS/2 KVM Over IP:

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM w/ Combo PS2 & USB :

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM Over IP w/ Combo PS2 & USB:

OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

DVI-D Input :

DC Input Power Adapter:

Touch Screen :

ACCESSORIES
PS/2 to SUN USB Adapter for use w/ DB-15 PS/2 KVM:

PS2 Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch:

USB Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch :

Extra KVM Cable (for PS2/USB interface switching):

Cascade Cable:

KVM CABLE UPGRADE
Upgrade 6 ft PS2 KVM cable to 10-ft:

Upgrade 6-ft PS2 KVM cable to 15-ft:

Upgrade 6 ft USB KVM cable to 10-ft:

Upgrade 6-ft USB KVM cable to 15-ft:

For more information, please visit our company web site at
http://www.rackmountmart.com/

Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.

Copyright � 2002-2008 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
