LCD1U15-011 1U Rackmount 15" AUO Grade A TFT LCD Monitor Drawer Optional S-Video Composite Video /  DVI Input / BNC




***This model is discontinued .  Learn more about replacement model LCD1U17-011   ***
1U Rackmount 15" AUO TFT LCD Monitor Drawer
Panel : AUO 15" LCD Panel

Display type

TFT / LCD active matrix color

Resolutions

1024 x 768

Response time

Tr =2s / Tf =6ms

Contrast ratio

700 : 1 typical

Brightness

250 nits brightness

Pixel pitch

0.297mm (H) x 0.297mm (W)

Panel color

16.2 million display colors

LCD MBTD

50,000 hrs

Viewing angle

160º (Horiz.) / 130º (Vert.)

OSD Control :

Brightness, Contrast, Phase & Clock, Color, H & V Position,Auto-tune, Recall & Language

Options :

 DVI , BNC, S-Video & Composite Video

Dimension:

17.3"(W) x 1.75" (H) x 21.65" (D) /         43.9(W) x 4.45(H) x55(D) cm

   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE

Optional Accessories & Peripheral

   Details

Package Content

LCD Monitor drawer x 1 ,  6-ft VGA  cable x 1,  110 / 220 V DC Power adapter x 1 , Power cord x 1,  Key for front lock x 2, User Manual x 1



               *click on photo for enlarged view

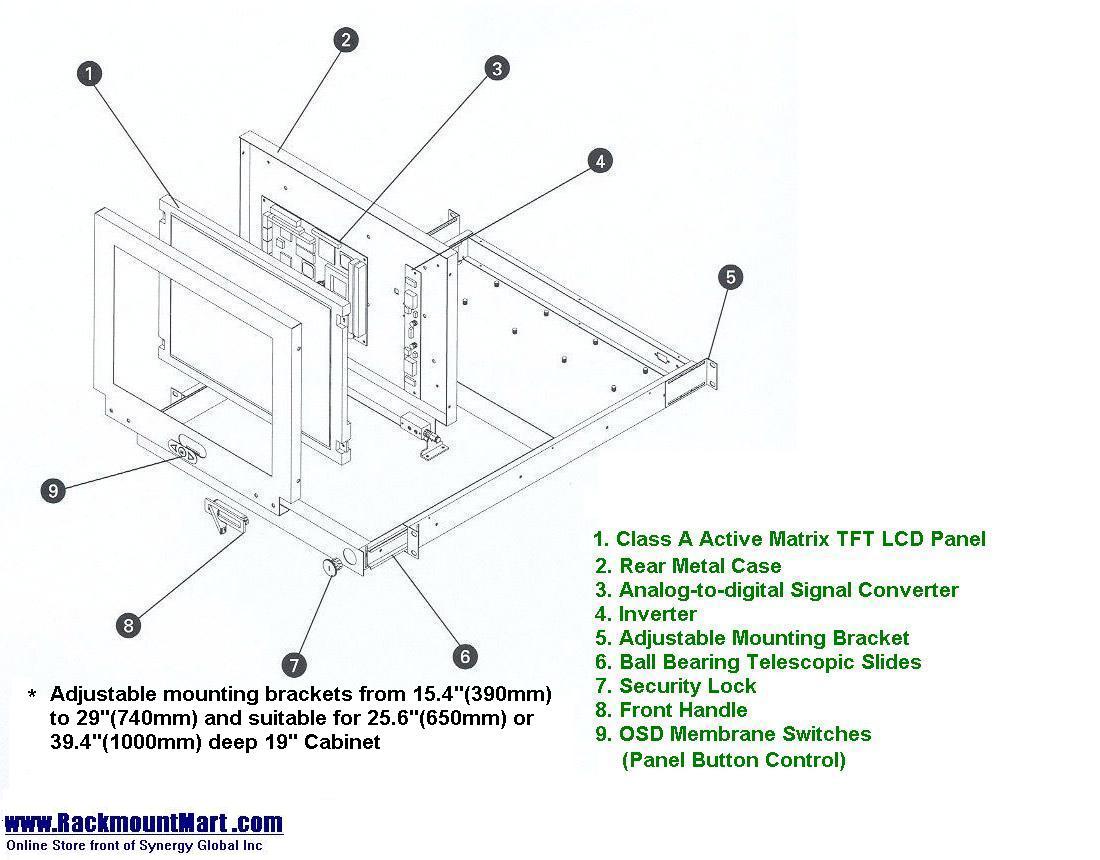

                  *click on drawings for enlarged view

    User Manual


   Product Sheet





FEATURES :
  • AUO LCD Panel
  • Supports Windows , Sun, Linux, Apple, IBM, HP , UNIX and Macintosh computers
  • Unique mechanical design to maximize rack mountable space
  • Unique monitor flip up design allows viewing through closed glass door of cabinet
  •  Adjustable mounting brackets from 390mm to 795mm. (front to rear 19” mounts)
  • Lightweight aluminum construction - with a black anodize finish
  • Side to side wide-angle viewing as CRT monitor
  • Lock out rails to prevent movement of the keyboard
  • Built in on screen display controlled by integral membrane switches
  • Power saving feature for prolonging the life of LCD panel
  • Standard D-sub 15-pin VGA input connector
  • Front-access lock for security & secure transportation
  • Supplied with 12V 5A remote power adapter (single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Standard  6 ft VGA cable  included
POWER SUPPLY:
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval : FCC CE
  • Mains plug options available
  • Optional - power adaptor 48V or 24V DC input available

     Optional Accessories

Optional Peripheral

  S-Video and Composite video input
    -Supports Pal & NTSC auto recognition

    1U Rackmount Keyboard Drawer
                                                     Details

48V / 24V / 12V DC Power



    Single User (Console) PS/2 KVM switch
    - 4 Port / 8 Port / 16 Port                 Details

   Touch Screen

                                                                Details

    Single User (Console) USB  KVM switch
    -  8 Port / 16 Port                            Details

New Options
 - DVI Input
 - Speaker
 - LCD Membrane

 - Micro Switch
 -Internal Power Supply

                           *** Please contact us for details

    2 User (2 Consoles ) PS/2 KVM switch
    - 8 Port / 16 Port                             Details

 PS/2 KVM Extender
                                                        Details

    2 User (2 Consoles )USB KVM switch
     -  8 Port / 16 Port                          Details


                                                                                                                                                 Back to top



 Ordering  information

Part Number  Description
LCD1U15-011
1U Rack-mount 15" AUO TFT LCD  Monitor Drawer, one 6-ft long VGA cable included
LCD1U15-011-av
1U Rack-mount 15" AUO TFT LCD  Monitor Drawer with S-Video & Composite Video , one 6-ft long VGA cable included
LCD1U15-011-bnc
1U Rack-mount 15" AUO TFT LCD  Monitor Drawer with BNC (bayonet Neill- Concelman) connector  & S-Video  , one 6-ft long VGA cable included
LCD1U15-011-dvi
 1U Rack-mount 15" AUO TFT LCD  Monitor Drawer with S-Video & Composite Video , one 6-ft long VGA cable included
LCD1U15-011-av-dvi
1U Rack-mount 15" AUO TFT LCD  Monitor Drawer with S-Video & Composite Video and DVI , one 6-ft long VGA cable included
LCD1U15-011-bnc-dvi
1U Rack-mount 15" AUO TFT LCD  Monitor Drawer with BNC and DVI , one 6-ft long VGA cable included



LCD1U15-011
OPTIONAL FEATURES:

DC Input Power Adapter:

Touch Screen :
