LCD1U17-25   High Resolution 1U Rackmount 17" Widescreen LCD KVM Console Drawer

Untitled Document

1U Rackmount KVM Tray with Keyboard , Video Monitor and Mouse :
Part # LCD1U17-25


NOVA 1U Rackmount 17" High Resolution Widescreen LCD KVM Drawer with LED-backlit

Optional DB-15 KVM / DVI KVM / USB Hub KVM / Multi-User Matrix KVM
Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP

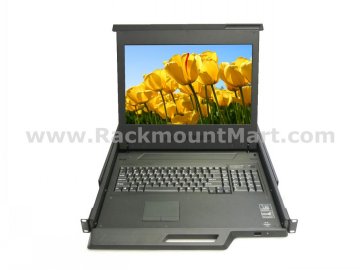

High Resolution 1U Rack LCD KVM DrawerLCD1U17-25

*click on image for enlarged view

Features & Benefits Options
  • 3G / HD / SD-SDI Broadcast-grade input
  • 2-post rack mounting option
  • Audio input , USB Port at front
  • 250V , 125V , 48V, 24V or 12V DC input

LCD Screen
Display Size 17.1", 367 x 230 mm
Panel Type Industrial Grade High Resolution Wide Screen TFT LCD

Resolutions

Maximum Resolution up to 1920 x 1200

Viewing Angle

130 degree x 110 degree

Contrast Ratio

600 : 1

Brightness

210 cd/m2

Back Light

LED

MTBF (hrs)

20,000

Colors 16.7 M, 8-bit

Signal input :

VGA, DVI-D , HDMI

Casing Color :

Black

Keyboard & Pointing Device

Model n / b

Standard Windows Keyboard with/ Numeric Keypad & Touchpad or Trackball

Model Mn / Mb
(MAC)

Optional MAC Keyboard and Hot-Keys with Numeric Keypad & Touchpad or Trackball

Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Environmental
Temperature 0 to 50 Degree Celsius(Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration(11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical
Product Dimension Single Port KVM Console :
442(W) x 480(D) x 44(H) mm /
17.4(W) x 18.9(D) x 1.73(H)inch
Multi Port KVM Console :
442(W) x 580(D) x 44(H) mm /
17.4(W) x 22.8(D) x 1.73(H) inch
Product Weight Single Port KVM Console : 33lbs / 15kgs
Multi Port KVM Console: 35lbs / 16kgs
Regulatory Approval
FCC, CE, RoHS2 Compliant , REACH Compliant , TAA Compliant
SUN VERSION / SUN KVM
LCD1U17-43 is the SUN Solaris version which supports native SUN resolution and with built-in SUN Keyboard , click here for details.
Dimension

*click on image for enlarged view
Construction

*click on image for enlarged view



Download Product Sheet
Download User Manual


MORE PHOTOS - Click on image for enlarged view




Port Type KVM Version No. of Port Cascade Capacity No. of Console User Manual
DB-15 KVM ( 1 Active User )
DB-15 PS2 KVM 8 Up to 8 level 1 x Local Console User Manual
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console User Manual
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x Remote Console ( Via CAT6 )
User Manual
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x Remote Console ( Over IP )
User Manual
DVI-D KVM ( 1 Active User )
DVI-D USB & Audio KVM 12 1 level 1 x Local Console User Manual
USB Hub KVM ( 1 Active User )
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console User Manual
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console +
1 x Remote Console ( Via CAT6 )
User Manual
DB-15 USB Hub KVM 8 / 16 1 level 1 x Local Console +
1 x Remote Console ( Over IP )
User Manual
Matrix KVM ( 2 ~ 4 Active Users )
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console ( Via CAT 6
)
User Manual
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1 or 2) x Remote Cosnole (Via CAT 6)
+(1 or 2) x Remote Console(Over IP)
User Manual




Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - Cables & Dongles
- DC Power Input ( 12V / 24V / 48V / 110V / 125V / 250V )
Customer who ordered this product may also order these :
- Server Rack Cabinet                  - Wall Mount Rack - KVM Switch                - Rack Mount Keyboard
- 2 Post / 4 Post Steel Rack - Rack Shelf                  - Rack Light
- 2 Post / 4 Post Aluminum Rack - Intellignet Rack Cabinet Door Lock Handle
- PDU / Power Distribution Unit - Remote / Network Control for Rack Cabinet Access
- Rack / Cabinet / Wall Mount Cooling Fans - Data Center Environmental Monitoring


ORDERIG INFORMATION
DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console / Single Port Combo KVM 1
1 x USB KVM cable
Part# LCD-A1014 OR
1 x Combo KVM cable
Part# LCD-A3001 OR
1 x DVI Console cable
Part# LCD-A3004
Touchpad LCD1U17-25-n (u) $1292
Trackball LCD1U17-25-b (u)
1 Local Console / MultiPort PS2 KVM 8
8 x PS/2 KVM cable
Touchpad LCD1U17-25-8KVM-n $1571
Trackball LCD1U17-25-8KVM-b
1 Local Console / MultiPort Combo KVM 8
8 x Combo KVM cable
Touchpad LCD1U17-25-8KVM-n-u $1652
Trackball

LCD1U17-25-8KVM-b-u

16
16 x Combo KVM cable
Touchpad LCD1U17-25-16KVM-n-u $1841
Trackball

LCD1U17-25-16KVM-b-u

LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
8 x Combo KVM cable
Touchpad LCD1U17-25-8KVM2-n $1867
Trackball LCD1U17-25-8KVM2-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-16KVM2-n $2055
Trackball LCD1U17-25-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-8KVM2IP-n $2017
Trackball LCD1U17-25-8KVM2IP-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-16KVM2IP-n $2205
Trackball LCD1U17-25-16KVM2IP-b
DVI KVM : 1 Active User
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort DVI-D KVM 12
6 xDVI-D KVM cable
Touchpad LCD1U17-25-12DVI-n $2070
Trackball LCD1U17-25-12DVI-b
USB Hub KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort USB Hub KVM 8
8 x USBKVM cable
Touchpad LCD1U17-25-H8KVM-n $1805
Trackball

LCD1U17-25-H8KVM-b

16
16 x USBKVM cable
Touchpad LCD1U17-25-H16KVM-n $2082
Trackball

LCD1U17-25-H16KVM-b

LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6) /
MultiPort USB Hub KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-H8KVM2-n $2020
Trackball LCD1U17-25-H8KVM2-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-H16KVM2-n $2297
Trackball LCD1U17-25-H16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort USB Hub KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-H8KVM2IP-n $2170
Trackball LCD1U17-25-H8KVM2IP-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-16KVM2IP-n $2447
Trackball LCD1U17-25-16KVM2IP-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-M82-n Call for price
Trackball LCD1U17-25-M82-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M162-n Call for price
Trackball LCD1U17-25-M162-b
3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-M83-n Call for price
Trackball LCD1U17-25-M83-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M163-n Call for price
Trackball LCD1U17-25-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
8 xCombo KVM cable
Touchpad LCD1U17-25-M83IP-n Call for price
Trackball LCD1U17-25-M83IP-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M163IP-n Call for price
Trackball LCD1U17-25-M163IP-b
4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-M84-n Call for price
Trackball LCD1U17-25-M84-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M164-n Call for price
Trackball LCD1U17-25-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-M84IP-n Call for price
Trackball LCD1U17-25-M84IP-n
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M164IP-n Call for price
Trackball LCD1U17-25-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM
8
8 x Combo KVM cable
Touchpad LCD1U17-25-M84IP2-n Call for price
Trackball LCD1U17-25-M84IP2-b
16
16 x Combo KVM cable
Touchpad LCD1U17-25-M164IP2-n Call for price
Trackball LCD1U17-25-M164IP2-b


Optional Keyboard & Pointing Devices
-Mn
Price : $189
Change Standard Windows Keyboard to MAC keyboard with touchpad
-Mb
Price : $189
Change Standard Windows Keyboard to MAC keyboard with trackball
Optional Video /Audio Inputs
-SDI
Price : $314
Add 3G / HD / SD-SDI Broadcast grade input (Depth will become 530mm/20.9")
-SPK
Price : $114
Add Audio input (Depth will become 530mm/20.9")
Optional DC Power
-DC12
Price : $215
Add 12V DC power supplyDC sheet (Depth will become 530mm/20.9")
-DC24
Price : $215
Add 24V DC power supplyDC sheet (Depth will become 530mm/20.9")
-DC48
Price : $215
Add 48V DC power supplyDC sheet (Depth will become 530mm/20.9")
-DC110
Price : $357
Add 110V DC power supply (Depth will become 530mm/20.9")
-DC125
Price : $357
Add 125V DC power supply (Depth will become 530mm/20.9")
-DC250
Call for price
Add 250V DC power supply (Depth will become 530mm/20.9")
Optional Dongles
LCD-A2001
Price : $43
VGA-USB Dongle
LCD-A2002
Price : $43
VGA-PS/2 Dongle
LCD-A2003
Price : $68
DVI-USB Dongle
Optional Cables
LCD-A3004
Price : $20
6-ft DVI Console Cable
(Server side : DVI-D + USB , KVM Console side : DVI-D + DB-15 (Keyboard + Mouse) without audio function)
LCD-A3005
Price : $20
6-ft DVI KVM Cable
(Server side : DVI-D + USB + audio , KVM Console side : DVI-D + USB)
LCD-A3006
Price : $29
15-ft DVI KVM Cable
LCD-A3001
Price : $13
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
Price : $20
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
Price : $26
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
Price : $13
6-ft USB 3-in-1 KVM Cable
LCD-A1015
Price : $20
10-ft USB 3-in-1 KVM Cable
LCD-A1016
Price : $26
15-ft USB 3-in-1 KVM Cable
LCD-A1004
Price : $13
6-ft PS/2 3-in-1 KVM Cable
LCD-A1005
Price : $20
10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
Price : $26
15-ft PS/2 3-in-1 KVM Cable




Availability: Usually ships the same business day

LCD1U17-25$1,292.00


MODEL

Single Port Combo KVM:


Single Console Multiport DB-15 KVM:


Single Console 12-Port DVI-D KVM ::


2 Consoles ( Local Console + Remote Console Via CAT6 ) DB-15 KVM :


2 Consoles ( Local Console + Remote Console Over IP) DB-15 KVM:


Single Console USB Hub KVM:


2 Consoles ( Local Console + Remote Console Via CAT6 ) USB Hub KVM :


2 Consoles ( Local Console + Remote Console Over IP ) USB Hub KVM :

Optional Keyboard & Pointing Device:

Optional Video/Audio Inputs :

Optional DC Input power :

Optional Cables:

Optional Dongle:







     For more information, please visit our company web site at
    http://www.rackmountmart.com/




Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.



 Copyright 2002-2018 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
