LCD1U17-07  DUAL RAILS  1U Rackmount 17" TFT LCD Console optional 8/ 16 port KVM switch  PS2/  Combo PS2 & USB / Cherry Trackball / DVI / SUN Hot Keys





Part #  LCD1U17-07


              NOVA DUAL RAILS  Short Depth 1U Rackmount 17" TFT LCD Monitor Keyboard Drawer

with Combo PS2 & USB interface
      OPTIONAL  8 or 16port  KVM switch  /  DVI Input  / SUN Hotkey   /   Cherry Trackball /  DVI KVM

                                                     Only 17.7" / 450mm Deep for Single port version

Special space saving design : The dual rail technology allows user hide the keyboard and still view
                         through the screen even if the rack door is closed .  UL Listed & RoHS Compliant

Overview :

LCD1U17-07 17" LCD Rack Console enhances secure and compact centralized server control. Independently sliding rails enable the high-grade 17" LCD to remain displayed even with the keyboard is stored. With this slim 1U design, the LCD Rack Console fits  standard 19-inch, 4-post rack and works with any server or KVM switch. This LCD Rack Console offers an affordable solution with  reliability & quality .

Features :

  • Dual Rail KVM rack Drawer  : One pair of rails for Panel and  one pair of rails for Keyboard tray so that Panel and Keyboard can be moved separately
  • Utilizes just 1U rack space
  • Compatible with all KVM switching systems for multiple server access
  • Adjustable to various rack depth from 45cm up to 103cm
  • Plug and play installation requires no change to the installed base
  • 17"  high grade TFT LCD Display
  • Panel protected by tempered glass
  • Hidden handle for Keyboard tray
  • Installs quickly and easily
  • RoHS Compliant
  • Multi-platform :Support PS/2, SUN and USB
  • Operating System :  Dos, Windows , Linux, Novell 3. 12-6, HP UX, SUN
  • Support Sun native resolution
  • Durable keyboards (touchpad or Cherry trackball)
  • Support 15 various keyboard languages
  • Bright Active Matrix TFT Display
  • OSD function (On Screen Display) for LCD display and
    KVM switch
  • Optional Rear extension bracket up to 1030mm
  • Optional DC Input power adapter  / PS2 & USB Combo / DVI /  SUN Hot Key / Cherry Trackball Keyboard



* Click to enlarge






 SPECIFICATION
Display Size 17"
Panel Type High Grade Active Matrix TFT LCD

Resolutions

Maximum Resolution up to 1280 x 1024

Pixel Pitch

Supports 0.264mm 2.264mm

Viewing Angle

 Right-Left view 65-75
 Up-Down View 45-60

Contrast Ratio

 450 : 1

Brightness

White 250cd/m2

Back Light

Four Lamps for Back Light

Supported Colors

up to 16.2 M  (6-bit with FRC)

Keyboard

106 Keys with Numeric Key pad &
 touchpad Keyboard  OR
Cherry keyboard with Trackball

Video Input :

Analog RGB input

Sync :

45~80KHZ

Input Connector :

 Video HDD15 K/M MiniDin6

Power Source

100-240 VAC input

Power Consumption

Panel:19.05 watts
Drawer: total 25w

Temperature

 Operate 0°~ 50° C / 32° ~122°F
 Storage-20° - 60° C / -4° - 140°F

Humidity

 10%~90%RH

Response Time

Rising Time 2-6ms
Decay Time 14-24ms

Dimension :

LCD1U17-07-n :
17.5" x 17.7" x 1.7"  (W X D X H)
LCD1U17-07-8KVM-n :
17.5" x 22.4" x 1.7"  (W X D X H)
LCD1U17-07-16KVM-n
17.5" x 22.4" x 1.7" (W X D X H)

Chassis Construction :

Heavy-duty steel materials

Certification

CE / FCC ,  UL / CUL / C-Tik

PDF Download
 Download User Manual
 Download Hot key Command List
 Download Connection Diagram
 Download Installation Guide

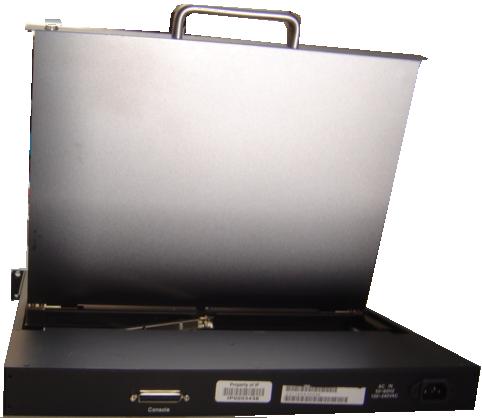

               More Photos : click to enlarge
PDF Download
 Download Product Sheet
 IP KVM Manual
 IP Quick Setting Guide
Free Ground Shipping( A $55 Value)
*Click for details

 KVM INFORMATION :

  Combo PS2 USB KVM Rear View and Connection Diagram


 8-DVI Rear View (Click to enlarge)

 Ordering information :

  NO KVM ( Single Port ) / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U17-07-n-co-ps2
 Price:$1087.50
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input, touchpad mouse and COMBO PS2 / USB INTERFACE and *1 PS/2 6-ft cable included, Black
 LCD1U17-07-n-co-usb
 Price:$1087.50
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input, touchpad mouse and COMBO PS2 / USB INTERFACE and *1 USB 6-ft cable included, Black
  8 Port PS2 & USB Combo / CAT5 / DVI-USB KVM interface
  Part # Description
 LCD1U17-07-8KVM-n-co
 Price:$1286.60
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with  touchpad mouse & 8 port Combo PS2 / USB KVM  and  total of  8 x  customer's choice of  PS2 and USB  6-ft KVM cable included, Black RoHS Compliant
 LCD1U17-07-U8KVM-n-co
 Price:$1307.60
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 LCD1U17-07-8DVI-n
 Price:$1485.10
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port DVI KVM switch  &USB INTERFACE and 8 x DVI & USB cables included, Black RoHS Compliant
  16 Port PS2 & USB Combo / CAT5 KVM interface
  Part # Description
 LCD1U17-07-16KVM-n-co
 Price:$1414.40
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with  touchpad mouse & 16 port Combo PS2 / USB KVM  and  total of  8 x  customer's choice of  PS2 and USB  6-ft KVM cable included, Black RoHS Compliant
 LCD1U17-07-U16KVM-n-co
 Price:$1442.50
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.
  32 Port PS2 & USB Combo / CAT5 KVM interface
  Part # Description
 LCD1U17-07-U32KVM-n-co
 Price:$1577.40
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 32 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 PS2 & USB Combo / CAT5 KVM over-IP interface (Local + IP remote consoles)
  Part # Description
 LCD1U17-07-8KVM2IP-n-co
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM switch & 8 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U17-07-16KVM2IP-n-co
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM switch & 16 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U17-07-U8KVM2IP-n-co
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 8 port CAT5 KVM switch, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 LCD1U17-07-U16KVM2IP-n-co
1U Dual-Slide Rack monitor 17" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 16 port CAT5 KVM switch, Black RoHS Compliant. PS2/USB dongles are ordered separately.
  Options
  Part # Description
 -DVI
 Price:$40
Add DVI-D
 -Sun Hot Key
 Price:$20
Add SUN Hot Keys to Keyboard
 -C
 Price:$127.50
Add Cherry Trackball Keyboard
 -T
 Price:$204.00
Add Touch screen (USB or RS232)
-DC12
 Price:$60
Add 12V DC power supply        DC sheet
-DC24
 Price:$60
Add 24V DC power supply        DC sheet
-DC48
 Price:$60
Add 48V DC power supply        DC sheet
-DC125
Call for pricing
Add 125V DC power supply
 LCD-A2001
 Price:$39
Add VGA-USB dongle
 LCD-A2002
 Price:$39
Add VGA-PS2 dongle
 LCD-A4001
 Price:$13
Add 6 ft PS2 Cable + USB adapter
 LCD-A4002
 Price:$21
Add 10 ft PS2 Cable + USB adapter
 LCD-A4003
 Price:$35
Add 15 ft PS2 Cable + USB adapter
 LCD-A4011
 Price:$13
Add 6 ft USB Cable
 LCD-A4012
 Price:$20
Add 10 ft USB Cable
 LCD-A4013
 Price:$26
Add 15 ft USB Cable






Availability: Usually ships the same business day

LCD1U17-07$1,087.50
Single Port PS2 or PS2 & USB Combo interface :

8 Port PS2 & USB Combo / CAT5 / DVI-USB KVM interface :

16 Port PS2 & USB Combo / CAT5 KVM interface:

32 Port PS2 & USB Combo / CAT5 KVM interface:

DVI:
SUN Hot Keys:
C : Cherry Trackball Keyboard:
T : Add Touch screen (USB or RS232):
DC power input Option:

LCD-A4001:6 ft PS2 Cable + USB adapter:
LCD-A4002:10 ft PS2 Cable + USB adapter:
LCD-A4003:15 ft PS2 Cable + USB adapter:
LCD-A2001:VGA-USB dongle:
LCD-A2002:VGA-PS2 dongle:
LCD-A4011:
LCD-A4012:
LCD-A4013:
