1U Rack mounting 19" Samsung TFT LCD Monitor Keyboard Drawer
with full "Unix Style" Keyboard with Numerical Pad and LCD Support Arm
Also known as: rackmount lcd monitor drawer, rack mount LCD monitor drawer, rackmount tft monitor drawer, fixed rackmount lcd monitor drawer , tft rackmount lcd monitor drawer, flat panel monitor drawer, rack mount monitor drawer, active matrix monitor drawer.
| General Information |
Form Factor |
1U Rack mounting on slide-out rails,
Short Depth |
Compatibility |
Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs |
Support Platform |
MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS |
Server Side Interface |
HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS |
|
| LCD Screen |
LCD Type |
 Samsung Grade A 17" Industrial
Active Matrix TFT LCD Panel
|
Display Size |
19 inch diagonal |
Resolutions |
1,280 x 1,024 with 60 / 70 / 75Hz |
Response time |
Tr =1.3ms / Tf = 3.7ms |
Contrast ratio |
1000 : 1 |
Brightness |
300 cd/ m2 |
Pixel pitch |
0.294mm (H) x 0.294mm (W) |
Panel color |
16.7 million display colors |
Viewing angle |
160 / 160 (Horiz. / Vert.) |
OSD Control |
Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language |
Signal Input |
VGA, Analog RGB |
Optional Video Input |
S-video & Composite (RCA) / S-Video & BNC /
DVI-D ...More Video Input Details |
LCD MTBF |
50,000 hrs |
| Keyboard & Pointing Device |
Model d |
Compact KB w 17 numeric keypad &
3-button Trackball |
Model t |
Compact KB w 17 numeric keypad & 2-button Touchpad |
|
...More Keyboard Details |
| Power Supply |
|
-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input |
| Rear I/O Connector |
|
Console port : HD15 female
DC power input : Plug-round type |
| Environmental |
| Temperature |
0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
| Relative Humidity |
5~90%, non condensing |
| Shock |
10G peak acceleration
(11ms duration) |
| Vibration |
5~500Hz, 1G RMS random vibration |
| Mechanical |
Product Dimension |
17.4"(W) x 1.73"(H) x 27.6"(D) /
44.2(W) x 4.4 (H) x 70(D)cm |
| Product Weight |
Approximately 40 lbs / 18kg |
| Relative Humidity |
90%, non condensing |
| Regulatory Approval |
| |
FCC , CE , VCCI
|
|

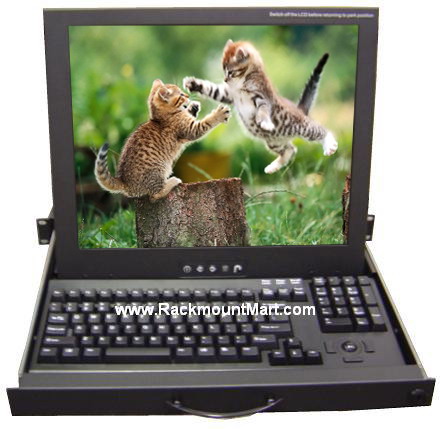

Front View of LCD1U19-03
*click on photo for enlarged view

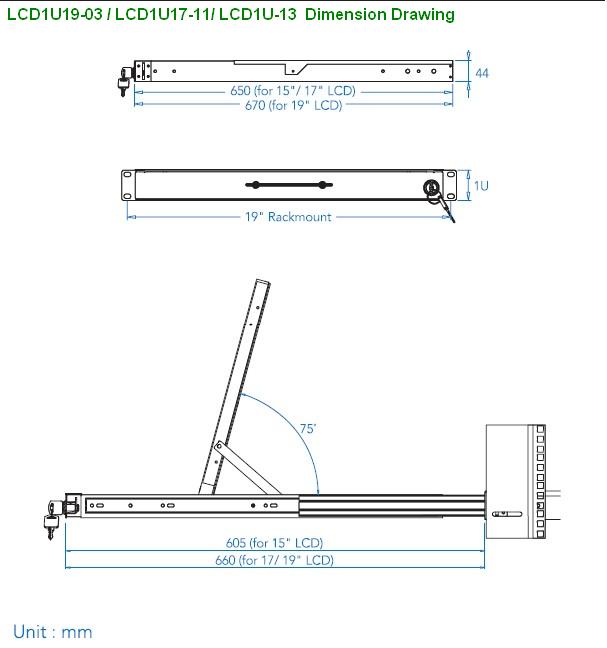

Dimension
*click on above pictures for enlarged views
User Manual
Single Sheet
Free Ground Shipping( A $55 Value) details>>

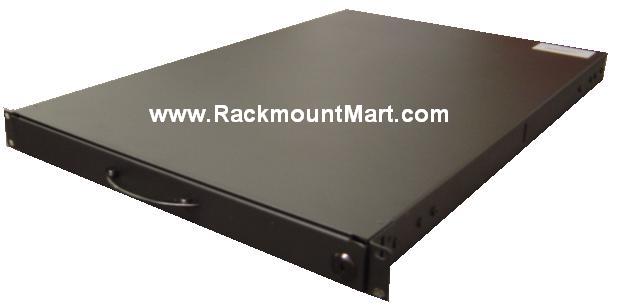

Click on the following photos for more enlarged views


  |
|
LCD Drawer & KVM Benefits :

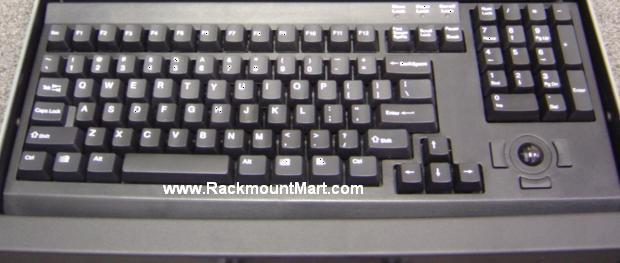

- 1U unit with "Unix Style" Keyboard with numerical pad
Features :
- 1U rack mount drawer with SAMSUNG Grade A 19" LCD Panel
- Combo interface either PS/2 or input to the rack console

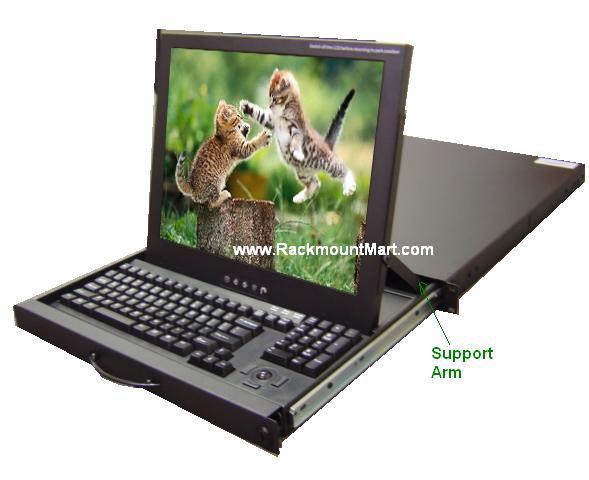

- WITH NEWLY DESIGNED LCD SUPPORT ARM
- Slide rails with fixed positions to prevent keyboard movement while typing
- "One Man" installation slides for easy and quick installation
- Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
- Supports AT/XT, PS/2, UNIX, Sun, and Macintosh computers
- Unique mechanical design to maximize rack mountable space
- Unique monitor flip-up design allows viewing through closed glass door of cabinet
- Lightweight aluminum construction - with a black anodize finish
- Front-access lock for security
- Large wrist rest area
- Standard D-sub 15-pin VGA input connector
- Build in slide rail and mounts easily in any 19 inch cabinet rack
- EMC shielding around the monitor housing to minimize interference
- Power saving feature for prolonging life of LCD Panel
- Built in On Screen Display controlled by integral membrane switches
- Rear mount bracket included
- All mounting hardware included
- Optional S-Video + Composite Video ( BNC or RCA ), DVI-D, DC Input Power , Audio , Touch screen
Back to top
ORDERING INFORMATION FOR LCD1U19-03 - 1U SAMSUNG 19" LCD RACK CONSOLE
| KVM Support |
Keyboard Type |
Part # |
Description |
| NO KVM |
| Single Port with Combo PS/2 and USB Interface |
Compact KB w/ Trackball |
LCD1U19-03-d
Price : $879 |
1U 19" Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable |
| Compact KB w/ Touchpad |
LCD1U19-03-t
Price : $879 |
1U 19" Samsung Panel w/ Compact KB & touchpad & 1 x 6-ft 4-in-1 Combo KVM cable |
| Compact KB w/ Trackball |
LCD1U19-03-du
Price : $879 |
1U 19" Samsung Panel w/ Compact KB & trackball & 1 x 6-ft 4-in-1 Combo KVM cable |
| Compact KB w/ Touchpad |
LCD1U19-03-tu
Price : $879 |
1U 19" Samsung Panel w/ Compact KB & touchpad & 1 x 6-ft 4-in-1 Combo KVM cable |
| Option |
-12VDC
Price : $171 |
Add 12V DC power input (the depth will be 750mm/29.5") |
-24VDC
Price : $171 |
Add 24V DC power input (the depth will be 750mm/29.5") |
-48VDC
Price : $171 |
Add 48V DC power input (the depth will be 750mm/29.5") |
-BNC
Price : $114 |
Add Composite Video (BNC) + S-video |
-AV
Price : $114 |
Add Composite Video (RCA ) + S-video |
-HDMI
Price : $114 |
Add HDMI Input with built in Speaker |
-DVI
Price : $64 |
Add DVI-D Input (the depth will be 750mm/29.5") |
-SPK
Price : $114 |
Add speaker |
