                                                Part #  LCD1U17-06

SHORT DEPTH 1U Rackmount 17" Samsung TFT LCD Monitor Keyboard Drawer
Only 18.9" / 480mm Deep, fits  23.6" / 600mm deep cabinet
Optional 17.3" / 440mm Deep available

Also known as: rackmount lcd monitor drawer, rack mount LCD monitor drawer, rackmount tft monitor drawer, fixed rackmount lcd monitor drawer , tft rackmount lcd monitor drawer, flat panel monitor drawer, rack mount monitor drawer, active matrix monitor drawer.
General Information

Form Factor

1U Rack mounting on slide-out rails,
Short Depth

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

Server Side Interface

HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS

Rack Mounting

Adjustable ranges from 15.3" to 27.5"
(390 to 700mm)

                                                  LCD Screen

LCD Type

Samsung Grade A 17" Industrial
              Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D             ...More Video Input Details

LCD MTBF

50,000 hrs
                                     Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball



                            ...More Keyboard Details
                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V DC
  input
                                 Rear I/O Connector



 Console port     :  HD15 female
 DC power input :  Plug-round type

                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
   Shock 10G acceleration (11ms duration)
   Vibration 5~500Hz, 1G RMS random vibration
                                  Mechanical

Product Dimension

17.3"(W) x 1.75"(H) x 18.9"(D)
/ 44.2(W) x 4.45(H) x 48(D)cm

Product Weight  Approximately 35 lbs / 16kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
           FCC , CE , VCCI
                             Package Content

Package Content

LCD Monitor drawer x 1 ,  upgradeable
6-ft KVM cable(s),  110 / 220 V DC Power
adapter x 1 , Power cord x 1,  Rear
Mounting Bracket x 1 pair,
Fasteners x 4 , User Manual x 1

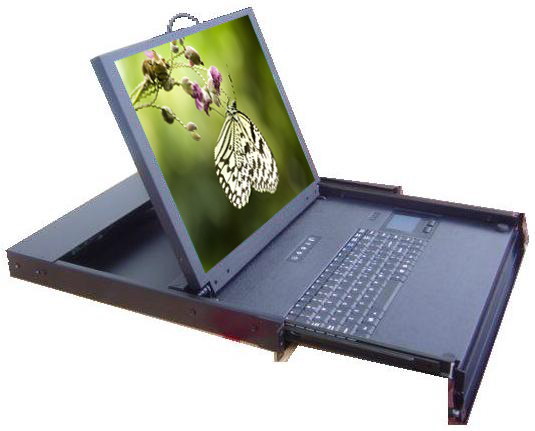

 Front View of LCD1U17-06

*click on photo for enlarged view

      User Manual



       Product Sheet


Free Ground Shipping( A $55 Value) details>>

Optional Peripheral & Accessory
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- HDMI
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various Length
- KVM Extender       -IP KVM Extender

 Customer who ordered this product may also order these :
- KVM Switch
- PDU ( Power Distribution Unit )
- Server Rack Cabinet
- 4 Post Rack
- Wall Rack Mount
- Rack Shelves
- Rack Drawer
- Power Strips
- Rack Cooling Fan

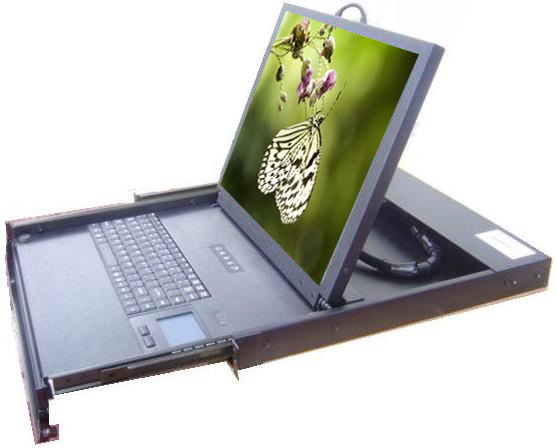

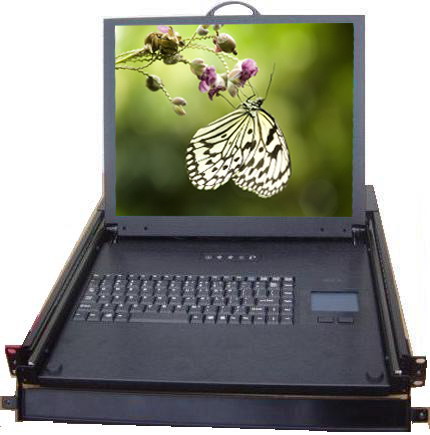

Click on the following photos for more enlarged views :







Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

LCD Drawer & KVM Benefits :

  • Short Depth design of 480mm (18.9") only
  • Depth will fit 600mm(23.6") rack application

Features :

  • 1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
  • Combo interface either PS/2 or input to the rack console
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • "One Man" installation slides for easy and quick installation
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Supports AT/XT, PS/2, UNIX, Sun, and Macintosh computers
  • Unique mechanical design to maximize rack mountable space
  • Unique monitor flip-up design allows viewing through closed glass door of cabinet
  • Adjustable mounting brackets for multiple depth cabinets between 650mm and 1000mm
  • Lightweight aluminum construction - with a black anodize finish
  • Front-access lock for security
  • Large wrist rest area
  • Standard D-sub 15-pin VGA input connector
  • Build in slide rail and mounts easily in any 19" cabinet
  • EMC shielding around the monitor housing to minimize interference
  • Side to side wide-viewing angle as CRT monitor
  • Power saving feature for prolonging life of LCD Panel
  • Built in On Screen Display controlled by integral membrane switches
  • Rear mount bracket included
  • All mounting hardware included
