LCD2U17-01 2U Dual Slides Rackmount 17" Samsung LCD KB optional 8/16/32 port KVM (DB-15/ CAT5 CAT6 / IP KVM / Matrix KVM) / DVI / BNC / S-Video (RCA)/Speakers/DC input power

Space saving design : Dual Slides enable viewing through closed glass doors of Rack

General Information

Form Factor

2 U Rack mounting, separate sliding screen and keyboard

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs &
DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

LCD Screen

LCD Type

Samsung Grade A 17" Industrial
TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

TR=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (L/R/U/D)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball

Model d

Compact KB w/ 17-key numeric keypad and 3-button Trackball

Model t

Compact KB w/ 17-key numeric keypad and 2-button Touchpad

Keyboard Details

Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

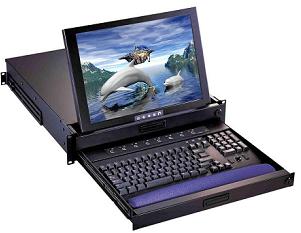

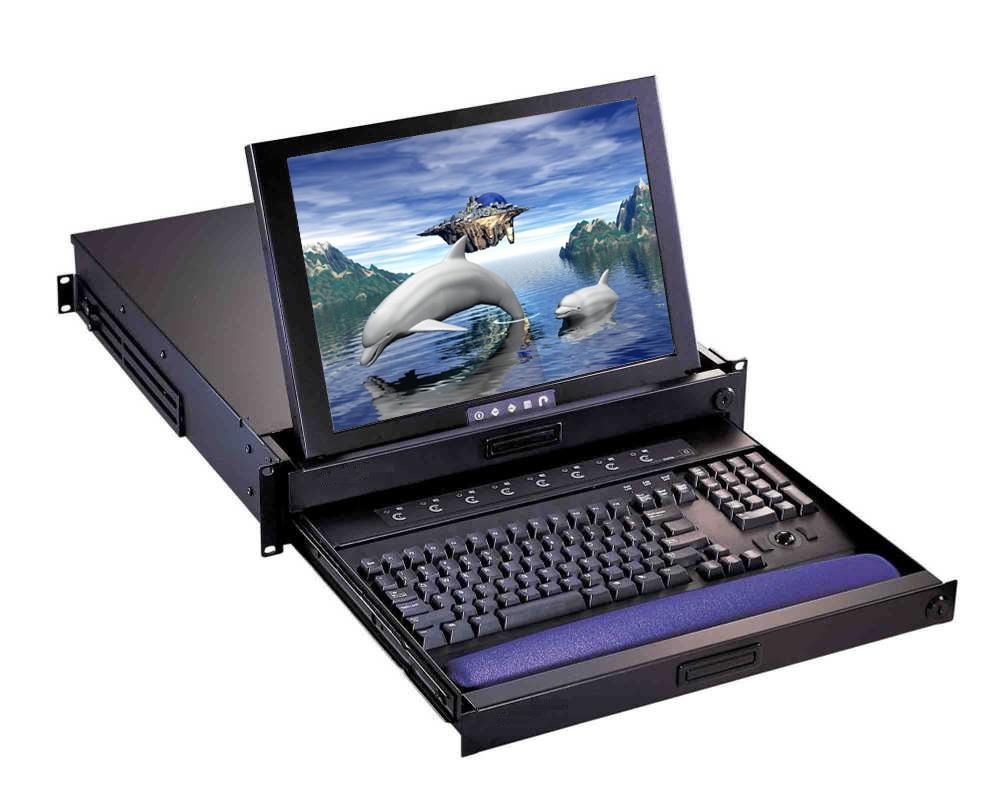

Front View of LCD2U17-01

*click on photo for enlarged view

Dimension Construction

*click on above picture for enlarged views

User Manual

KVM SUPPORT
PS/2 , NO KVM
PS/2, Local Console KVM
USB, Local Console KVM
PS/2, Local + Remote Console, DB-15 CAT5 Extender KVM
PS/2, Local + IP Console, DB-15 IP Over KVM	Coming Soon / For 1U model with KVM Over IP Remote Access, click here
Local Console, High Density CAT.5 KVM
Local + Remote Console, High Density CAT.5 KVM
Local + IP Console, High Density CAT5 IP KVM

Free Ground Shipping *Click for details

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

Without KVM

Console port :	for VGA PS/2 KB/MS, , HD 15 female
DC power input :	Plug-round type

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

17.4"(W) x 3.46"(H) x 23.62"(D)
44.2(W) x 8.8(H) x 60(D)cm

Product Weight

Approximately 41.8 lbs / 19kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI

Optional Accessories & Peripheral

Details

Package Content

See user manual of the respective version listed above

Remarks

For SUN Solaris Compatible version , click this Link

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 2U
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

2U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
May be fitted into an 800mm deep rack by the use of extended brackets on request
Adjustable mounting brackets from 15.35" to 33.2"(390 to 845 mm) (front to rear 19" mounts). Suitable for 25.61" to 39.4" (650 to 1000mm) deep 19 " rack cabinet
Front access lock for security
For compact keyboard, cushion is ergonomically shaped for wrist support; large padded wrist-rest for "d" & "t" KB
Lightweight aluminum construction -with a black anodize finish
Power saving feature for prolonging the life of LCD panel
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 Details 16 Port KVM - LCDK1011 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 Details 16 Port KVM - LCDK1025 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 Details 16 Port KVM - LCDK1021 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 Details 16 Port KVM - LCDK1039 Details

Integrated with High Density CAT.5 KVM Switch Only

High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043 Details 32 Port KVM - LCDK1044 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 Details 32 Port KVM - LCDK1046 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 Details 32 Port KVM - LCDK1048 Details

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

Details

Local Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

Touch Screen

Details

Local + Remote Console DB-15 PS2 KVM switch
- 8 Port / 16 Port Details

PS/2 or USB KVM Cables & Cascade Cables in various
length

Details

Local + Remote Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

PS/2 or USB Dongles & CAT5 Cables in various
length

Details

Local + IP Console DB-15 IP Over KVM switch
- 8 Port / 16 Port Details

Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane
                               *** Please contact us for details

Local Console High Density CAT.5 KVM switch
- 16 Port / 32 Port

16 Port KVM - LCDK1043 Details
32 Port KVM - LCDK1044 Details

    LCD-A1001 PS2 to SUN /iMac USB adapter
Converting PS/2 to USB with SUN translating special keys stroke

Details

Local + Remote Console High Density CAT.5 KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1045 Details
32 Port KVM - LCDK1046 Details

CAT.5 PS2 KVM Extender

Details

CAT5 USB KVM Extender

Details

PS2 KVM Over IP Extender

Details

Local + IP Console High Density CAT.5 IP KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1047 Details
32 Port KVM - LCDK1048 Details

ORDERING INFORMATION :


KVM Support	Keyboard Type	Part #	Description
NO KVM ( Single Port ) with Built-in Combo PS2 & USB interface**
Single Port for DB-15 PS2 connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD2U17-01-n Price : $780	2U 17" Samsung Panel w/ Notebook KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-b Price : $780	2U 17" Samsung Panel w/ Notebook KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-c Price : $932	2U 17" Samsung Panel w/ Cherry KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-t Price:$856	2U 17"Samsung Panel w/ Compact KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-d Price:$856	2U 17"Samsung Panel w/ Compact KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
Single Port for DB-15 USB connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD2U17-01-n-u Price: $780	2U 17" Samsung Panel w/ Notebook KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-b-u Price: $780	2U 17" Samsung Panel w/ Notebook KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-c-u Price: $932	2U 17" Samsung Panel w/ Cherry KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-t-u Price:$856	2U 17" Samsung Panel w/ Compact KB & touchpad & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-d-u Price:$856	2U 17" Samsung Panel w/ Compact KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
Single Console KVM ( Local console, 8 / 16 / 32 port KVM )
DB-15 KVM ( Local console DB-15 KVM)
Local console DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-8KVM-n Price: $1076	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-8KVM-b Price: $1076	2U 17" Samsung Panel w/ Notebook KB & trackball & local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-8KVM-c Price: $1227	2U 17" Samsung Panel w/ Cherry KB & trackball & local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-8KVM-t Price:$1152	2U 17" Samsung Panel w/ Compact KB & touchpad & local console DB-15 8 port PS/2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
	Compact KB w/ Trackball	LCD2U17-01-8KVM-d Price:$1152	2U 17" Samsung Panel w/ Compact KB & trackball & local console DB-15 8 port PS/2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
Local console DB-15 16 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-16KVM-n Price: $1280	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-16KVM-b Price: $1280	2U 17" Samsung Panel w/ Notebook KB & trackball & local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-16KVM-c Price: $1432	2U 17" Samsung Panel w/ Cherry KB & trackball & local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-16KVM-t Price:$1356	2U 17" Samsung Panel w/ Compact KB & touchpad & local console DB-15 16 port PS/2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
	Compact KB w/ Trackball	LCD2U17-01-16KVM-d Price:$1356	2U 17" Samsung Panel w/ Compact KB & trackball & local console DB-15 16 port PS/2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
Local console DB-15 8 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-8KVM-n-u Price: $1189	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-8KVM-b-u Price: $1189	2U 17" Samsung Panel w/ Notebook KB & trackball & local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-8KVM-c-u Price: $1341	2U 17" Samsung Panel w/ Cherry KB & trackball & local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-8KVM-t-u Price:$1265	2U 17" Samsung Panel w/ Compact KB & touchpad & local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-8KVM-d-u Price:$1265	2U 17" Samsung Panel w/ Compact KB & trackball & local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
Single console DB-15 16 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-16KVM-n-u Price: $1409	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-16KVM-b-u Price: $1409	2U 17" Samsung Panel w/ Notebook KB & trackball & local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-16KVM-c-u Price: $1561	2U 17" Samsung Panel w/ Cherry KB & trackball & local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-16KVM-t-u Price:$1485	2U 17" Samsung Panel w/ Compact KB & touchpad & local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-16KVM-d-u Price:$1485	2U 17" Samsung Panel w/ Compact KB & trackball & local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
High Density CAT5 KVM ( Local console CAT5 KVM) with Built-in Combo PS2 & USB interface**
Local console High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U8KVM-n Price: $1508	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U8KVM-b Price: $1508	2U 17" Samsung Panel w/ Notebook KB & trackball & local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
Local console High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U16KVM-n Price: $1598	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U16KVM-b Price: $1598	2U 17" Samsung Panel w/ Notebook KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U16KVM-c Price: $1417	2U 17" Samsung Panel w/ Cherry KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U16KVM-d Price: $1341	2U 17" Samsung Panel w/ Compact KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U16KVM-t Price: $1341	2U 17" Samsung Panel w/ Compact KB & touchpad & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
Local console High Density 32 Port High Density CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U32KVM-n Price: $2114	2U 17" Samsung Panel w/ Notebook KB & touchpad & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U32KVM-b Price: $2114	2U 17" Samsung Panel w/ Notebook KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U32KVM-c Price: $1674	2U 17" Samsung Panel w/ Cherry KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U32KVM-t Price: $1598	2U 17" Samsung Panel w/ Compact KB & touchpad & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U32KVM-d Price: $1598	2U 17" Samsung Panel w/ Compact KB & trackball & local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )
2 Consoles ( Local + Remote console ) DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-8KVM2-n Price: $1379	2U 17" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-8KVM2-b Price:$1379	2U 17" Samsung Panel w/ Notebook KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-8KVM2-c Price:$1530	2U 17" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-8KVM2-t Price:$1455	2U 17" Samsung Panel w/ Compact KB & touchpad & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 port PS/2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-8KVM2-d Price:$1455	2U 17" Samsung Panel w/ Compact KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 8 port PS/2 KVM switch & 8 x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + Remote console ) DB-15 8 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD2U17-01-16KVM2-n Price:$1561	2U 17" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15 CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-16KVM2-b Price:$1561	2U 17" Samsung Panel w/ Notebook KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-16KVM2-c Price:$1712	2U 17" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15 CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-16KVM2-t Price:$1636	2U 17" Samsung Panel w/ Compact KB & touchpad & Local + Remote console DB-15 16 port PS/2 KVM switch & 16x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-16KVM2-d Price:$1636	2U 17" Samsung Panel w/ Compact KB & trackball & Local + Remote console DB-15 16 port PS/2 KVM switch & 16x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + IP console ) DB-15 8 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD2U17-01-8KVM2IP-n Price:$1682	2U 17" Samsung Panel w/ Notebook KB & touchpad & Local + IP console DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-8KVM2IP-b Price:$1682	2U 17" Samsung Panel w/ Notebook KB & trackball & Local + IP console DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-8KVM2IP-c Price:$1833	2U 17" Samsung Panel w/ Cherry KB & trackball & Local + IP console DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-8KVM2IP-t Price:$1758	2U 17" Samsung Panel w/ Compact KB & touchpad & Local + IP console DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-8KVM2IP-d Price:$1758	2U 17" Samsung Panel w/ Compact KB & trackball & Local + IP console DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
2 Consoles ( Local + IP console ) DB-15 16 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD2U17-01-16KVM2IP-n Price:$1871	2U 17" Samsung Panel w/ Notebook KB & touchpad & Local + IP console DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
	Notebook KB w/ Trackball	LCD2U17-01-16KVM2IP-b Price:$1871	2U 17" Samsung Panel w/ Notebook KB & trackball & Local + IP console DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
	Cherry KB w/ Trackball	LCD2U17-01-16KVM2IP-c Price:$2023	2U 17" Samsung Panel w/ Cherry KB & trackball & Local + IP console DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Touchpad	LCD2U17-01-16KVM2IP-t Price:$1947	2U 17" Samsung Panel w/ Compact KB & touchpad & Local + IP console DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
	Compact KB w/ Trackball	LCD2U17-01-16KVM2IPd Price:$1947	2U 17" Samsung Panel w/ Compact KB & trackball & Local + IP console DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM ) with Built-in Combo PS2 & USB interface**
2 Consoles ( Local + Remote console ) High Density 8 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U8KVM2-n Price: $1735	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U8KVM2-b Price:$1735	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + Remote console ) High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U16KVM2-n Price: $1826	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U16KVM2-b Price:$1826	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U16KVM2-c Price:$1644	2U 17" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U16KVM2-t Price: $1568	2U 17" Samsung Panel w/ Compact KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U16KVM2-d Price:$1568	2U 17" Samsung Panel w/ Compact KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
2 Consoles ( Local + Remote console ) High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U32KVM2-n Price:$2341	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U32KVM2-b Price:$2341	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U32KVM2-c Price:$1856	2U 17" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U32KVM2-t Price:$1780	2U 17" Samsung Panel w/ Compact KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U32KVM2-d Price:$1780	2U 17" Samsung Panel w/ Compact KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
2 Consoles ( Local + IP console ) High Density 8 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U8KVM2IP-n Price:$1977	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 5 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U8KVM2IP-b Price:$1977	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 5 pcs of customer's choice of PS2 / USB dongles Details-> )
2 Consoles ( Local + IP console ) High Density 16 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U16KVM2IP-n Price:$2311	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U16KVM2IP-b Price:$2311	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U16KVM2IP-c Price:$1917	2U 17" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U16KVM2IP-t Price:$1864	2U 17" Samsung Panel w/ Compact KB & touchpad & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U16KVM2IP-d Price:$1864	2U 17" Samsung Panel w/ Compact KB & trackball & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
2 Consoles ( Local + IP console ) High Density 32 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ Touchpad	LCD2U17-01-U32KVM2IP-n Price:$2583	2U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Notebook KB w/ Trackball	LCD2U17-01-U32KVM2IP-b Price:$2583	2U 17" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles Details-> )
	Cherry KB w/ Trackball	LCD2U17-01-U32KVM2IP-c Price:$2129	2U 17" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Touchpad	LCD2U17-01-U32KVM2IP-t Price:$2053	2U 17" Samsung Panel w/ Compact KB & touchpad & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
	Compact KB w/ Trackball	LCD2U17-01-U32KVM2IP-d Price:$2053	2U 17" Samsung Panel w/ Compact KB & trackball & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )

Availability: Usually ships in 2-3 business days.

LCD2U17-01

$780.00

MODEL:
Single Console( local ): Single Port ( No KVM ), w/ Combo PS2 & USB :

Single Console( local ): DB-15 8/16 port PS/2 OR USB KVM :

Single Console( local ): High Density 16/32 port RJ-45 Cat5 KVM w/ Combo PS2 / USB :

2 Consoles (Local + Remote): DB-15 8/16 port PS/2 Cat.5 KVM :

2 Consoles (Local + Remote): DB-15 8/16 port Cat.5 PS/2 KVM Over IP:

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM w/ Combo PS2 & USB :

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM Over IP w/ Combo PS2 & USB:

OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

DVI-D Input :

DC Input Power Adapter:

Touch Screen :

ACCESSORIES
PS/2 to SUN USB Adapter for use w/ DB-15 PS/2 KVM:

PS2 Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch:

USB Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch :

Extra KVM Cable (for PS2/USB interface switching):

Cascade Cable:

KVM CABLE UPGRADE
Upgrade 6 ft PS2 KVM cable to 10-ft:

Upgrade 6-ft PS2 KVM cable to 15-ft:

Upgrade 6 ft USB KVM cable to 10-ft:

Upgrade 6-ft USB KVM cable to 15-ft:

For more information, please visit our company web site at
http://www.rackmountmart.com/

Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.

Copyright � 2002-2008 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
