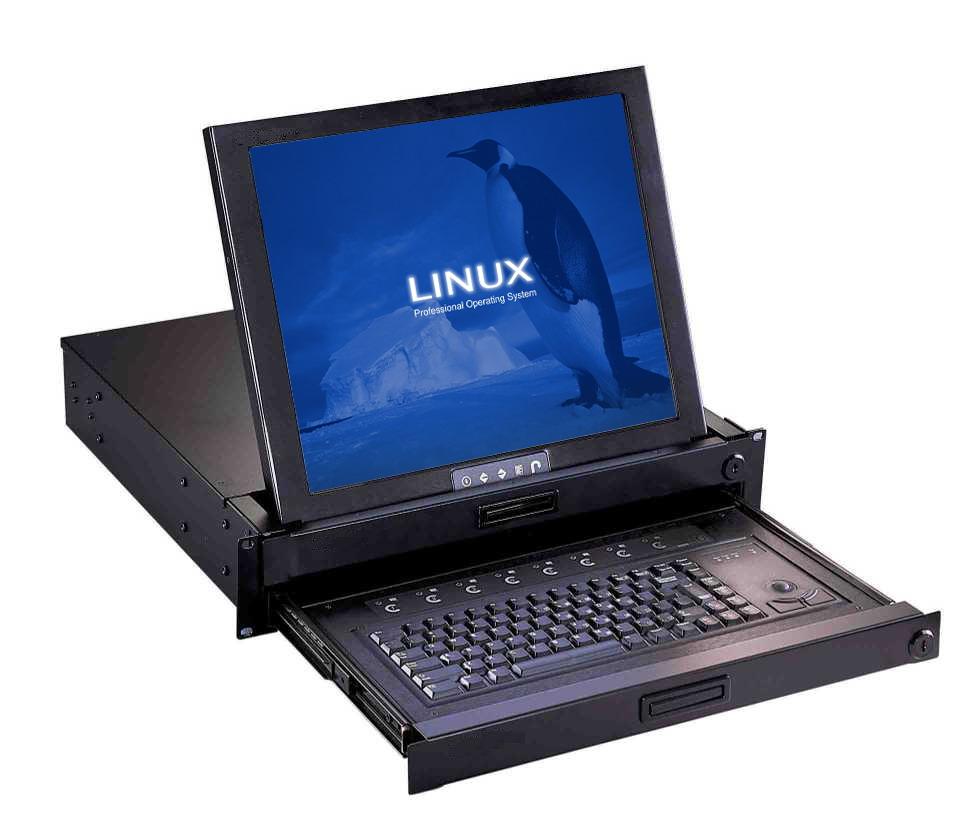

LCD2U19-02 Dual Slides SHORT DEPTH 2U Rack 19" Samsung LCD KB optional  8/16/32 port KVM (DB-15/ CAT5 CAT6 / IP KVM / Matrix KVM) / DVI / BNC / S-Video (RCA)/Speakers/DC input power





Part #   LCD2U19-02


NOVA 2U Dual Rails Rack Console 19" SAMSUNG Grade A Industrial LCD Monitor Keyboard
Optional DB-15 Kvm / CAT6 Kvm / DVI-D KVM connector
Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
Optional 1 / 2 / 3 / 4 Consoles for Local / Remote Access

                                              Only 18.9" / 480mm Deep, fits  23.6" / 600mm deep cabinet
                 Space saving design : Dual Slides enable viewing through closed glass doors of Rack
    Rack Console LCD2U19-02-n

*click on photo for enlarged view

   Drawer Features & Display Benefits
  • 2U dual slide 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm ( 18.9" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
   Options
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 19" Touchscreen : Capacitive, Resistive
  • 48V, 24V or 12VDC power
LCD Screen

LCD Type

SAMSUNG Grade A Industrial TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

1280 x 1024

Backlight

CCFL

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area

376 x 301 (mm)

Panel color

16.7 M

Viewing angle

160° x 160°

Signal Input

VGA

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / b

Standard Keyboard  w/ Numeric Keypad & Touchpad

Model Mn / Mb
(MAC)

MAC Keyboard and Hot-Keys w/ Numeric Keypad & Trackball

Model Sn / Sb
(SUN)

Sun Keyboard and Hot-Keys w/ Numeric Keypad & Trackball

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical
Dimensions

441.6 x 480 x 88 mm /
17.4 x 18.9 x 3.5 inch (W x D x H )

Product Weight Single Console : 45 lbs / 20.5 kgs
KVM Integration : 47 lbs / 21.5 kgs
Regulatory Approval
  FCC , CE, RoHS Compliant
    Dimension


*click on above pictures for enlarged view

     Construction


*click on above pictures for enlarged view

  Product Sheet
Download Product Sheet
  User Manual
Download User Manual
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

   Free Ground Shipping   Click for details

MORE PHOTOS :



Port Type KVM Version No. of Port Cascade Capacity No. of Console Download User Manual
DB-15 KVM ( 1 x Active User )
DB-15 PS2 KVM 8 Up to 8 level 1 x Local Console Download User Manual
DB-15 Combo USB PS2 KVM 8 / 16 Up to 8 level 1 x Local Console Download User Manual
DB-15 Combo USB PS2 KVM 8 / 16 Up to 8 level 1 x Local + 1 x Remote Console Download User Manual
DB-15 Combo USB PS2 KVM 8 / 16 Up to 8 level 1 x Local + 1 x IP Console Download User Manual
Cat6 KVM ( 1 x Active User )
Cat6 Combo USB/PS2/DVI 8/16/32 Up to 8 level 1 x Local Console Download User Manual
Cat6 Combo USB/PS2/DVI 8/16/32 Up to 8 level 1 x Local + 1 x Remote Console Download User Manual
Cat6 Combo USB/PS2/DVI 8/16/32 Up to 8 level 1 x Local + 1 x IP Console Download User Manual
Matrix KVM ( Up to 4 x Active Users )
DB-15 Matrix USB PS2 KVM 8 / 16 Up to 8 level 1 x Local + (1, 2 or 3) x Remote Console Download User Manual
DB-15 Matrix USB PS2 KVM 8 / 16 Up to 8 level 1 x Local + 1 x Remote + 1 x IP Console
1 x Local + 2 x Remote + 1 x IP Console
1 x Local + 1 x Remote + 2 x IP Console
Download User Manual
Cat6 Matrix USB PS2 KVM 16/32 Up to 8 level 1 x Local + (1, 2 or 3) x Remote Console Download User Manual
Cat6 Matrix IP KVM 16/32 Up to 8 level 1 x Local + 1 x Remote + 1 x IP Console
1 x Local + 2 x Remote + 1 x IP Console
1 x Local + 1 x Remote + 2 x IP Console
Download User Manual
DVI-D KVM ( 1 x Active User )
DVI-D USB & Audio KVM 12 1 level 1 x Local Console Download User Manual
USB hub KVM ( 1 x Active User )
DB-15 USB hub KVM 8 / 16 1 level 1 x Local Console Download User Manual
DB-15 USB hub KVM 8 / 16 1 level 1 x Local + 1 x Remote Console Download User Manual
DB-15 USB hub KVM 8 / 16 1 level 1 x Local + 1 x IP Console Download User Manual

Back to top

Optional Peripheral & Accessory
- Touch screen - S-Video + Composite Video (BNC or RCA) / DVI-D
- Cable and Dongle - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan



ORDERING INFORMATION FOR  LCD2U19-02  - SHORT DEPTH Dual Slide 2U SAMSUNG 19" LCD
                                                                                            RACK CONSOLE


Regular Keyboard MAC Keyboard SUN Keyboard
 NO KVM ( Single Port ) ** with Built-in Combo  PS2 & USB interface
KVM port  KVM Support  Keyboard Type Part # Description
0 Single Port forDB-15 PS2
connection with built-in Combo PS2 / USBInterface
Notebook KB w/ Touchpad  LCD2U19-02-n
Price : $894
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Combo PS2/USb interface &  1 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-b
Price : $894
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball & Combo PS2/USb interface &  1 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
0 Single Port forDB-15 USB
connection with built-in Combo PS2 / USBInterface
Notebook KB w/ Touchpad  LCD2U19-02-n-u
Price: $894
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Combo PS2/USb interface &  1 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-b-u
Price: $894
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball & Combo PS2/USb interface &  1 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-c-u
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Combo PS2/USb interface & 1 x 6-ft 4-in-1 Combo KVM cable
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
                                                  DVI-D KVM ( Local console  DVI-D KVM)
KVM port  KVM Support  Keyboard Type Part # Description
12 Port  KVM Switch Local consoleDVI-D
12 Port
KVMSwitch
Notebook KB w/ Touchpad  LCD2U19-02-12DVI-n
Price: $1671
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console DVI-D 12 port KVM switch  & 6 x 6-ft DVI-D KVM cable
Notebook KB w/ Trackball LCD2U19-02-12DVI-b
Price: $1671
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console DVI-D 12 port KVM switch  & 6 x 6-ft DVI-D KVM cable
                                                  DB-15 KVM ( Local console  DB-15 KVM)
KVM port  KVM Support  Keyboard Type Part # Description
8 Port  KVMSwitch Local consoleDB-15
8 Port  PS2
KVM Switch
Notebook KB w/ Touchpad  LCD2U19-02-8KVM-n
Price: $1173
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS/2 KVM cable
Notebook KB w/ Trackball LCD2U19-02-8KVM-b
Price: $1173
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console DB-15 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS/2 KVM cable
Cherry KB w/ Trackball LCD2U19-02-8KVM-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball &  Local console DB-15 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS/2 KVM cable
8 Port  KVMSwitch Local console DB-15
8 Port  COMBO USB/PS2 KVMS
Switch
Notebook KB w/ Touchpad  LCD2U19-02-8KVM-n-u
Price: $1254
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port COMBO USB/PS2 KVMSswitch  & 8 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-8KVM-b-u
Price: $1254
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console DB-15 8 port COMBO USB/PS2 KVMSswitch  & 8 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-8KVM-c-u
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball &  Local console DB-15 8 port COMBO USB/PS2 KVMSswitch  & 8 x 6-ft 4-in-1 Combo KVM cable
16 Port  KVM Switch Single console DB-15
16 Port  COMBO USB/PS2 KVMS
Switch
Notebook KB w/ Touchpad  LCD2U19-02-16KVM-n-u
Price: $1443
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port COMBO USB/PS2 KVMSswitch  & Local console 16 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-16KVM-b-u
Price: $1443
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console DB-15 16 port COMBO USB/PS2 KVMSswitch  & 16 x 6-ft 4-in-1 Combo KVM cable
Cherry  KB w/ Trackball LCD2U19-02-16KVM-c-u
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball &  Local console DB-15 16 port COMBO USB/PS2 KVMSswitch  & 16 x 6-ft 4-in-1 Combo KVM cable
                     High Density CAT6  KVM ( Local console CAT6 KVM)  ** with Built-in Combo  PS2 & USB interface
KVM port  KVM Support  Keyboard Type Part # Description
8 Port  KVMSwitch Local console High Density  8 Port  CAT5 KVMSwitch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad  LCD2U19-02-U8KVM-n
Price: $1230
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (Optional PS2 / USB donglesDetails-> )
Notebook KB w/ Trackball LCD2U19-02-U8KVM-b
Price: $1230
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console 8 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (Optional PS2 / USB donglesDetails-> )
16 Port  KVM Switch Local console High Density  16 Port  CAT5 KVMSwitch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad  LCD2U19-02-U16KVM-n
Price: $1308
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (Optional PS2 / USB donglesDetails-> )
Notebook KB w/ Trackball LCD2U19-02-U16KVM-b
Price: $1308
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface  (Optional PS2 / USB donglesDetails-> )
Cherry KB w/ Trackball LCD2U19-02-U16KVM-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface(*PS2 /USB Dongles are optionalDetails-> )
32 Port  KVM Switch Local console High Density   32 Port  High Density High Density CAT5 KVM Switch with built-in Combo PS2 / USBInterface Notebook KB w/ Touchpad  LCD2U19-02-U32KVM-n
Price: $1501
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (Optional PS2 / USB donglesDetails-> )
Notebook KB w/ Trackball LCD2U19-02-U32KVM-b
Price: $1501
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (Optional PS2 / USB donglesDetails-> )
Cherry KB w/ Trackball LCD2U19-02-U32KVM-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball &  Local console 16 port High Density CAT5 KVM switch with Combo PS2 & USB Interface (*PS2 /USB Dongles are optionalDetails-> )
 2 Console KVM (  Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote  DB-15 KVM )
KVM port  KVM Support  Keyboard Type Part # Description
8 Port  KVMSwitch 2 Consoles ( Local + Remote console ) DB-158 Port  Combo KVM Switch Notebook KB w/ Touchpad  LCD2U19-02-8KVM2-n
Price: $1468
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15  CAT5 up to 500ft away w/ 8 ports Combo KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-8KVM2-b
Price:$1468
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local + Remote console DB-15  CAT5 up to 500ft away w/ 8 ports Combo KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-8KVM2-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15  CAT5 up to 500ft away w/ 8 ports Combo KVM switch  & 8 x 6-ft 4-in-1 Combo KVM cable
16 Port  KVM Switch 2 Consoles ( Local + Remote console ) DB-158 Port  COMBO USB/PS2 KVMSSwitch


Notebook KB w/ Touchpad  LCD2U19-02-16KVM2-n
Price:$1657
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15  CAT5 up to 500ft away w/ 16 ports Combo KVM switch  & 16 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-16KVM2-b
Price:$1657
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local + Remote console DB-15  CAT5 up to 500ft away w/ 16 ports Combo KVM switch  & 16x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-16KVM2-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15  CAT5 up to 500ft away w/ 16 ports Combo KVM switch  & 16x 6-ft 4-in-1 Combo KVM cable
8 Port  KVMSwitch 2 Consoles ( Local + IP console ) DB-15 8 Port  Combo KVM Over IPSwitch Notebook KB w/ Touchpad  LCD2U19-02-8KVM2IP-n
Price:$1618
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15  8 port KVM Over IP switch  w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-8KVM2IP-b
Price:$1618
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local + Remote console DB-15  8 port KVM Over IP switch  w/ Combo USB/PS2 interface  & 8 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-8KVM2IP-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15  8 port KVM Over IP switch  w/ Combo USB/PS2 interface & 8 x 6-ft 4-in-1 Combo KVM cable
16 Port  KVM Switch 2 Consoles ( Local + IP console ) DB-15 16 Port  Combo KVM Over IPSwitch

Notebook KB w/ Touchpad  LCD2U19-02-16KVM2IP-n
Price:$1807
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & Local + Remote console DB-15  16 port KVM Over IP switch  w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
Notebook KB w/ Trackball LCD2U19-02-16KVM2IP-b
Price:$1807
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  Local + Remote console DB-15  16 port KVM Over IP switch  w/ Combo USB/PS2 interface  & 16 x 6-ft 4-in-1 Combo KVM cable
Cherry KB w/ Trackball LCD2U19-02-16KVM2IP-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & Local + Remote console DB-15  16 port KVM Over IP switch  w/ Combo USB/PS2 interface & 16 x 6-ft 4-in-1 Combo KVM cable
High Density CAT6 KVM ( 2 Consoles, Local & Remote CAT6 KVM ) ** with Built-in Combo PS2 & USB interface
KVM port  KVM Support  Keyboard Type Part # Description
8 Port  KVMSwitch 2 Consoles ( Local + Remote  console ) High Density 8 Port  CAT5 KVMSwitch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad  LCD2U19-02-U8KVM2-n
Price: $1444
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U8KVM2-b
Price:$1444
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local + Remote) with 8 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
16 Port  KVM Switch  2 Consoles ( Local + Remote  console ) High Density 16 Port  CAT5 KVMSwitch with built-in Combo PS2 / USB Interface  Notebook KB w/ Touchpad  LCD2U19-02-U16KVM2-n
Price: $1523
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U16KVM2-b
Price:$1523
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Cherry KB w/ Trackball LCD2U19-02-U16KVM2-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 16 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (*PS2 /USB Dongles are optional Details-> )
32 Port  KVM Switch 2 Consoles ( Local + Remote  console ) High Density 32 Port  High Density CAT.5 KVMSwitch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad  LCD2U19-02-U32KVM2-n
Price:$1715
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U32KVM2-b
Price:$1715
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface  (Optional PS2 / USB dongles Details-> )
Cherry KB w/ Trackball LCD2U19-02-U32KVM2-c
Call for Pricing
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) with 32 port High Density CAT.5 KVM switch in Combo PS2 & USB Interface   (*PS2 /USB Dongles are optional Details-> )
8 Port  KVMSwitch 2 Consoles ( Local + IP console ) High Density
8 Port  CAT5 KVM Over IP
Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad  LCD2U19-02-U8KVM2IP-n
Price:$1594
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U8KVM2IP-b
Price:$1594
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local +IP) with 8 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
16 Port  KVM Switch 2 Consoles ( Local + IP console ) High Density
16 Port  CAT5 KVM Over IP
Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad  LCD2U19-02-U16KVM2IP-n
Price:$1673
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U16KVM2IP-b
Price:$1673
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Cherry KB w/ Trackball LCD2U19-02-U16KVM2IP-c
Price:$coming soon
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local +IP) with 16 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (*PS2 /USB Dongles are optional Details-> )
32 Port  KVM Switch 2 Consoles ( Local + IP console ) High Density
32 Port  CAT5 KVM Over IP
Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad  LCD2U19-02-U32KVM2IP-n
Price:$1865
Short Depth 2U 19" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (Optional PS2 / USB dongles Details-> )
Notebook KB w/ Trackball LCD2U19-02-U32KVM2IP-b
Price:$1865
Short Depth 2U 19" Samsung Panel w/ Notebook KB & trackball &  2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface  (Optional PS2 / USB dongles Details-> )
Cherry KB w/ Trackball LCD2U19-02-U32KVM2IP-c
Price:$coming soon
Short Depth 2U 19" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local +IP) with 32 port High Density CAT.5 KVM Over IP switch in Combo PS2 & USB Interface   (*PS2 /USB Dongles are optional Details-> )
DB-15 Matrix KVM
KVM Port  KVM Console  Keyboard Type Part # Description
Matrix DB-15 8 Port  KVM Switch 2 console
(1x Local + 1x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M82-n
Price: $1937
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
2 console
(1x Local + 1x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M82-b
Price: $1937
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
3 console
(1x Local + 2x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M83-n
Price: $2151
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
3 console
(1x Local + 2x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M83-b
Price: $2151
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 3x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M84-n
Price: $2365
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 3x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M84-b
Price: $2365
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
Matrix DB-15 16 Port  KVM Switch 2 console
(1x Local + 1x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M162-n
Price: $2323
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
2 console
(1x Local + 1x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M162-b
Price: $2323
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
3 console
(1x Local + 2x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M163-n
Price: $2537
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
3 console
(1x Local + 2x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M163-b
Price: $2537
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 3x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M164-n
Price: $2751
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 3x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M164-b
Price: $2751
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
 DB-15 Matrix KVM With IP Remote
KVM Port  KVM Console  Keyboard Type Part # Description
Matrix DB-15 8 Port  KVM Switch 3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M83IP-n
Price: $2301
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M83IP-b
Price: $2301
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M84IP-n
Price: $2515
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M84IP-b
Price: $2515
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M84IP2-n
Price: $2665
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M84IP2-b
Price: $2665
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
Matrix DB-15 16 Port  KVM Switch 3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M163IP-n
Price: $2687
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M163IP-b
Price: $2687
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M164IP-n
Price: $2901
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-M164IP-b
Price: $2901
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-M164IP2-n
Price: $3051
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)
104 KB wTrackBall  & Numeric Keypad LCD2U19-02-M164IP2-b
Price: $3051
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
CAT6 Matrix KVM
KVM Port  KVM Console  Keyboard Type Part # Description
Matrix CAT6 16 Port  KVMSwitch 2 console
(1x Local + 1x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU162-n
Price: $1865
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
2 console
(1x Local + 1x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU162-b
Price: $1865
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 2x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU163-n
Price: $2080
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 2x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU163-b
Price: $2080
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 3x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU164-n
Price: $2294
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 3x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU164-b
Price: $2294
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
Matrix CAT6 32 Port  KVMSwitch 2 console
(1x Local + 1x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU322-n
Price: $2151
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
2 console
(1x Local + 1x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU322-b
Price: $2151
2U 19" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 2x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU323-n
Price: $2365
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 2x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU323-b
Price: $2365
2U 19" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 3x Remote)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU324-n
Price: $2580
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 3x Remote)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU324-b
Price: $2580
2U 19" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
 CAT6 Matrix KVM With IP Remote
KVM Port  KVM Console  Keyboard Type Part # Description
Matrix CAT6 16 Port  KVMSwitch 3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU163IP-n
Price: $2230
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU163IP-b
Price: $2230
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU164IP-n
Price: $2444
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU164IP-b
Price: $2444
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU164IP2-n
Price: $2594
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU164IP2-b
Price: $2594
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (Optional PS2/USB dongles), Black Details->
Matrix CAT6 32 Port KVMSwitch 3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU323IP-n
Price: $2515
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
3 console
(1x Local + 1x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU323IP-b
Price: $2515
2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU324IP-n
Price: $2730
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 2x Remote + 1x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU324IP-b
Price: $2730
2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TOUCHPAD  & Numeric Keypad LCD2U19-02-MU324IP2-n
Price: $2880
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
4 console
(1x Local + 1x Remote + 2x IP)
104 KB w/ TrackBall  & Numeric Keypad LCD2U19-02-MU324IP2-b
Price: $2880
2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (Optional PS2/USB dongles), Black Details->
Optional Video/Audio Inputs
-DVI
Price : $65
Add DVI-D Input
-HDMI
Price : $114
Add HDMI Input with built in Speaker
-AV3.0
Price : $171
With combo + HDMI w/ speaker
-BNC
Price : $114
Add Composite Video(BNC) + S-video
-AV
Price : $114
Add Composite video(BNC with RCA adapter) + S-video
-SPK
Price : $114
Add speaker input
-SDI
Price : $486
With combo + SDI w/ speaker
Optional Touch screen
-TRS
Price : $271
Add Resistive touchscreen + Serial controller **The OSD membrane, Keyboard and mounting brackets will then be different. Please contact us for details.
-TRB
Price : $271
Add Resistive touchscreen + USB controller
-TCS
Price : $457
Add Capacitive touchscreen + Serial controller
-TCB
Price : $457
Add Capacitive touchscreen + USB controller
Optional DC Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply






Availability: Usually ships in 2-3 business days

LCD2U19-02 $894.00


MODEL:
Single Console( local ): Single Port ( No KVM ), w/ Combo PS2 & USB :

Single Console( local ): DB-15 8/16 port PS/2 OR Combo KVM :

Single Console( local ): High Density 16/32 port RJ-45 Cat5 KVM w/ Combo PS2 & USB :

2 Consoles (Local + Remote): DB-15 8/16 port PS/2 & USB Cat.5 KVM :

2 Consoles (Local + Remote): DB-15 8/16 port Combo PS/2 & USB KVM Over IP:

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM w/ Combo PS2 & USB :

2 Consoles (Local + Remote): High Density 16/32 port RJ-45 Cat.5 KVM Over IP w/ Combo PS2 & USB:


OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

HDMI Input :

DVI-D Input :

AV3.0 Input :

SDI Input :

SPK Input :

DC Input Power Adapter (the depth will be 530mm/20.9inches):

Touch Screen :







     For more information, please visit our company web site at
    http://www.rackmountmart.com/




Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.



 Copyright 2002-2017 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
