Click to enlargeLCDR3U5-01 Triple 5" Rack Mounted Full Color Active Matrix LCD Panel - NTSC








*** This model is discontinued. Learn more about replacement model LCDR3U5-02  ***




     Triple 5" Rack Mounted Full Color Active Matrix LCD Panel - NTSC






x 5" LCD panels

Display

5" LCD Panels x 3

Display Area

4.75" x 2.95"

Resolutions

960 H x 234 V

Pixel pitch

0.107mm  x 0.320mm

Brightness

350 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 2 (6 ) Composite ,
 1 (3) VA ( 640 x 80 )

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.125" (W) x5.14" (H)  x2.5 " (D)

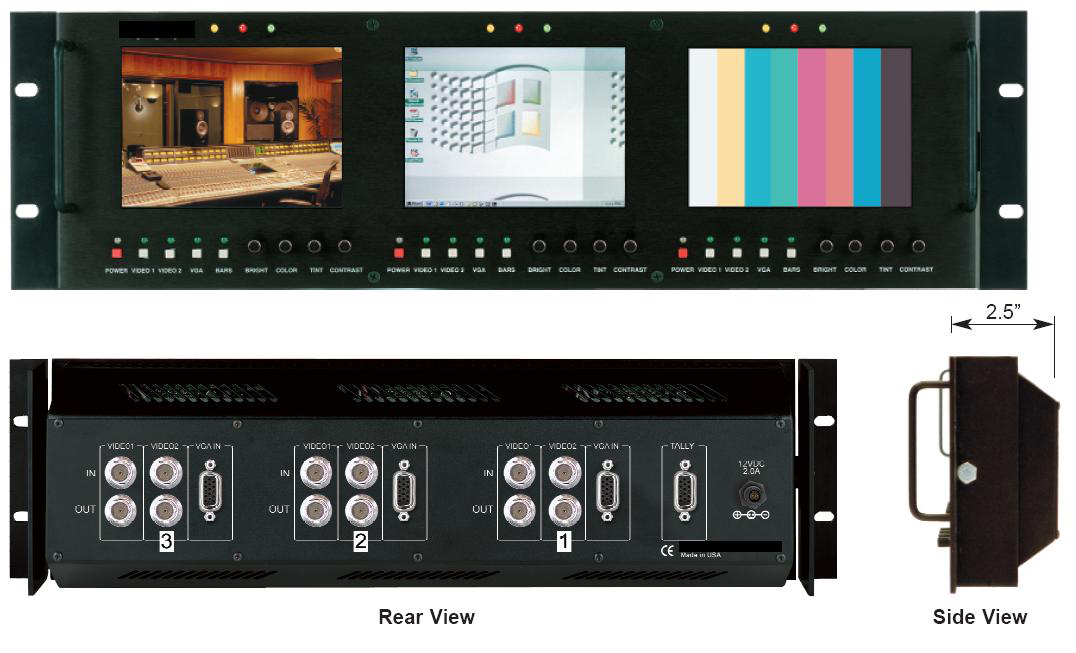

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution, 960 x 234 pixels, 224,640 total
  • Ultra bright 350 candle luminance
  • Two composite video inputs per monitor with active loop through
    feature and automatic 75W termination
  • Low power consumption and heat dissipation for mobile
    applications
  • NTSC/PAL auto recognition
  • Three color, self-powered tally system provided for each panel
  • VGA inputs for computer multi media monitoring (640 x 480)
  • Individual color, tint, brightness and contrast controls for each
    panel
  • Built-in Color Bar Generator
  • Unique 180 degree tilt adjustment while mounted in rack
  • MADE IN USA



Description :

The LCDR3U5-01 is a rack mounted unit that has three independently controlled 5" active matrix LCD panels with active loop through feature. These 5" panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack, 3U high. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. Each screen has two composite video inputs and outputs, and a VGA input for computer monitoring. The unit includes power supply and manual.





Ordering  information


Part Number  Description
LCDR3U5-01  3U Rackmount 3 x 5"  LCD Monitor Panel










LCDR3U5-01
