LCDR3U5.8-01-SDI Triple 5.8" Wide Screen Rack Mounted Full Color Active Matrix LCD Panel w/ 3 Composite Video  3 SDI Inputs and 3 built-in 10-bit D/A Converters

Triple 5.8" Wide Screen Rack Mounted Full Color Active Matrix LCD Panel w/ 3 Composite Video  3 SDI Inputs and 3 built-in 10-bit D/A Converters


Panel:  3 x 5.8" LCD panels

Display

5.8" LCD Panels x 3

Display Area

5.01" x 2.83"

Resolutions

1200 H x 234 V

Pixel pitch

0.318mm  x 0.307mm

Brightness

350 cd/m2

System

NTSC / PAL config. switch

Input per  panel (total)

 1 ( 3 ) Composite, 1 (3) SDI

Approx.  weight

5 lbs

Power Consumption

9 VDC , 3.0 Amps

Product Dimension


19.125" (W) x 5.14" (H)  x2.5 " (D)

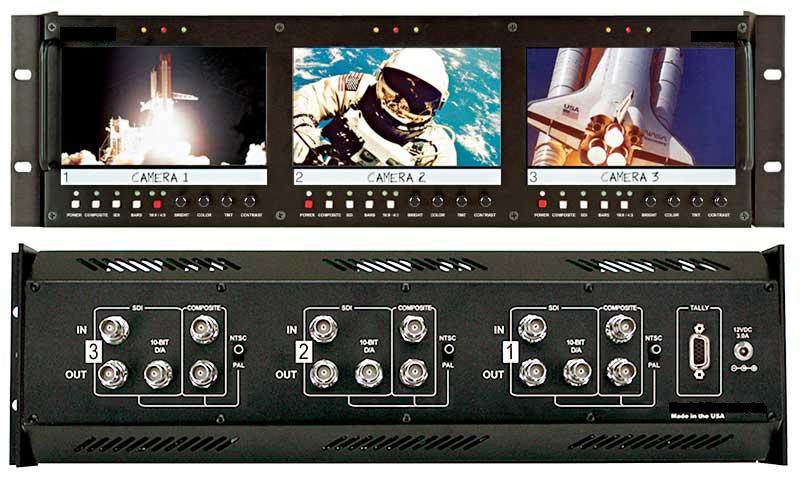

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution LCD panel, 1200 x 234 pixels, 280,800 total
  • Ultra bright 350 candle luminance
  • Switchable 4:3 and 16:9 ratios
  • Two inputs per monitor: Composite Video and SDI (SMPTE
    259M)
  • 3 High Resolution 10-bit SDI to composite video converters
    (one per channel)
  • NTSC/PAL switchable via switch on rear of the unit
  • SDI active loop through has active clock recovery with
    automatic 75 W termination
  • Three color, self-powered tally system provided for each panel
  • Individual color, tint, brightness and contrast controls for each
    panel
  • Built-in memory saves current setup when unit is powered
    down
  • Built-in Color Bar Generator
  • Unique 100 degree tilt adjustment while mounted in rack
  • MADE IN USA



Description :

The LCDR3U5.8-01-SDI  is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance. Each panel has an SDI and a composite video input with a NTSC/PAL switch on the back. Each of the three screens has a built-in color bar generator, controls for color, tint, contrast, and brightness, and selectable aspect ratio of 16:9 or 4:3. A built-in 3 color tally system is also provided for each screen. The unit includes power supply, manual and fits into any standard EIA 19" rack, at only 3U high.



Ordering  information


Part Number  Description
LCDR3U5.8-01-SDI  3U Rackmount 3 x 5.8"  Rack mounted LCD  Panel with SDI Inputs









Availability: Usually ships the same business day

LCDR3U5.8-01-SDI $2,968.00
