LCDR3U7-02 3U Dual 7" Wide screen 1.2 TFT MegaPixel Analog Composite PAL / NTSC Monitor Set



 Dual Wide Screen 1.2 TFT MegaPixel Analog Composite PAL / NTSC Monitor Set


Panel: 2 x 7" LCD panels

Display

7" LCD Panels x 2

Display Area

6.14" x 3.27"

Resolutions

800 H x RGB x 480 V

Pixel pitch

0.105mm  x 0.16mm

Brightness

380 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 2  ( 4 ) Composite

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.125" (W) x 5.14" (H)  x2.5 " (D)

   Free Ground Shipping *Click for details

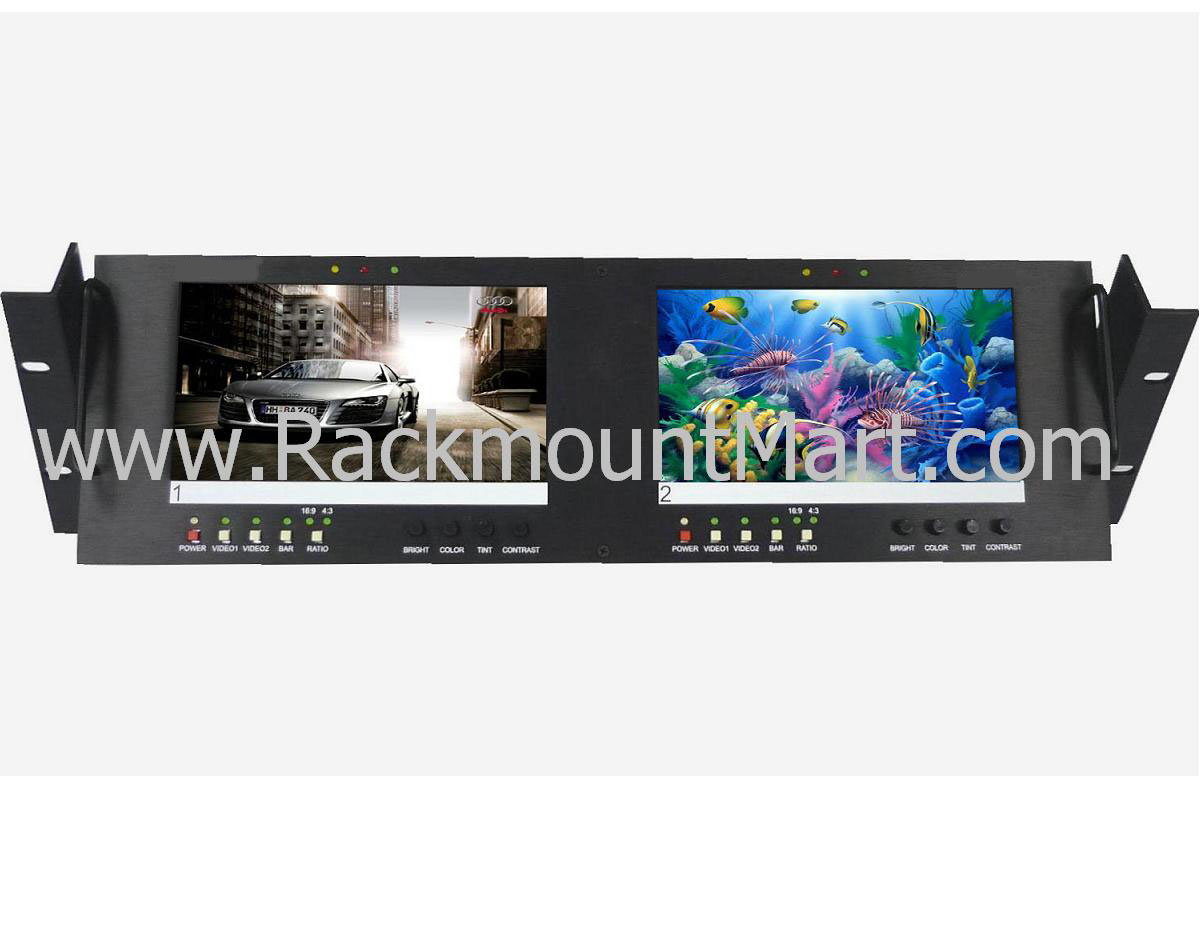

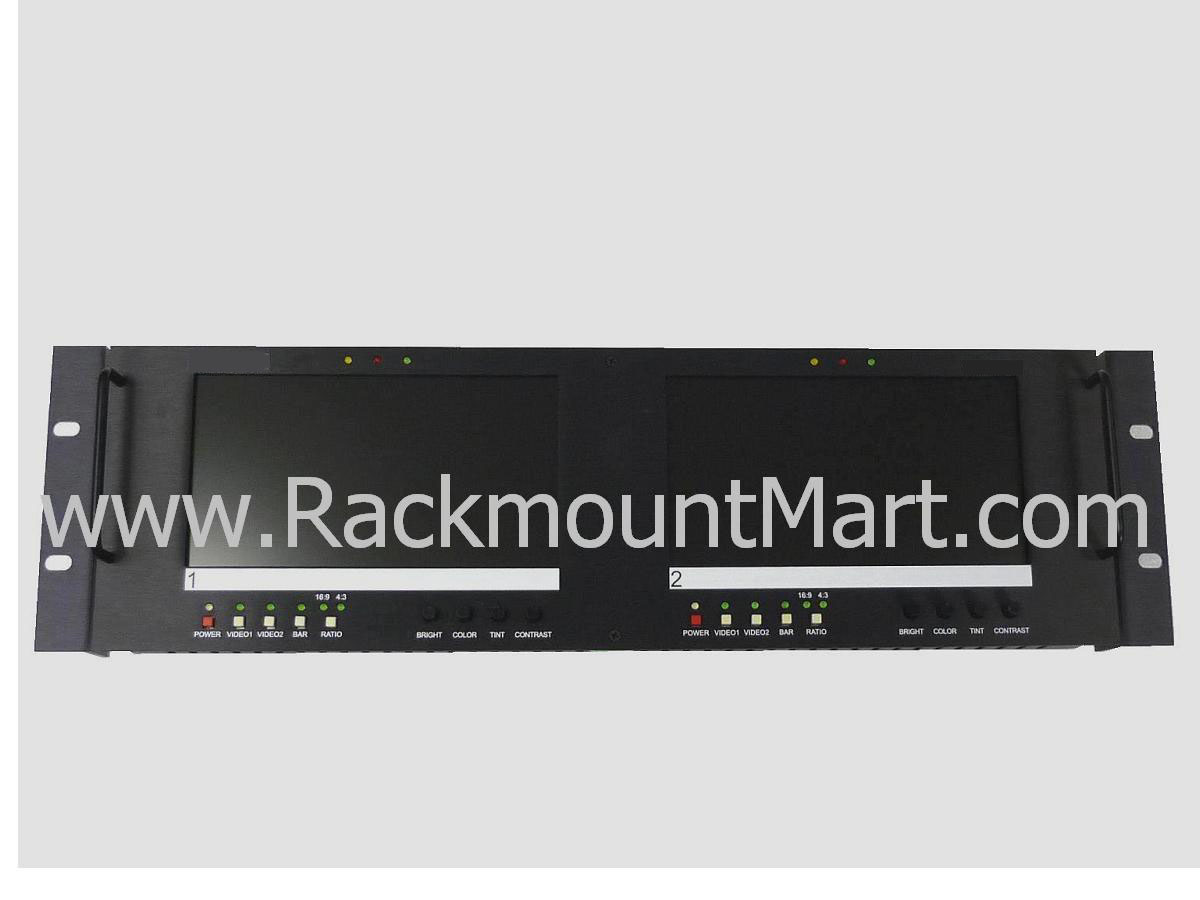

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution 7-inch wide screen
  • 800 x RGB x 480 Dots with 1.2 million pixels
  • 100% digital processing
  • Analog signals converted to 10 bit digital
  • High resolution scaling of all images
  • Wide viewing radius - 130 degree horizontal and 120 degree
    vertical provides superior visibility when the viewer is not
    directly in front of the screen
  • 380 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results in
    excellent quality for moving images
  • 4:3 and 16:9 screen aspect ratios for DTV applications
  • Automatic NTSC/PAL format detection
  • Standard inputs:
    • 2 Composite Video PAL/NTSC per screen
    • Loop through of all inputs signals
  • Easy to see three color tally indicators
  • Built in Color Bars
  • Blue Screen for color adjustment
  • Adjustment Settings Memory
  • MADE IN USA

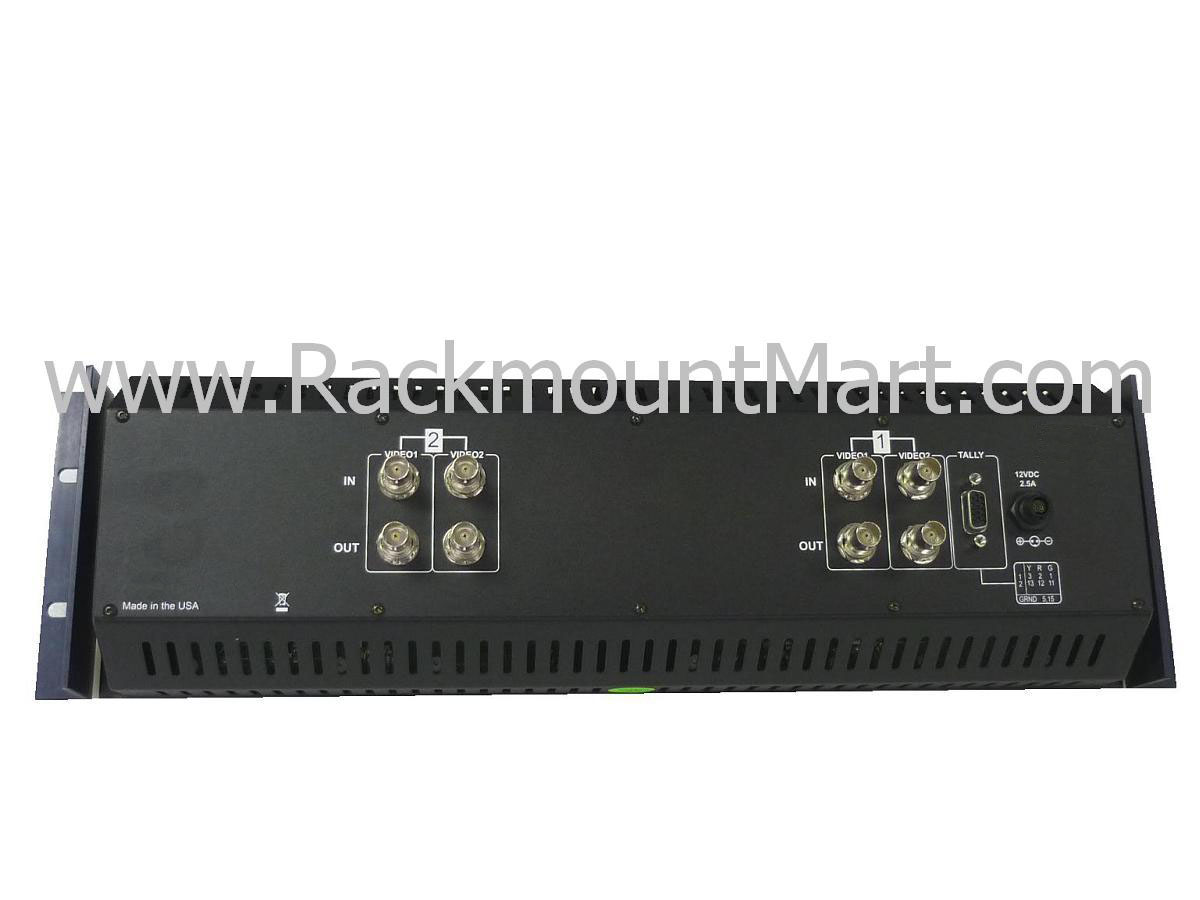

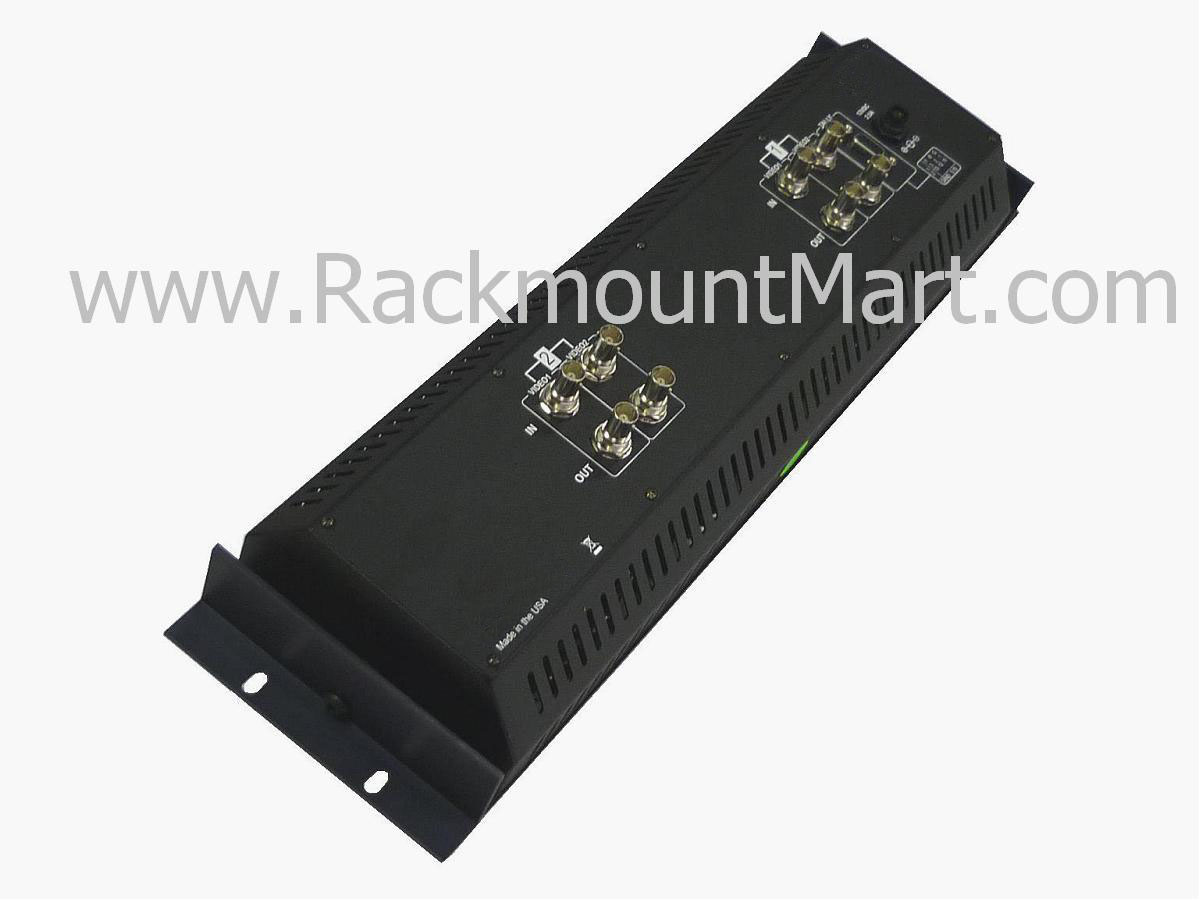

  More photos (click to enlarge )


Description :

The Rack mounted and tiltable LCDR3U7-02  represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications. The LCDR3U7-02 has the highest resolution TFT screens and completely digital signal processing. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.



Ordering  information

Part Number  Description
LCDR3U7-02  3U Rackmount 2 x 7"  Rack mounted LCD  Panel  with 1.2 TFT Megapixel analog composite PAL / NTSC





Availability: Usually ships the same business day

LCDR3U7-02 Regular price: $1,748.00Sale price: $1,648.00
