LCDR3U7-03-AFHD Dual 7 inch Screen Multiformat 1.2 TFT-Megapixel Monitor Set with advanced Function



Display

7" LCD Panels x 2

Display Area

6.14" x 3.27"

Resolutions

800 H x RGB x 480 V

Pixel pitch

0.065mm  x 0.175mm

Brightness

380 cd/m2

System

NTSC/PAL auto recognition for standard definition signals

Input per  panel (total)

1 (2) Composite, 1 (2) S-Video, 1 (2) HDSDI/SDI

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.12" (W) x 5.14" (H)  x2.5 " (D)

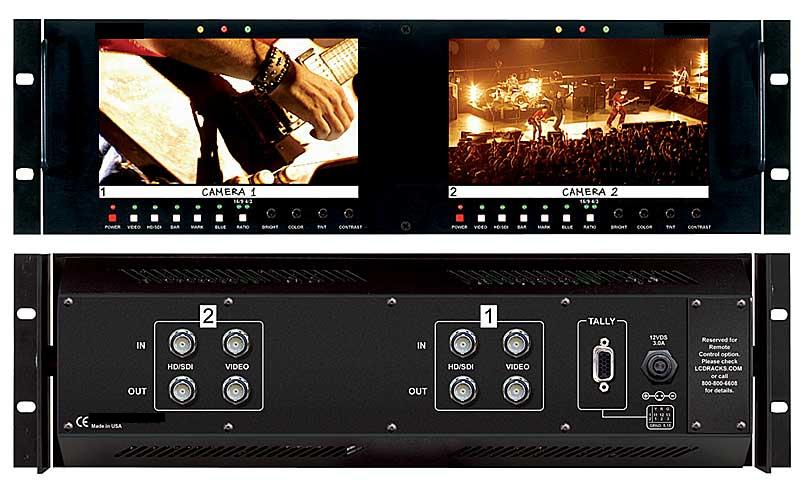

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • Two 7-inch 1.2 MegaPixel wide screens
  • 100% digital processing
  • Analog signals converted to digital
  • High resolution scaling of all images
  • Wide viewing radius - 130 degree horizontal and 120 degree
    vertical provides superior visibility when the viewer is not
    directly in front of the screen
  • 380 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results in
    excellent quality for moving images
  • 4:3 and 16:9 screen aspect ratios for DTV applications in HD
    and SD format
  • Works with all SMPTE/ITU SDI/HDSDI production formats
    and frame rates
  • Blue Gun for color adjustment
  • Standard Digital inputs:
    • HDSDI (all formats)
    • SDI (ITU-R BT601 format)
    • Composite Video PAL/NTSC
    • Loop through of all input signals
  • Zoom function
  • Built in Color Bars
  • 6 Frame Marker Overlays with Center Mark
  • Adjustment Settings Memory
  • Easy to see three color tally indicators
  • Calibrated Color Temperature and Gamma
  • Ready to mount in 19" rack out of the box
  • MADE IN USA



Description :

The Rack mounted and tiltable LCDR3U-7-03-AFHD represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Additional features include, setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions

Application :

  • Studio Monitor Wall
  • Remote/OB Van
  • EFP/ENG
  • Camera Shading
  • Fly Packs



Ordering  information


Part Number  Description
LCDR3U7-03-AFHD 3U Rackmount Dual Screen Multiformat 1.2 TFT-Megapixel monitor set with advanced functions











Availability: Usually ships the same business day

LCDR3U7-03-AFHD $3,558.00
