LCDR6U15-01 6U Rackmount 15"   TFT LCD Monitor optional Composite & S-Video Input & DVI Digital Input /  BNC / NEMA 4 IP65 / TouchScreen / DC input adapter





Part #  LCDR6U15-01


6U Rackmount 15" Industrial Grade A TFT LCD Monitor Panel
Optional S-Video & Composite Video (RCA or BNC )  / DVI  / Touch Screen
Optional DC Input power  / NEMA 4 /  IP65

Panel: Industrial Grade A 15"LCD panels

Display

TFT / LCD active matrix color

Resolutions

1024 x 768

Response time

Tr =2ms / Tf =6ms (Typ.)

Contrast ratio

700 : 1 typical

Brightness

250 cd/ m2 typical

Pixel pitch

0.297mm (H) x 0.297mm (W)

Panel color

16.2 million display colors

Viewing angle

160 (Horiz.) / 130 (Vert.)

Back light

4 CCFTs

Video

Horizontal Synchronization : 48-60 KHz (Max.)
Vertical Synchronization : 60-75 Hz (Max.)

Input Signal : Analog RGB 0.7Vp-p

Power Management

VESA DPMS

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector

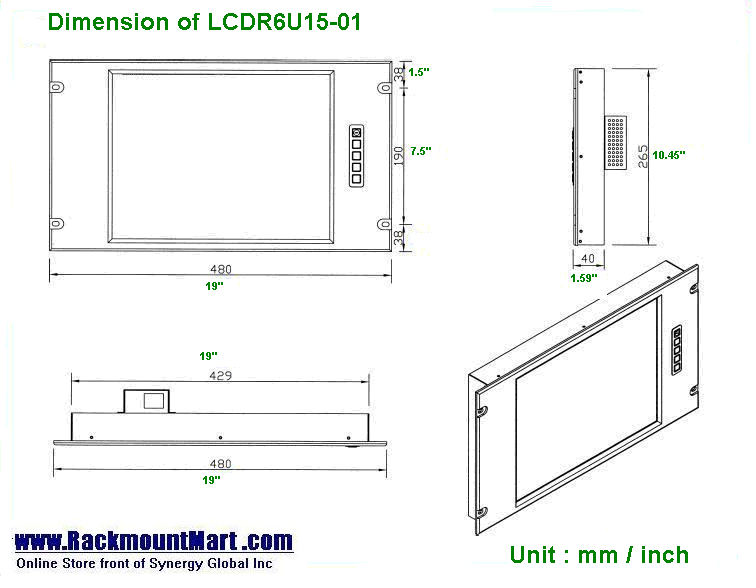

Product Dimension

48(W) x 26.6(H) x 5(D)cm /
18.9" x 10.5" x 2"

   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE

Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, AC to DC Power adapter x 1 , User Manual x 1
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

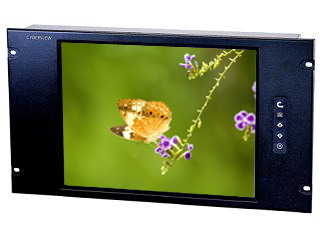

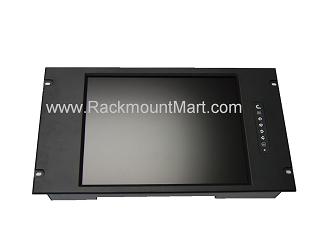

  Front View


                       *click on picture for enlarged view


                *click on  pictures for  enlarged view

 Rear View





Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

Free Ground Shipping *Click for details


Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D
- Touch screen
- DC Power Input ( 12V / 24V / 48V )

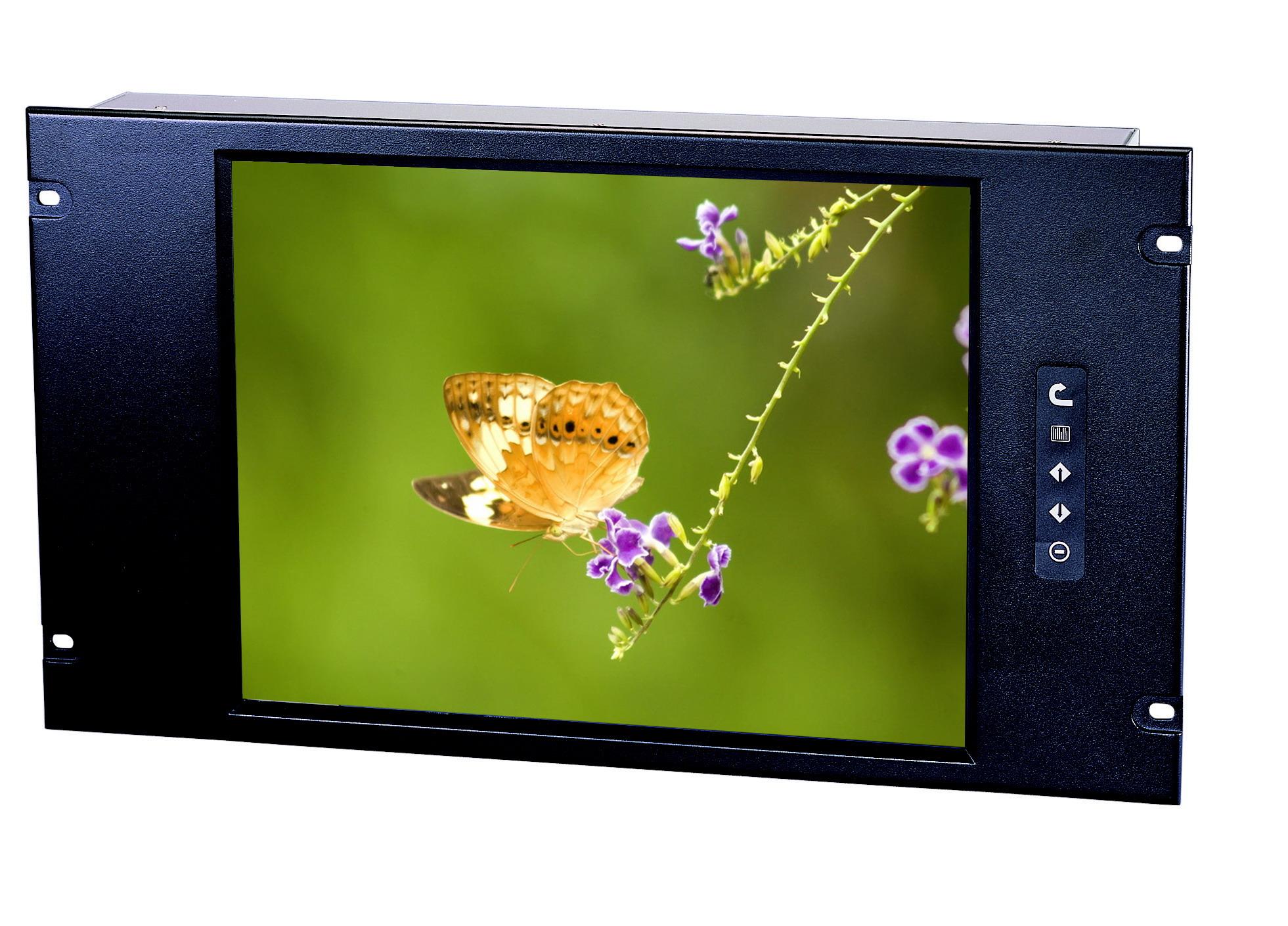

 More photos (click to enlarge )



Features :

  Lower power consumption.
  Styled 6mm aluminum front panel.
  Standard D-sub 15-pin VGA input connector
  Optional IP65/ NEMA sealed front 2mm protective glass for LCD
  Optional DVI Digital Input
  Side to side wide-angle viewing as CRT monitor.
  Supplied with 12V 5A remote power adapter (single power source)
  Built in On Screen Display controlled by integral membrane switches
  Space-saving Extra rack-mounting space from the back of LCD Panel.
  Rugged metal construction, all black cladding is pre-treated and finished in powder coated paint.


Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval :  FC, CE
  • Mains plug options available
  • Optional  48V / 24V / 12V DC input power adapter available

Back to top


Ordering  information

Part Number  Description
LCDR6U15-01
Price : $570
 6U Rackmount 15"   Industrial Grade A TFT LCD Monitor
LCDR6U15-01-AV
Price : $692
 6U Rackmount 15"   Industrial Grade A TFT LCD Monitor with S-Video & Composite Video Input
LCDR6U15-01-DVI
Price : $692
 6U Rackmount 15" Industrial Grade A TFT LCD Monitor with DVI digital Input
LCDR6U15-01-BNC
Price : $692
 6U Rackmount 15" Industrial Grade A TFT LCD Monitor with S-Video & BNC (bayonet Neill- Concelman) connector
LCDR6U15-01-AV-DVI
Price : $798
 6U Rackmount 15"   Industrial Grade A TFT LCD Monitor with S-Video & Composite Video Input and DVI Digital Input
LCDR6U15-01-BNC-DVI
Price : $798
 6U Rackmount 15"   Industrial Grade A TFT LCD Monitor with BNC and DVI Digital Input
Option
-TRB
Price : $216
Add resistive + USB controller Touch Screen
-TRS
Price : $216
Add resistive + serial controller Touch Screen
-TCB
Price : $351
Add capacitive + USB controller Touch Screen
-TCS
Price : $351
Add capacitive + serial controller Touch Screen






Availability: Usually ships the next business day

LCDR6U15-01 $570.00
OPTIONAL FEATURES:

Touch Screen :

NEMA 4 / IP65 :
