* Click on the photos to enlarge |
Features :
- 22" Samsung Wide Format TFT LCD display with
1680
x 1050 resolution.
- Fast Video response time provides sharp text and crisp
motion.
- 16:10 aspect ratio features a widescreen viewing area
- High contrast and wide viewing angle.
- Optional Lexan Shield protection for the display surface.
- Only 2.8" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided.
-Color : Black |
|
 |
Free Ground Shipping
*Click
for details
|

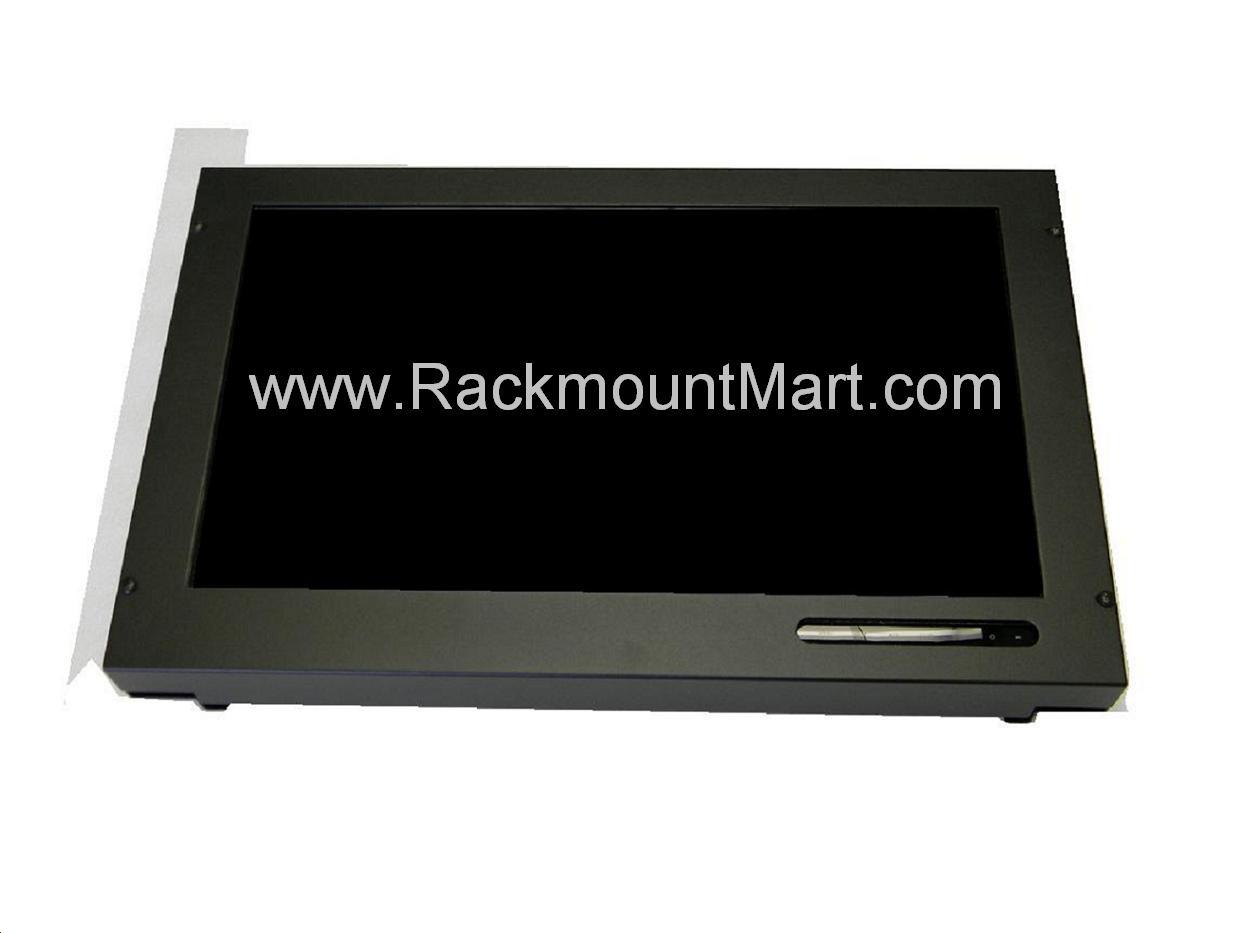

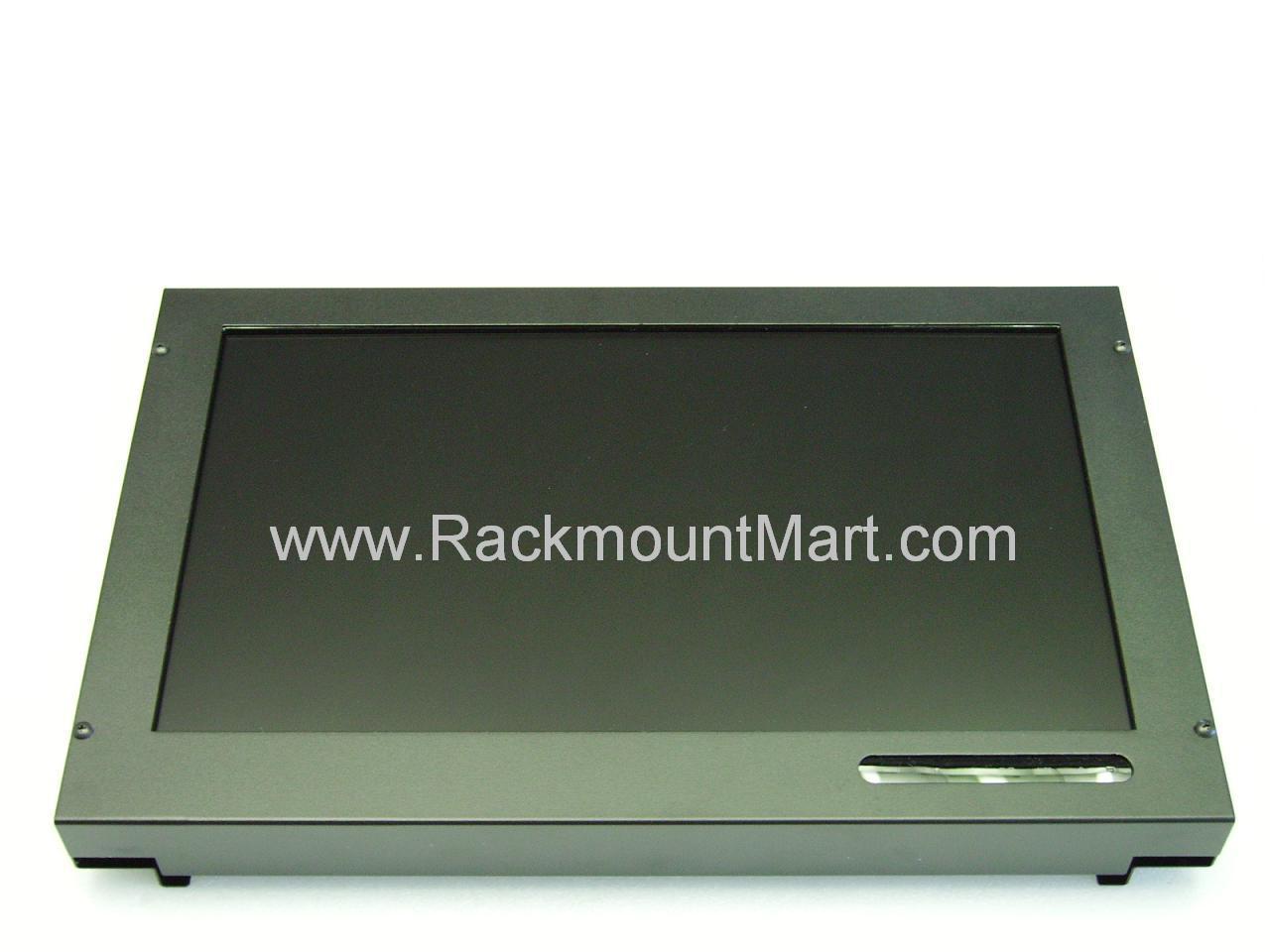

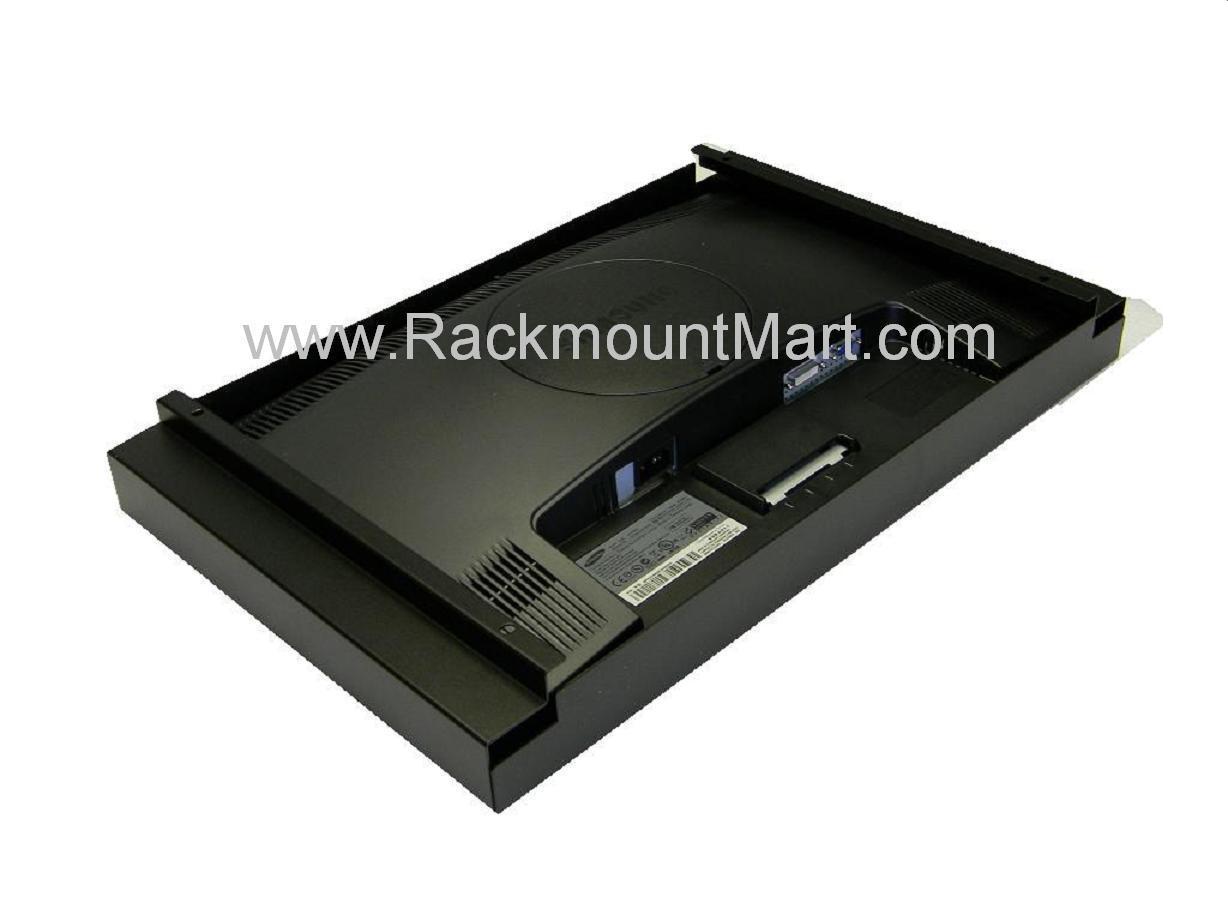

The LCDR8U22-01 rack
mountable 22" Samsung TFT monitor provides a high contrast, wide viewing angle
display in a minimal rack depth. This TFT display connects directly to a
standard video output via a
15-pin VGA connector and does not require any additional drivers or
proprietary interface adapters. Also
featured is a connection to DVI-D digital video devices. Offered in
black with optional display surface Lexan Shield protection. |
|
|
|
|
Dimensions |
22.0" (W) x 14.0" (H)
x 2.8" (D) |
|
Display Type |
22" Samsung viewable, a-si TFT/TN LCD |
|
Resolution |
1680 x 1050 maximum, 16.7M colors. |
|
Pixel Pitch |
.282 mm |
|
Response Time |
5
ms (G to G ). |
|
Brightness |
280 nits typical |
|
Contrast Ratio |
700:1
typical |
|
Viewing Angle |
Horizontal: 160 degrees
Vertical: 160 degrees |
|
Input Signal |
(VGA) Analog RGB ,
(Digital) DVI-D (TMDS) |
|
Syn Type |
Separate H/V , Composite H /V , SOG |
|
Video Connector |
Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D. |
|

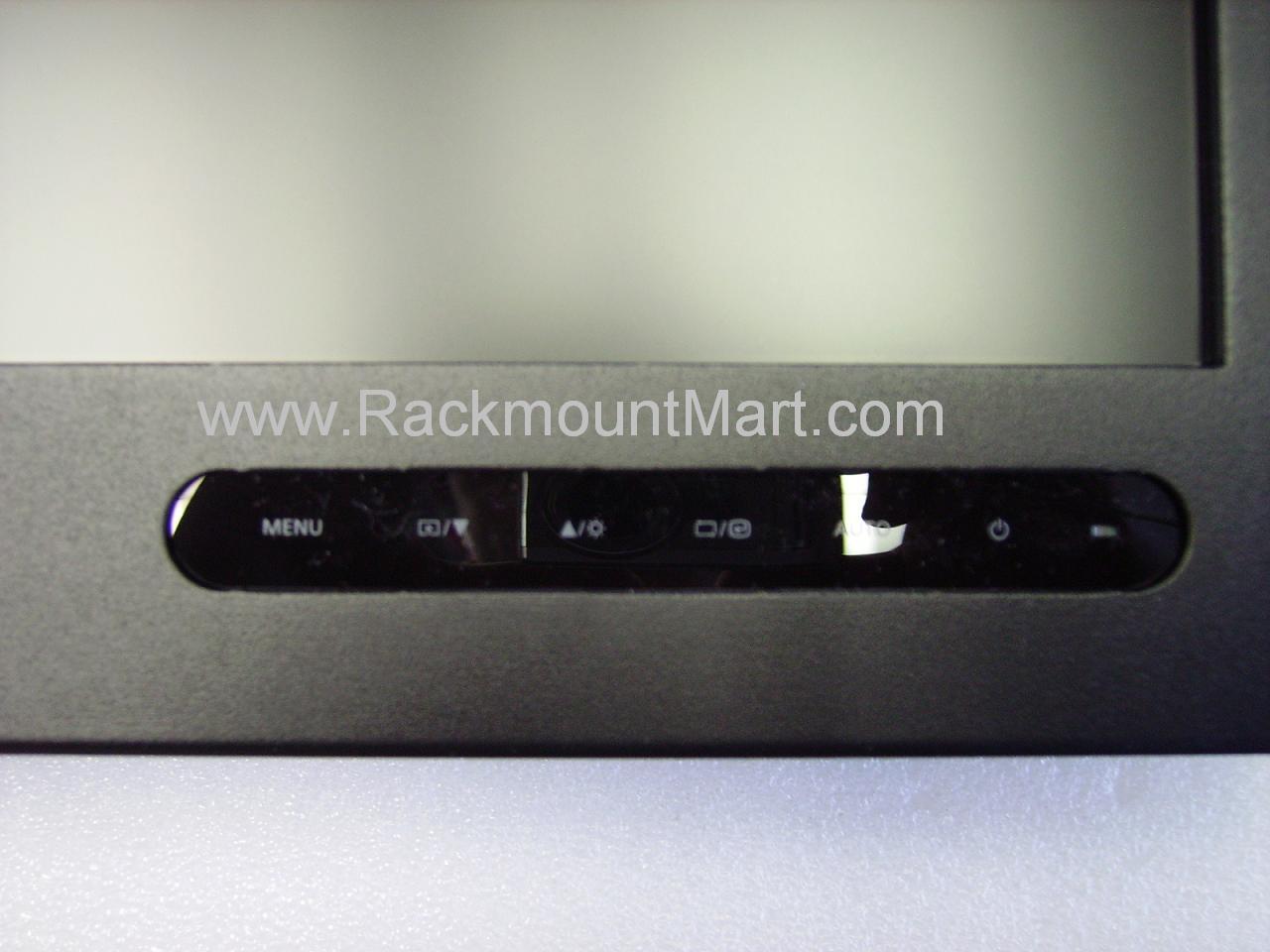

On-Screen Controls |
Brightness, Contrast, Position (Vert. &
Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto
Adjust |
|
Plug & Play |
DDC2B |
|
Power |
AC Input |
100-240VAC |
|
Frequency |
50/60 Hz |
|
Power Consumption |
55
Watts Max |
|
Environment |
| Temperature |
Operating: 10 to 40 degree Celsius
Storage : -20 to 45 degree Celsius |
|
Humidity |
Operating: 10% to 80% RH (max) |
Ordering information
|
Part Number |
Description |
LCDR8U22-01-b
Price : $788
Special Price: $628 |
8U
Rackmount 22" Samsung TFT LCD Monitor , black |
LCDR8U22-01-b-lex
Price : $808
Special Price: $678
| 8U
Rackmount 22" Samsung TFT LCD Monitor , with Lexan Shield protection
at display
, black |
|
|
For more information, please
visit our company web site at
http://www.rackmountmart.com/
