LCD2U17-01-Cat5 2U Dual Slides Rackmount 17" SAMSUNG LCD Monitor Keyboard Drawer with CAT5 KVM for Local / Remote Access

2U Dual Slides Rackmount 17" SAMSUNG LCD Monitor Keyboard Drawer with EITHER
                                                   8 port / 16 port DB-15  CAT5 KVM Switch OR
                                 16 port / 32 port High Density CAT5 KVM for Local / Remote Access

                                   **** Built-in Combo PS/2 & USB interface for selected version ****
Space Saving: Separate Slides for LCD & Keyboard enable viewing through closed glass door of Rack

CAT5 KVM Rack Console LCD2U17-01-CAT5

*click on photo for enlarged view
Update: The touchpad is changed from 3 button to 2 button. For more details, please click here

CAT5 KVM Rack Console Benefits

Rugged 2U 17" SAMSUNG LCD Rack Console
Powerful built in CAT5 KVM /CAT6 KVM with various types:
- KVM Type : Combo KVM (USB PS2 KVM ) / PS2 KVM /
Multi-User Matrix KVM
Secure remote user access across the internet via optional IP console (IP KVM )
Mix PS/2 , USB & SUN with Multi-Platform switch capability
"One Man" installation slides for easy and quick installation
Combo interface either PS/2 or USB input to the rack console
High Scalability : Interchangeable KVM, & Keyboard & mouse modules
Slide rails with fixed positions to prevent drawer movement when typing
Optional S-Video + Composite Video ( BNC or RCA ),
DVI-D, Touch screen , DC Power input, Audio
2 year Warranty

General Information

Form Factor

2U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

LCD Screen

LCD Type

Grade A Industrial monitor 17 inch Active Matrix TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (BNC or RCA ),
DVI-D ...More Video Input Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n

Notebook type KB w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball ...More Keyboard Details

KVM ( Keyboard Video Mouse )

Connector

KVM Version

DB-15

* DB-15 No KVM ( with combo interface)

* DB-15 PS/2 KVM ( 8 or 16 port )

* DB-15 Combo KVM ( USB PS2 KVM )
No. of Console	No of KVM port
1 ( Local only )	8 or 16
2 ( 1 x local + 1 x remote )	8 or 16
2 ( 1 x local + 1 x IP )	8 or 16

* DB-15 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	8 or 16
3 ( 1 x local + 2 x remote )	8 or 16
3 (1x local +1x remote +1x IP )	8 or 16
4 ( 1 x local + 3 x remote )	8 or 16
4 (1x local +1x remote +2x IP )	8 or 16
4 (1x local +2x remote +1x IP )	8 or 16

CAT6

* CAT6 Combo KVM ( USB PS2 KVM )
No. of Console	No. of KVM port
1 ( Local only )	8 or 16 or 32
2 ( 1 x local + 1 x remote )	8 or 16 or 32
2 ( 1 x local + 1 x IP )	8 or 16 or 32

* CAT6 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	16 or 32
3 ( 1 x local + 2 x remote )	16 or 32
3 (1x local +1x remote +1x IP )	16 or 32
4 ( 1 x local + 3 x remote )	16 or 32
4 (1x local +1x remote +2x IP )	16 or 32
4 (1x local +2x remote +1x IP )	16 or 32

Power Supply

Internal Power Supply : 110V - 220 V AC Input , 12V 5A Output

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

(W x D x H )
442 x 600 x 88 mm /17.4 x 23.6 x 3.5 inch

Product Weight

Approximately 40 lbs / 18kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI , 3C*

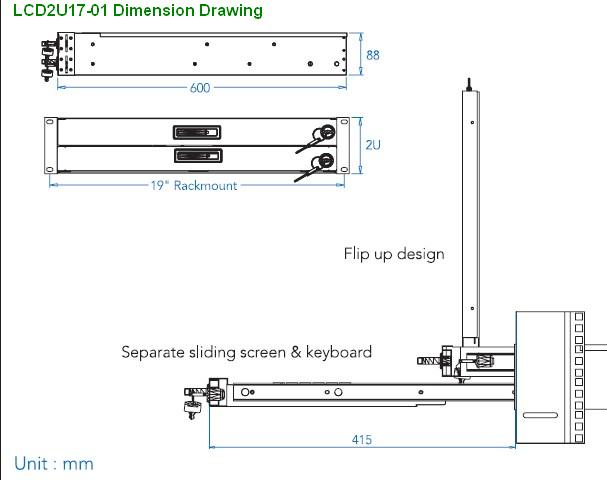

Dimension


      *click on above picture for enlarged views

REAR VIEW & CONNECTION DIAGRAM -
DB-15 CAT5.KVM :

*click on above pictures for enlarged view

High Density RJ-45 CAT5.KVM :

Single Console (Local )	Local + Remote Consoles

click on above pictures for enlarged view

Product Sheet
Product Sheet
User Manual
General User Manual
KVM Support
DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
CAT5 / CAT6 KVM
Cat5 / Cat6 Combo USB PS2 kvm Local console
Cat5 / Cat6 Combo USB PS2 kvm Local + remote console
Cat5 / Cat6 Combo USB PS2 kvm Local + IP console
Matrix KVM
DB-15 Matrix USB PS2 kvm Local + remote console
DB-15 Matrix USB PS2 kvm Local + IP console
Cat5 / Cat6 Matrix USB PS2 kvm Local + remote console
Cat5 / Cat6 Matrix USB PS2 kvm Local + IP console

Optional Peripheral & Accessory

- S-Vdieo + Composite Video (BNC or RCA) / DVI-D

- HDMI

- Touch screen

- DC Power Input ( 12V / 24V / 48V )

- KVM Cables & Cascade Cables in Various Length

- USB & PS/2 Dongles

-PS2 to SUN /iMac USB adapter

- KVM Extender -IP KVM Extender

Free Ground Shipping( A $55 Value) *Click for details

Customer who ordered this product may also order these :

- KVM Switch

- PDU ( Power Distribution Unit )

- Server Rack Cabinet

- Rack Cooling Fan

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 2U
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

2U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
May be fitted into an 800mm deep rack by the use of extended brackets on request
Adjustable mounting brackets from 15.35" to 33.2"(390 to 845 mm) (front to rear 19" mounts). Suitable for 25.61" to 39.4" (650 to 1000mm) deep 19 " rack cabinet
Front access lock for security
For compact keyboard, cushion is ergonomically shaped for wrist support; large padded wrist-rest for "d" & "t" KB
Lightweight aluminum construction -with a black anodize finish
Power saving feature for prolonging the life of LCD panel
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply
